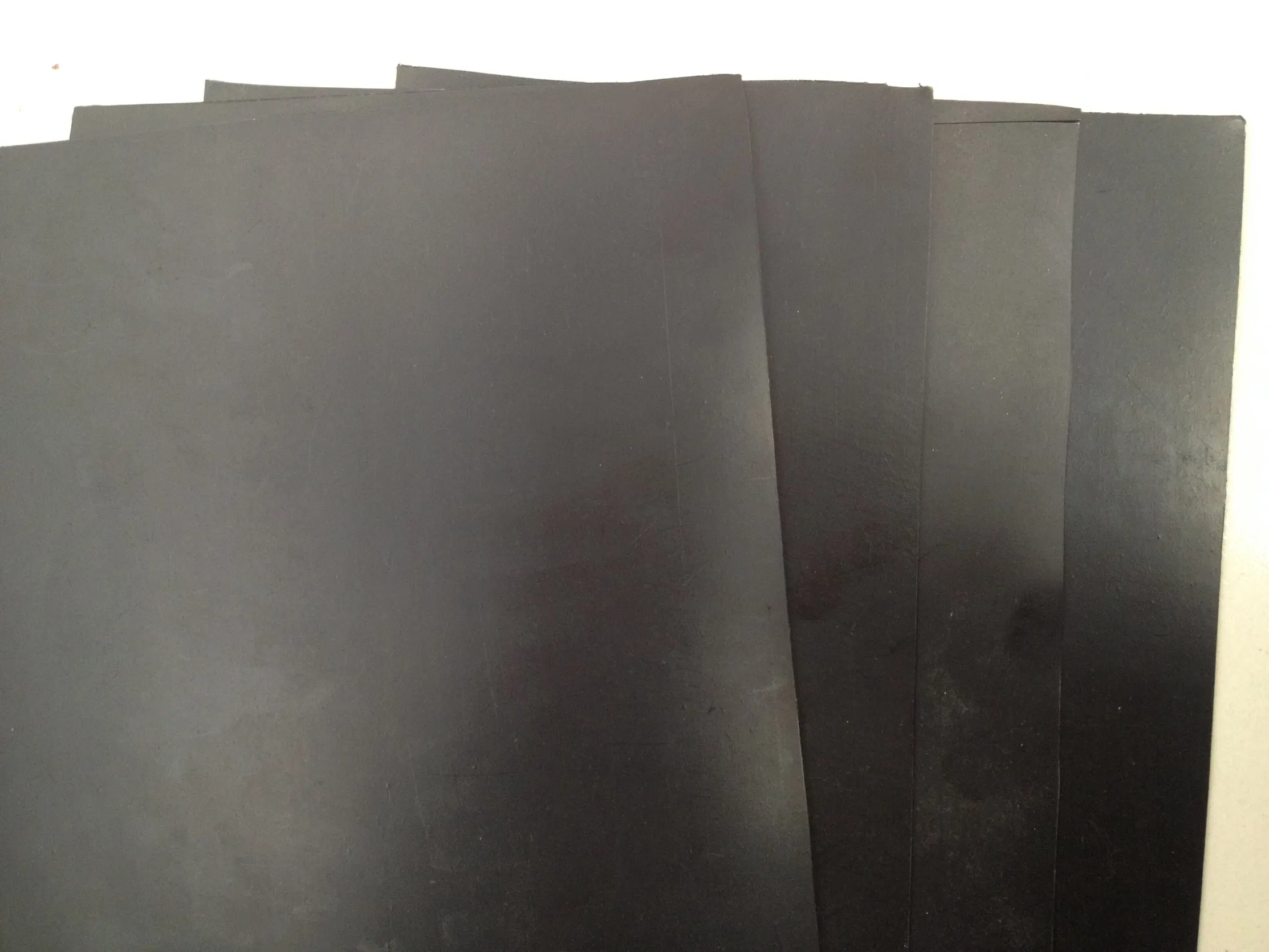

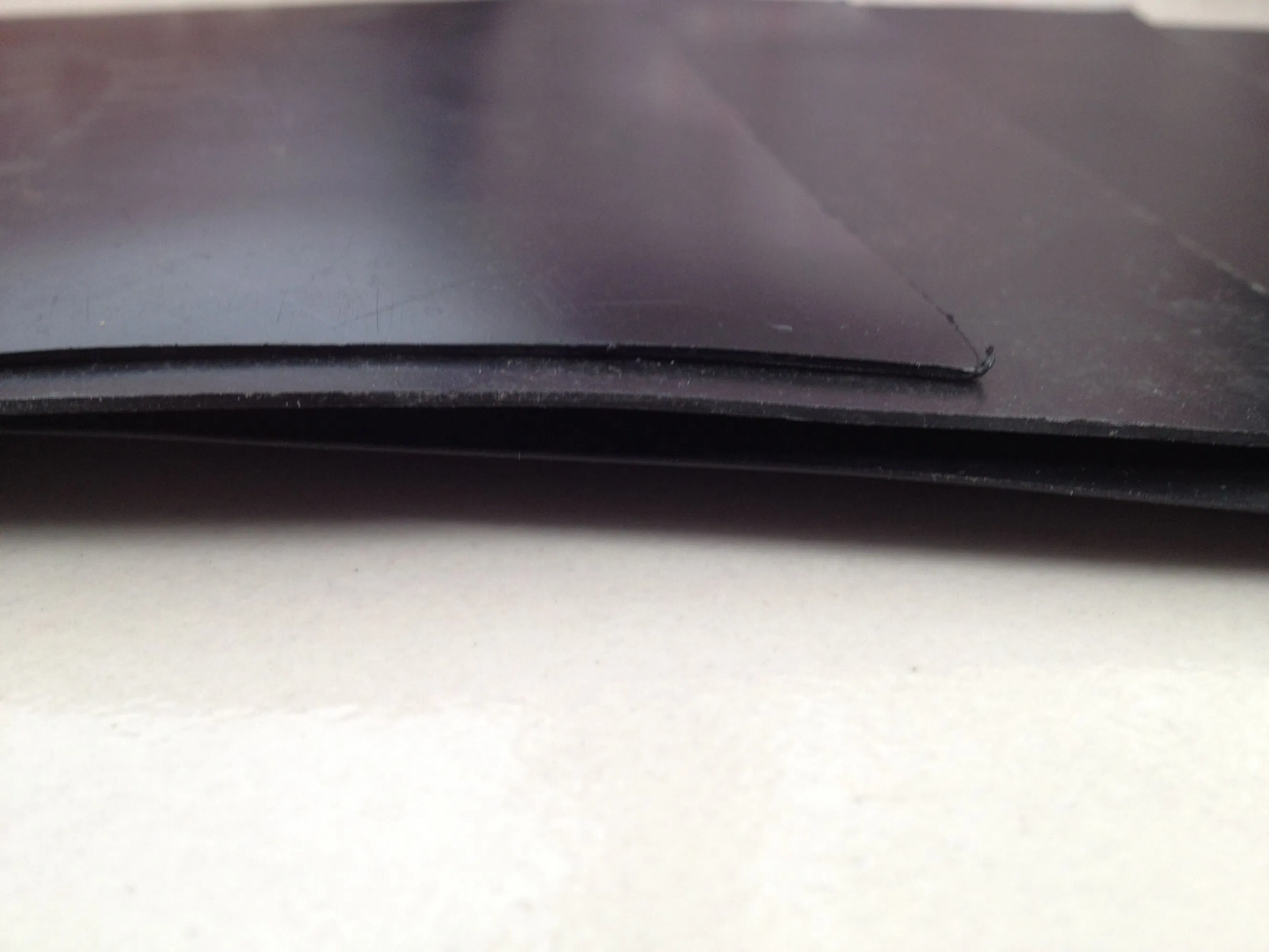

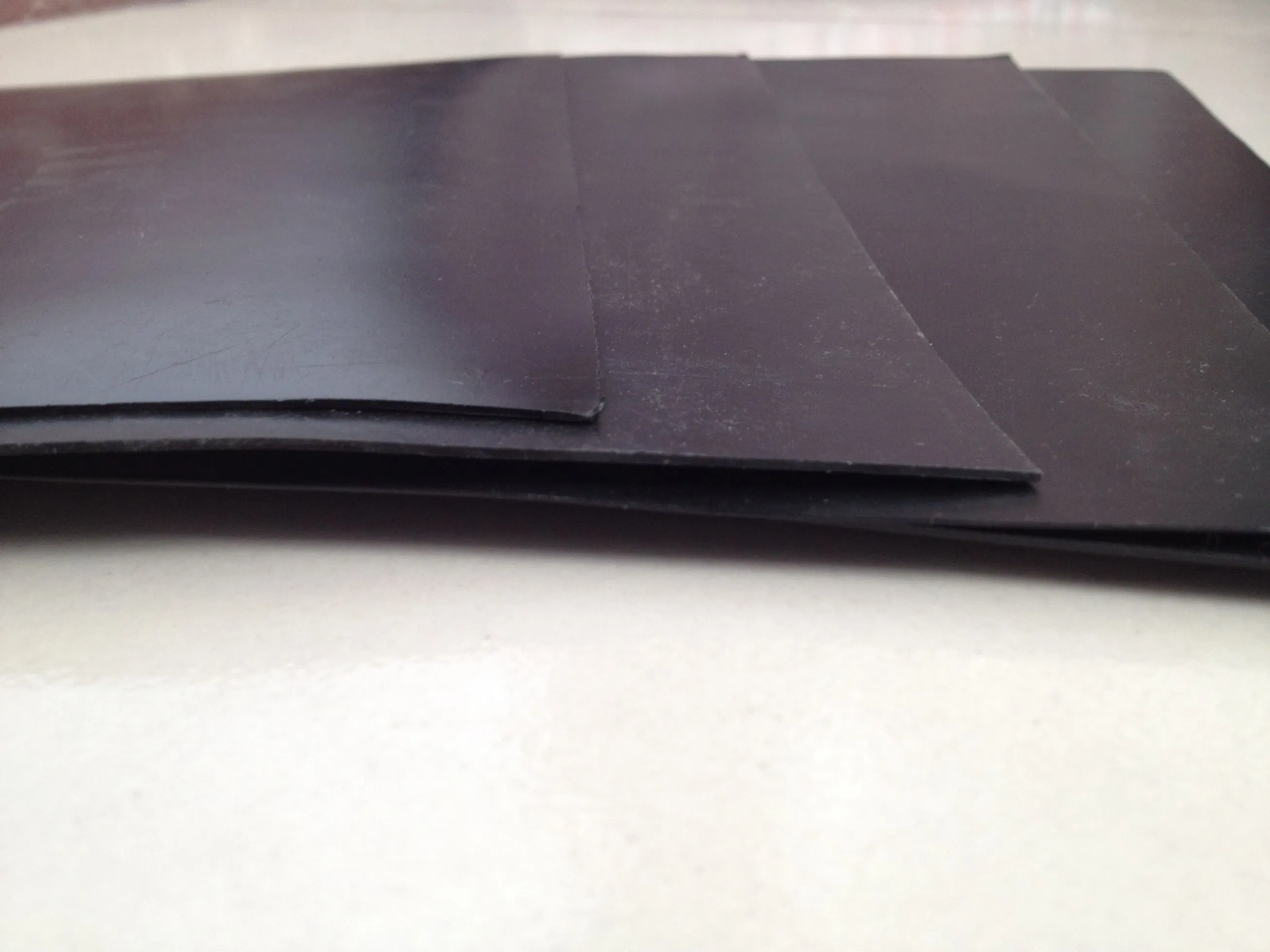

HDPE Geomembrane Liners
Specially extruded liners combining high tensile strength and chemical resistance with excellent stress crack resistance and low temperature properties for highly reliable containment. Ideal for landfill caps, canal linings, oilfield pitliners, and mine tailing ponds.
Key Features
✓
Low Permeability: Secure lining systems prevent leachate penetration and gas escape.
✓
Chemical Resistance: Resistant to a wide range of typical solid or hazardous waste leachates.
✓
Ultraviolet Resistance: Enhanced with carbon black for long-term outdoor exposure.
✓
Reflective Factor: Available in white to mitigate temperature extremes and aid inspection.
Technical Parameters (GRI-GM13)
| Item |
0.5mm |
1.0mm |
1.5mm |
2.0mm |
3.0mm |
| Min Density (g/cm³) |
0.94 |
| Strength at Yield (N/mm) |
7 |
15 |
23 |
30 |
45 |
| Strength at Break (N/mm) |
10 |
28 |
43 |
57 |
85 |
| Elongation at Yield (%) |
13 |
| Elongation at Break (%) |
700 |
| Puncture Resistance (N) |
120 |
352 |
530 |
703 |
1059 |
| Carbon Black (%) |
2.0 - 3.0 |

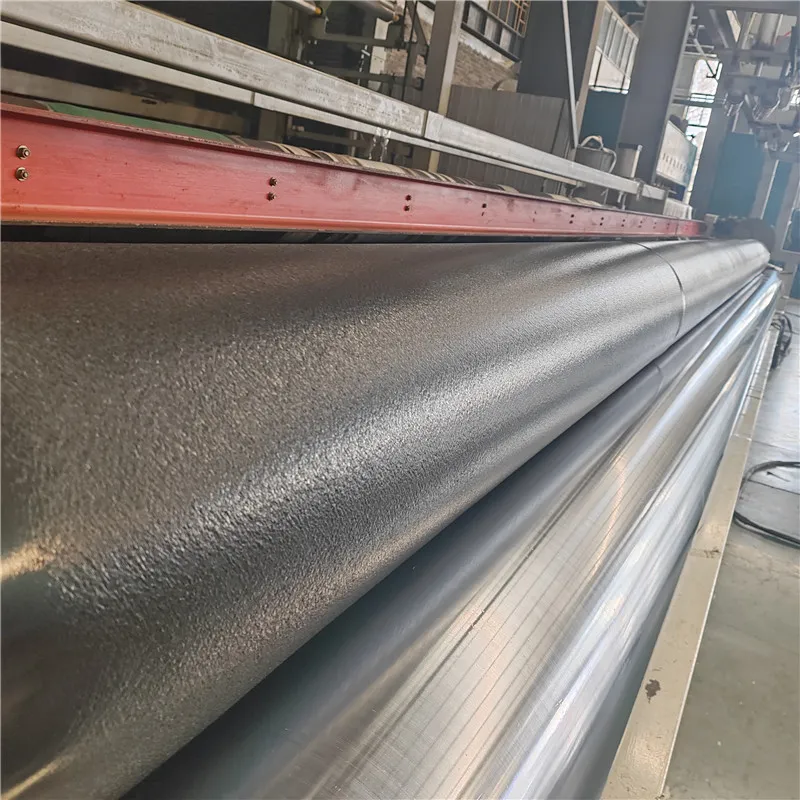

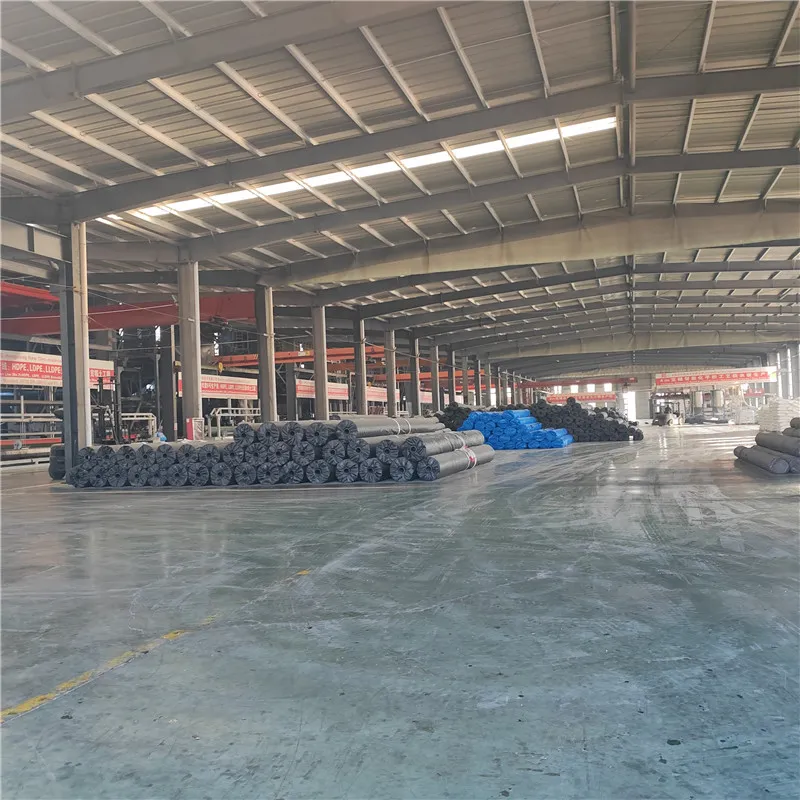

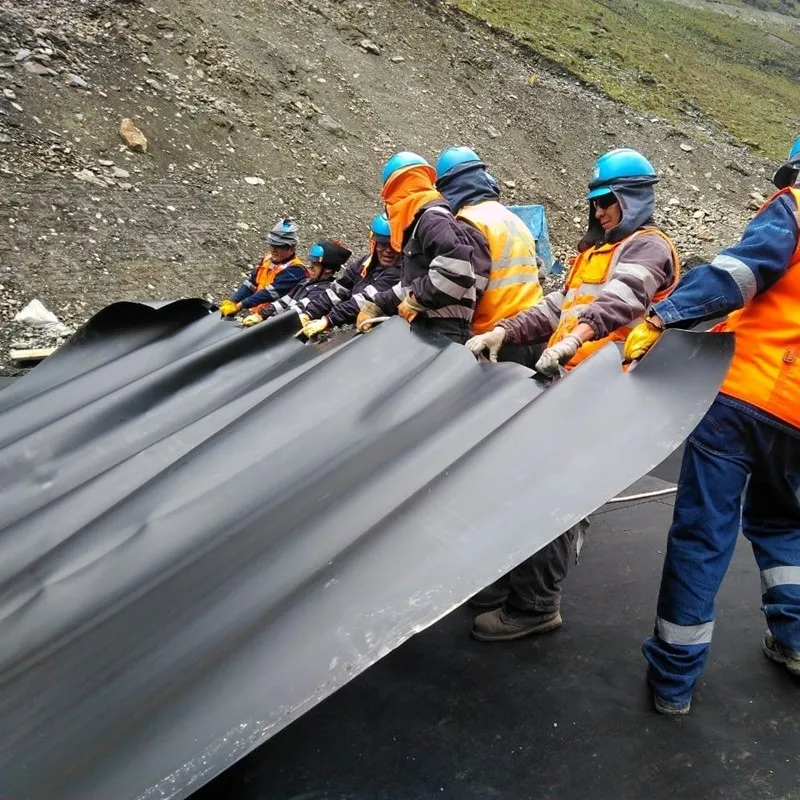

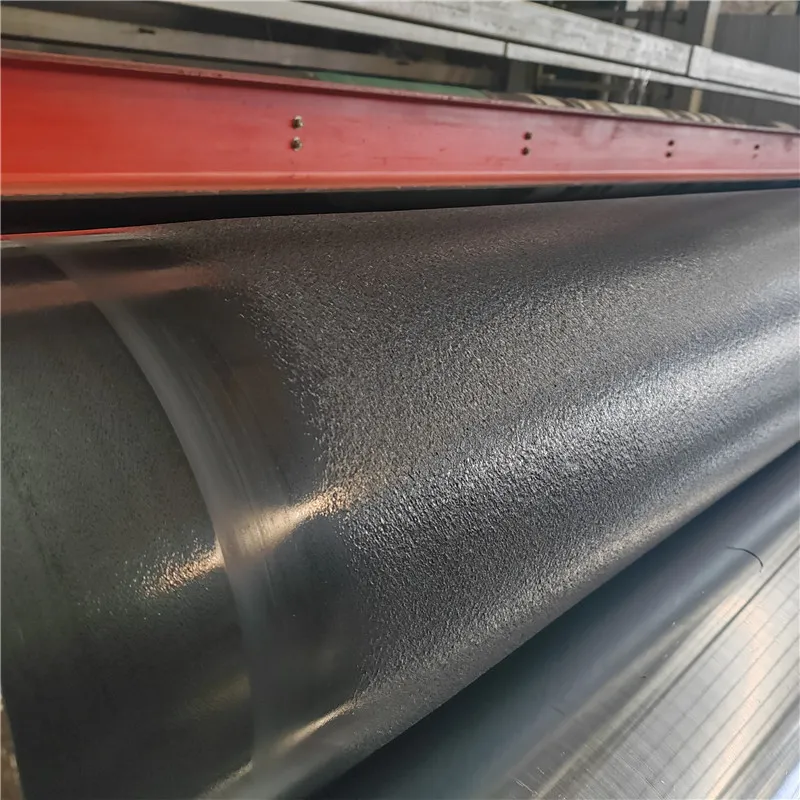

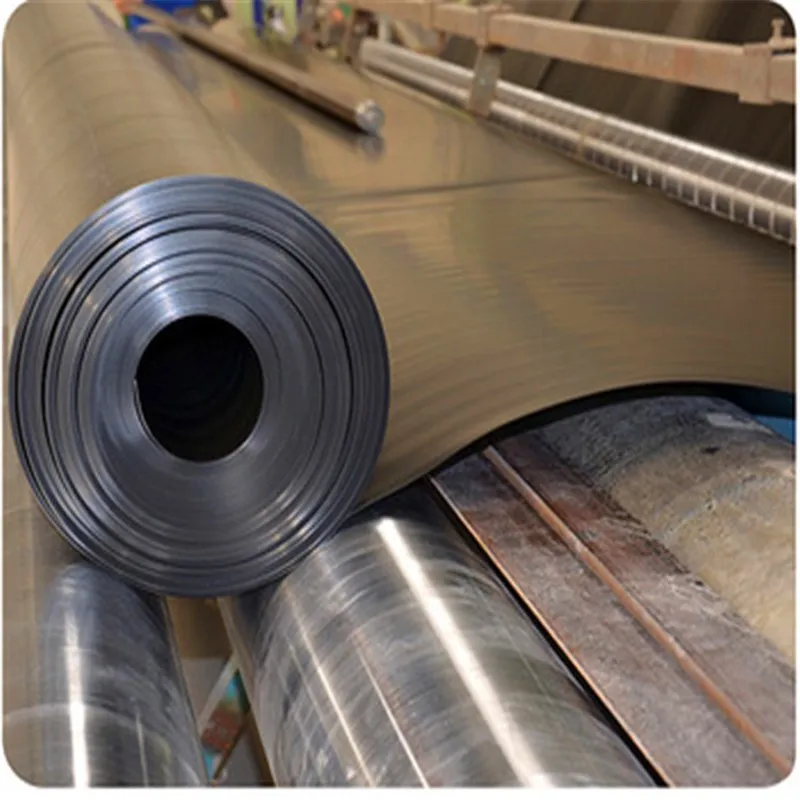

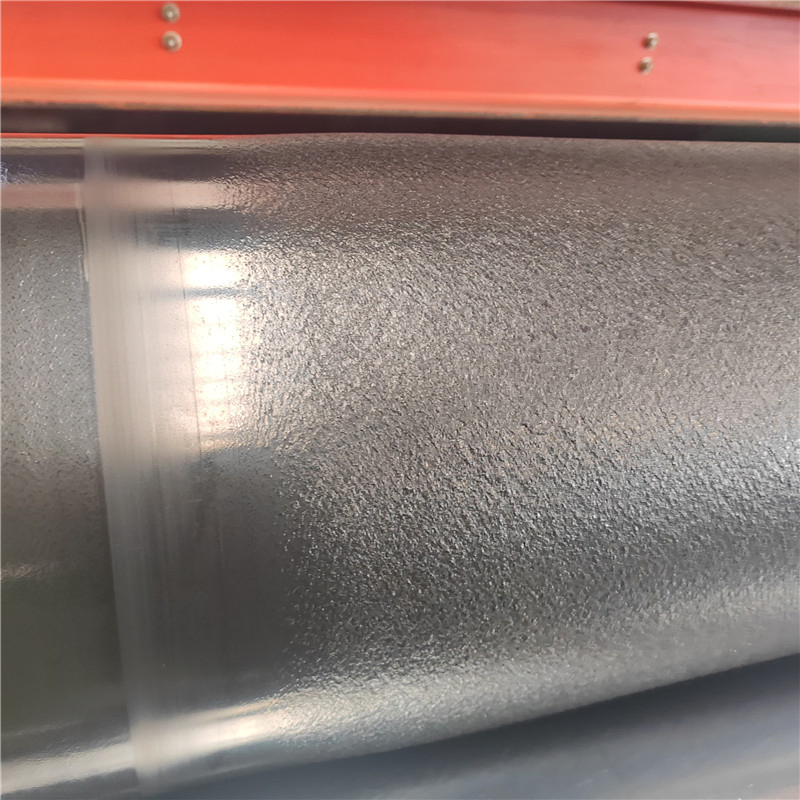

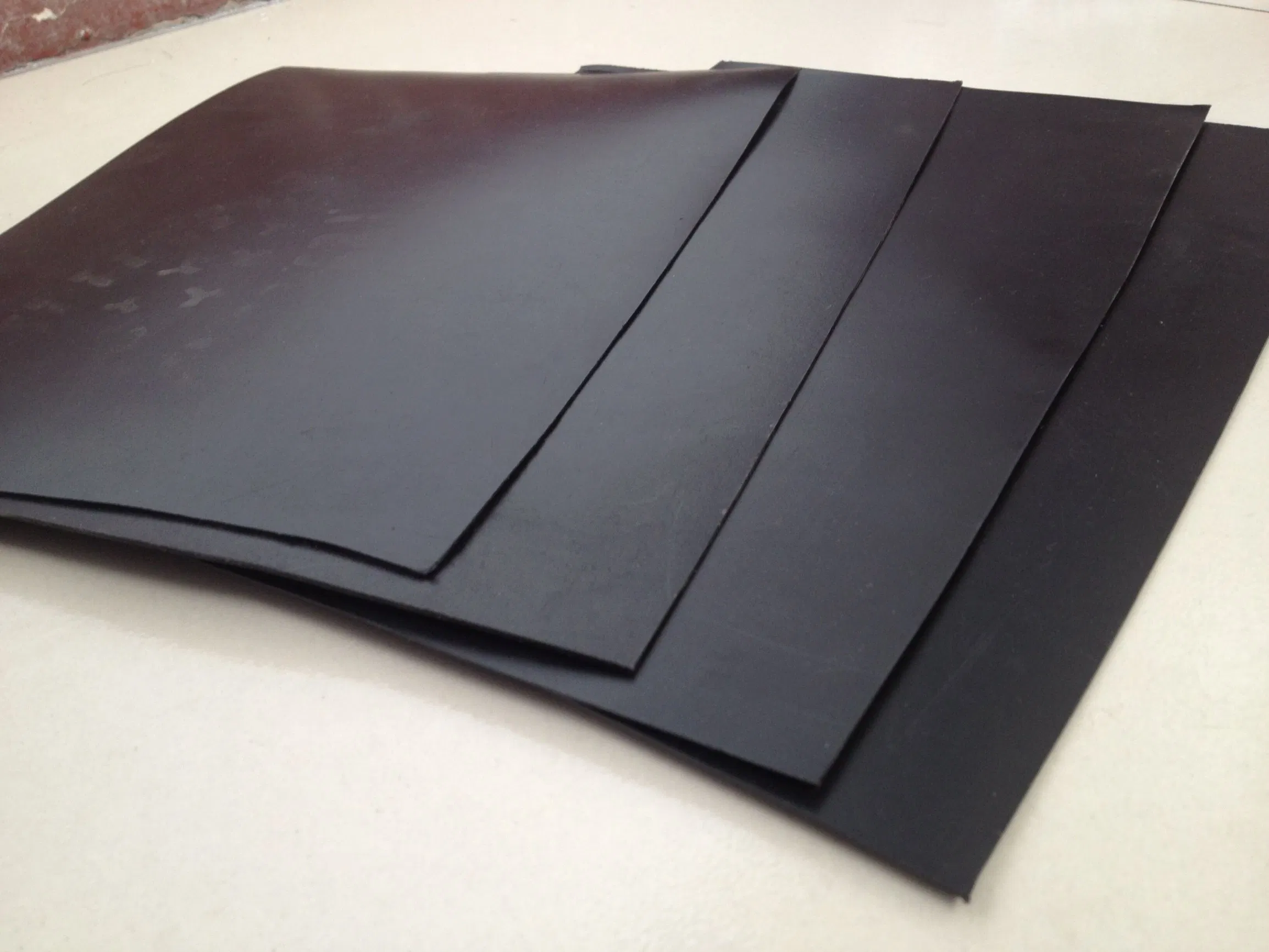

Product & Application Gallery

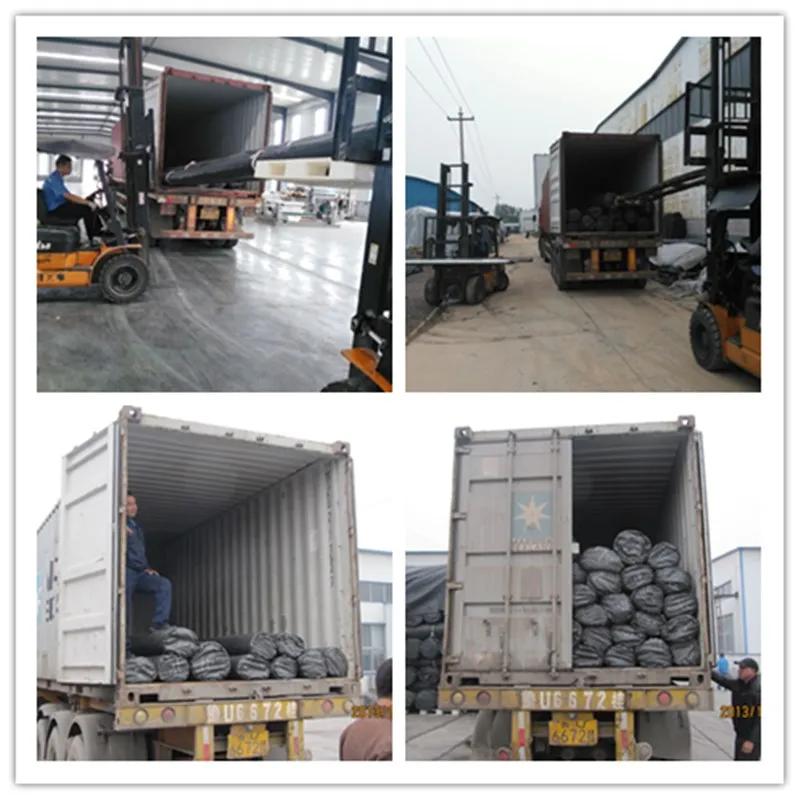

Packaging & Delivery
Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg
Transport Package
Woven Bags
Frequently Asked Questions
1. What are the primary applications for HDPE Geomembrane?
It is widely used in transportation projects, hydraulic projects (like dams and canals), geotechnical projects, and environmental projects such as landfill caps and tailing ponds.
2. Does the material offer UV resistance?
Yes, the geomembrane features excellent UV resistance, which is further enhanced by the addition of carbon black to ensure durability in exposed environments.
3. What is the thickness and width range available?
We offer a thickness range from 0.25mm to 3.0mm, with a maximum width of up to 8 meters to minimize seams during installation.
4. Is the HDPE liner chemically resistant?
Absolutely. HDPE is resistant to a wide range of chemicals and is not threatened by typical solid or hazardous waste leachates.
5. What are the mechanical advantages of this liner?
It provides high puncture resistance, impact resistance, and tear resistance, making it suitable for the most demanding containment applications.

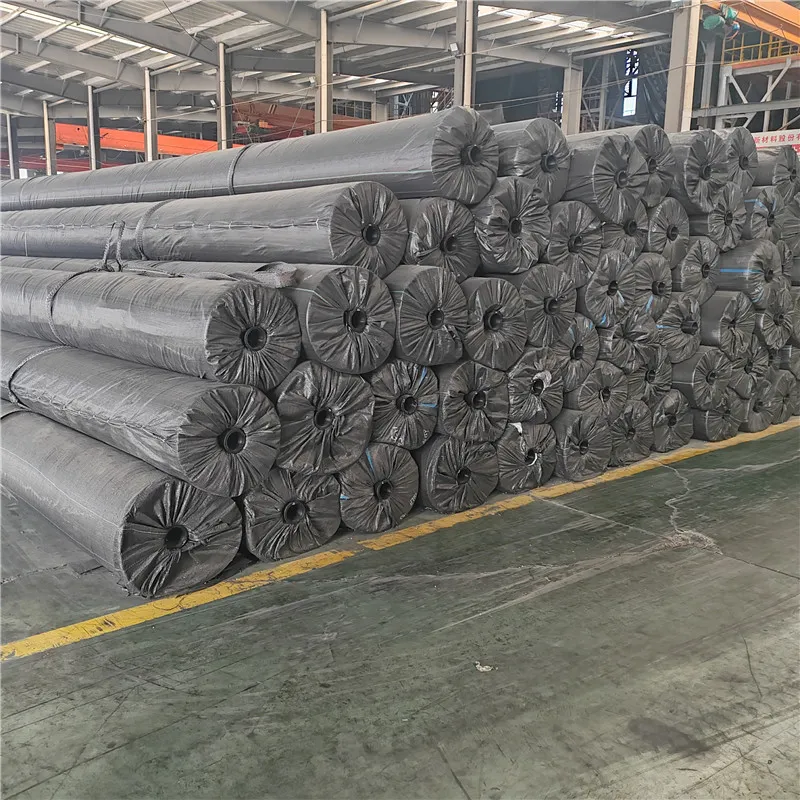

6. How is the product packaged for shipping?
The geomembrane is typically rolled and packed in durable woven bags to ensure protection during transport and handling.
