Company Profile

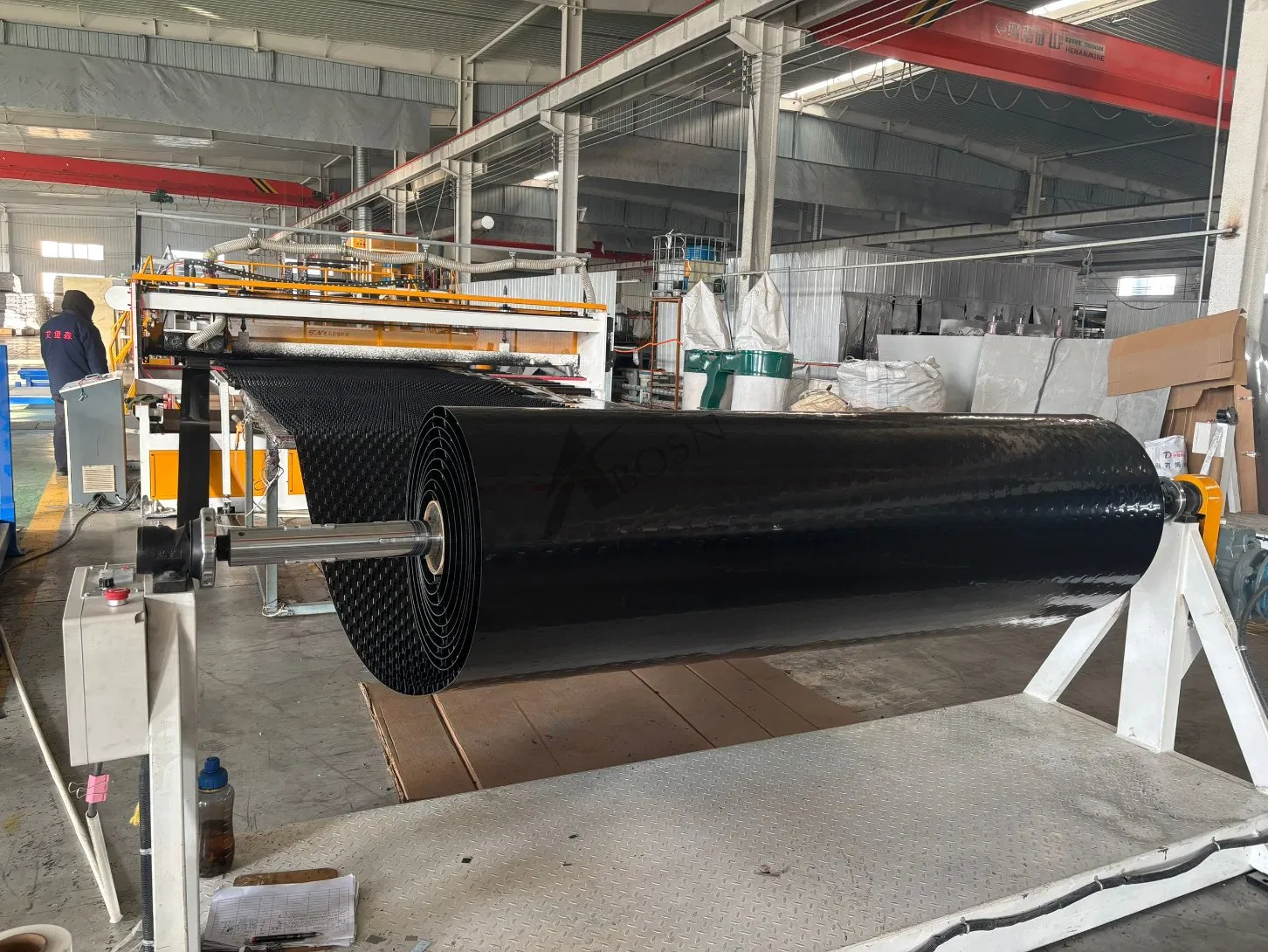

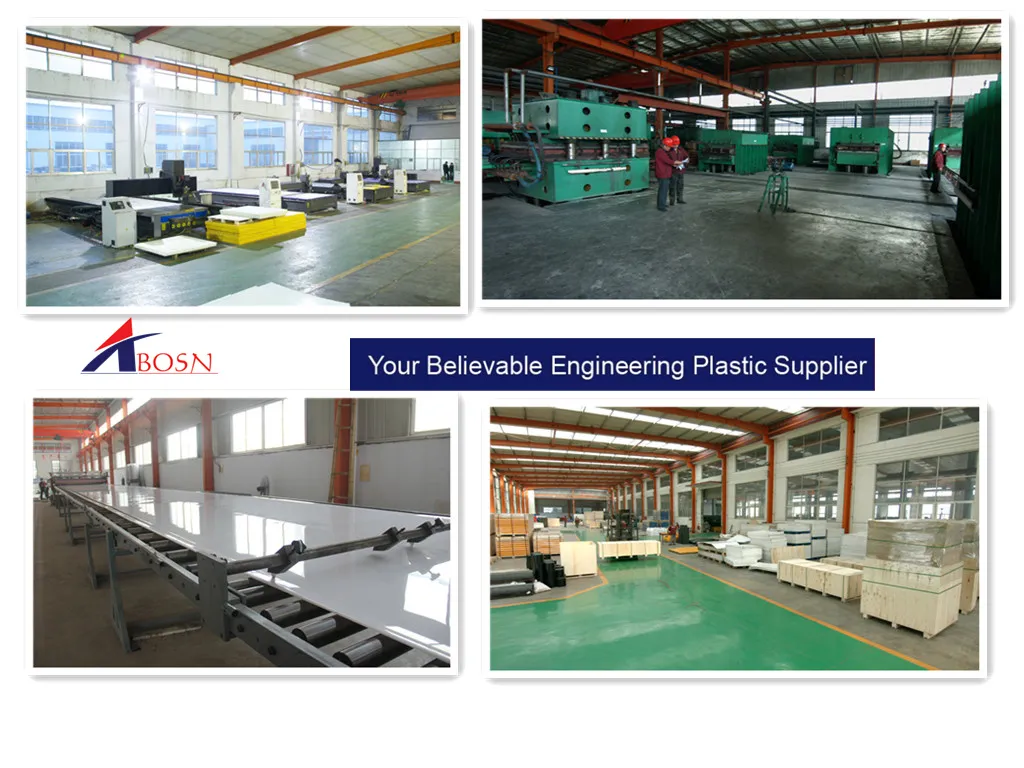

Equipped with the most advanced HDPE extruded machines and High Hydraulic pressed machines for UHMWPE (PE 1000) plates, as well as various CNC lathe and milling surface machines, we process all types of UHMWPE, HDPE, and PP sheets and parts.
We offer all colors and sizes of different molecular weight engineering plastics. HDPE high density polyethylene provides excellent impact strength even at temperatures as low as -30ºC. It features a low coefficient of friction and ease of fabrication, making it suitable for tanks, silos, hoppers, and automotive applications.
Key Characteristics
- Good impact resistance and low temperature performance
- Excellent chemical stability and non-toxic properties
- Superior electric insulation
- Resistant to acid, alkali, and salt aqueous solutions
Technical Specifications
| Test Item |
Results (PE) |
Test Methods |
| Tensile Strength, MPa | 23.8 | ASTMD 638 |
| Elongation at Break, % | 610 | - |
| Flexural Strength, MPa | 26 | ASTMD 790 |
| Flexural Modulus, MPa | 994 | - |
| Density, g/cm3 | 0.96 | ASTMD 792 |
| Water Absorption, % | 0.01 | ASTMD 570 |
| Hardness, Short D | 64 | ASTM 2240 |
| Vicat Softening Temp, ºC | 86 | ASTMD 1525 |
| Heat Distortion Temp, ºC | 100 | ASTMD 648 |
| Izod Impact Strength, J/m | 104 | ASTMD 256 |
| Melting Temperature, ºC | 131 | MSISO 11357-3 |

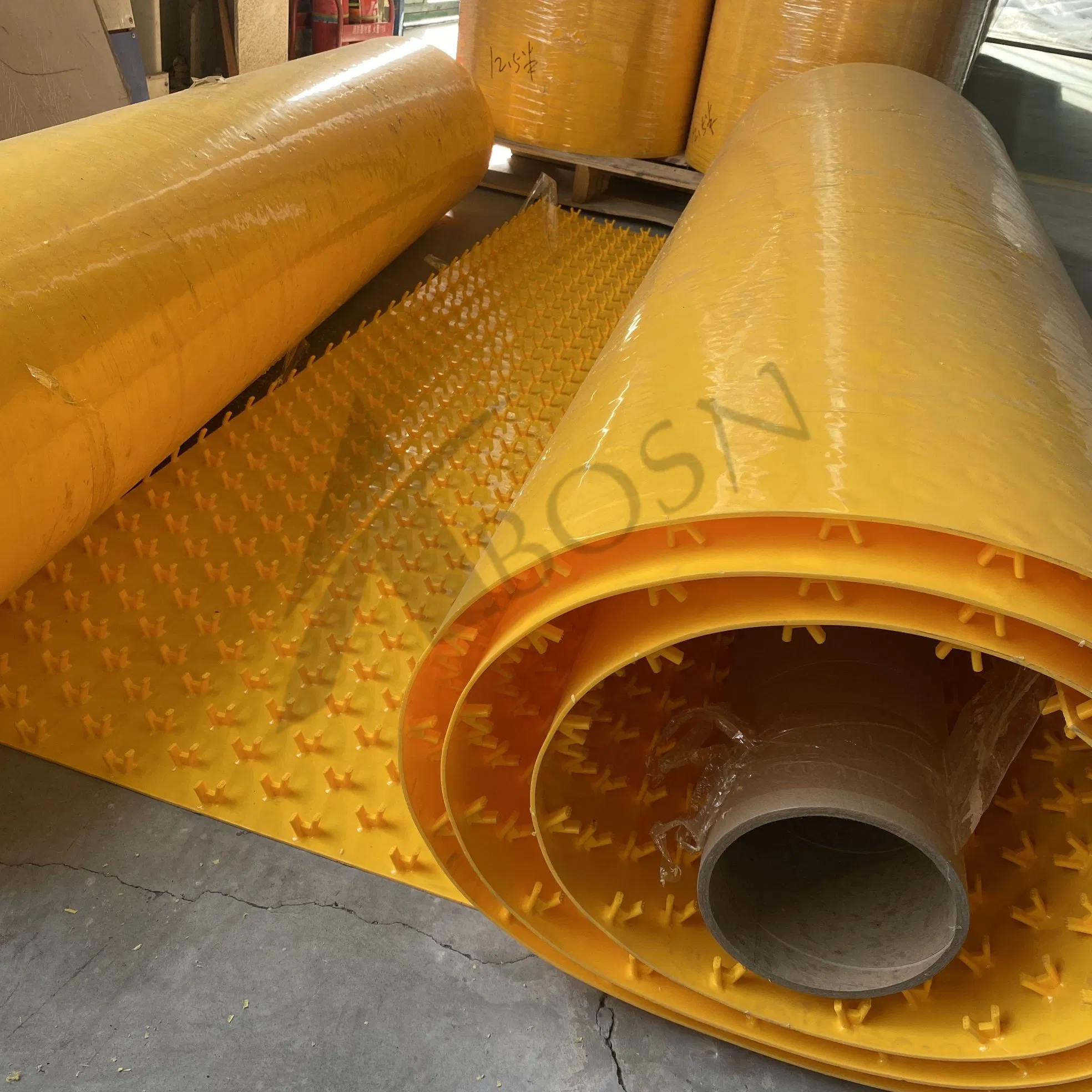

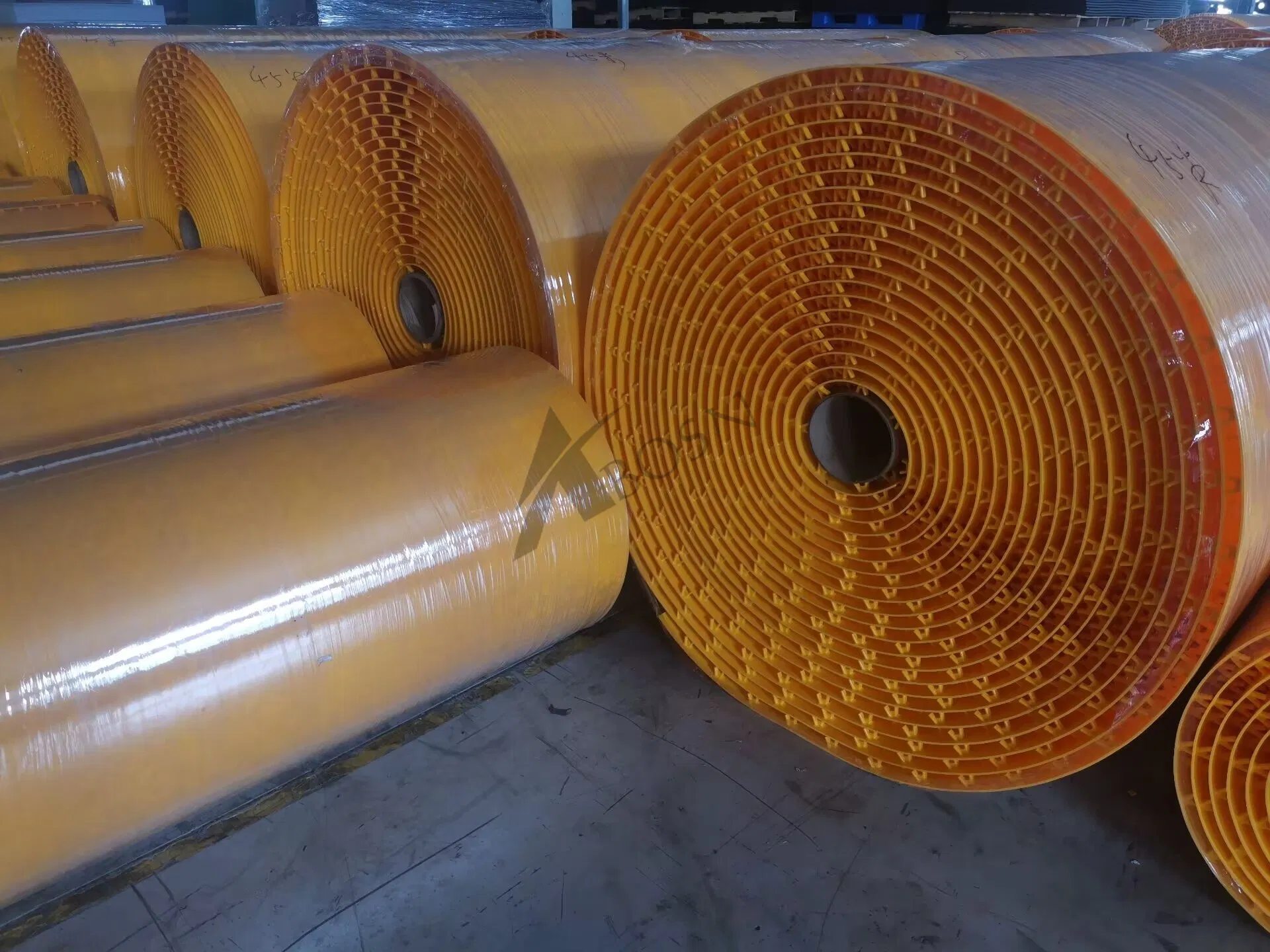

Anchored Concrete Protective Liners prevent concrete corrosion and degradation, substantially extending structure lifetime. By preventing exfiltration and infiltration, these liners provide direct environmental protection and increased operating efficiency. The unique anchoring system enables construction in areas of significant backpressure.
Installation & Applications
Application Areas
- Concrete piping and Manholes
- Digesters and Lift stations
- Processing vessels and Pumping stations
- Storage tanks, pads, and Sumps

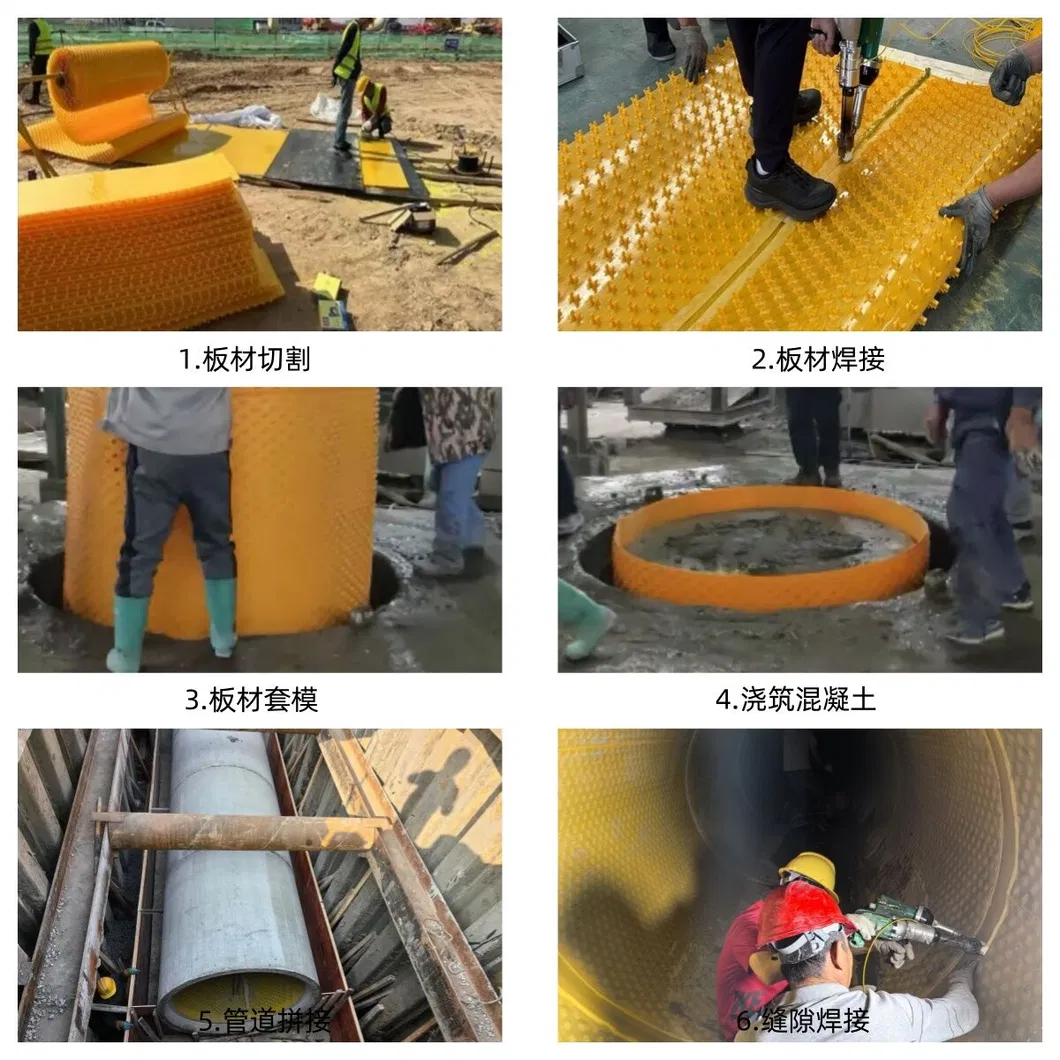

Installation Steps

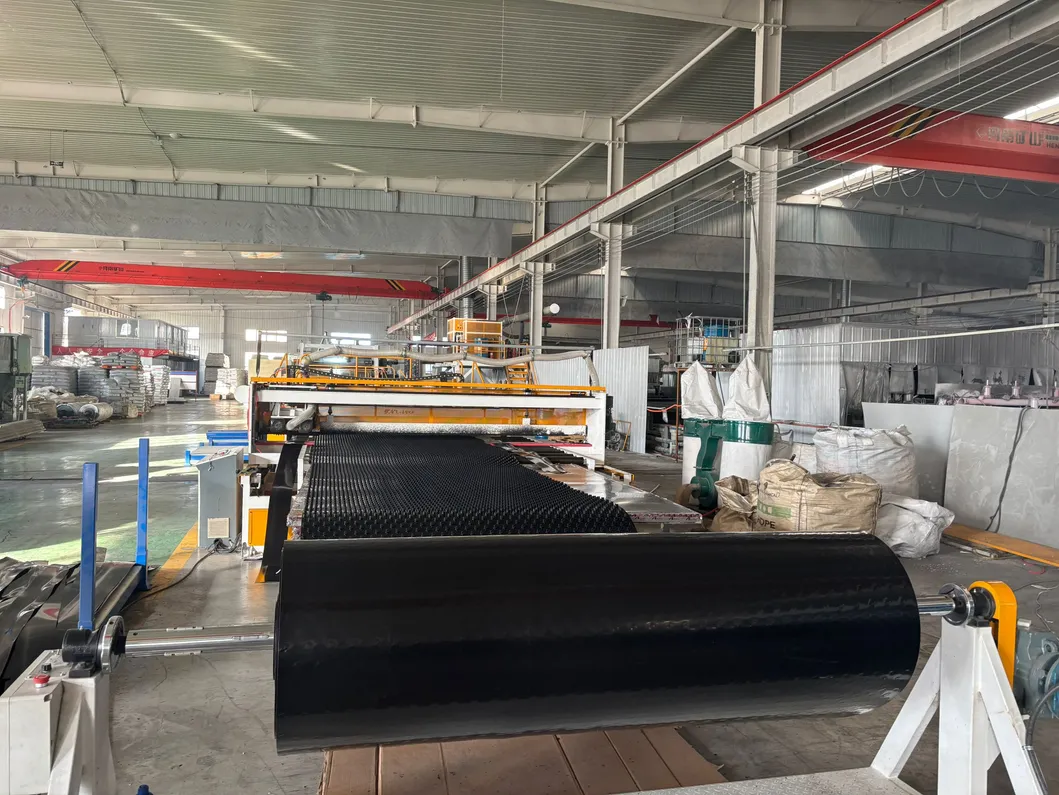

Step 1: Cutting Anchored HDPE liner | Step 2: Welding Anchored HDPE liner
Step 3: Film covering | Step 4: Concrete input
Frequently Asked Questions
What are the primary benefits of HDPE Concrete Protective Liners?
They combine the flexibility and corrosion resistance of thermoplastics with the high strength of concrete, effectively extending the lifespan of structures by preventing corrosion and leaks.
Can the liners handle extreme temperatures?
Yes, HDPE high-density polyethylene maintains excellent impact strength even at temperatures as low as -30ºC.
What thicknesses are available for the protective sheets?
The standard thickness ranges from 2mm to 5mm, suitable for various industrial and construction needs.
Is customization available for colors and sizes?
Absolutely. We offer various colors including black, natural, and blue, and can customize to specific Pantone colors. Widths are available up to 2000mm.
How does the anchoring system work?

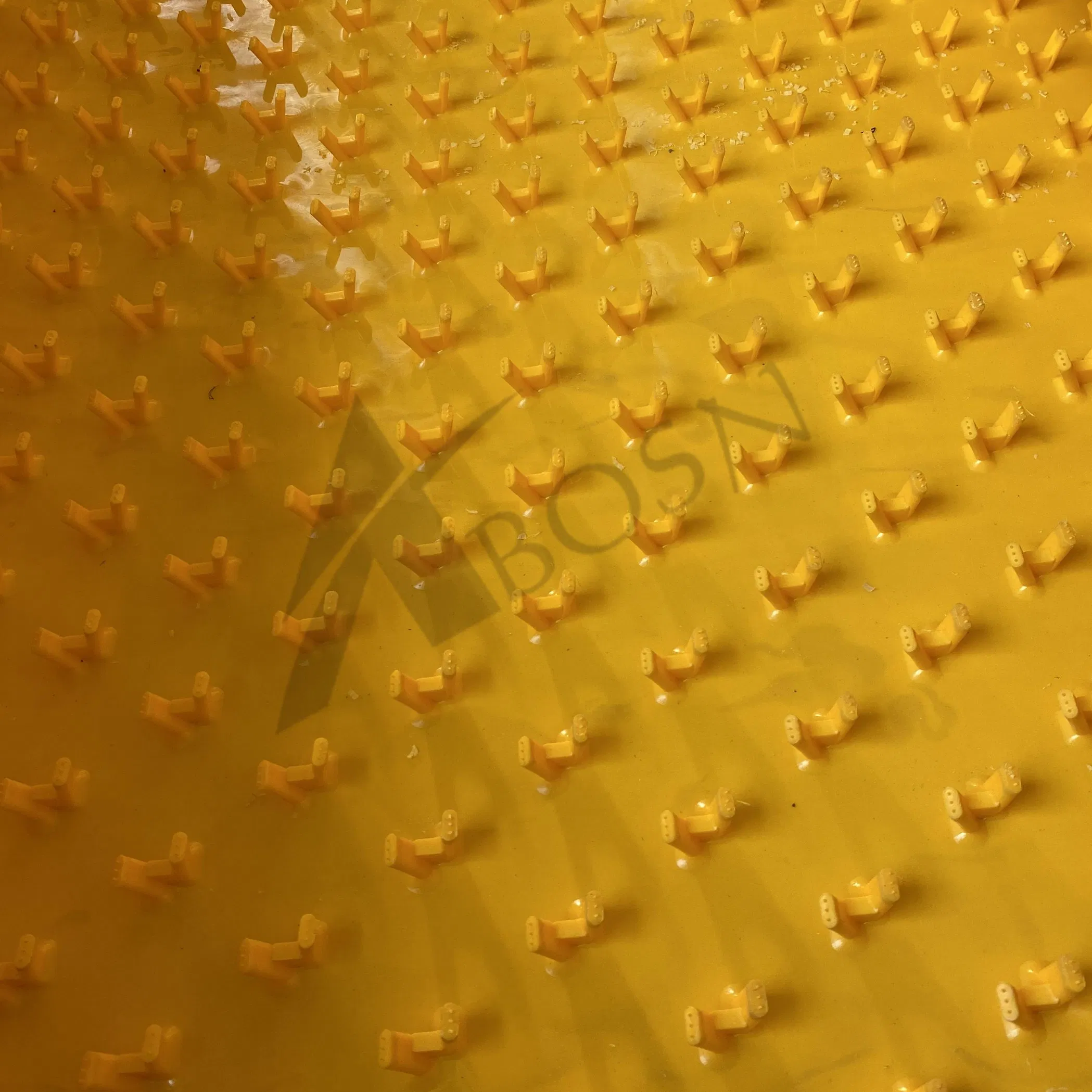

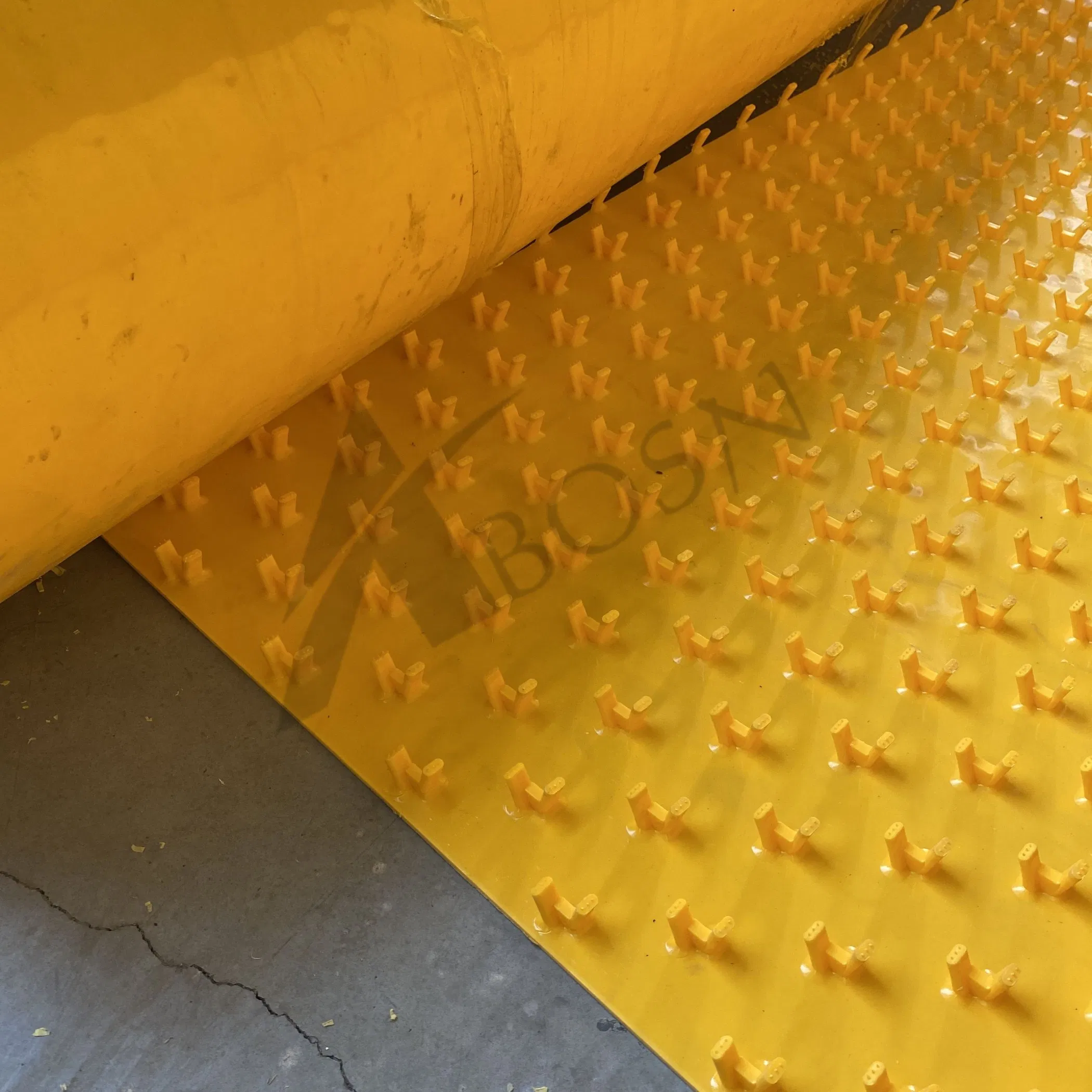

The unique V-Grip anchoring system ensures the liner is mechanicaly locked into the concrete, allowing it to withstand significant backpressure without delamination.
What certifications do your products hold?
Our manufacturing processes and products are certified by ISO 9001, ISO 14001, CE, FDA, and SGS.
