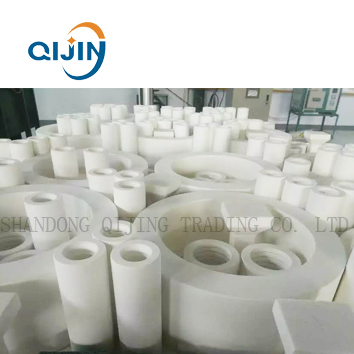

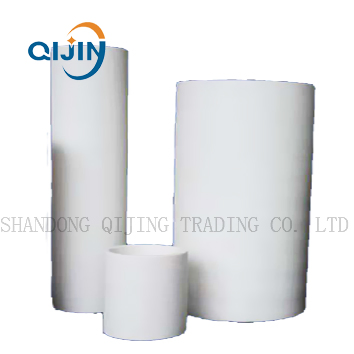

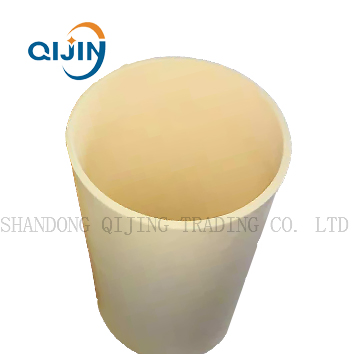

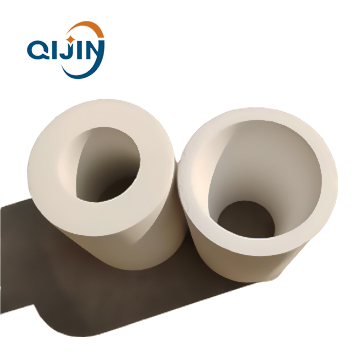

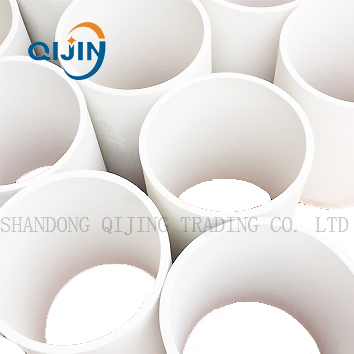

Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
1 / 5
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport
Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport

Wear Resistant Alumina Ceramic Sleeve Liner for Mineral, Powder Handling and Ore Slurry Transport

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.Order
StandardISO9001
MaterialAlumina Ceramic, Zta, Zirconia, Sic
TypeCeramic Cylinder
PackageWooden Box
Specification30-450
OriginShandong
HS Code6914100000
Capacity50000 Pieces a Year
Gross Weight1000.000kg

Product Overview

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as an abrasive material and corrosive medium. These ceramics are an ideal wear-resistant and corrosion-resistant pipeline solution, used to transport sand, coal, ash and aluminum liquid, suitable for various high-temperature pipeline inner diameters.

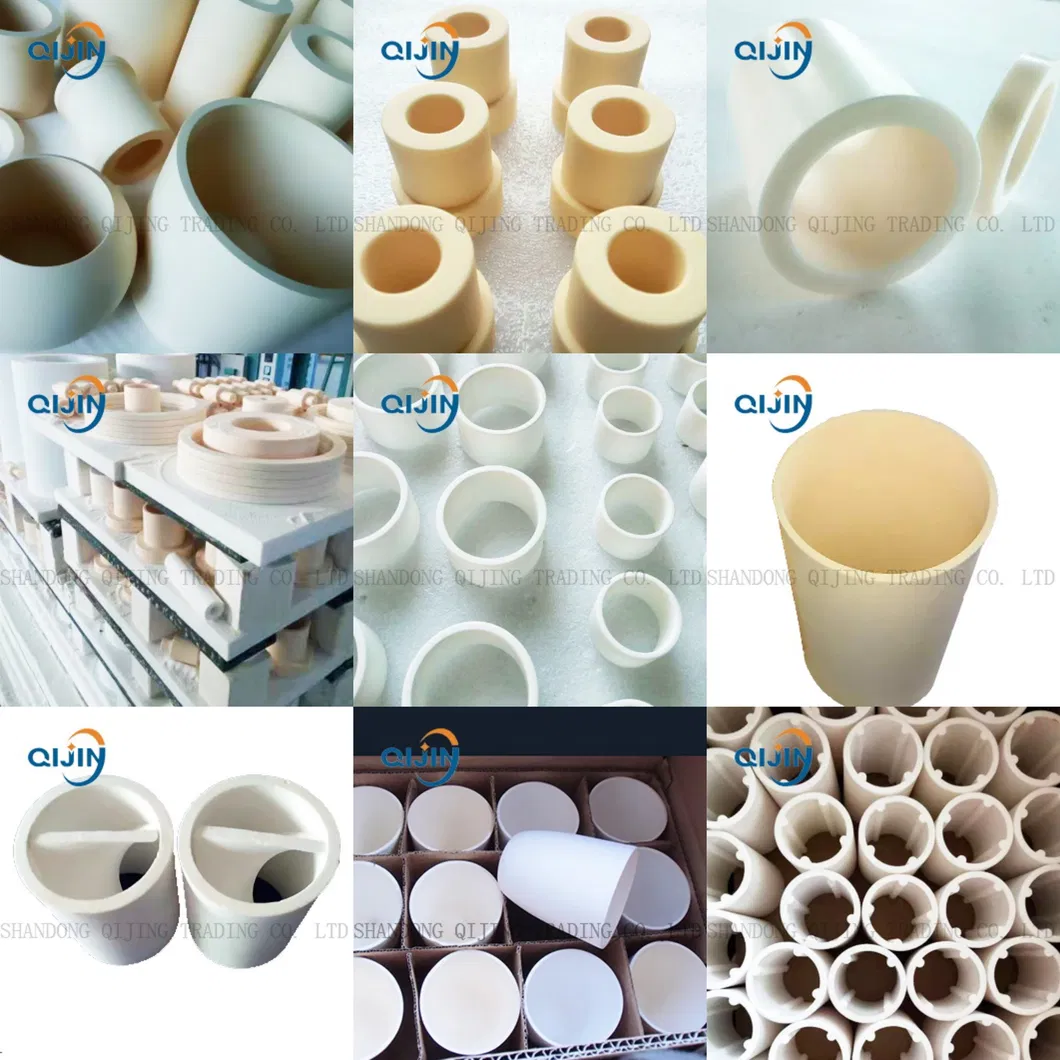

Ceramic Sleeve Liner

Ceramic Pipe Range

  • Alumina ceramic straight pipe
  • Ceramic pipe cone
  • Ceramic bend elbow pipe liner
  • Ceramic Y-shape pipe
  • Ceramic T-shape pipe
  • Ceramic curved pipe tile liner
  • Ceramic arc pipe tile liner
  • Ceramic lined steel pipeline
  • Custom ceramic pipe

Core Advantages

★ High hardness and superior abrasion resistance.
★ Excellent corrosion and chemical resistance.
★ Light weight for easier installation.
★ Low maintenance cost due to high durability.
★ Smooth surface ensuring good fluidity and material flow.

Size Specifications

Product ID (mm) OD (mm) Thickness (mm) Length (mm) R (mm) Degree
Straight Tube7610615150-250//
Straight Tube10014020305//
Straight Tube15018517.5150-250//
Bend7610615/4007.5
Bend15018517.5/15003

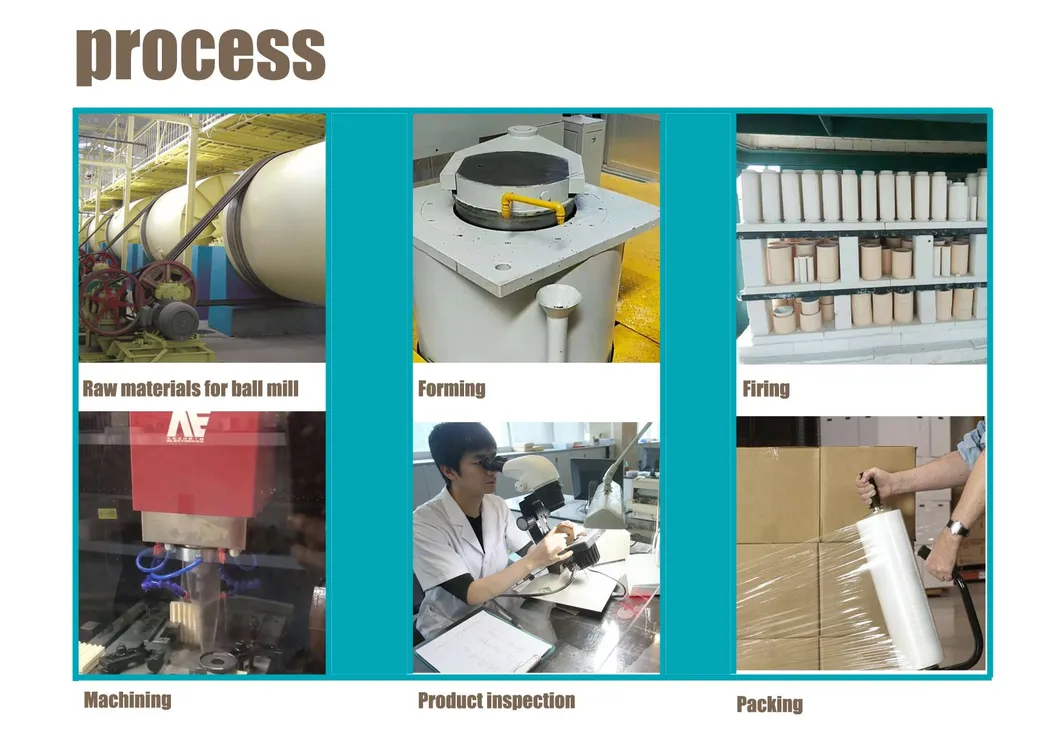

Ceramic Technical Drawing

Industrial Applications

  • Mining Industry
  • Cement Industry
  • Coal Handling
  • Steel Industry
  • Port Industry
  • Power Plants

Performance Index

Performance Index 92 Series 95 Series
Al2O3 (%)≥ 92≥ 95
Moh's Hardness99
Water Absorption (%)< 0.01< 0.01
Flexural strength (Mpa)275290
Bulk density (g/cm³)≥ 3.60≥ 3.65

Installation Guidelines

1. Handle with care during transportation to avoid serious collisions or direct impact on the ceramic layer.
2. Follow installation directionality as indicated by the arrows on the bending pipes.
3. Align pipes with the center line; control displacement within 1.0mm.
4. Adjust flexible joints symmetrically; expansion clearance can be reduced by 3-5mm.
5. Ensure flange ends are flush with the composite pipe ends.
6. Welding is possible; use a 45°-60° "V" type slope angle for connection.

Packaging & Delivery

Packaging 1 Packaging 2 Packaging 3

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer? A: We are a professional factory specializing in industrial ceramics.
Q2: What is the typical delivery time for an order? A: Generally, it is 15 days if the mold sizes are in stock, or 25 days if not, depending on the total quantity.
Q3: Do you provide samples for testing? A: Yes, we can offer stock samples free of charge, though freight costs are not included.
Q4: What are your standard payment terms? A: For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance and the balance after receiving the B/L copy.
Q5: What materials are your ceramic pipes made of? A: Our pipes are primarily made from Alumina Ceramic, ZTA, Zirconia, and SiC for maximum wear resistance.
Q6: What is the available size range for ceramic pipes? A: Our ceramic pipe sizes typically range from 10 mm to 500 mm in diameter.
