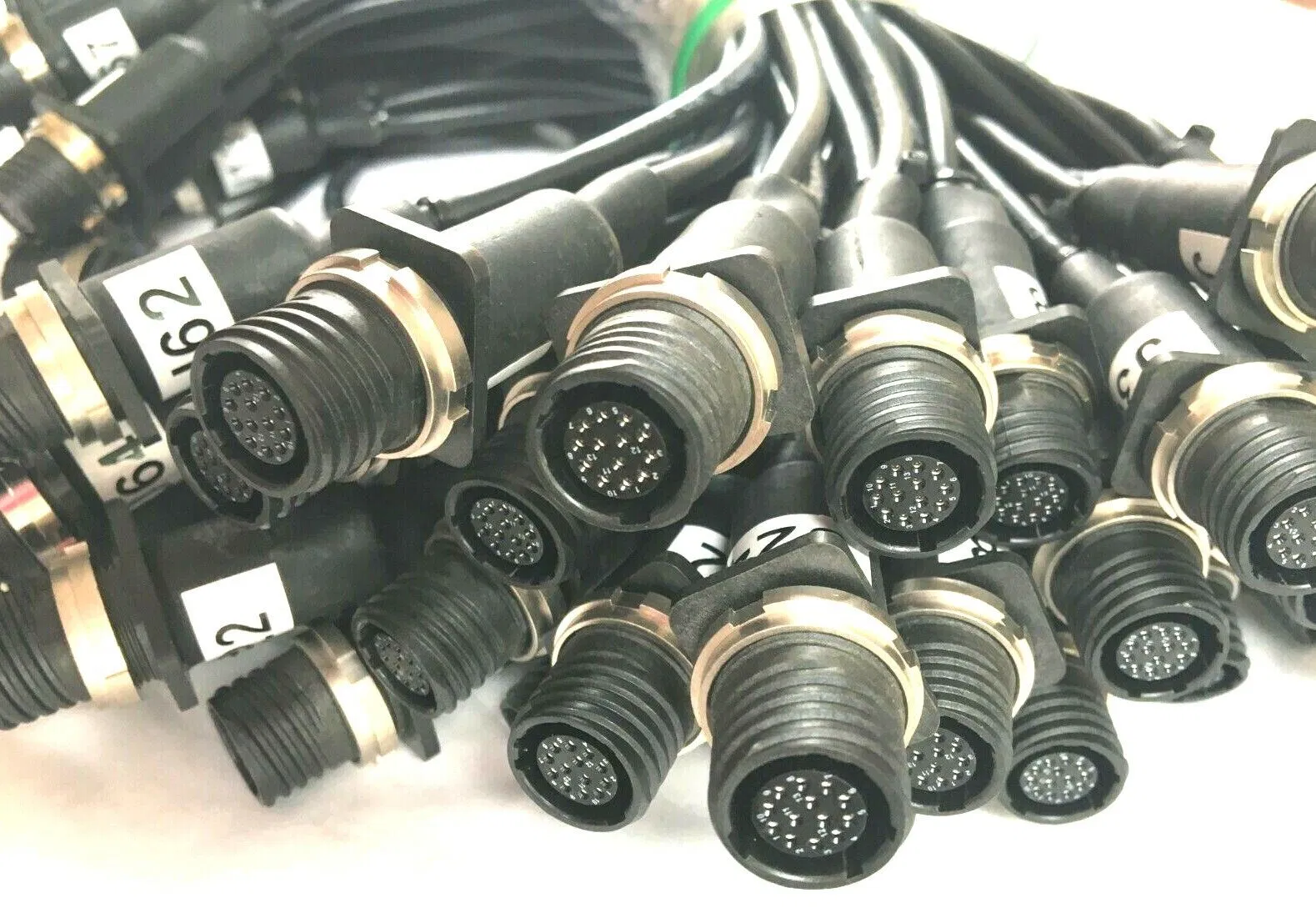

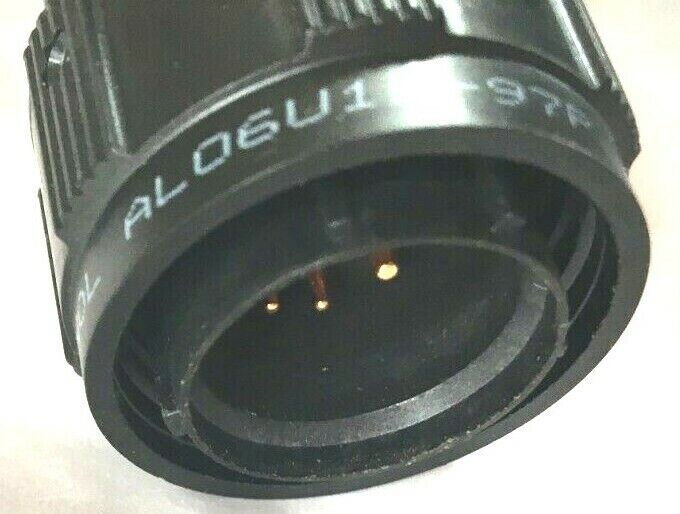

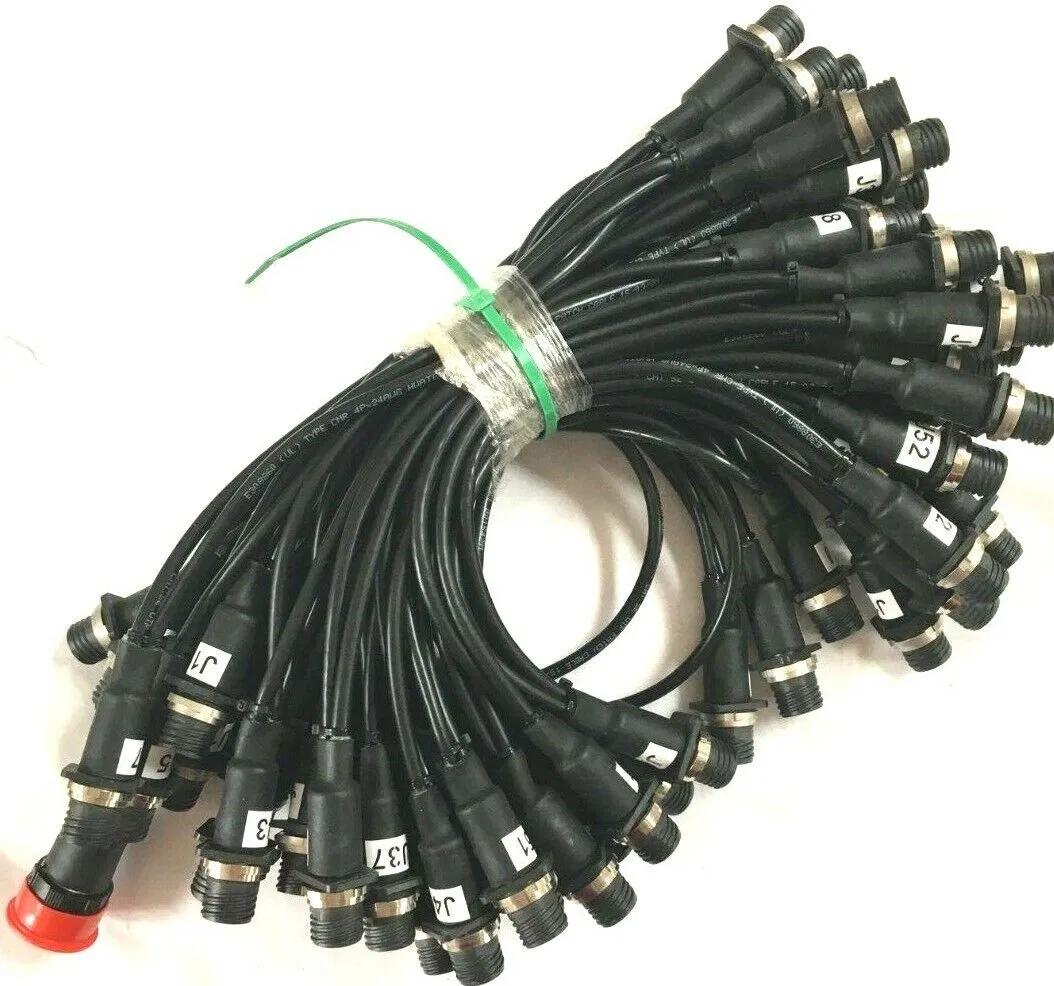

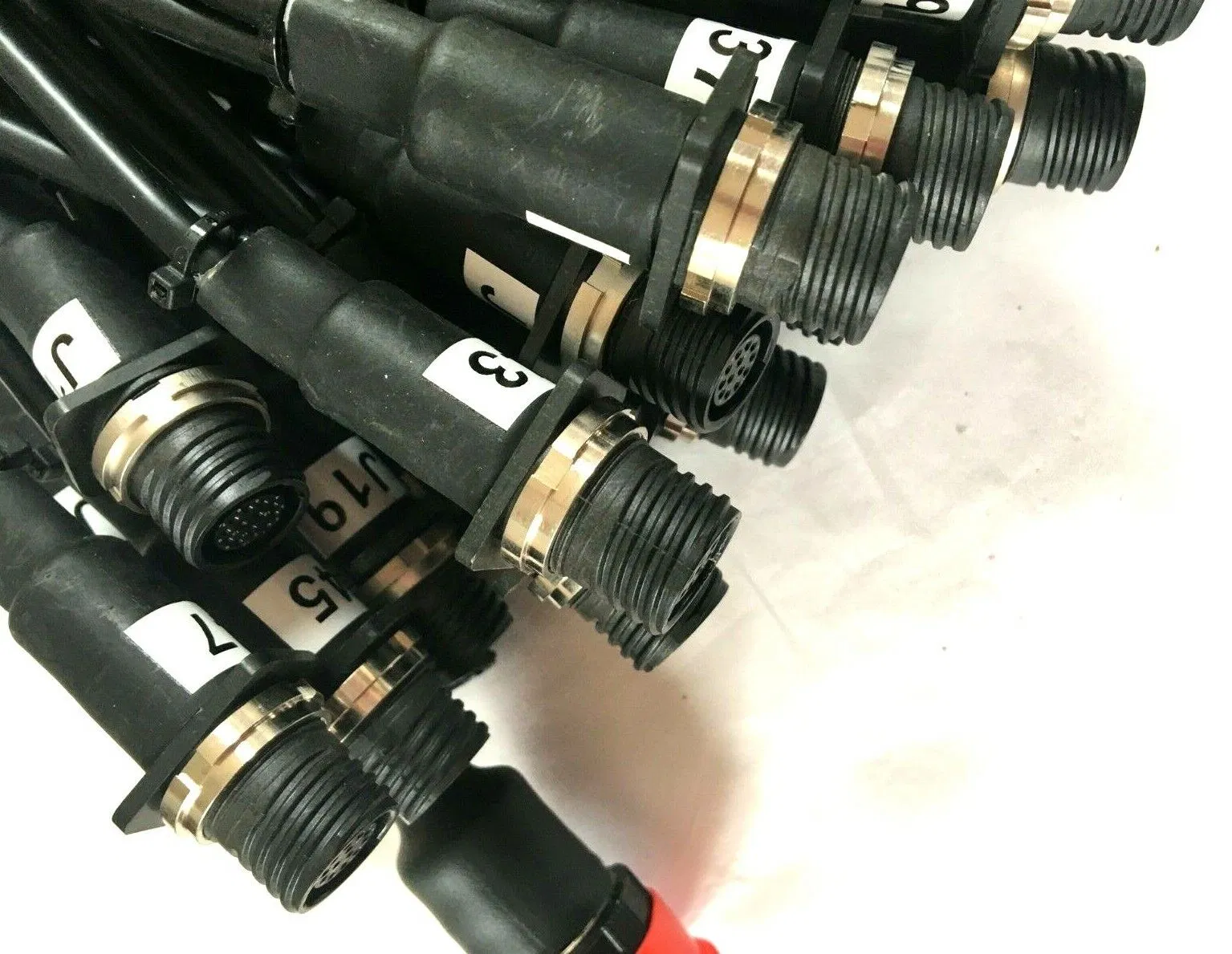

High-Speed Amphenol Cable Assembly for Efficient Data Transfer

i

Overview & Basic Info

Model NO.

A0434

Industry Type

Automotive Wiring Harness

Bandaging Materials

PVC Pipe

General Wiring

Injection Molding Assembly Class

Signal

Signal Wiring Harness

Shape

Round

Interface Type

DC/DC

Certification

VDE, RoHS, ISO9001, CCC

Wire Conductor

Tinned Copper

Quality Control

100% Inspection Before Shipment

HS Code

8544421900

Production Capacity

50000PCS/Year

P

Product Description

Durable Amphenol Cable Assembly for Seamless Data Transmission and Connectivity

Our universal 21-circuit harness consists of conveniently bundled into 4 sections: Dash Section, Steering Column Section, Tail Section, and Front Section.

Engine compartment feed wires (EFI engines will need an additional engine-specific harness)
Instrument cluster feed wires (mechanical or electric gauges)
Ignition/Headlight/Dimmer/Turn Signal/Brake Light switch lead wires with connectors
Radio/Heater/Air Conditioning feed wires
Rear body feed wires
Additional accessory wires

Key Features

Perfect for restoration projects, custom vehicles or budget-minded DIY builders
Universal design for nearly any 12-volt vehicle - great for engine swaps!
Works with nearly any engine/transmission combination (carb or EFI, auto or manual)
Tail light leads are extra long length; suitable for cars, trucks, longbox pickups, and vans
Constructed of GXL insulated, automotive-grade copper wiring
High-temp polyethylene insulation makes it viable in engine compartments
Includes appropriate wire diameter for each fused circuit (ranging 8 to 16 gauge)
Compact 5.5"x 4.5"x 3.3" fuse block mounts discreetly out of view
Uses modern blade-style ATO/ATC fuses in place of outdated glass fuses
21 individually fused circuits, conveniently bundled
Each wire strand is color-coded and labeled every 5" for easy identification

S

Product Specifications

Product Name	Radio Dash Mounting Kit / Automotive wiring harness
Materials	Wire harness can be UL, CE, CCC, SGS, RoHs, VED, etc. and pure copper
Length	According to the customers' requirements
Insulation	PVC, PE, PFA, Silicone, XLPVC etc.
Nominal Voltage	300V, 300/500V, 600V, 30V, 450/750V etc.
Temperature Range	-30ºC~+80ºC, -30ºC~+105ºC, up to 200ºC
Application	Automotive, Electrical, Industry
Test	100% test before shipment
Payment	T/T, L/C, PayPal, Western Union
Advantages	10+ years experience, manufacture and trade integration, professional technical team

C

Certifications & Packaging

A

Our Advantages & Service

RoHS/UL/CCC/CEA/CE/SAA certificated
ISO9001, TS 16949 system certificates
Prompt delivery and urgent order acceptance
100% testing before delivery
Trial run or small orders are acceptable

Online technical support service
OEM & ODM available
Products with test reports & certification
12 months warranty on all products

W

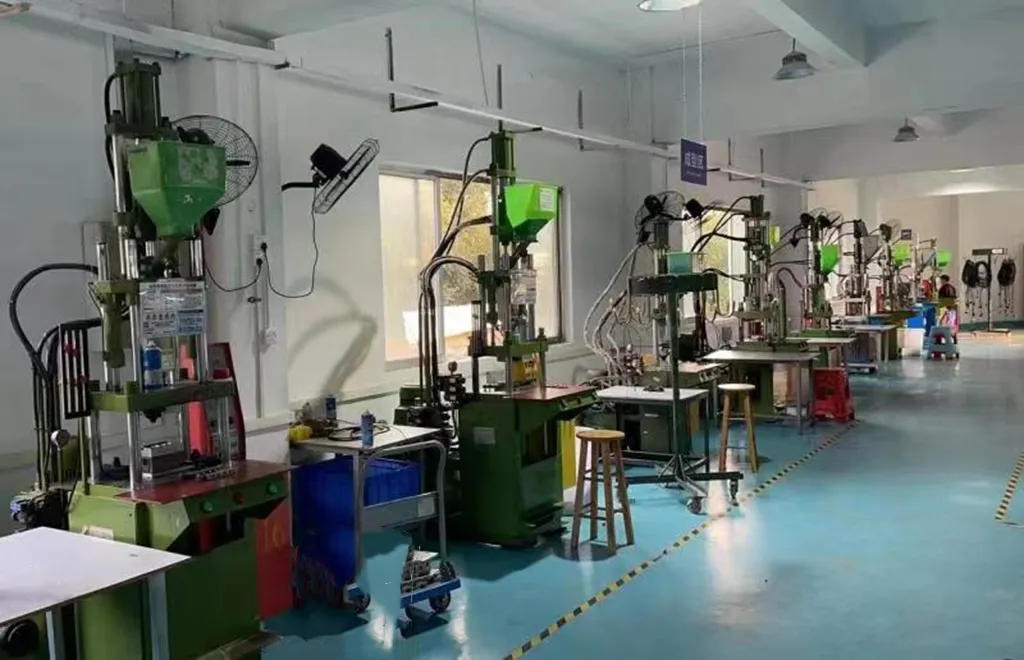

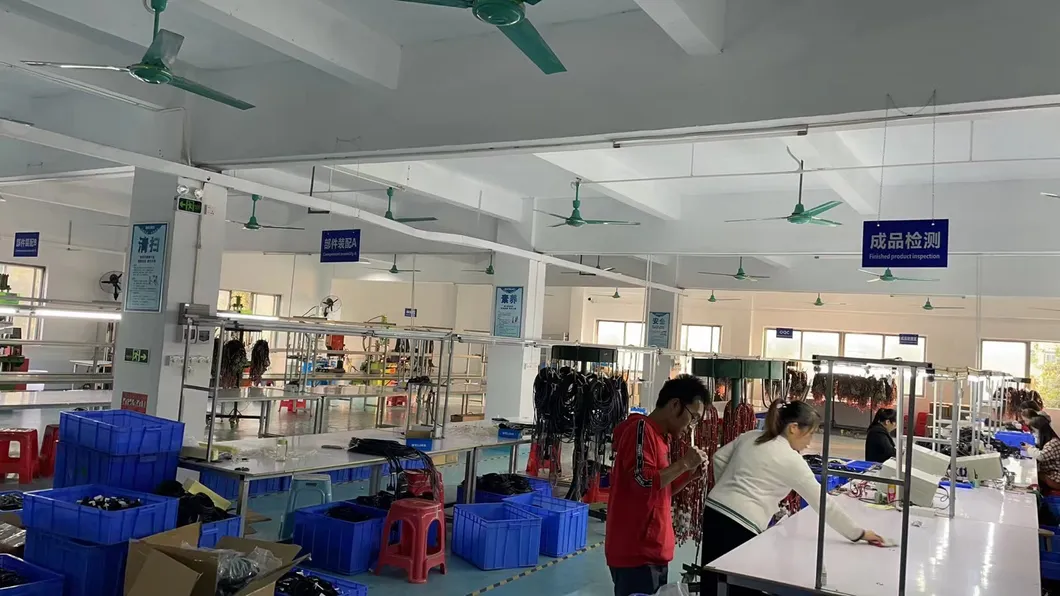

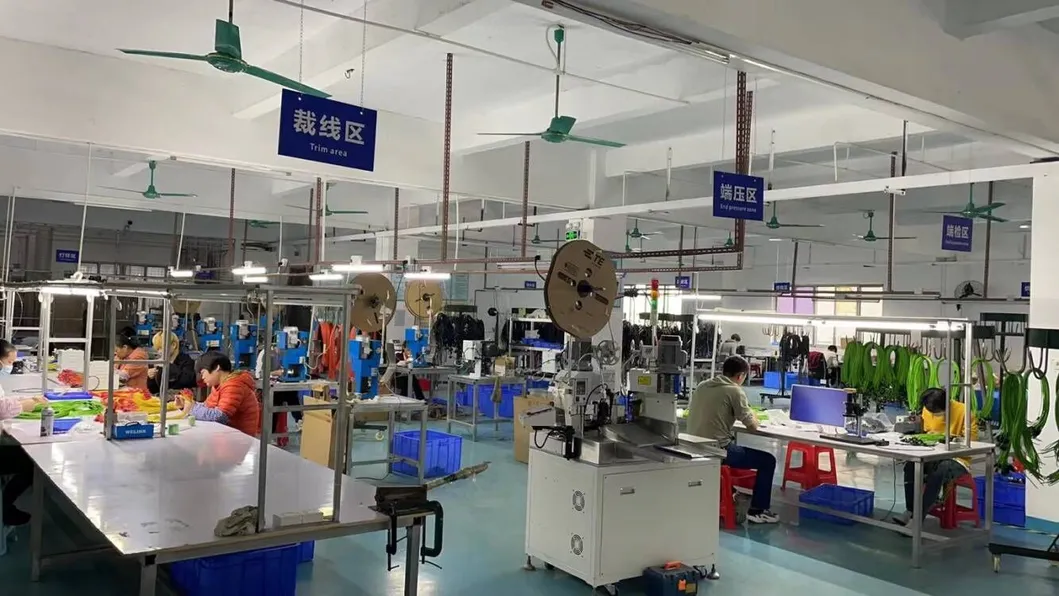

Workshop & Facility

?

Frequently Asked Questions

1. How does your factory control quality?

We use CKP and PFMEA to manage our production process. All products for automobiles and industries undergo 100% testing before delivery.

2. Is there any environmental risk on materials?

All our materials are RoHS 2.0 Compliant. We are ISO9001/ISO14001 certificated and select materials from reputable companies with regular testing.

3. How can I customize our products?

Please send us your drawings or samples. For wire harnesses, we need to know the connector type, wire gauge, length, and wire diagram.

4. Can you supply OEM & ODM service?

Yes, we have specialized in manufacturing high-quality connectors, cables, and wire harnesses for over 10 years with a professional engineering team.

5. Can you provide samples for testing?

Yes, most samples can be supplied for free (depending on type and quantity) to test performance after price confirmation, though shipping costs apply.

6. What is the lead time for mass production?

Normal lead time is 3 to 6 weeks, depending on the order quantity and product complexity.
