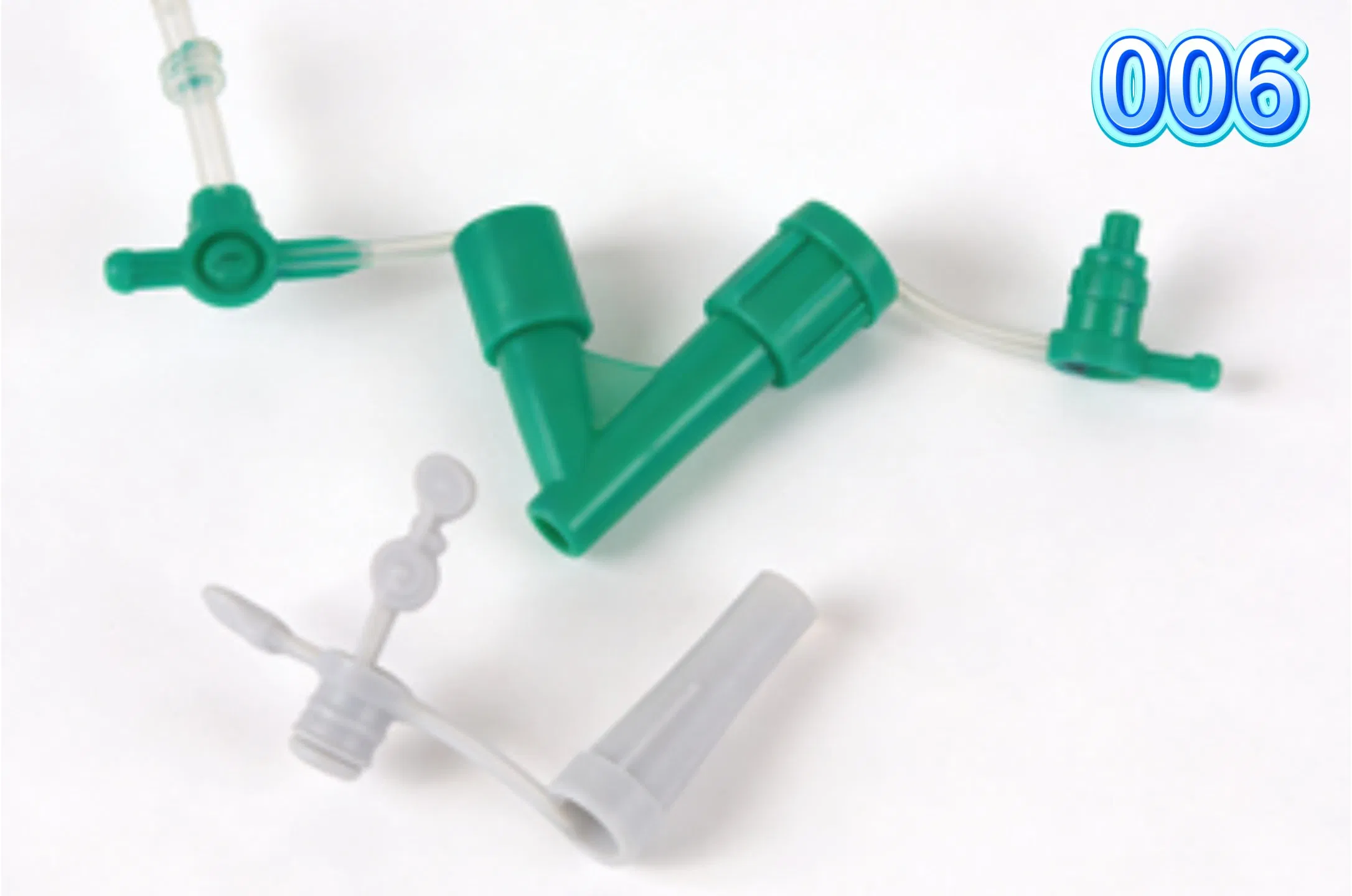

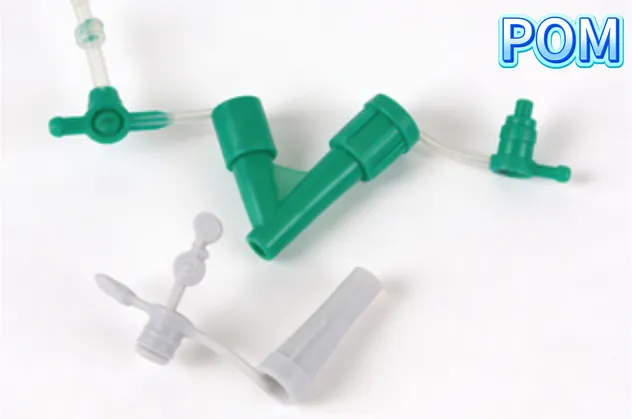

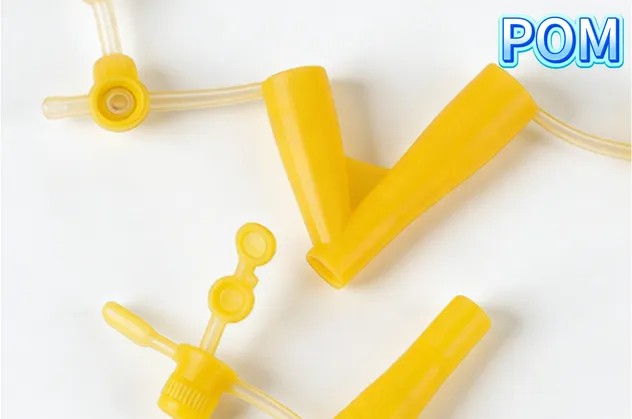

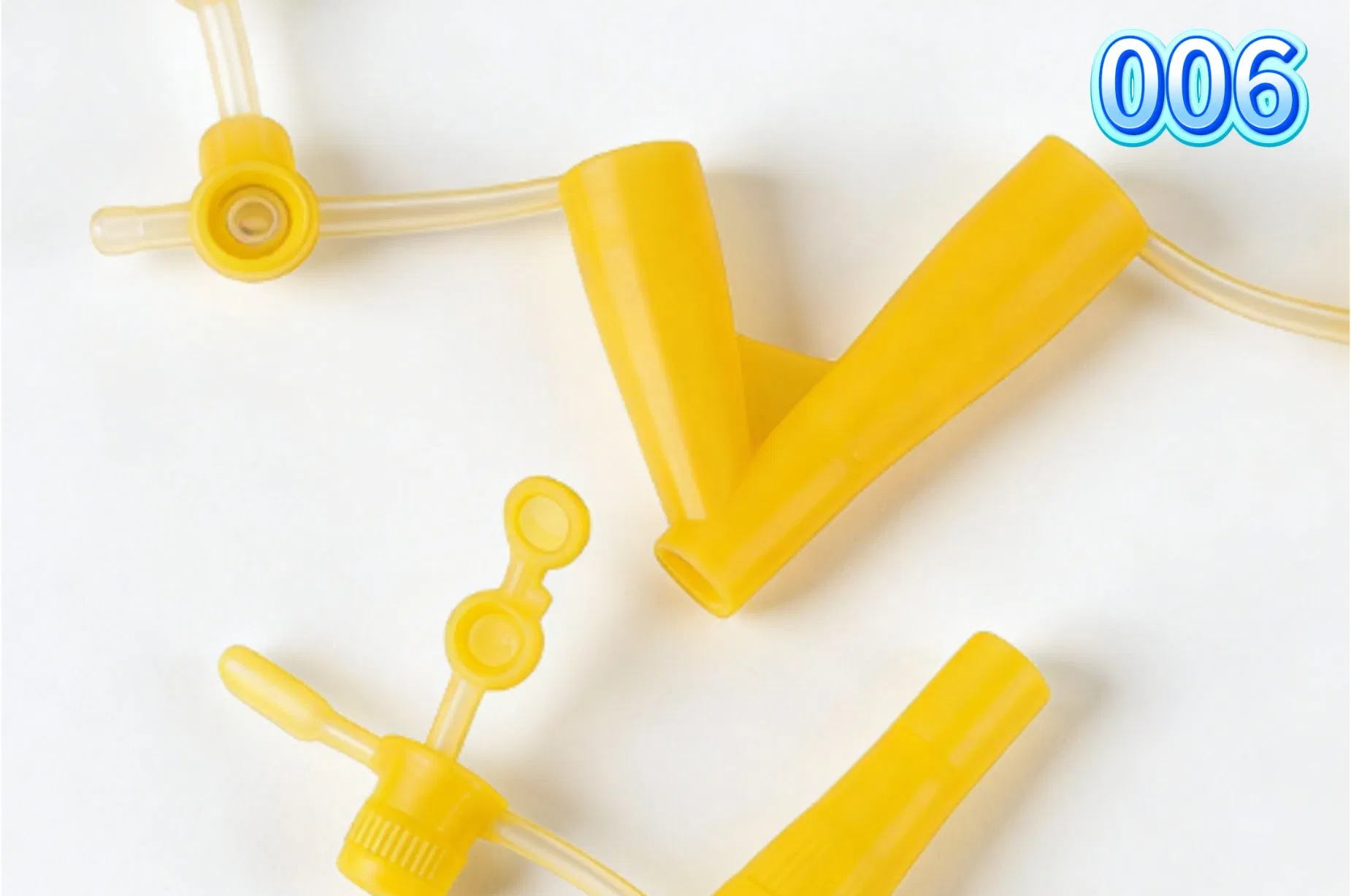

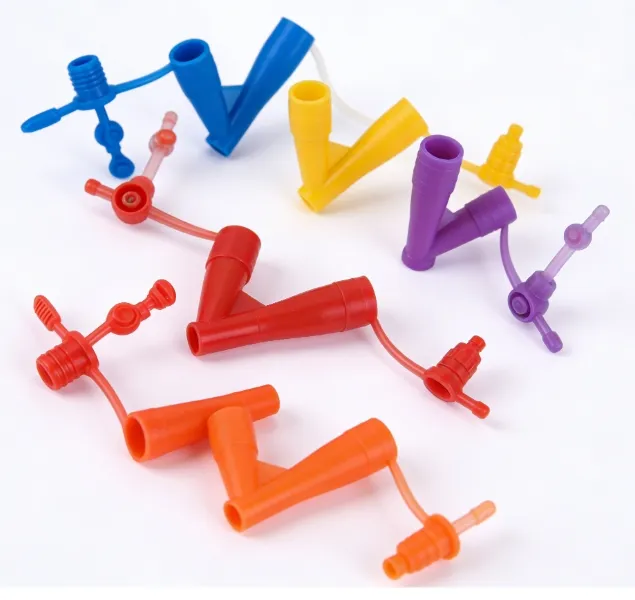

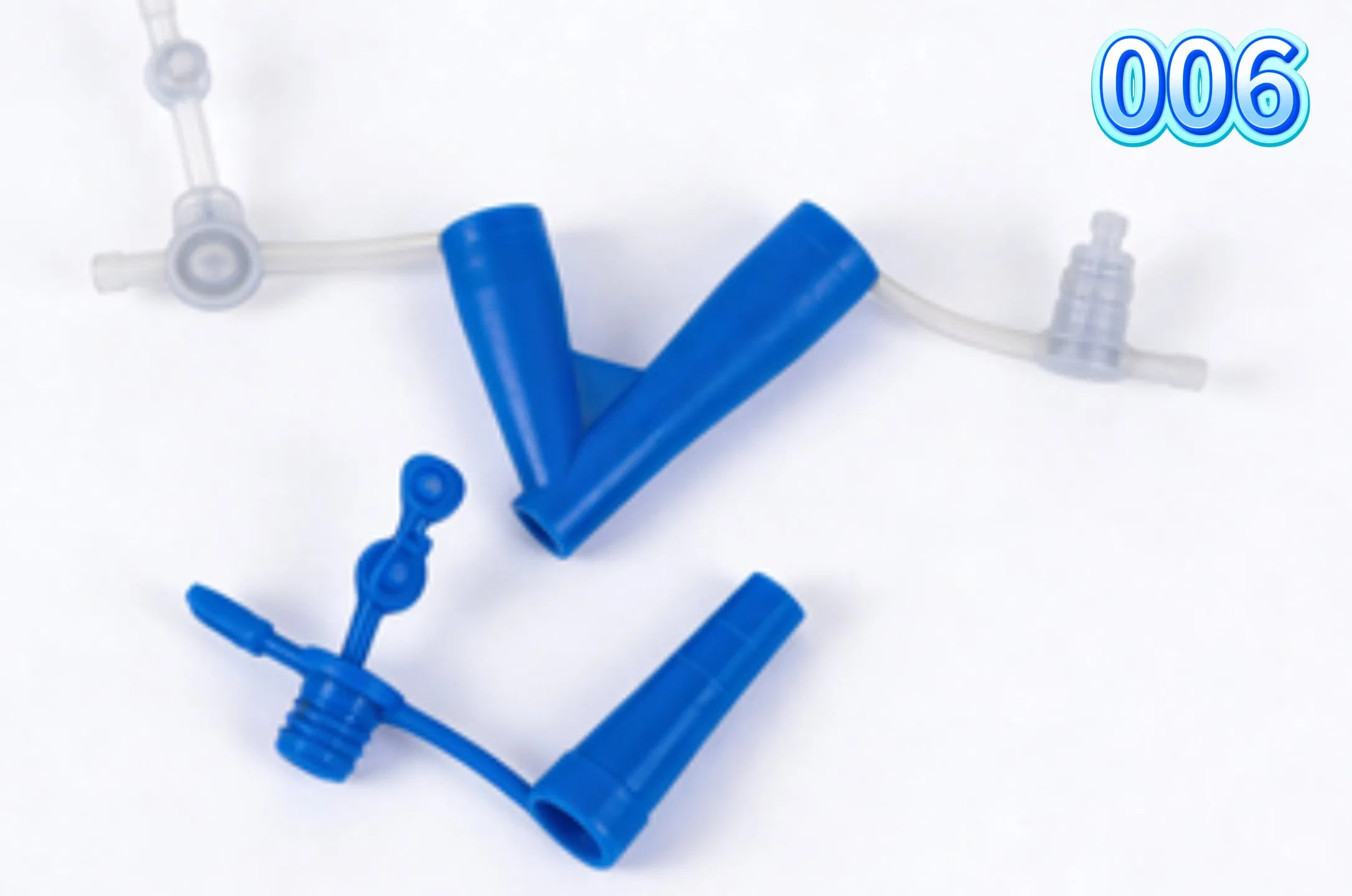

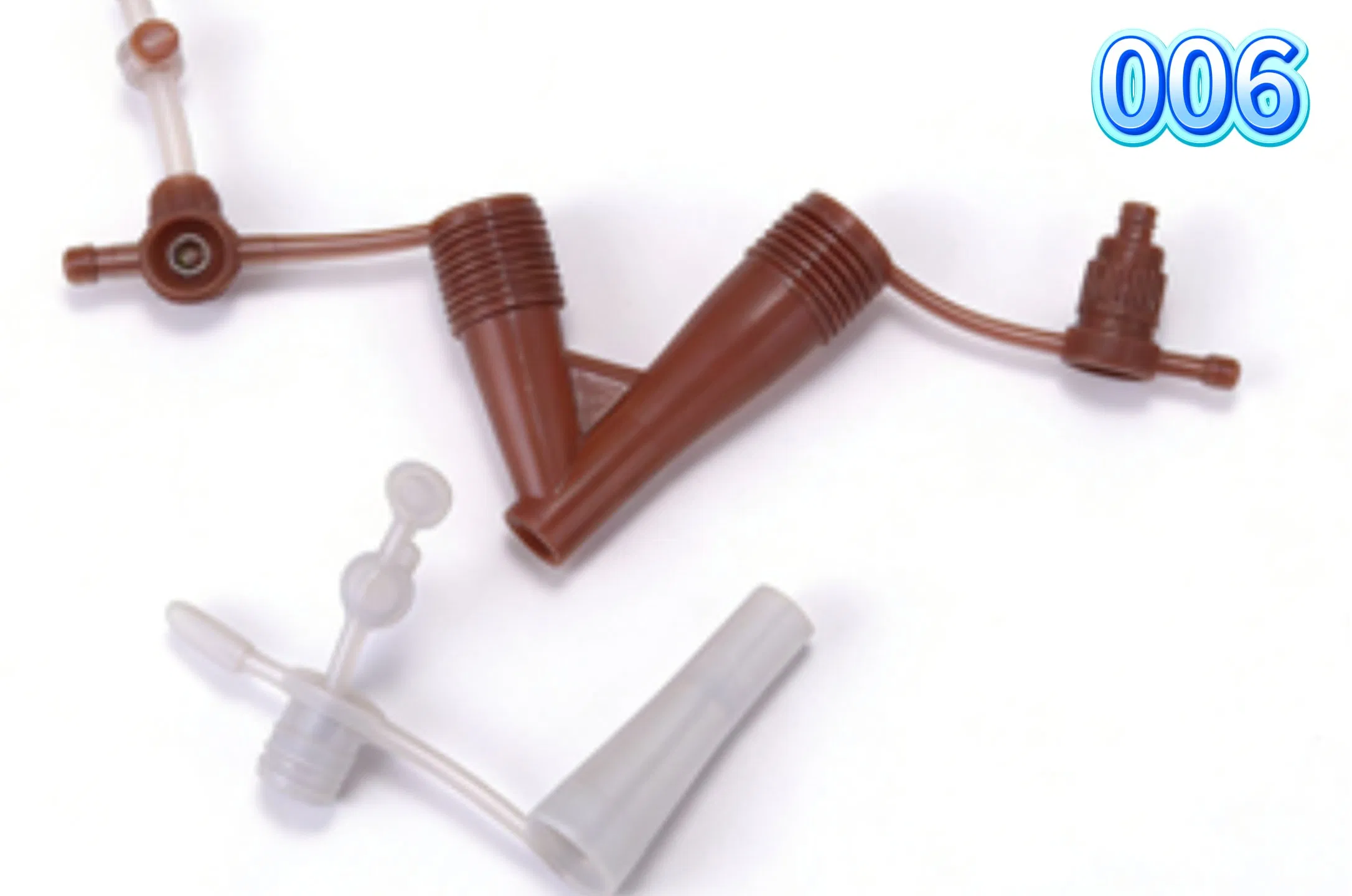

The gastric tube connector is a core consumable in gastroenterology and postoperative care, primarily applied in enteral nutrition support scenarios for patients unable to eat independently. When patients require long-term nasogastric feeding due to surgery, coma, or other conditions, nurses use it to connect nasogastric tubes with nutrient solution bags or syringes, enabling the infusion of enteral nutrition, administration of medications, or aspiration of gastric contents.
As a disposable sterile device, it is compatible with most specifications of gastric tubes and features a leak-proof sealing design, which prevents nutrient solution leakage and cross-contamination. The connector can be fixed with a simple rotational snap, significantly simplifying the nursing process while reducing the risk of tube dislodgement. It serves as a critical auxiliary device to ensure patients' nutritional supply and nursing safety, playing an indispensable role in clinical care for maintaining patient health and promoting recovery.
| Standard Model | PVC WGP Series (Standard Type), TPU WGT Series (Nutrition Type), Silicone Series (High-End Type) |
| Specification Size | 4Fr~24Fr (Commonly used: 6Fr~20Fr) |
| Nominal Outer Diameter | 6Fr: 2.0mm, 8Fr: 2.7mm, 10Fr: 3.3mm, 12Fr: 4.0mm, 14Fr: 4.7mm, 16Fr: 5.3mm, 18Fr: 6.0mm |
| Connector Length | ≥20mm |
| Sealing Performance | Withstands 15N axial static tension for 15s without separation |
| Flexibility | No kinking during bending test |
| Connection Strength | Withstands 15N axial static tension for 15s without separation |
| Anti-Unscrewing Torque | Withstands 0.018~0.020N·m torque for 10~15s without separation |
| Flow Rate Range | Maximum 3000mL/h (gravity), 200mL/min (syringe push) |
| Operating Pressure | Maximum positive pressure: 300kPa, negative pressure: 80kPa |
| Applicable Patients | Patients unable to eat independently (postoperative, comatose, dysphagia, etc.) |
| Clinical Applications | Enteral nutrition infusion, drug administration, gastrointestinal decompression, gastric content aspiration |
| Compatible Devices | Nasogastric tube, gastrostomy tube, syringe, nutrient solution bag/bottle |
