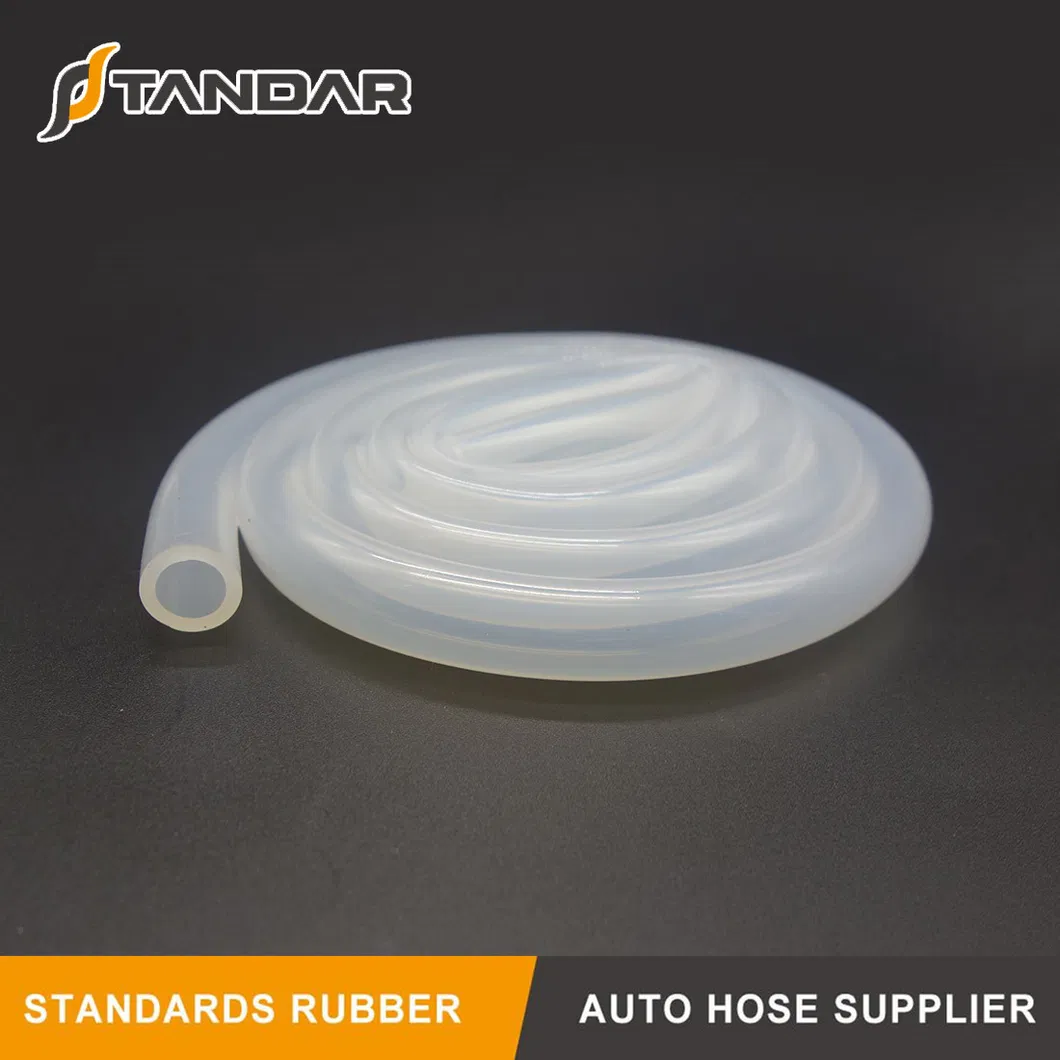

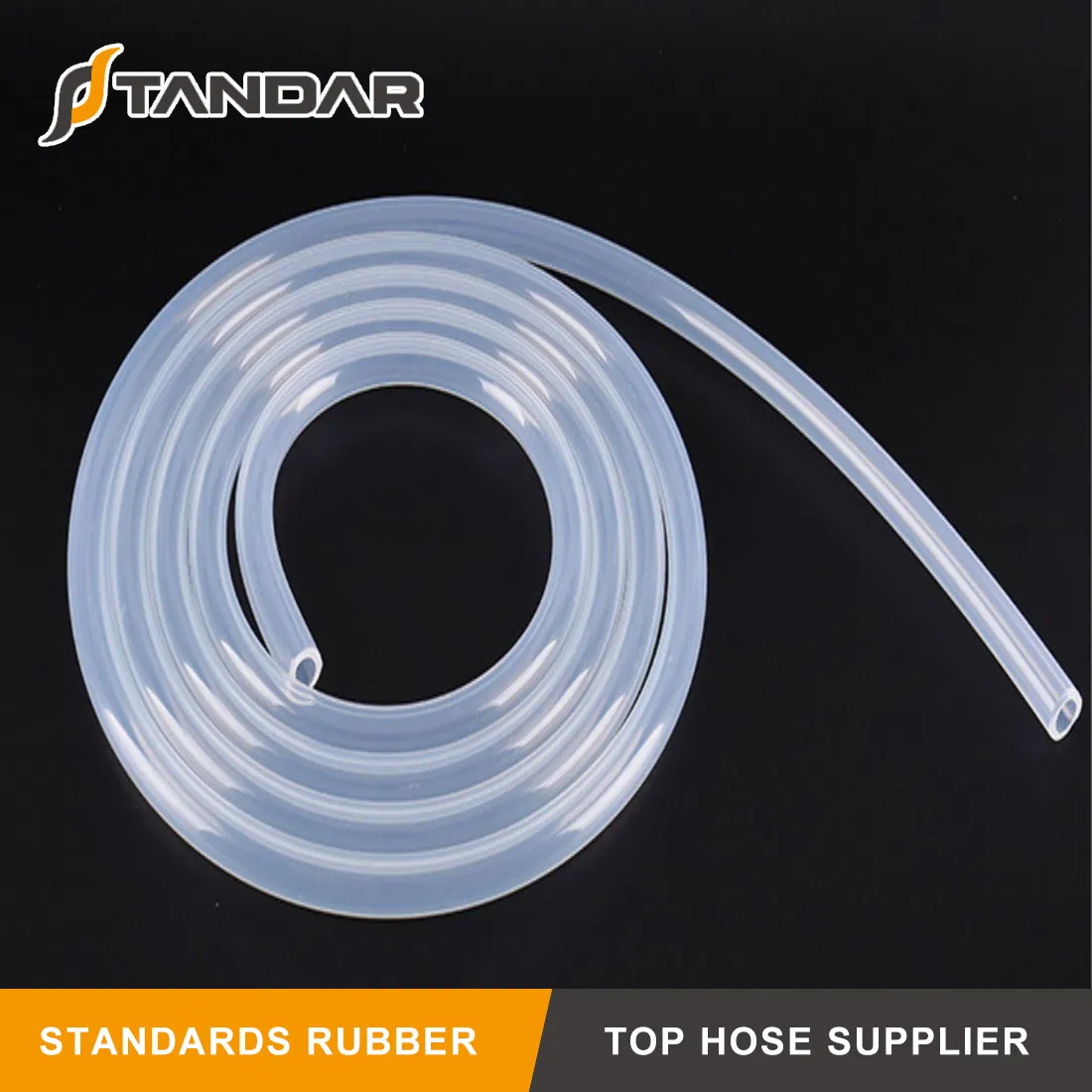

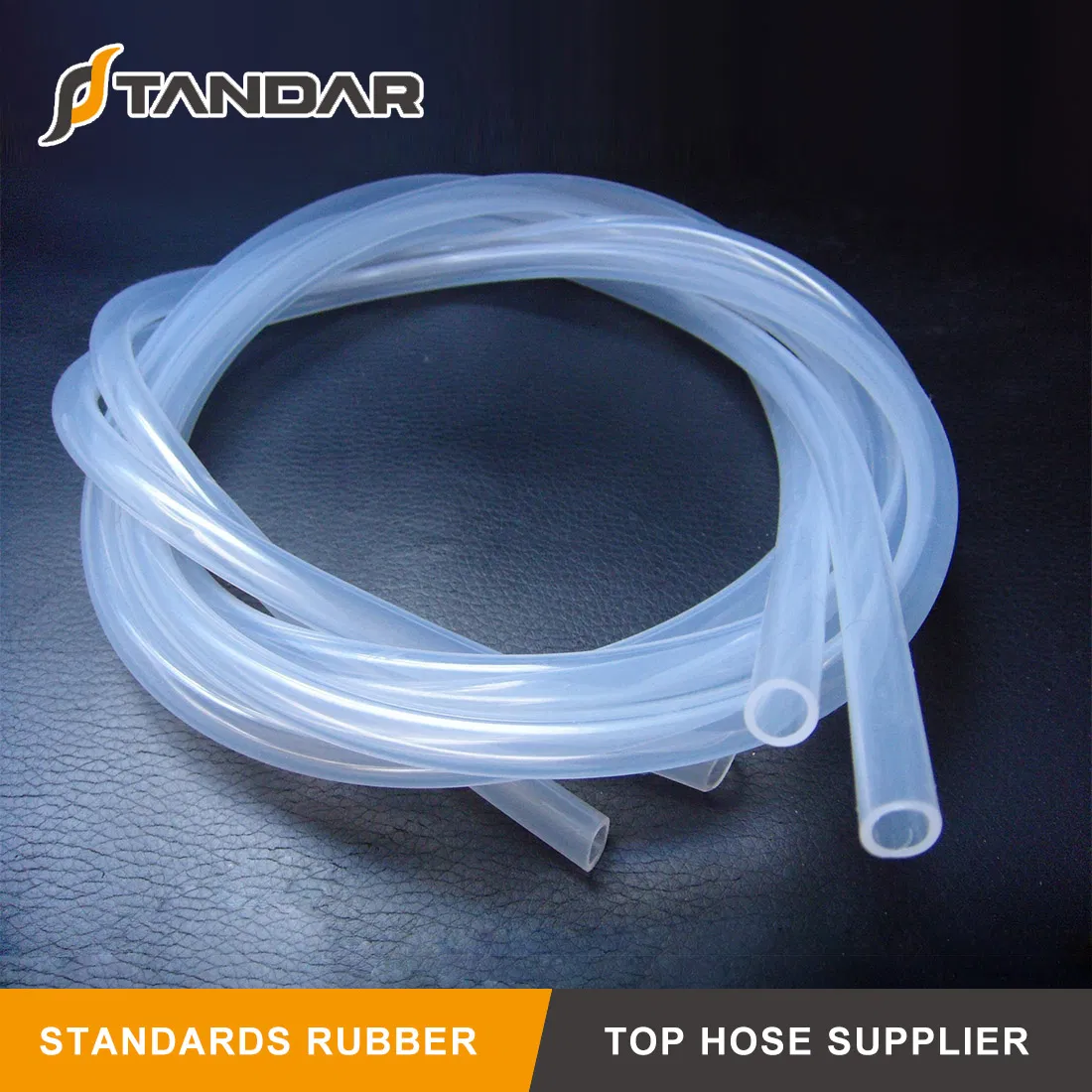

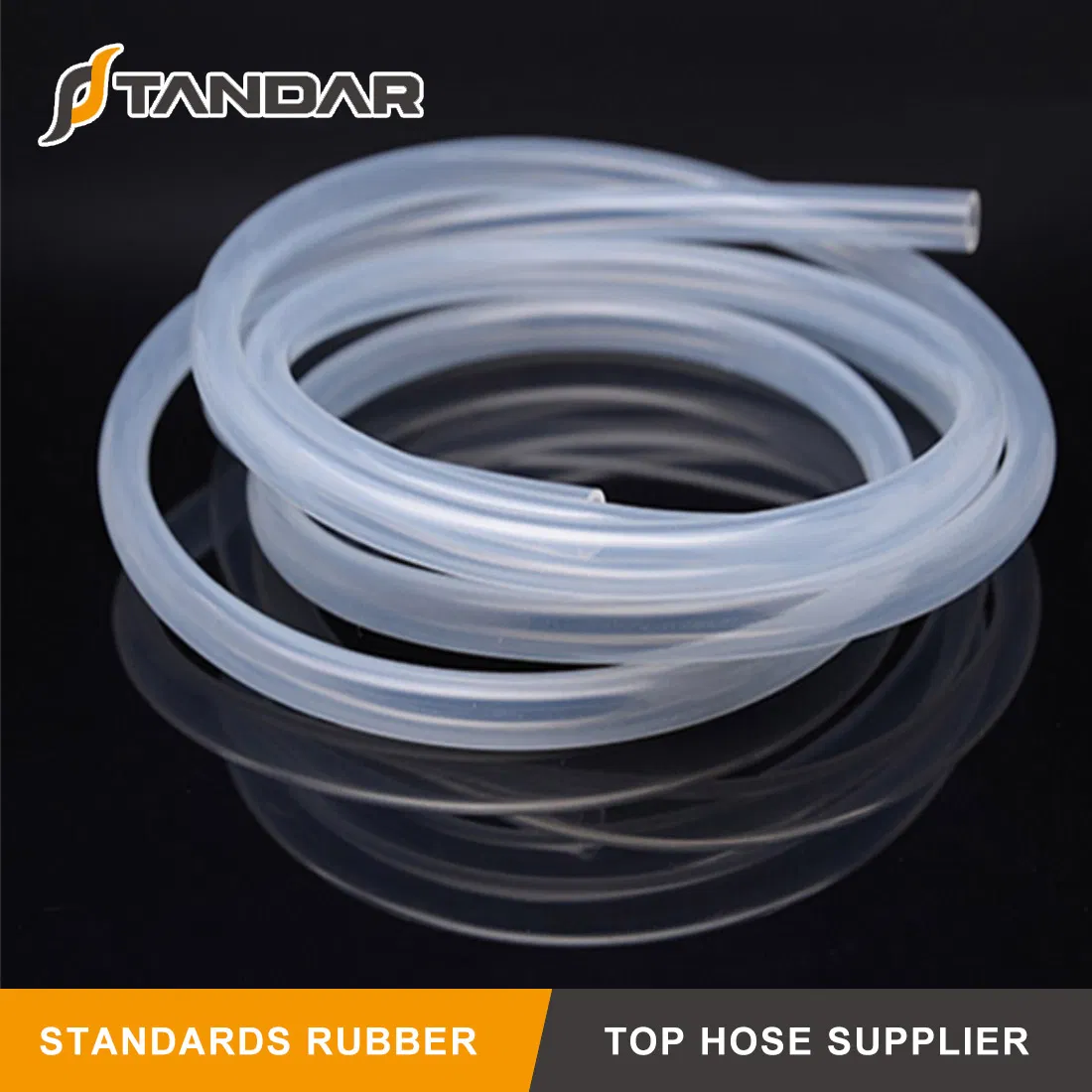

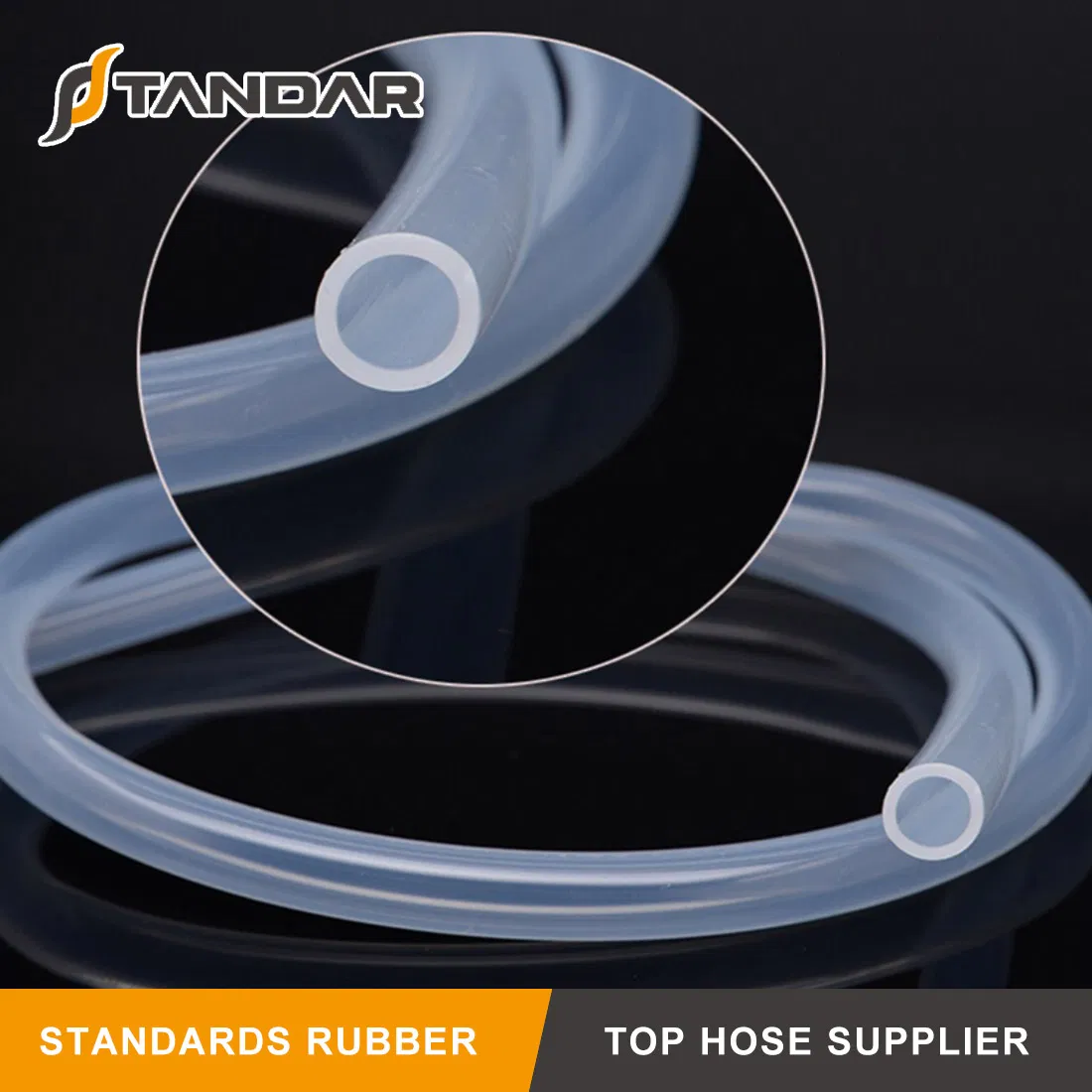

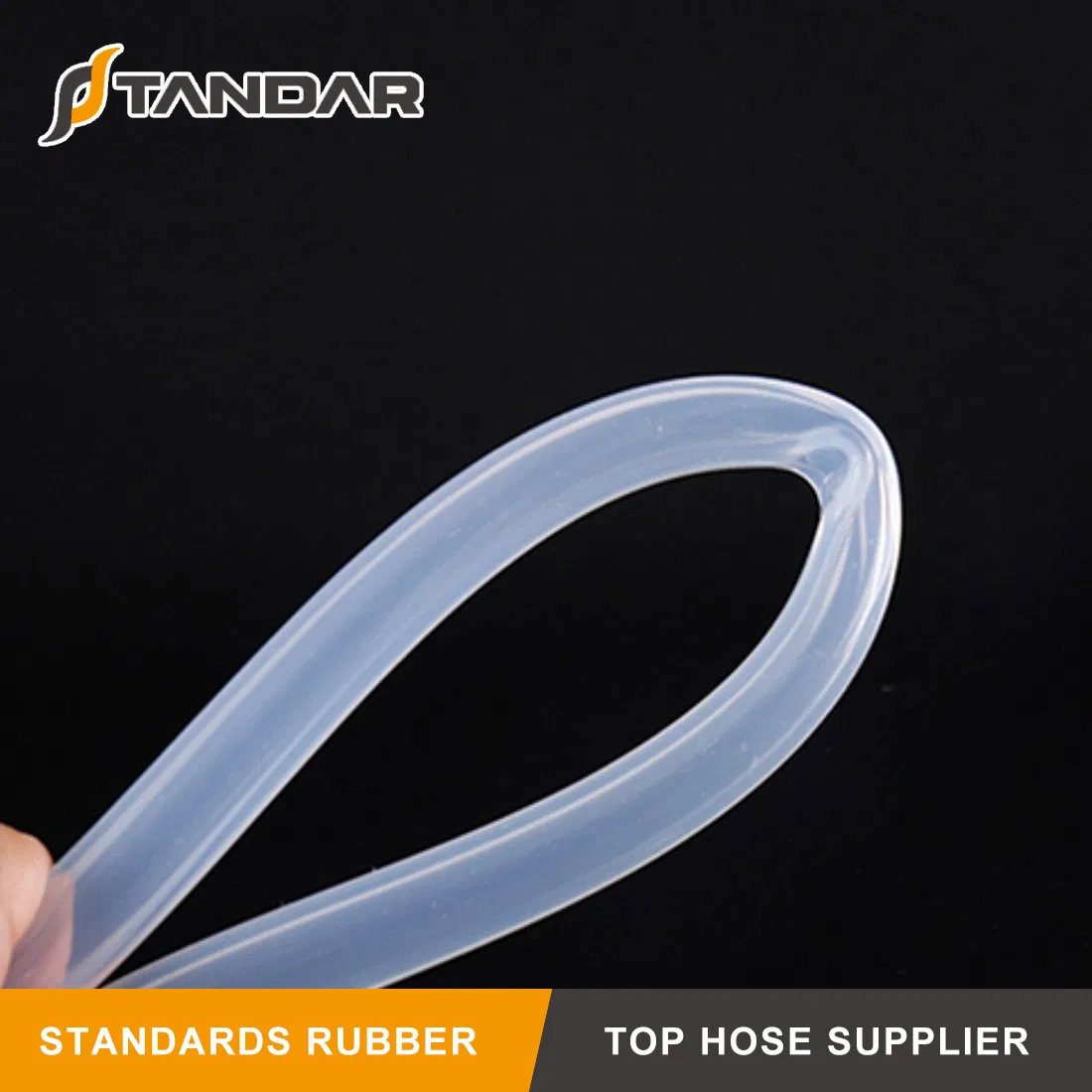

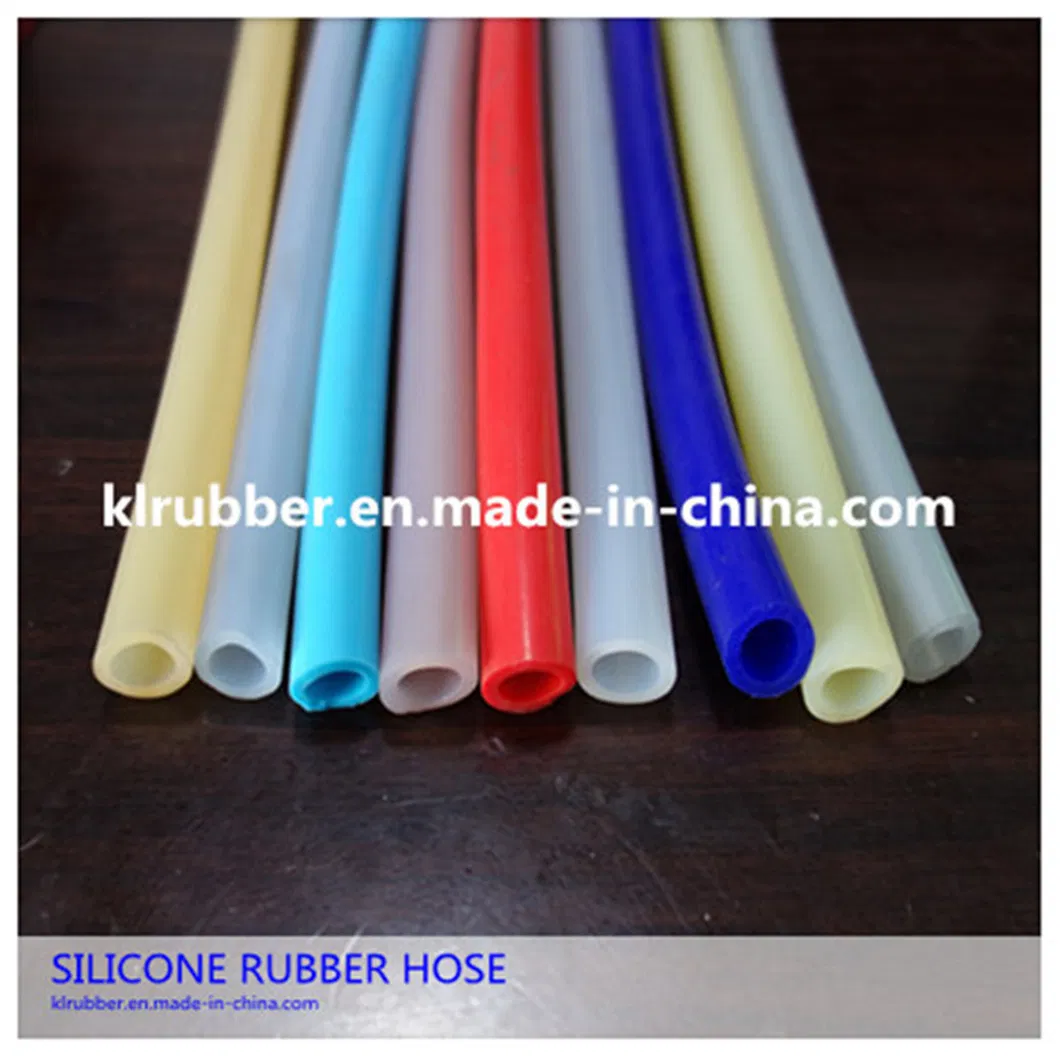

Food Grade Flexible Thin Wall Soft Clear High Temp Platinum Cured Reinforced Silicone Tubing

1 / 5

Food Grade Flexible Thin Wall Soft Clear High Temp Platinum Cured Reinforced Silicone Tubing

Customization:	Available
Material:	Silicone Rubber
Capability:	Water Rubber Hose

Send Inquiry

Product Description

Food Grade Flexible Thin Wall Soft Clear High Temp Platinum Cured Reinforced Silicone Tubing

Basic Specifications

Model NO.

TB-GJH-001

Color

White / Semi-transparent

Use

Medical and Food Grade

ID Range

10-150mm

Length

1-10m

Standards

FDA, GB, SGS

Hardness

30-80 Shore A

Capacity

100,000 Meters Per Week

Performance & Key Benefits

Temperature Resistance: High and low temperature stability, maintain elasticity from -60 ºC to 180 ºC (special up to 280 ºC).
Electrical Insulation: Exceptional dielectric properties unaffected by temperature fluctuations within 20-180 ºC.
Weathering Resistance: Resistant to ozone and UV light; ideal for long-term outdoor use (estimated 20+ years).
Material Safety: High transparency, tasteless, non-toxic, and low protein binding power.
Structural Integrity: Wonderful flexibility, high resistance to tear strength and deformation.

Industry Applications

FOOD Connecting pipes for food machinery, baby bottle straws, water dispensers, coffee pots, water heaters, and electric rice cookers.

MEDICAL Medical equipment connection pipes, catheters, and sterile liquid transfer for injection/vial filling machines.

INDUSTRIAL Electrical instrument casing, peristaltic pumps, and transfer of ointments or creams.

Technical Specifications & Size Chart

Spec (mm)	ID (mm)	OD (mm)	Wall (mm)	Tolerance (mm)	Hardness (Shore A)
3*5	3	5	1	0.1	30-80
4*6	4	6	1	0.1	30-80
5*8	5	8	1.5	0.15	30-80
6*9	6	9	1.5	0.15	30-80
8*12	8	12	2	0.2	30-80
10*14	10	14	2	0.15	30-80
12*16	12	16	2	0.15	30-80
16*22	16	22	3	0.2	30-80
25*31	25	31	3	0.3	30-80

Why Choose Our Silicone Products

Direct Manufacturer: High quality ensured with competitive pricing by eliminating middleman costs.
Expert Engineering: Overseen by highly skillful and experienced silicone field engineers.
Full Customization: Technical demands and custom drawings are met with precision.
Reliable Delivery: Optimized production cycles to ensure factory-direct delivery times.

Frequently Asked Questions

What is the maximum temperature this silicone tubing can handle?

The standard range is -40°C to 200°C. However, our specially treated platinum-cured hoses can withstand temperatures from -60°C up to 280°C.

Is this hose safe for medical and food contact?

Yes, our silicone tubing is made from 100% silicone raw material and meets FDA, GB, and SGS standards, making it non-toxic, tasteless, and safe for sterile liquid transfer.

Can I request a custom size or color?

Absolutely. We specialize in customization. We can produce diameters ranging from 0.3mm to 80mm based on your specific drawings and technical requirements.

How long does the silicone hose last in outdoor conditions?

Due to its excellent resistance to ozone and ultraviolet light, our silicone tubes are generally considered suitable for outdoor use for more than 20 years without cracking.

What is the difference between platinum-cured and peroxide-cured extrusion?

Platinum-cured extrusion offers higher transparency, no odor, and lower protein binding, which is preferred for medical and high-purity food applications. Peroxide-cured is often used for general industrial applications.

Do you provide samples before bulk ordering?

Yes, samples are available. If the specific size is in stock, it can be sent to you free of charge for quality testing.
