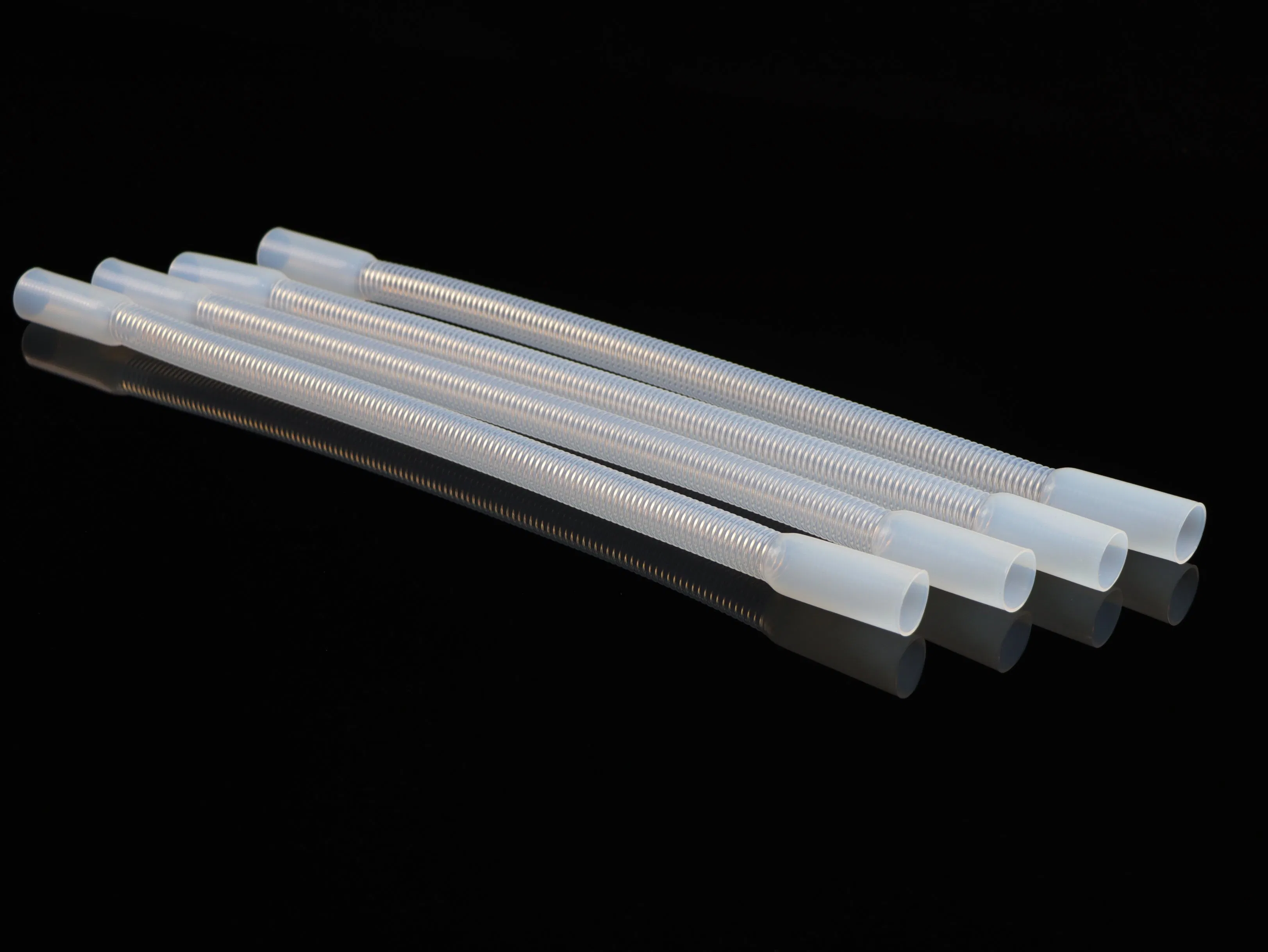

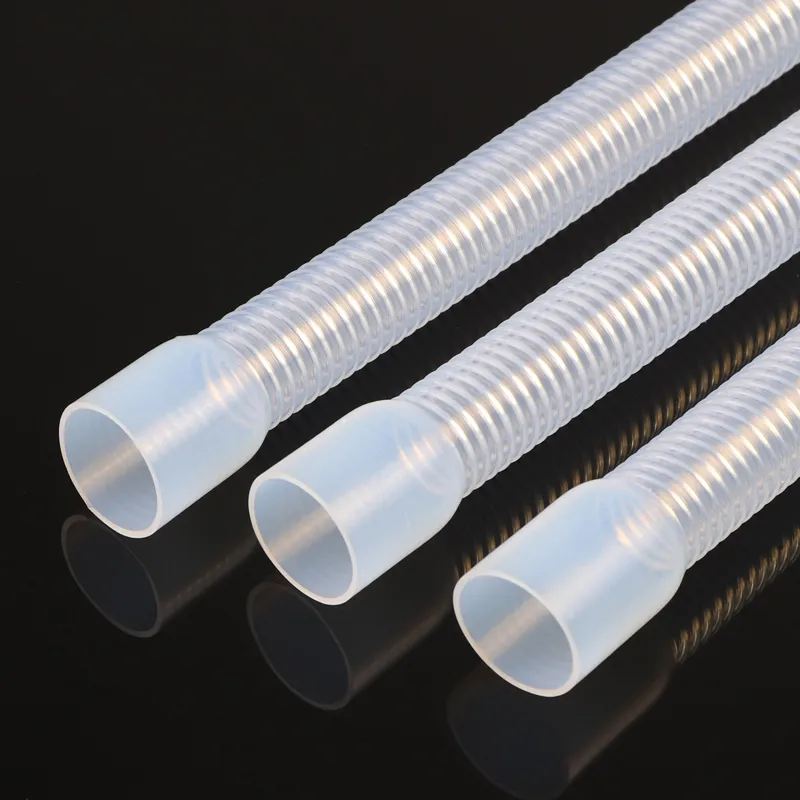

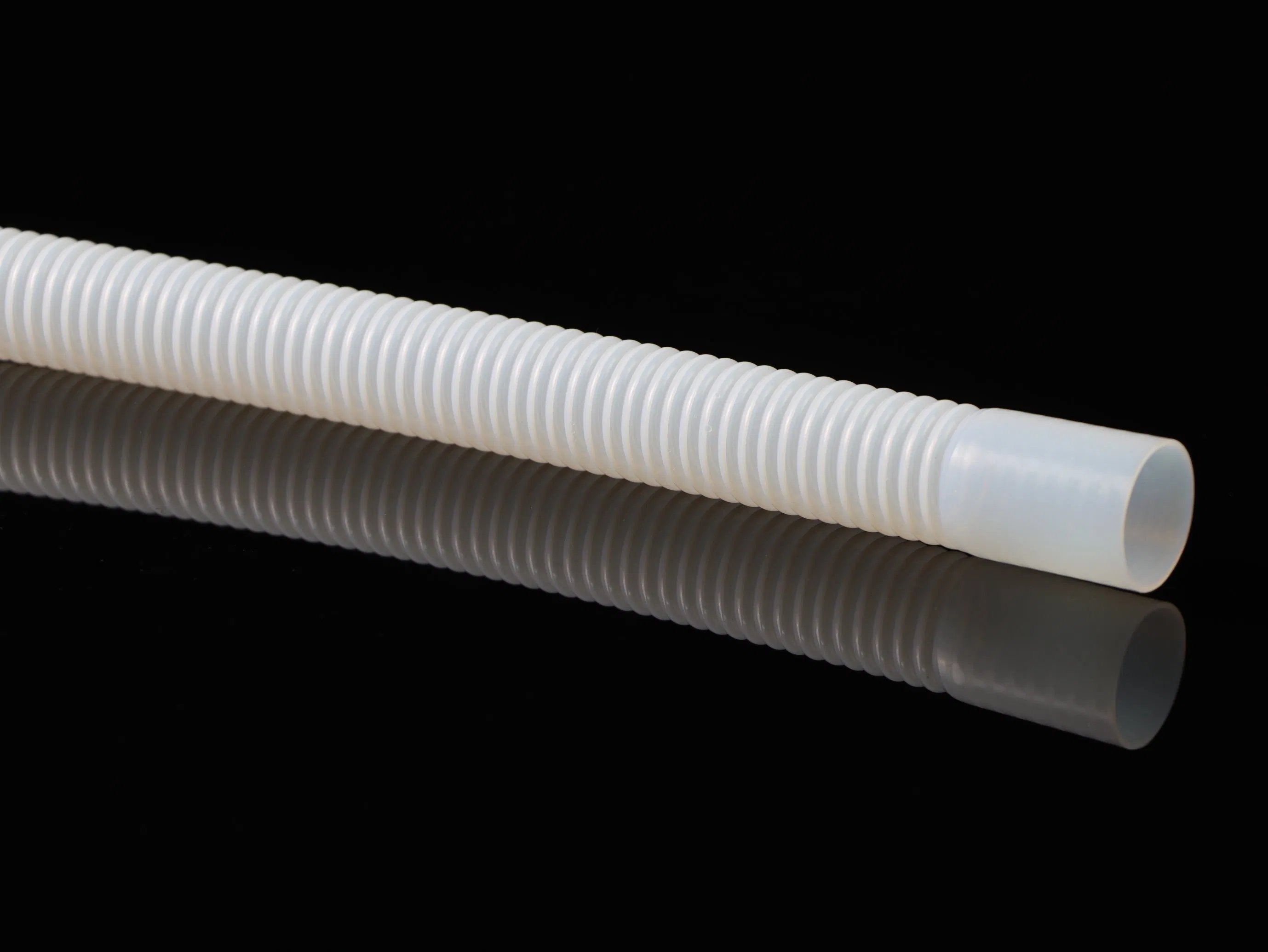

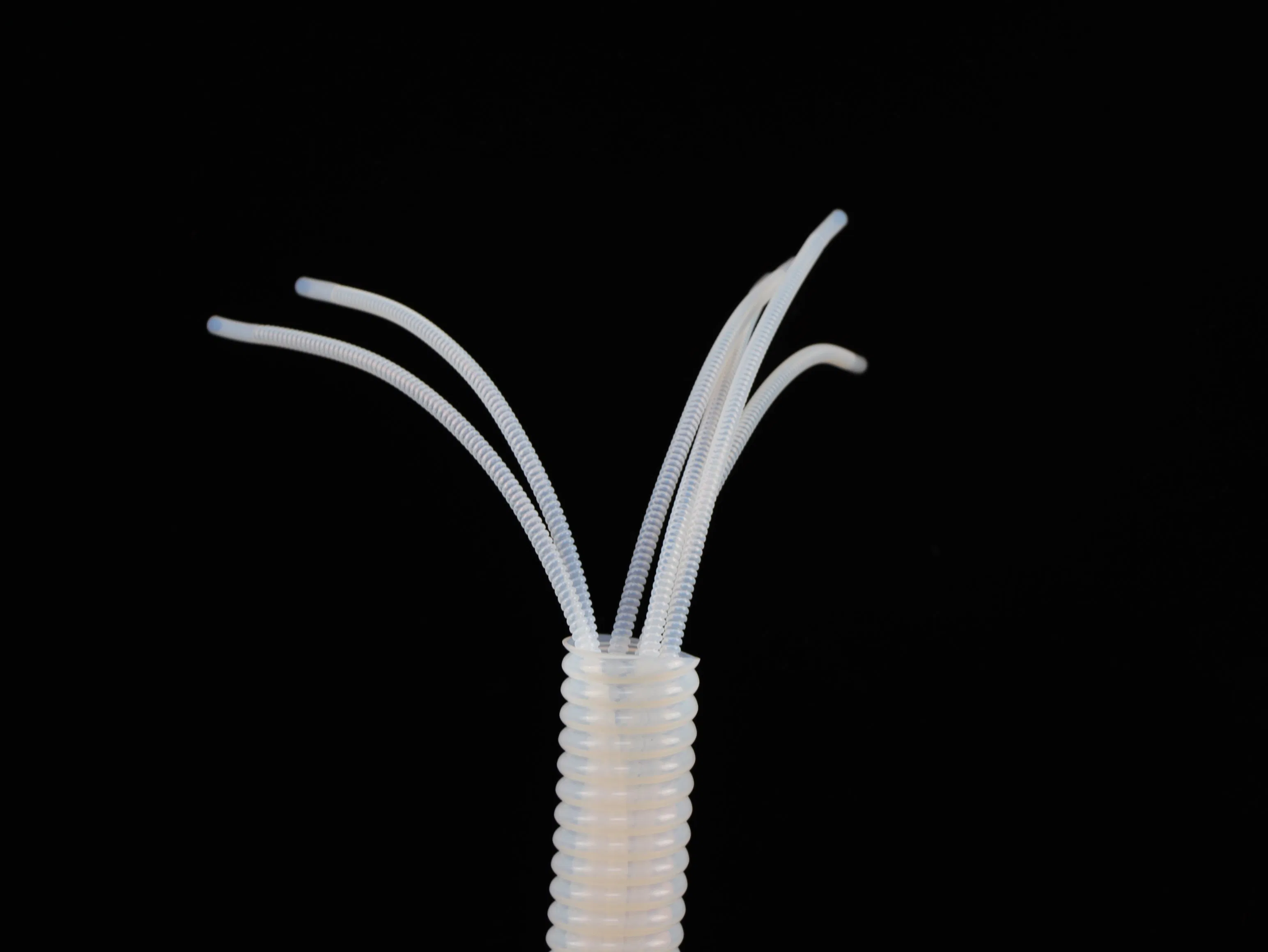

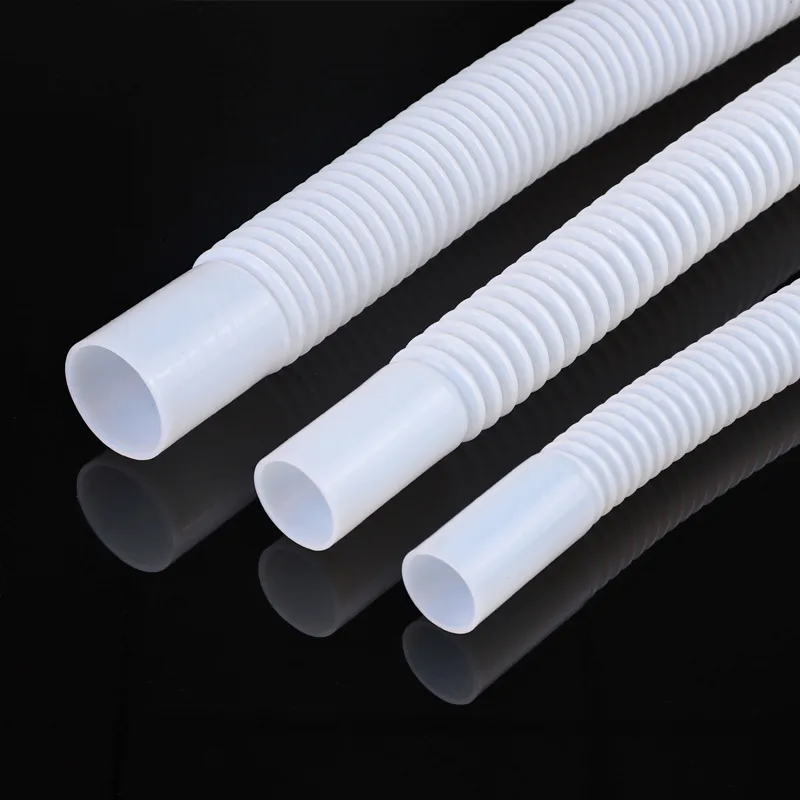

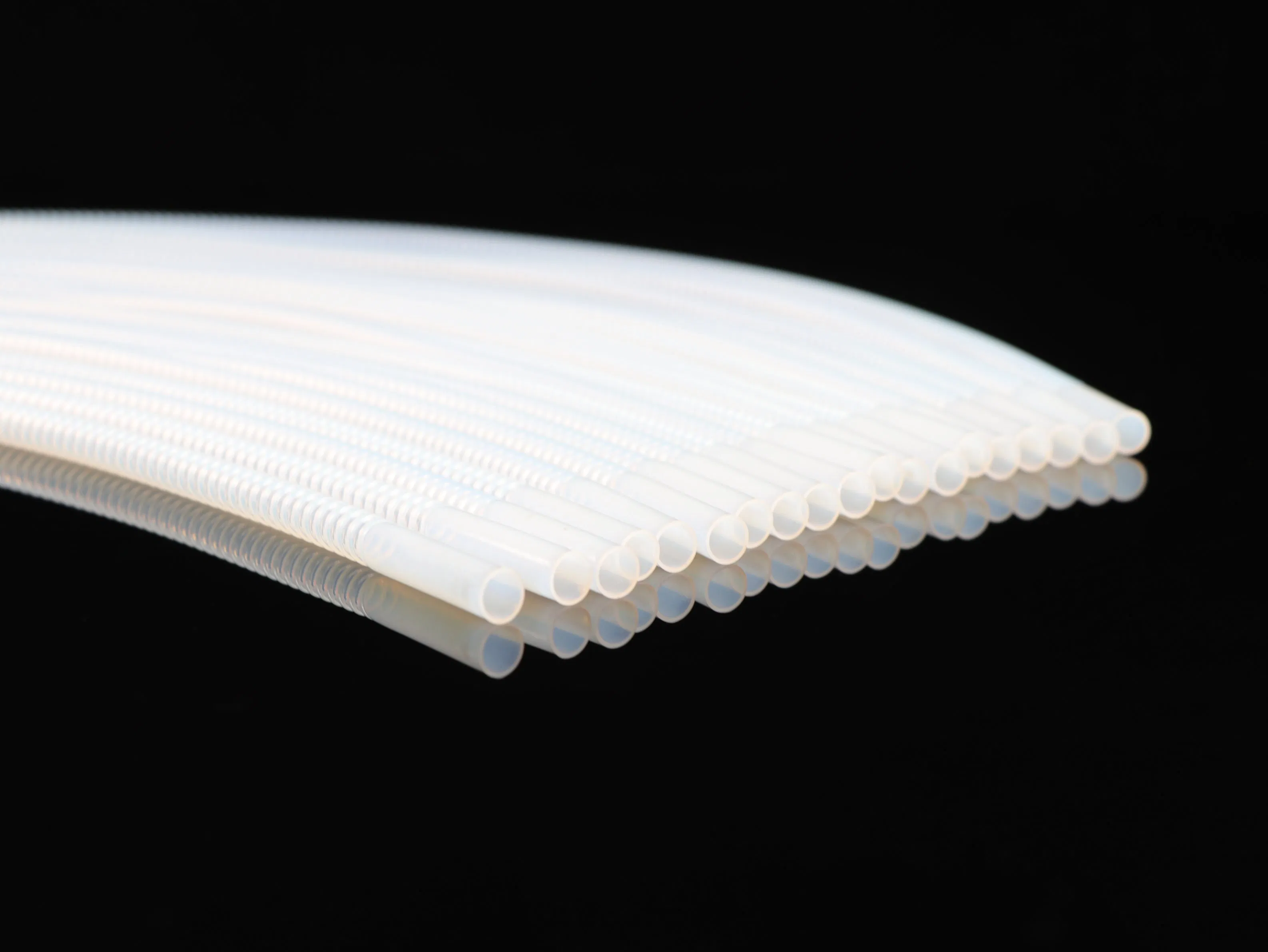

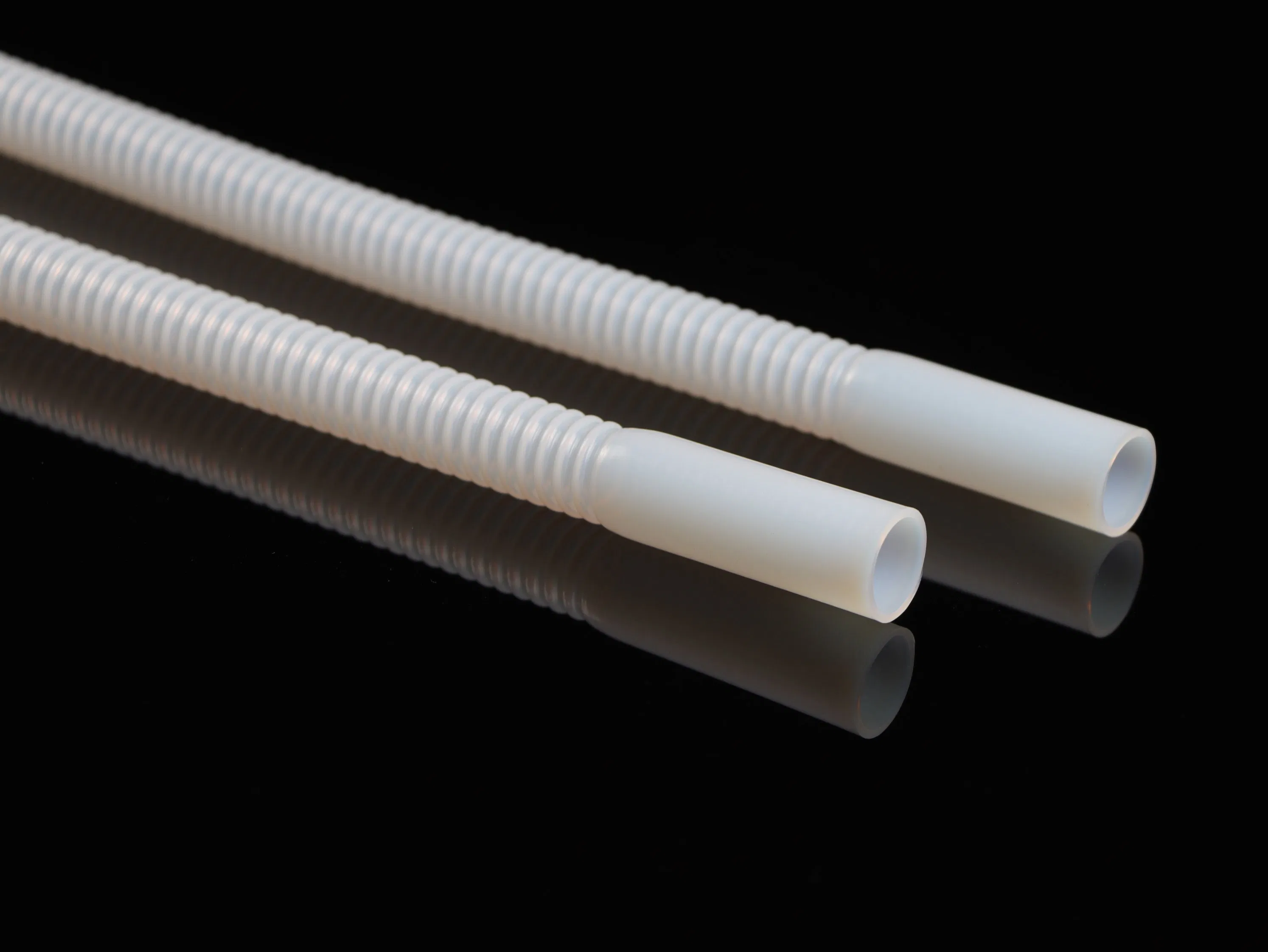

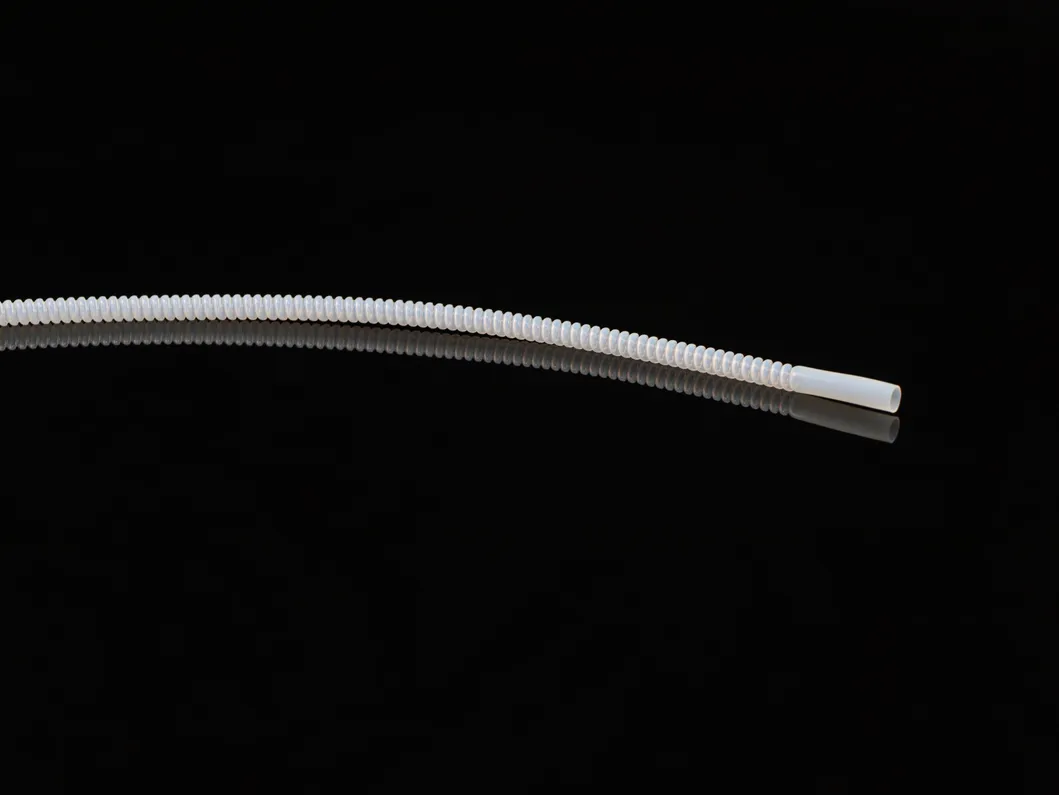

PTFE tube used milk drinks and other tubes non toxic food grade
| Technical Specifications | |
|---|---|
| Item Name | PTFE tube used milk drinks and other tubes non toxic food grade |
| Color | Milky White / Translucent / Black |

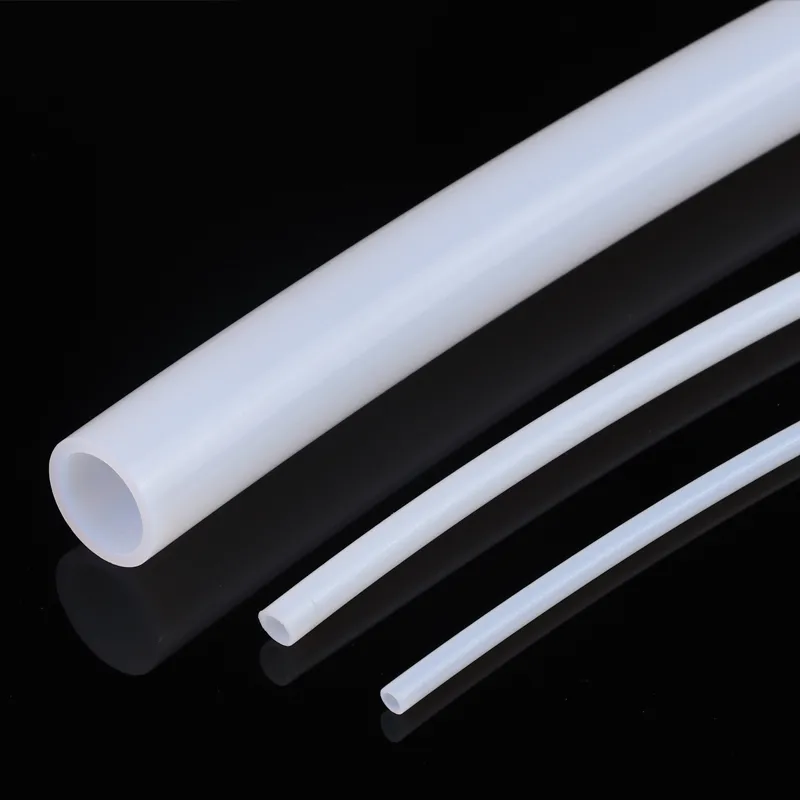

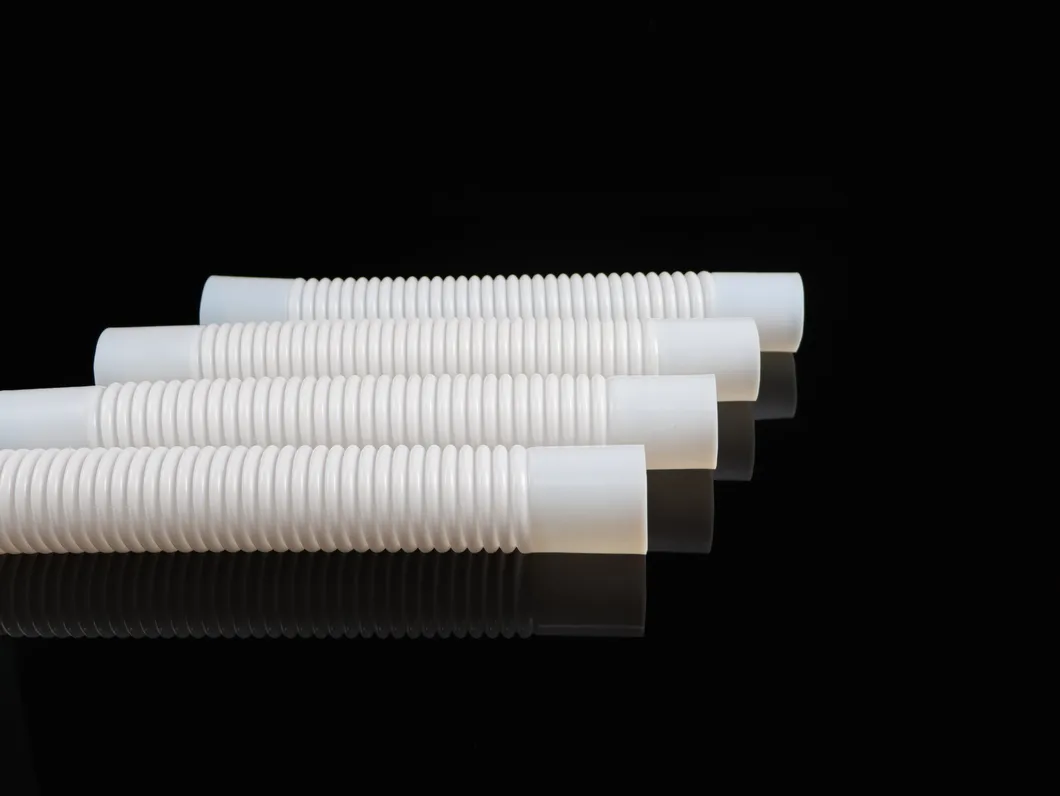

| Inner Layer | Straight tube / Spiral corrugated hose / Annual hose PTFE |
| Reinforcement | Stainless steel 304 & 316 braided / Aramid fiber |
| Temperature Range | -65ºC to +260ºC (-85°F to +500°F) |
| Applications | Aerospace, Transportation, Electronics, Chemical, Pharmaceutical, Food Processing, Environmental Sciences, Water Processing. |
| Standard | ISO9001, SAE 100R14 |
| No. | DN (mm) | NB (inch) | Inner ID (mm) | Outer OD (mm) | Min Bend Radius (mm) | Working Pressure (bar) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| 1 | 6 | 1/4 | 6.5-6.8 | 10.4 | 19 | 82 | 0.112 |
| 2 | 8 | 5/16 | 7.8-8.1 | 12.1 | 20 | 75 | 0.144 |
| 3 | 10 | 3/8 | 9.1-9.3 | 14.2 | 22 | 60 | 0.158 |
| 4 | 15 | 1/2 | 13.1-13.3 | 18.8 | 28 | 48 | 0.223 |
| 5 | 18 | 5/8 | 16.0-16.3 | 21.9 | 32 | 38 | 0.345 |
| 6 | 20 | 3/4 | 19.3-19.8 | 26 | 40 | 30 | 0.456 |
| 7 | 25 | 1 | 25.0-25.4 | 30.4 | 56 | 28 | 0.511 |
| 8 | 32 | 1¼ | 32.0-32.5 | 41.9 | 70 | 25 | 0.878 |
| 9 | 40 | 1½ | 38.5-39.5 | 49.9 | 75 | 20 | 1.138 |
| 10 | 50 | 2 | 53.5-54.5 | 66.9 | 80 | 15 | 1.725 |
* Meet SAE 100R14 standard.
* Customer-specific products may be discussed for detailed requirements.
Founded in 2012, we are a military-civilian integration enterprise specializing in Polytetrafluoroethylene (PTFE) equipment and hose research, development, manufacturing, and sales. We are recognized as a national high-tech enterprise.

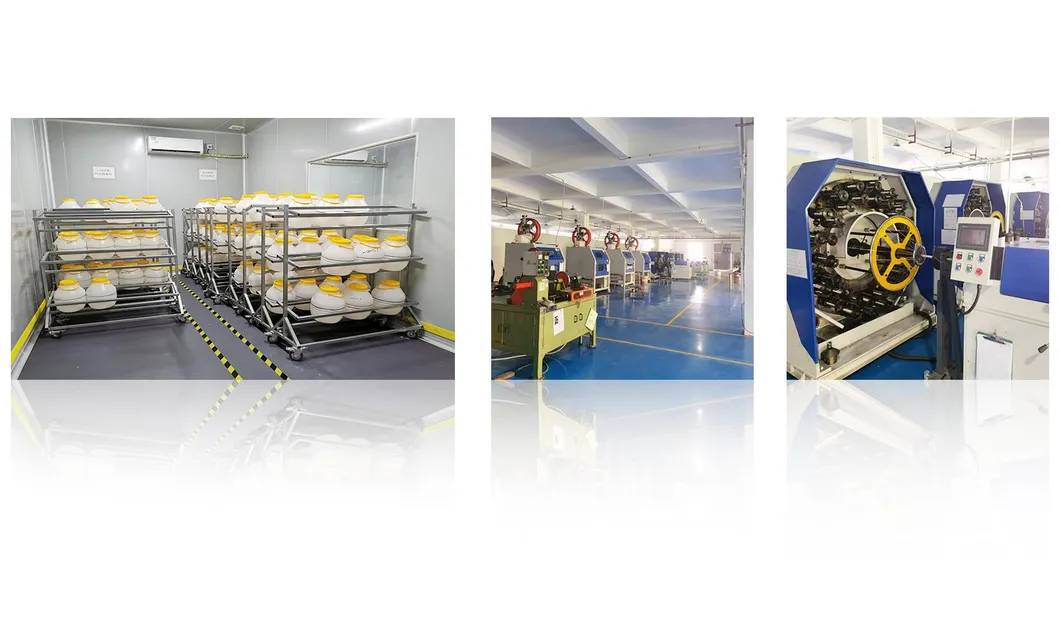

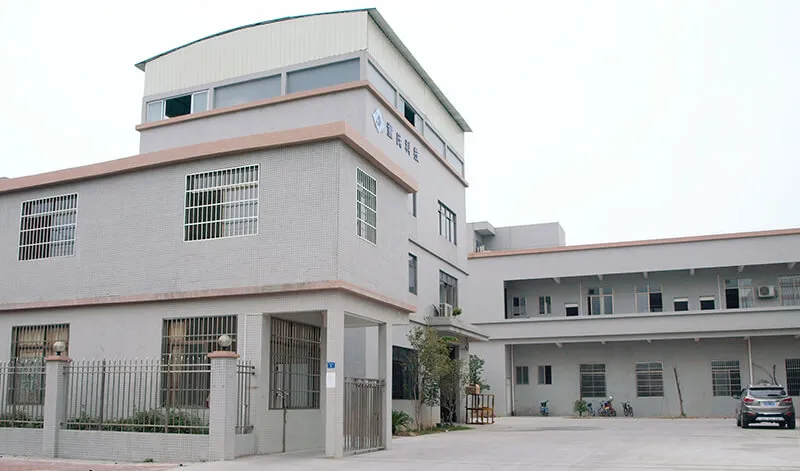

With two production bases, we achieve an annual output of more than 10 million meters of various hoses. Our products are widely used in petrochemical, medical equipment, semiconductor, rail transit, big data, and food machinery industries.
We adhere to core values of integrity and user-first service, striving to lead in global PTFE hose intelligent manufacturing.
