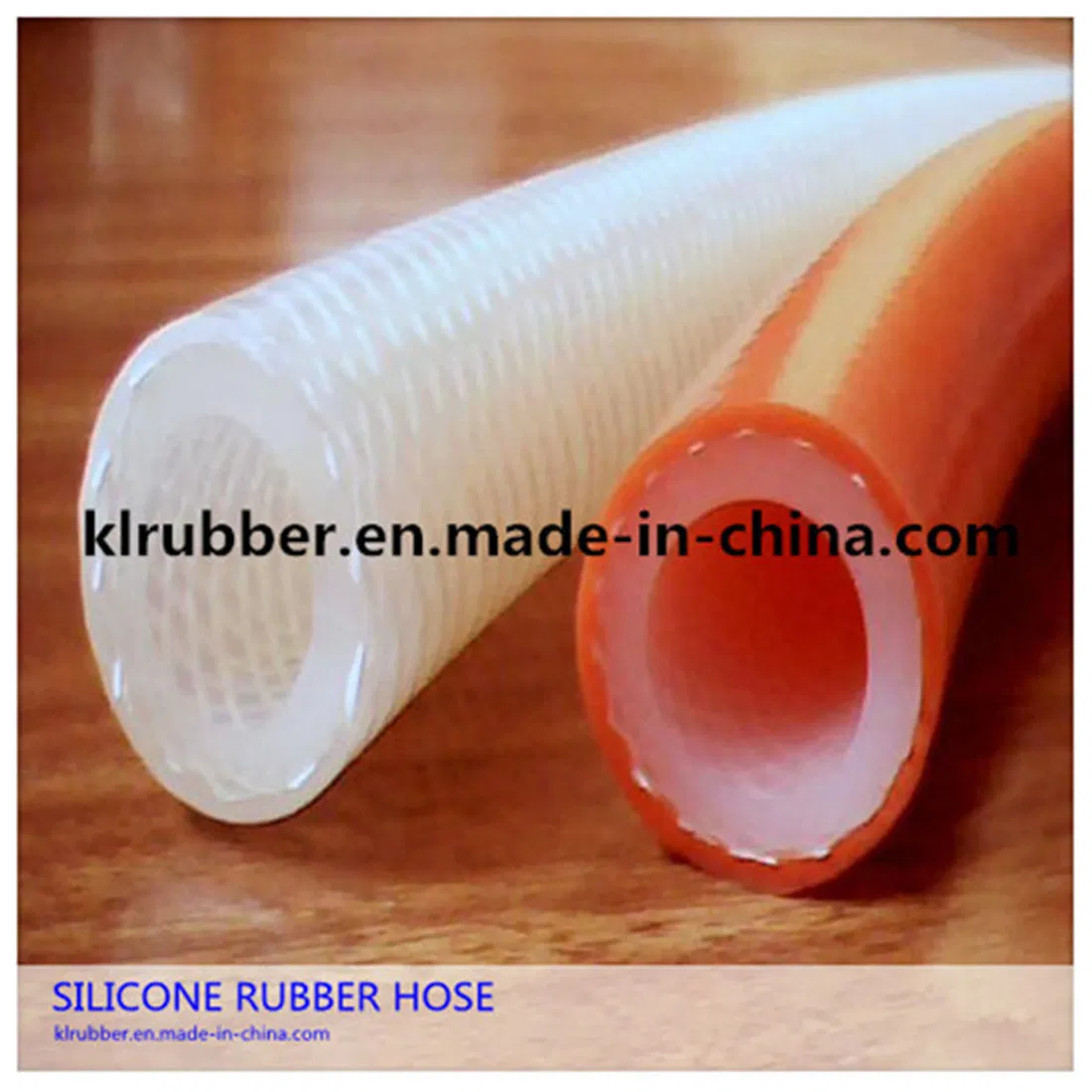

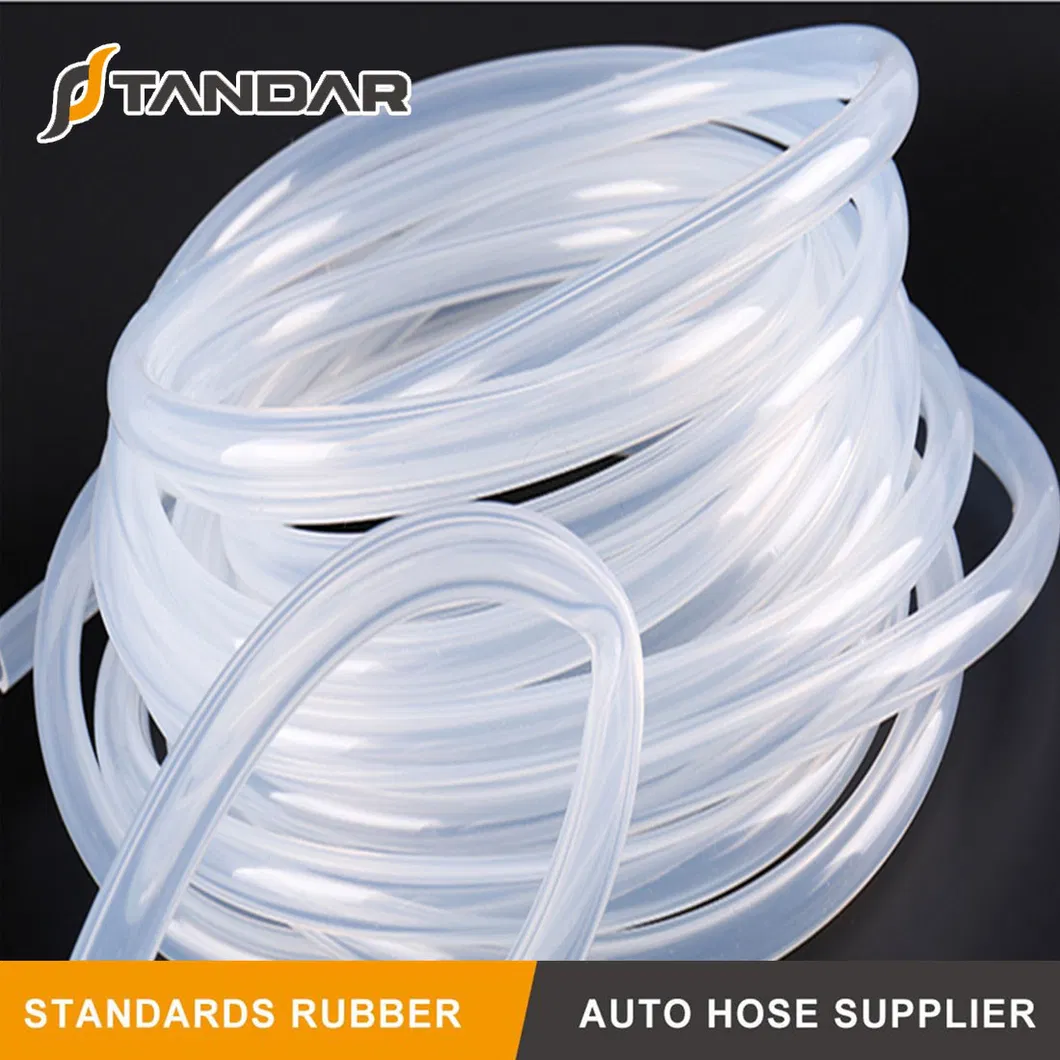

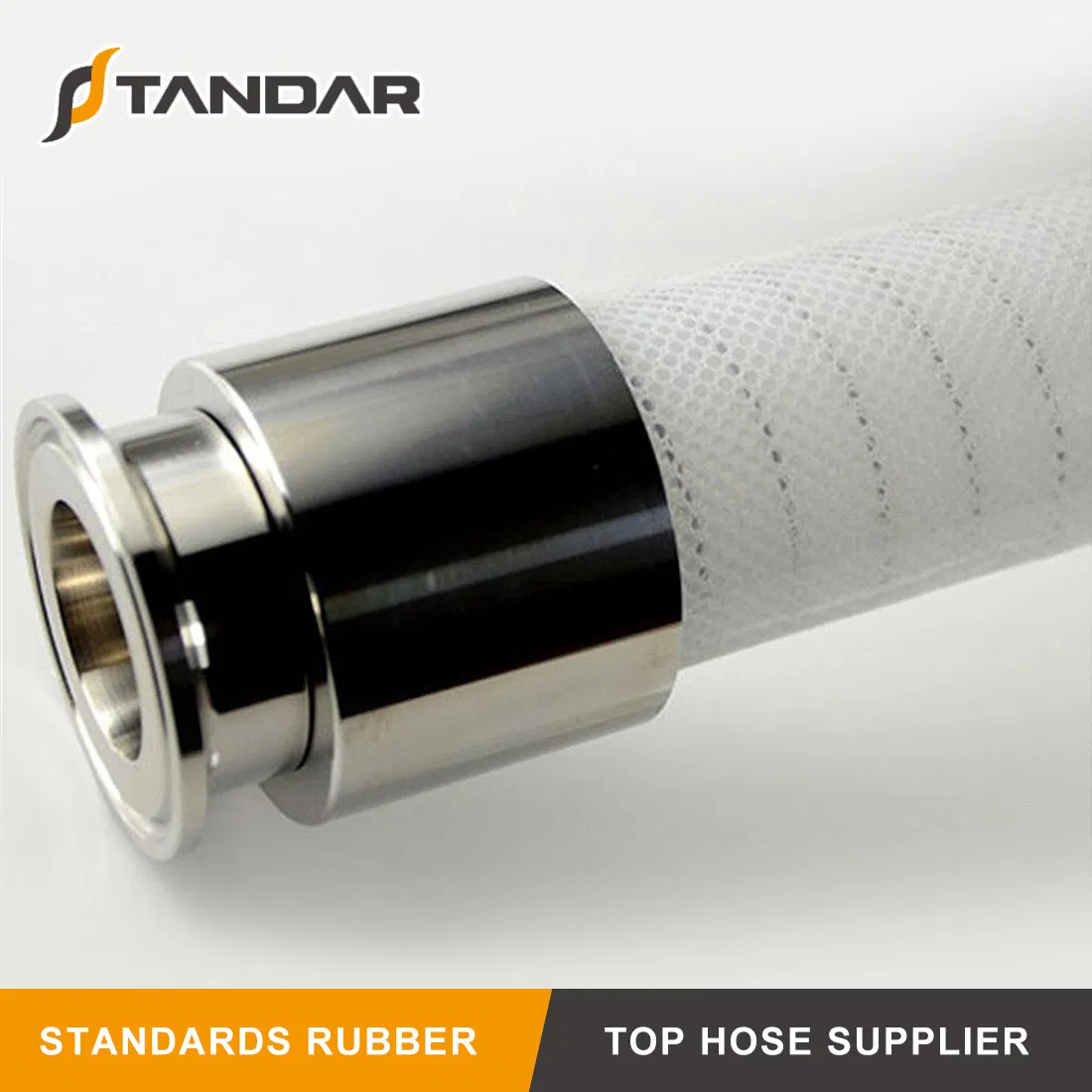

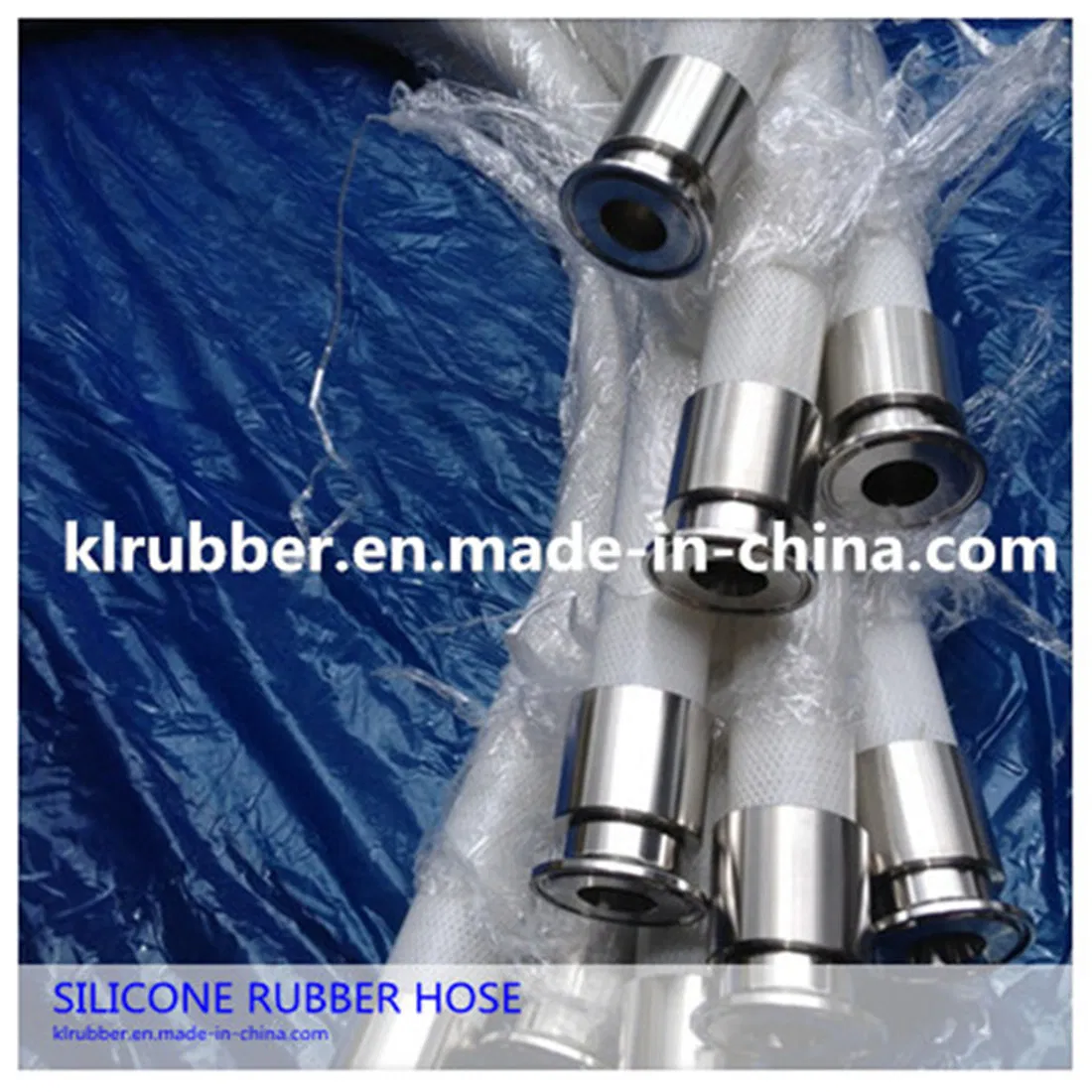

High Pressure Flexible Stainless Steel Reinforced Braided FDA Food Grade Silicone Rubber Tubing

Still deciding? Get samples of $ !
Request Sample

Product Description

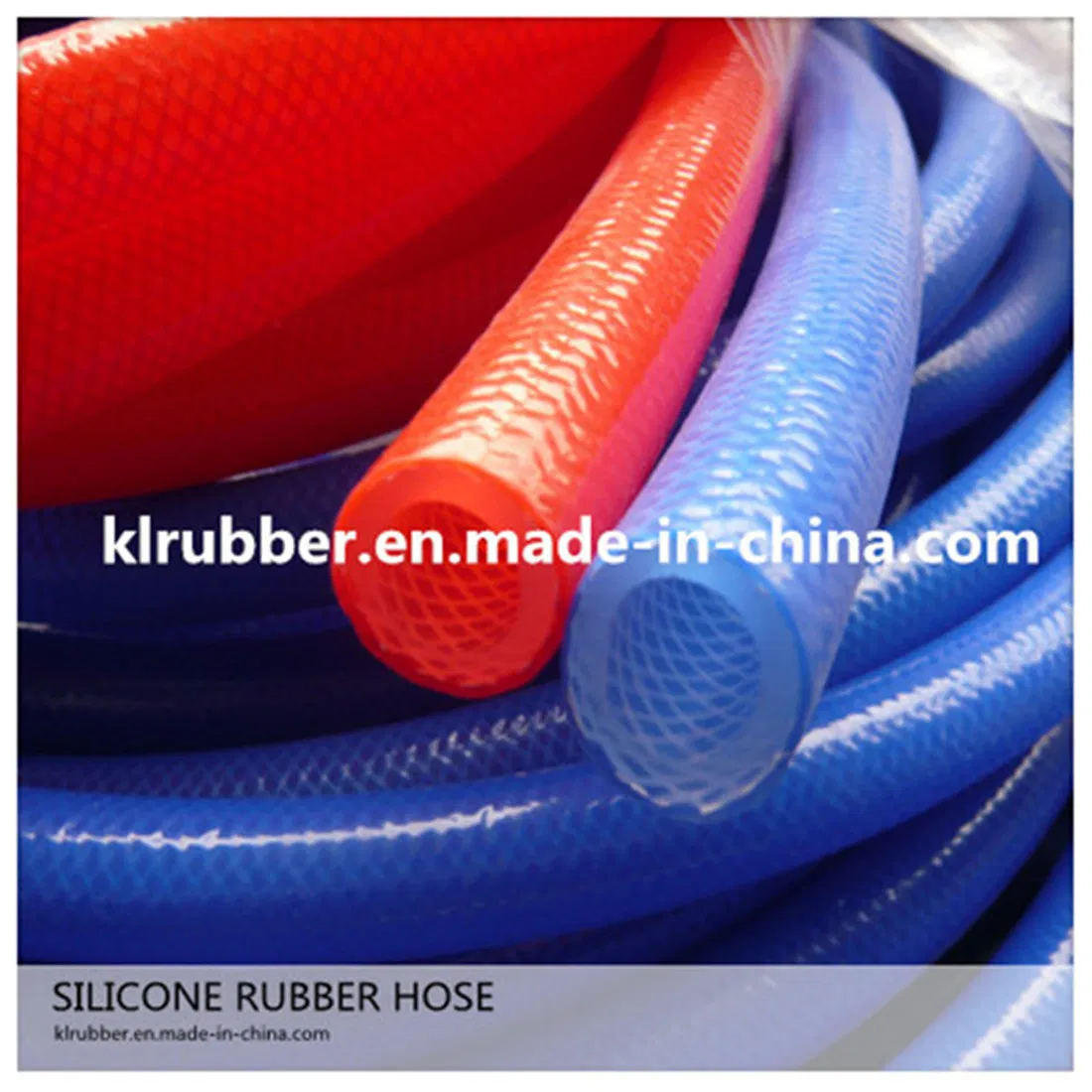

High Pressure Flexible Stainless Steel Reinforced Braided FDA Food Grade Silicone Rubber Tubing

High Pressure Flexible Stainless Steel Reinforced Braided FDA Food Grade Silicone Rubber Tubing
📋

Basic Specifications

Model NO.
TB FSH-036
Color
Color
Use
Food Grade Silicone Rubber Hose
Certificate
SGS FDA
Working Pressure
4-16bar
Package
50/100mtrs Per Roll in Plastic Film
Specification
ID: 10-102mm
Origin
Hebei
HS Code
3917390000
Capacity
5000 Pieces Per Week
🛠️

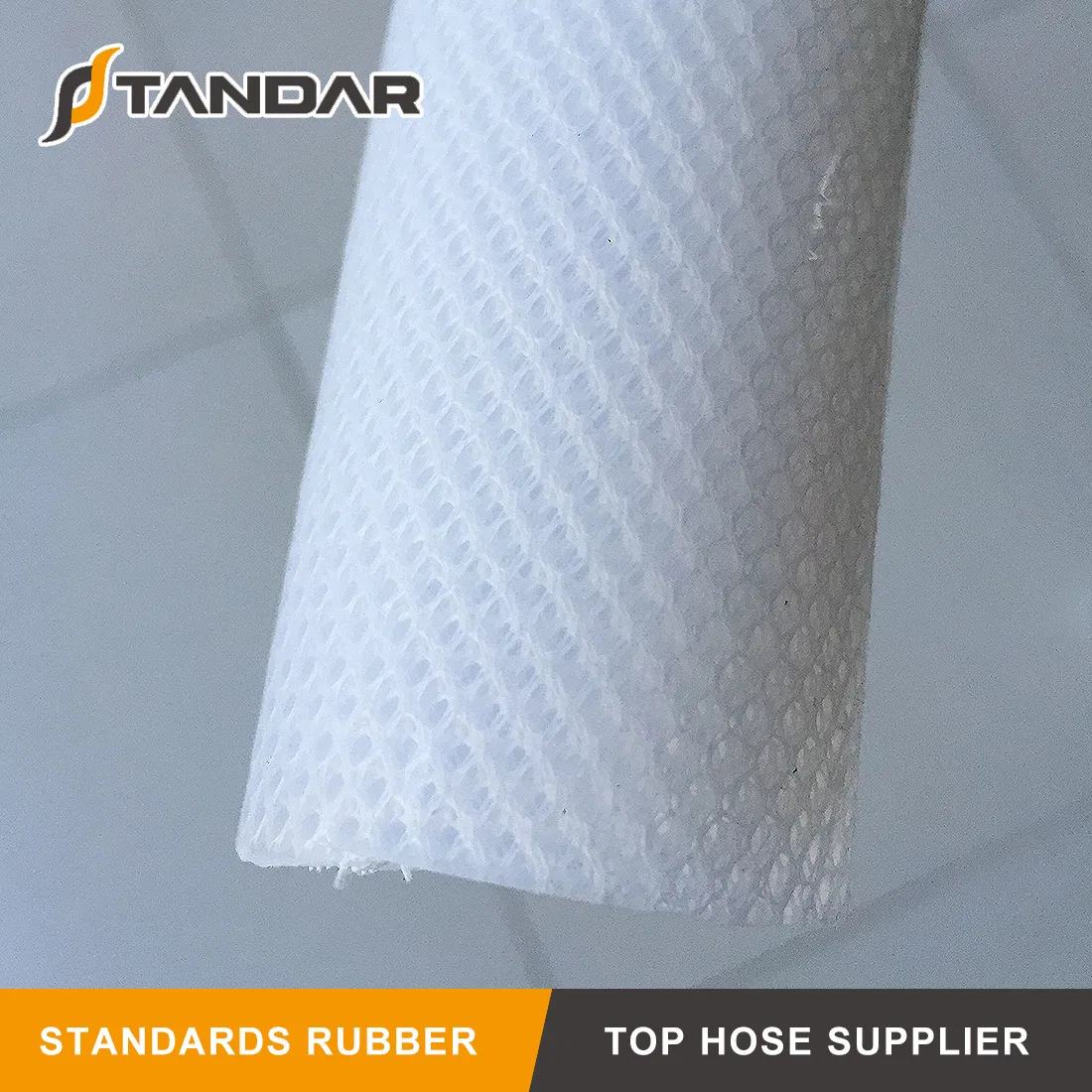

Product Structure

  • Braiding: Four layers of cloth mesh weaving
  • Steel wire: Single-layer 304 stainless steel wire

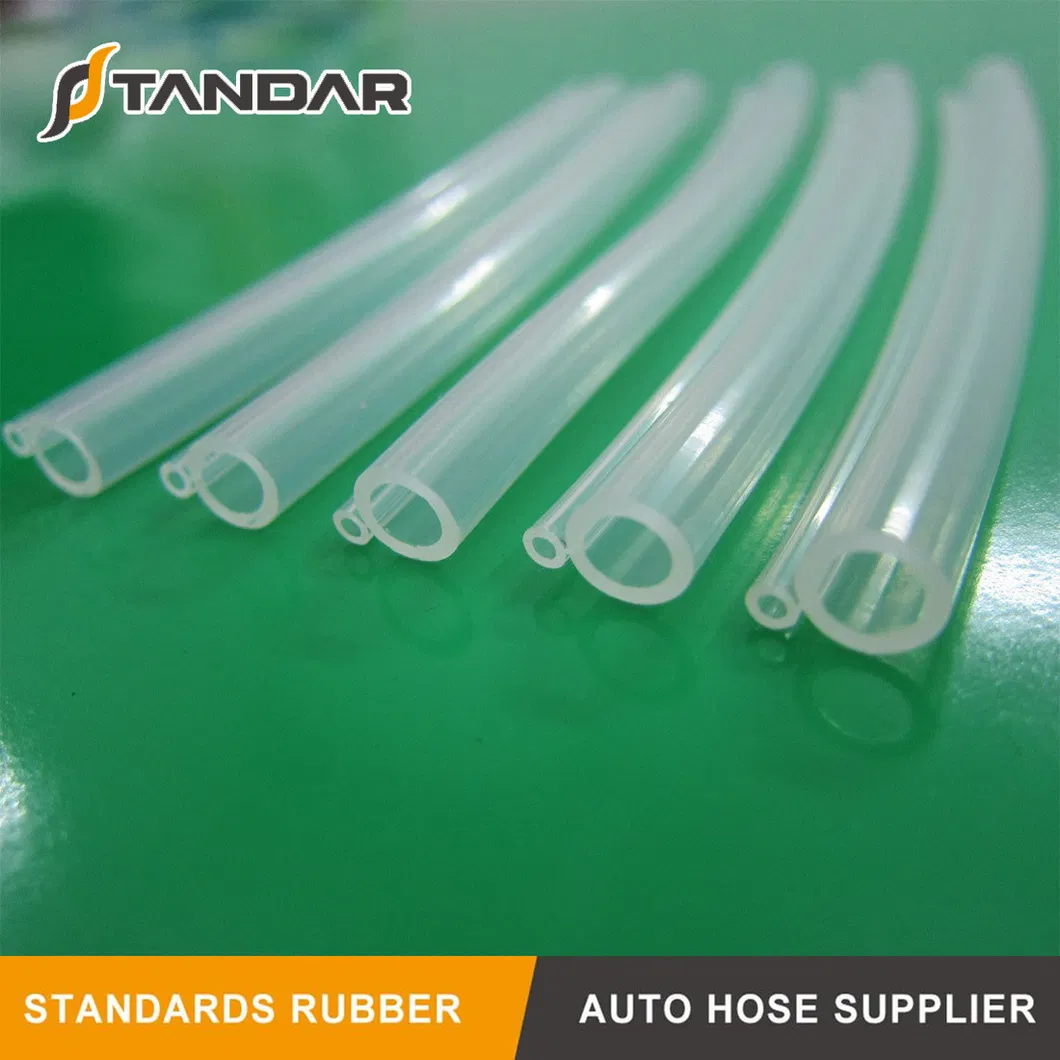

Structure Details

Key Characteristics

  • Temperature Range: -60ºC to +180ºC (-76ºF to +356ºF), up to 220ºC (392ºF).
  • Superior Flexibility: Smooth and clean inner wall, easy to clean, non-stick, no residue after cleaning.
  • Sterilization: Compatible with high temperature and pressure steam sterilization.
  • Safety Standards: Odorless, tasteless, non-toxic, free of plasticizer. Full compliance with FDA and Biomedical USP requirements.
  • Durability: High temperature curing (180ºC * 4 hours), strong negative pressure resistance.

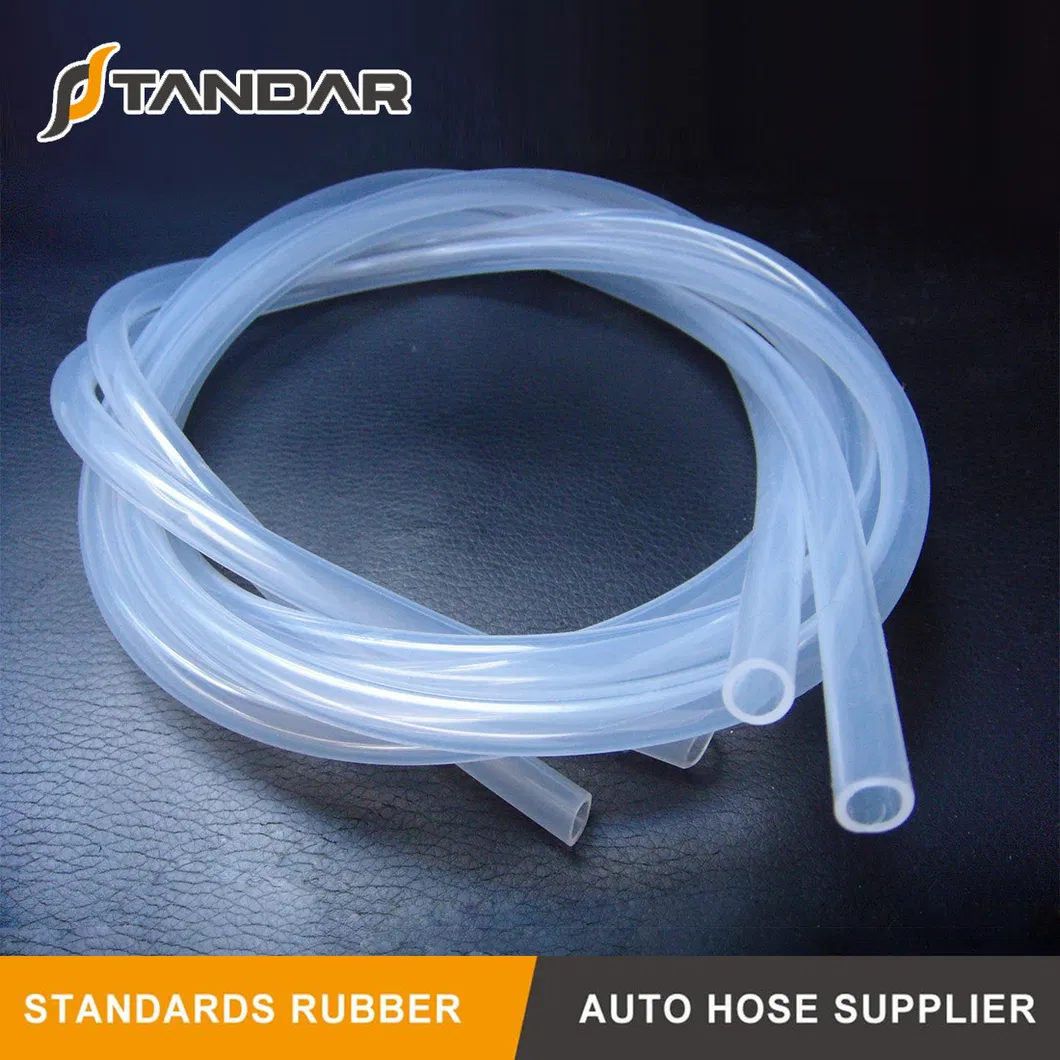

Characteristics
🚀

Applications & Fluids

Recommended for transporting liquid or semi-liquid fluids in high and low temperature environments for:

  • Food and Dairy products processing
  • Cosmetic and Chemical industries
  • Pharmaceutical and Bioengineering
  • Medical equipment connecting pipelines and catheters
  • Oil equipment suction and wine connection catheters

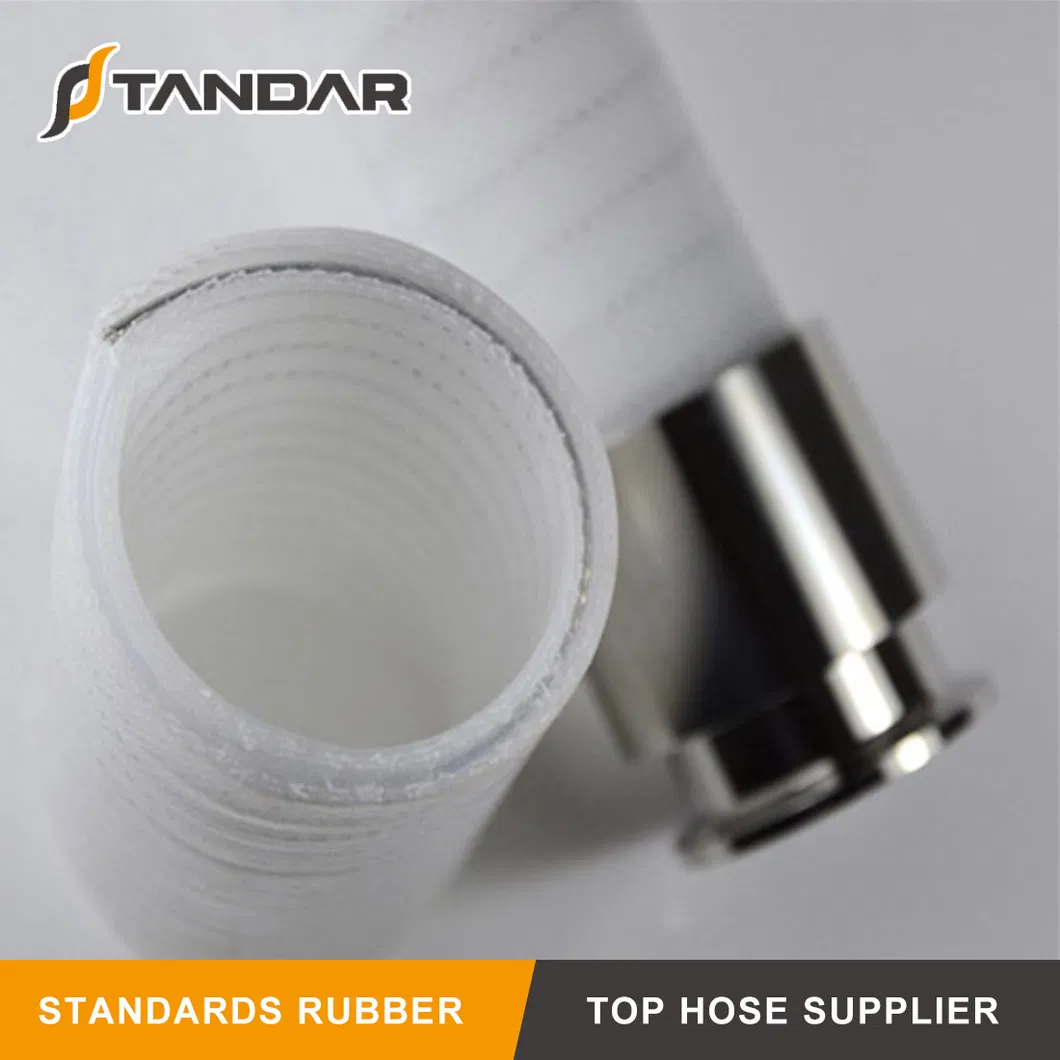

Application
📊

Technical Data

ID (mm) OD (mm) WP (Bar) BP (Bar) BR (mm) Length (mt)
10201648346
13231339396
19291133546
25359271156
38488241556
51616181446
63735151806
76865152326
1021124123606

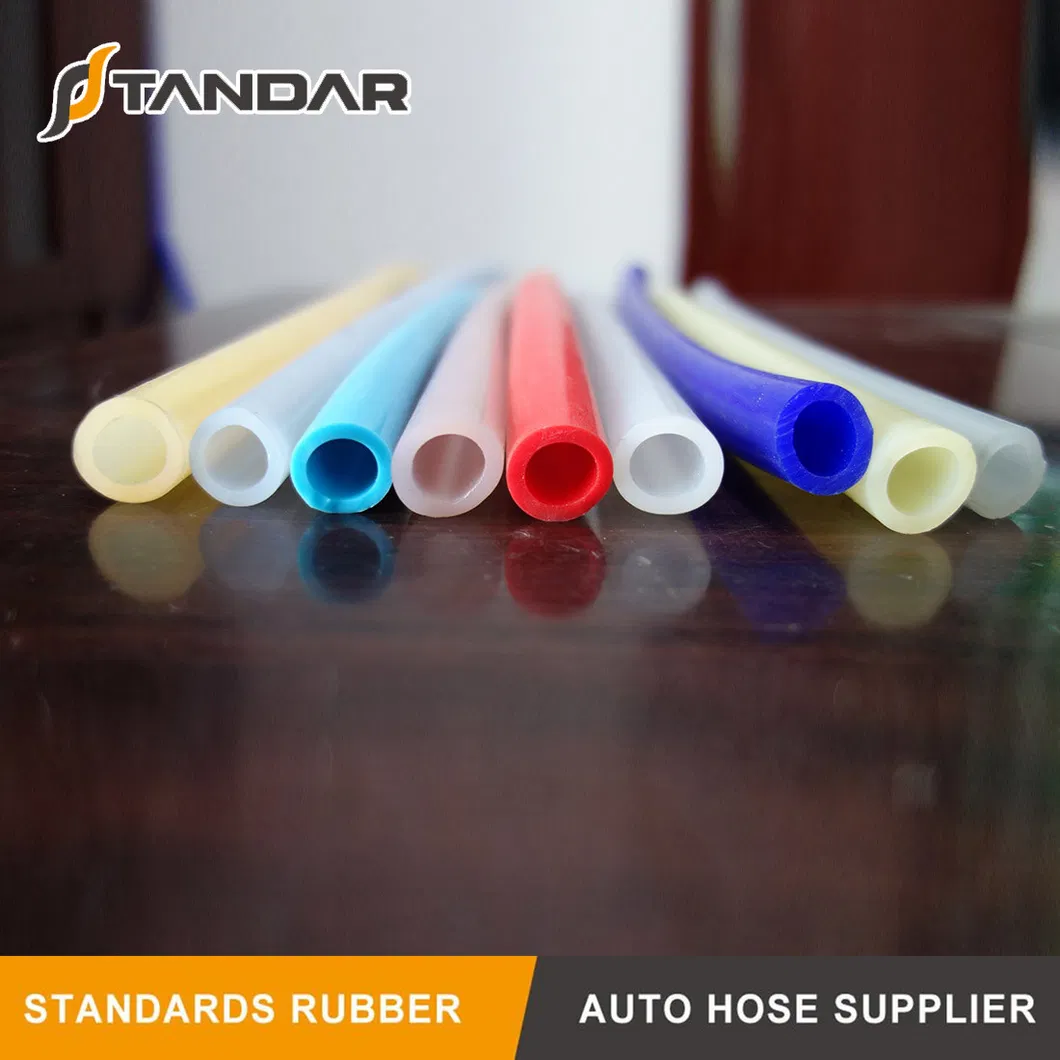

Technical Data Image
🏢

About Our Expertise

We are a highly professional and experienced manufacturer of silicone hoses. Specialized in this field for over 10 years, we are dedicated to producing high-quality silicone hoses for a wide range of demands, primarily focusing on food-grade applications. Our quality continuously improves by absorbing advanced technologies.

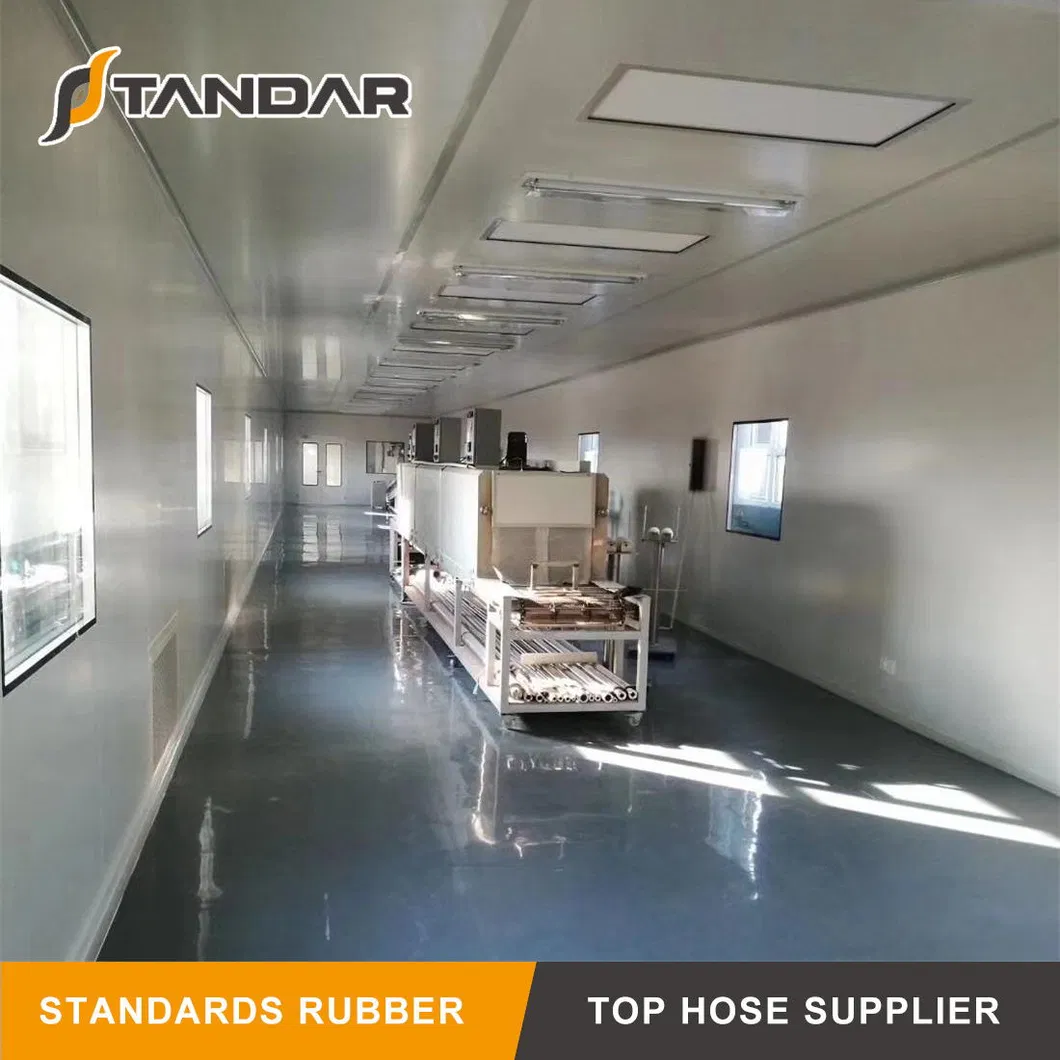

Factory View 1

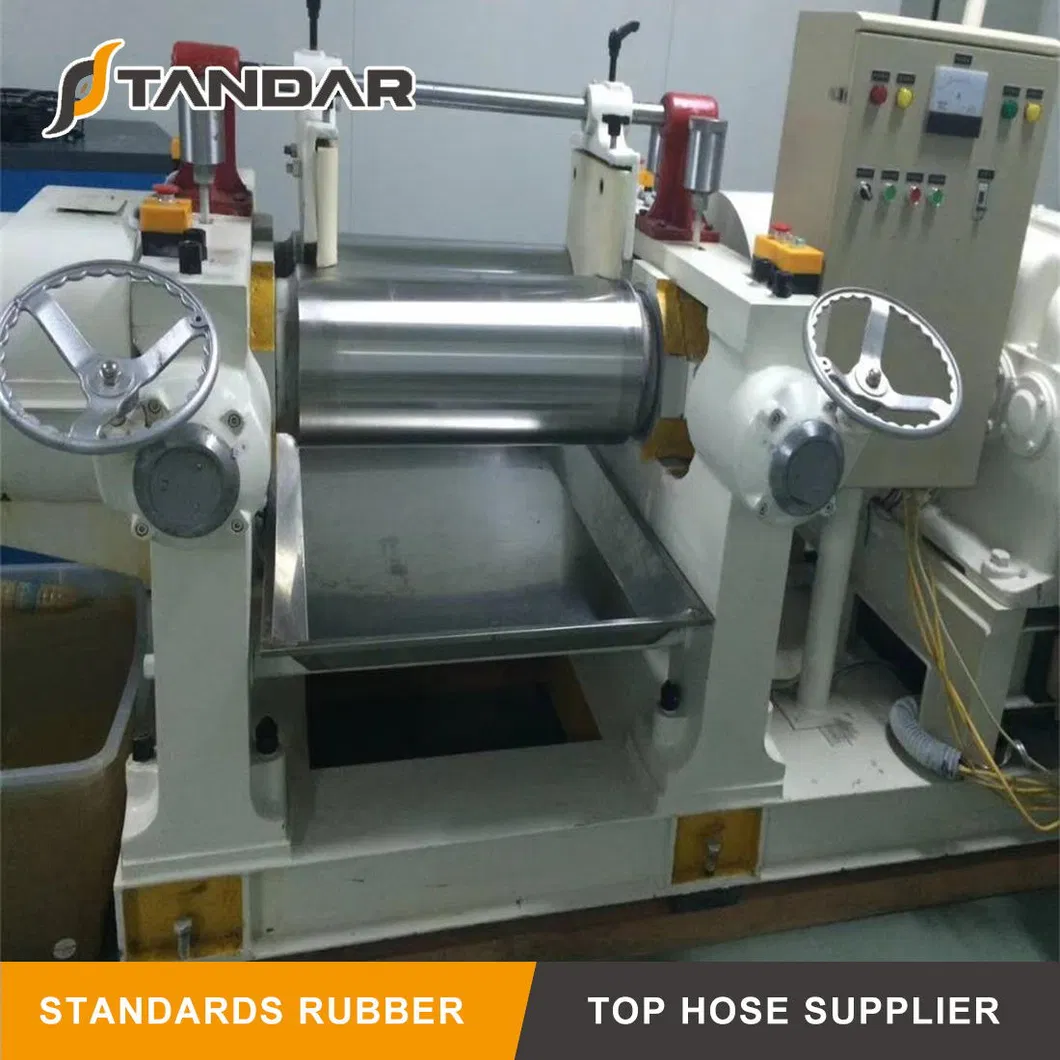

Factory View 2

Product Range Includes:

  • Food Grade Silicone Hose
  • Medical Grade Silicone Hose
  • Silicone Fabric Braided Reinforced Hose
  • Silicone SS Reinforced Hose
  • 4-Ply Fabric and SS Wire Reinforced Silicone Hose

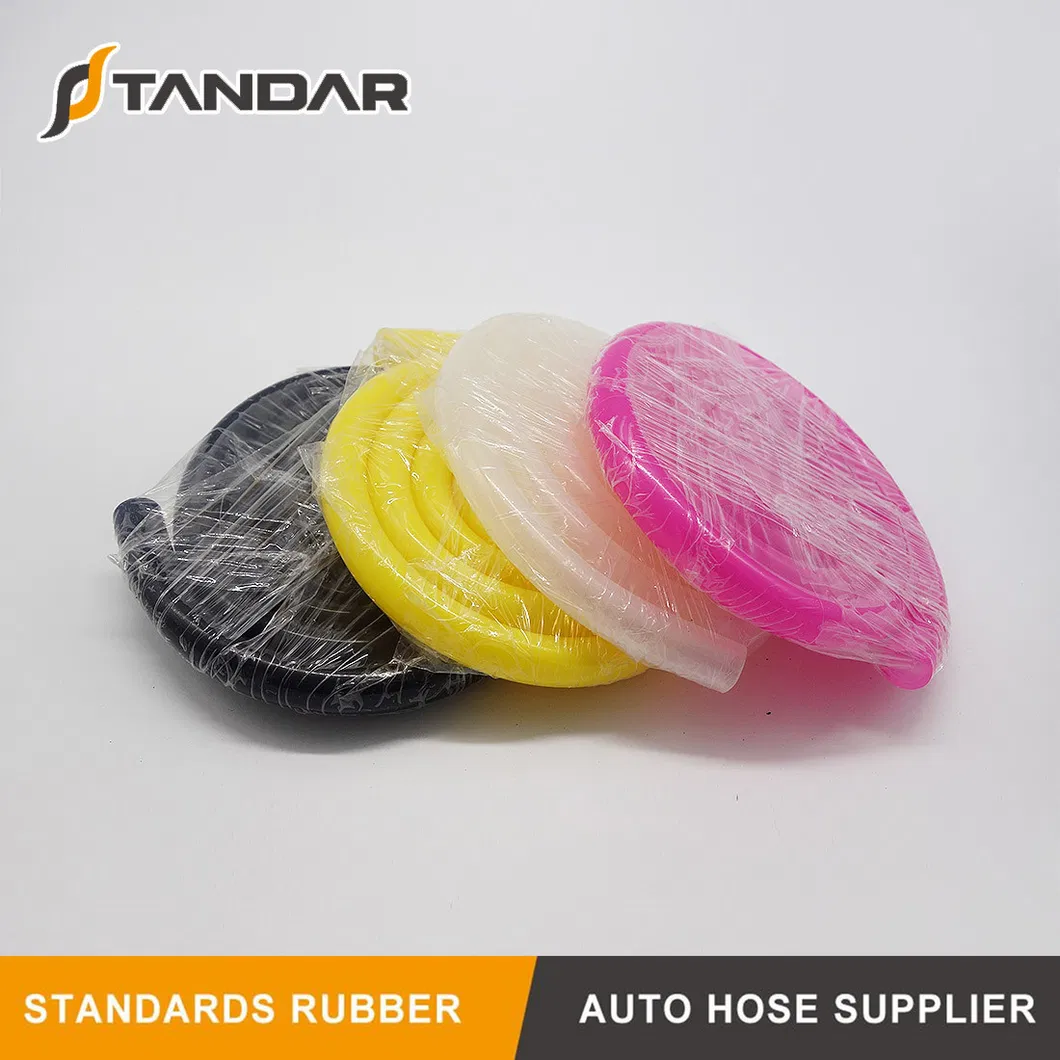

Product Range
📦

Packaging & Delivery

Standard packaging includes plastic or woven bags with pallets. Custom special packaging is available upon request. Delivery time: 20-30 days based on quantity.

Packaging
Shipping

Why Choose Us

  • Technical leadership with devotion to the rubber industry since 2008.
  • Professional R&D team with rich experience.
  • Premium raw silicone rubber materials sourced from Europe.
  • Advanced manufacturing equipment from Germany.
  • Strict inspection processes and quality control.
  • Efficient sales team providing satisfying service.

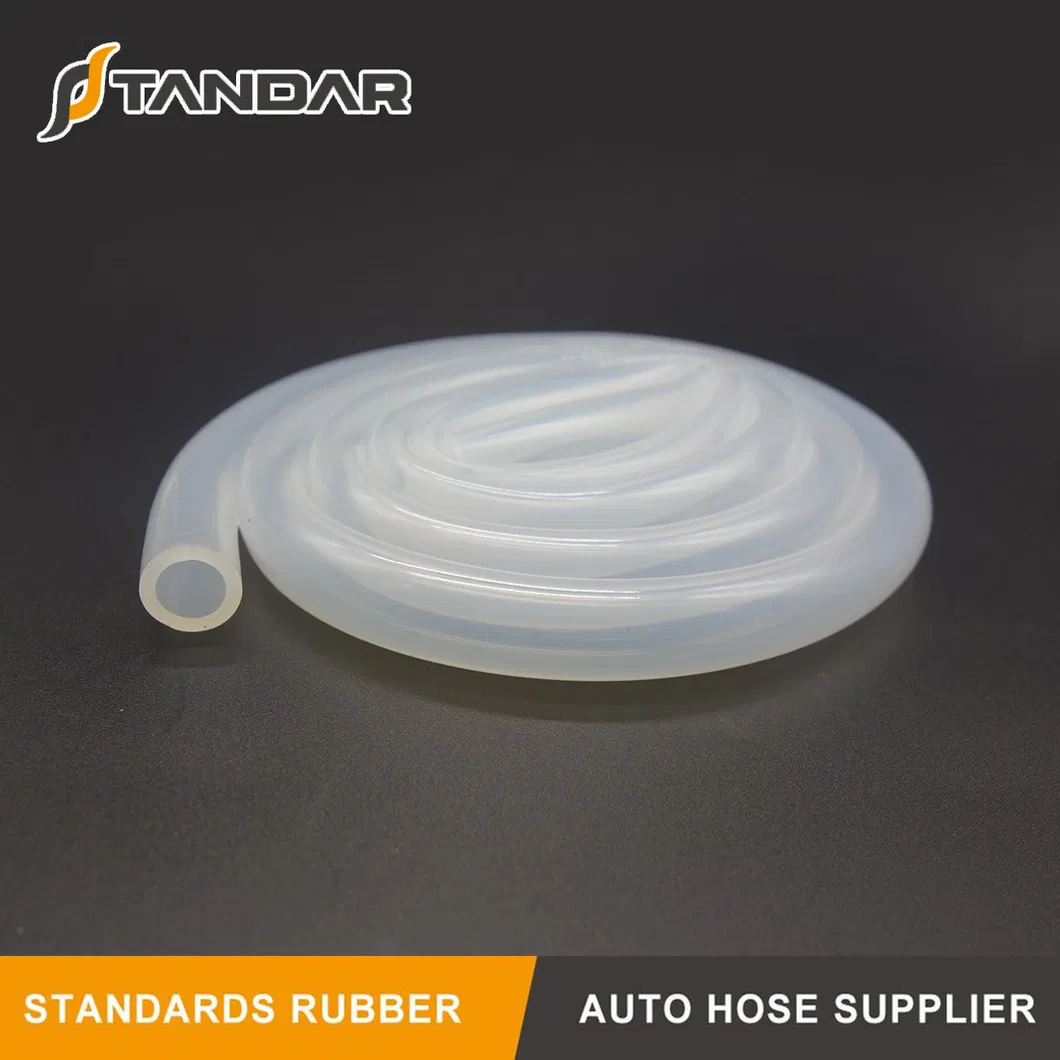

Quality Assurance

Frequently Asked Questions

Q1. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. If a product is proven to have a manufacturing defect, we provide exchange services for the same item.
Q2. Can I get samples for testing before a bulk order?
Yes, we are pleased to send samples to test quality and performance. We are confident in our competitive pricing and high-quality service.
Q3. How can I order and make payment?
Once requirements are determined, we will send a proforma invoice. Payments can be made via TT bank transfer or Western Union.
Q4. What is your Minimum Order Quantity (MOQ)?
Generally, our MOQ is 1000 meters per type, though this varies by product. Please check with us for specific items.
Q5. What is the typical delivery date?
Stock items can be sent within 7 working days. For non-stock items, production generally takes 3 to 6 weeks depending on the product type.
Q6. What is the policy for market distribution?
We offer tailored policies for different target markets. Please contact us for detailed discussions on preferential policies and factory visits.
