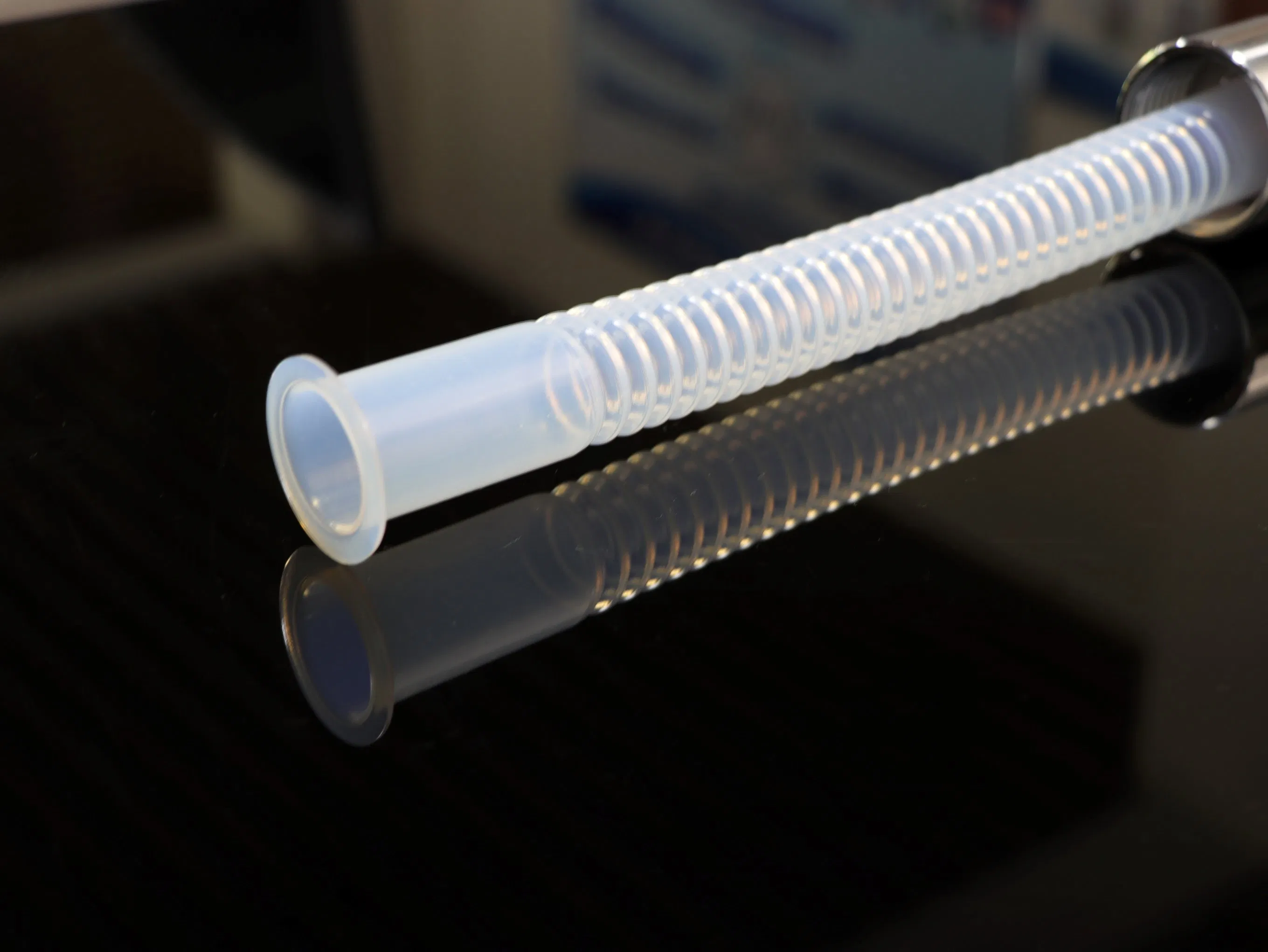

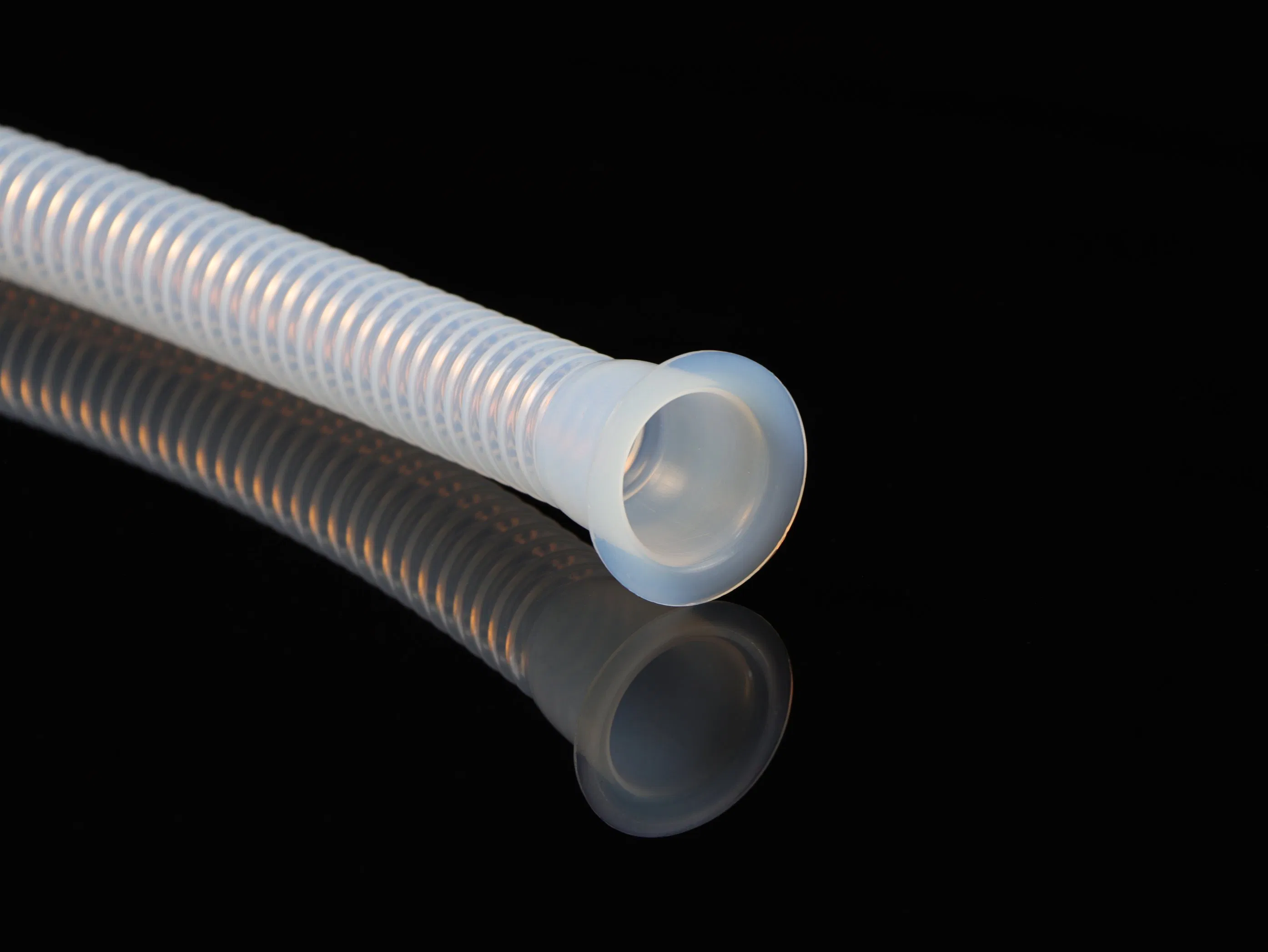

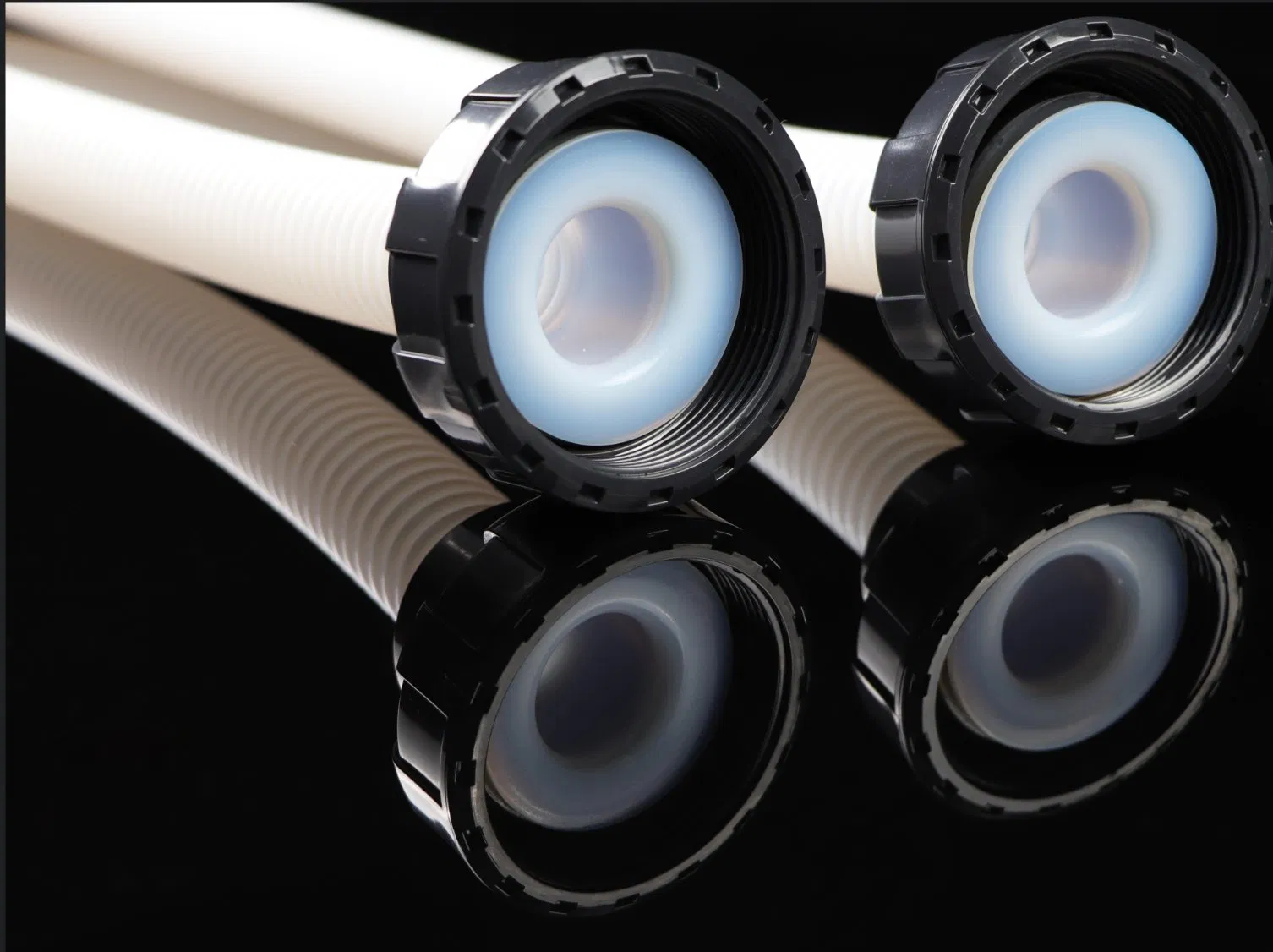

Industrial Grade PTFE Hose Tubing in Plastic White Color

Basic Information

Model NO.:DSC02-W-S4-1000

Material:PTFE

Kind:Thermoplastics Pipes

Water Absorption:＜0.01%

Tensile Strength:20-45

Working Temp:-65℃ to 260℃

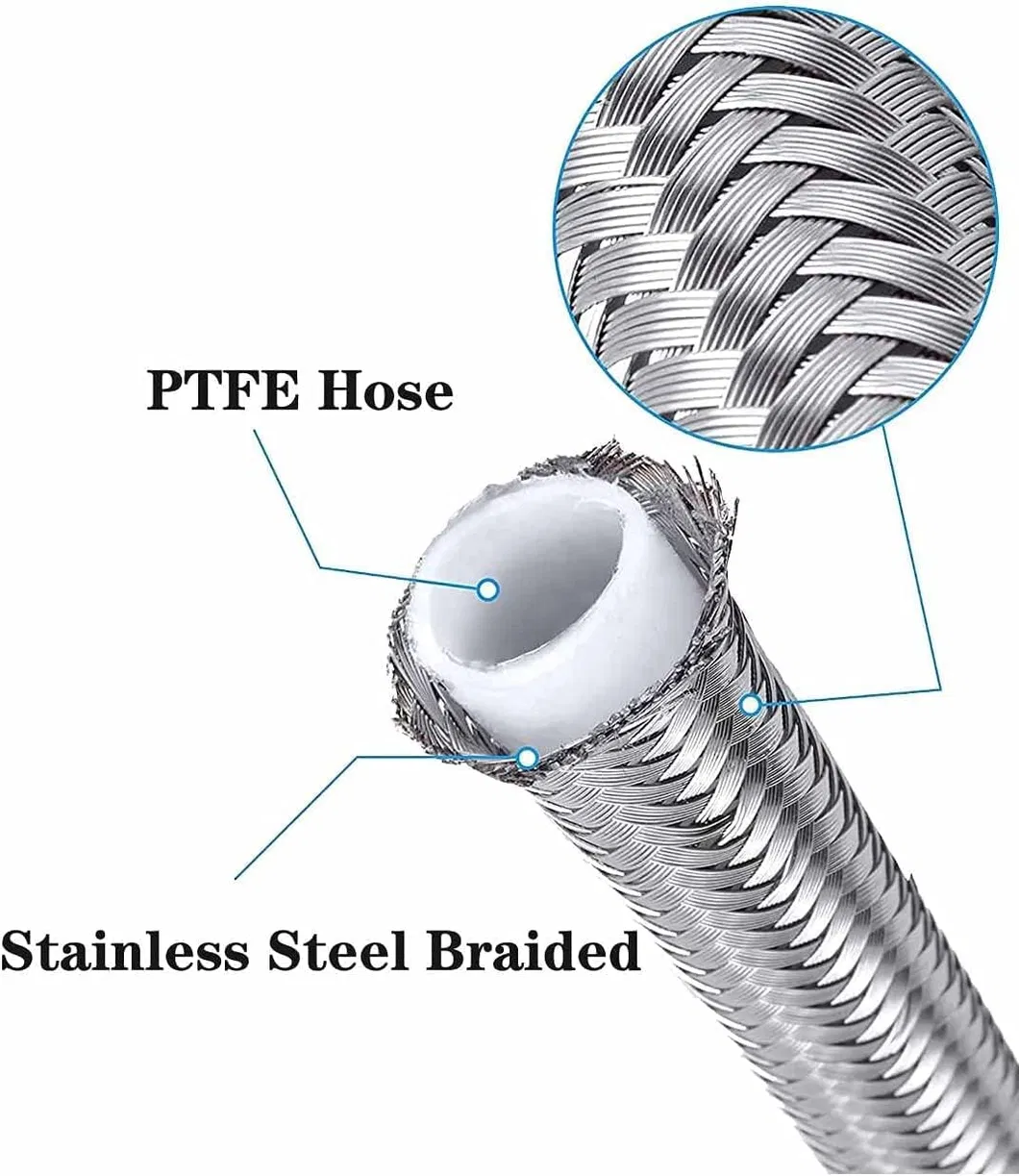

Reinforcement:304 & 316 Wire Braided, Aramid Fiber

Application:Chemical, Medical, Electrical, Food Industries

Product Description

Industrial Grade PTFE Hose Tubing - Plastic White

Low chemical activity, excellent resistance to all types of chemicals.
Strong weather and corrosion resistance; anti-aging properties.
Low surface friction coefficient with high viscous resistance.
Outstanding electrical insulation properties.
Wide temperature range: Heat resistance up to +260ºC, Cold resistance down to -65ºC.
Supports both high and low-pressure environments.

Item Property	Details
Brand Name	DGF
Inner Layer	Straight tube / Spiral corrugated hose / Annual hose PTFE
Color Options	Milky White / Translucent / Black
Port Types	Straight tube / Flange / Fitting
Standard	ISO9001, SAE 100R14

DN (mm)	NB (inch)	ID (mm)	OD (mm)	Bend Radius (mm)	Pressure (bar)
6	1/4	6.5-6.8	10.4	19	82
10	3/8	9.1-9.3	14.2	22	60
15	1/2	13.1-13.3	18.8	28	48
25	1	25.0-25.4	30.4	56	28
50	2	53.5-54.5	66.9	80	15

* Meet SAE 100R14 standard. Customer-specific products are available for discussion.

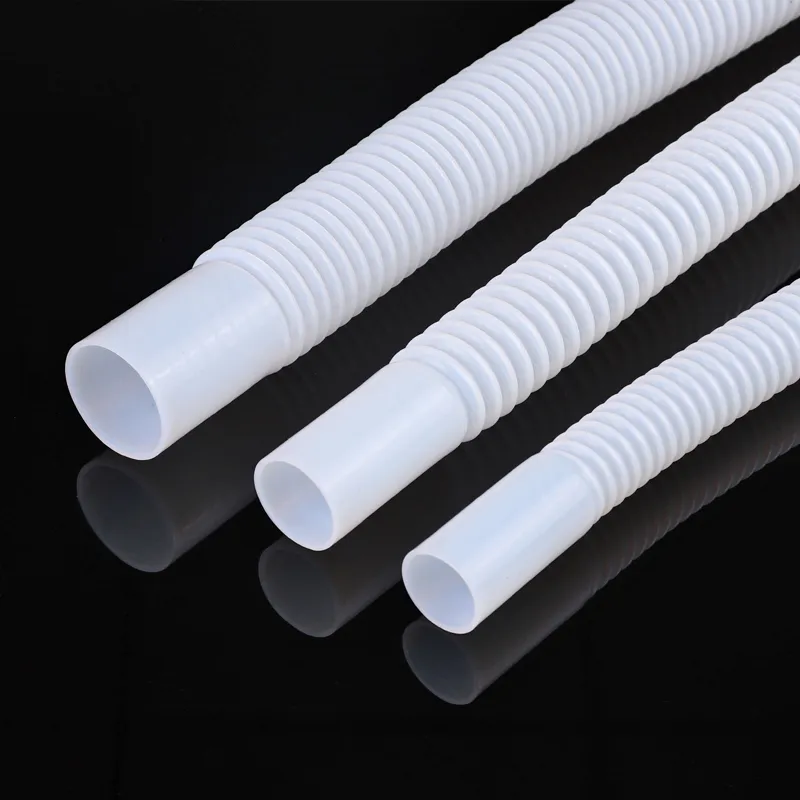

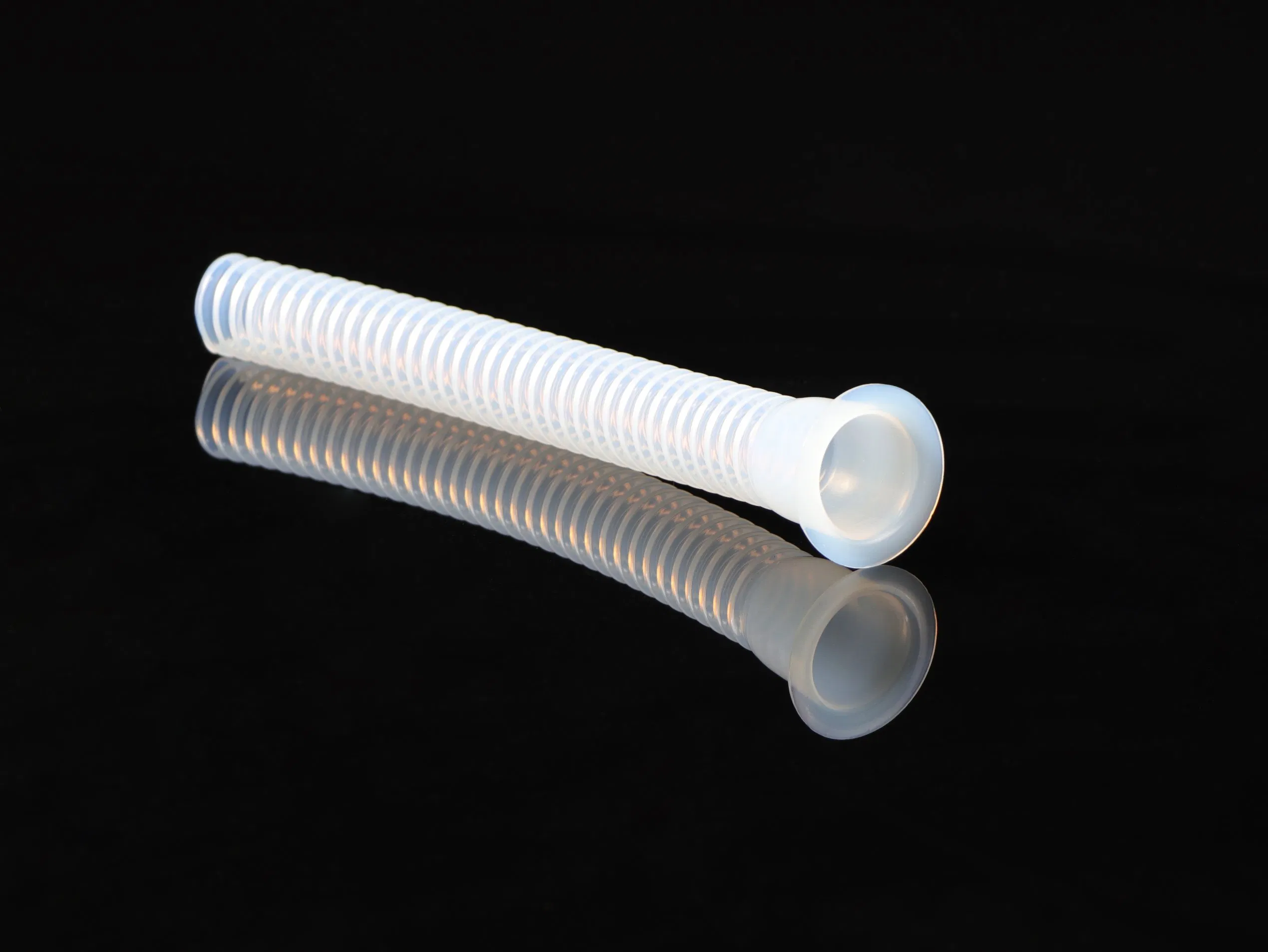

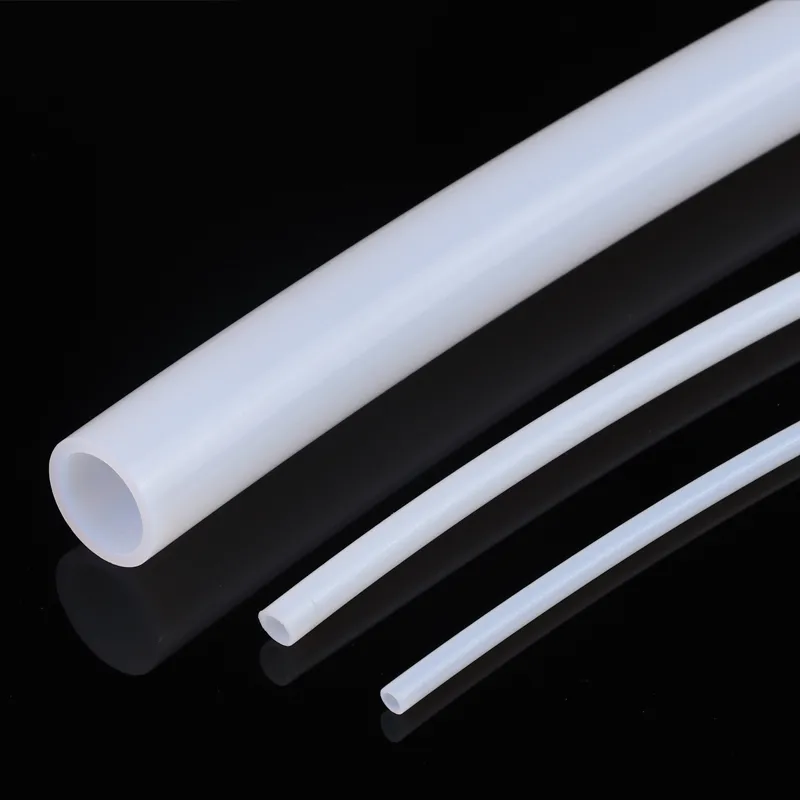

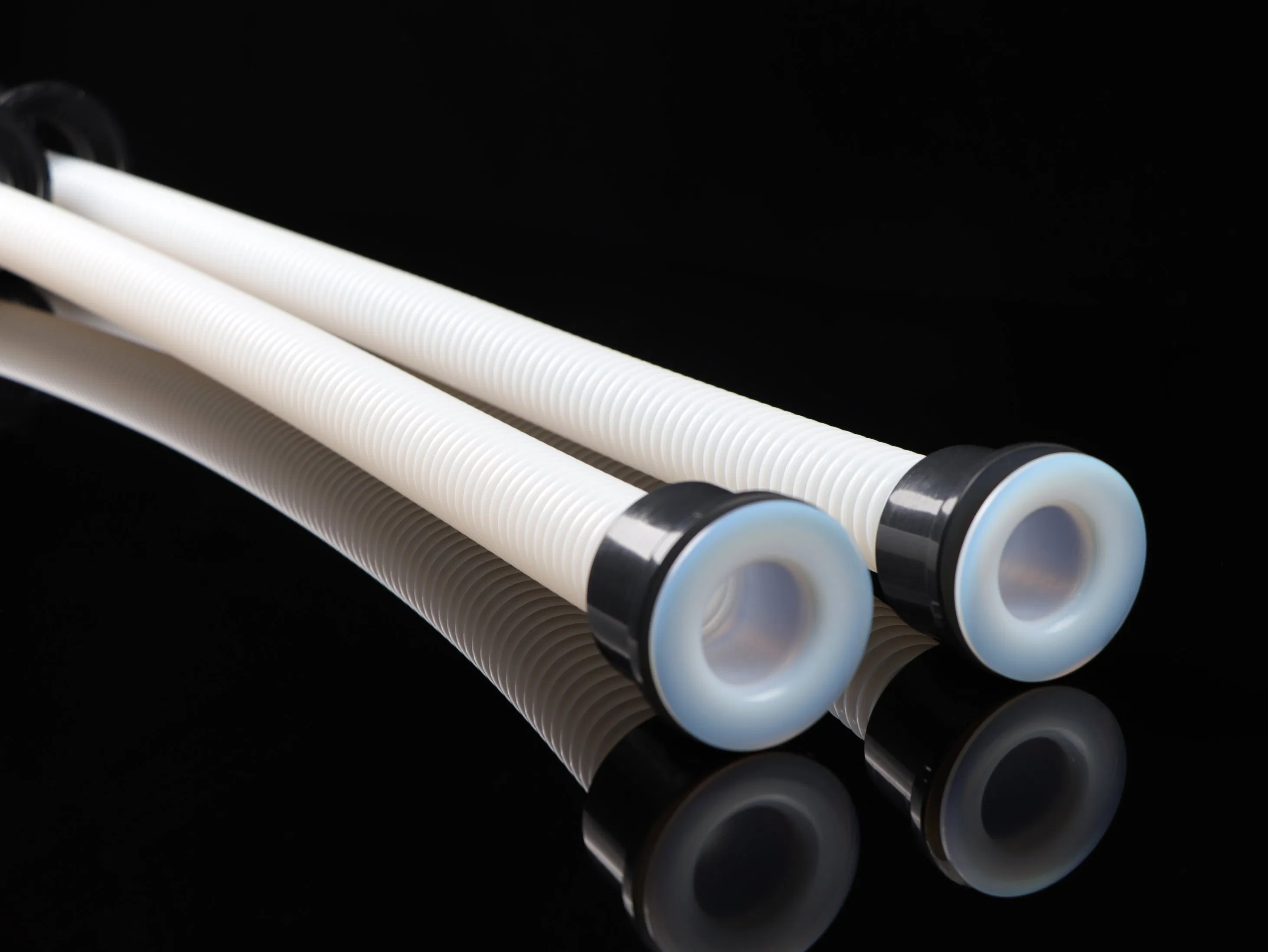

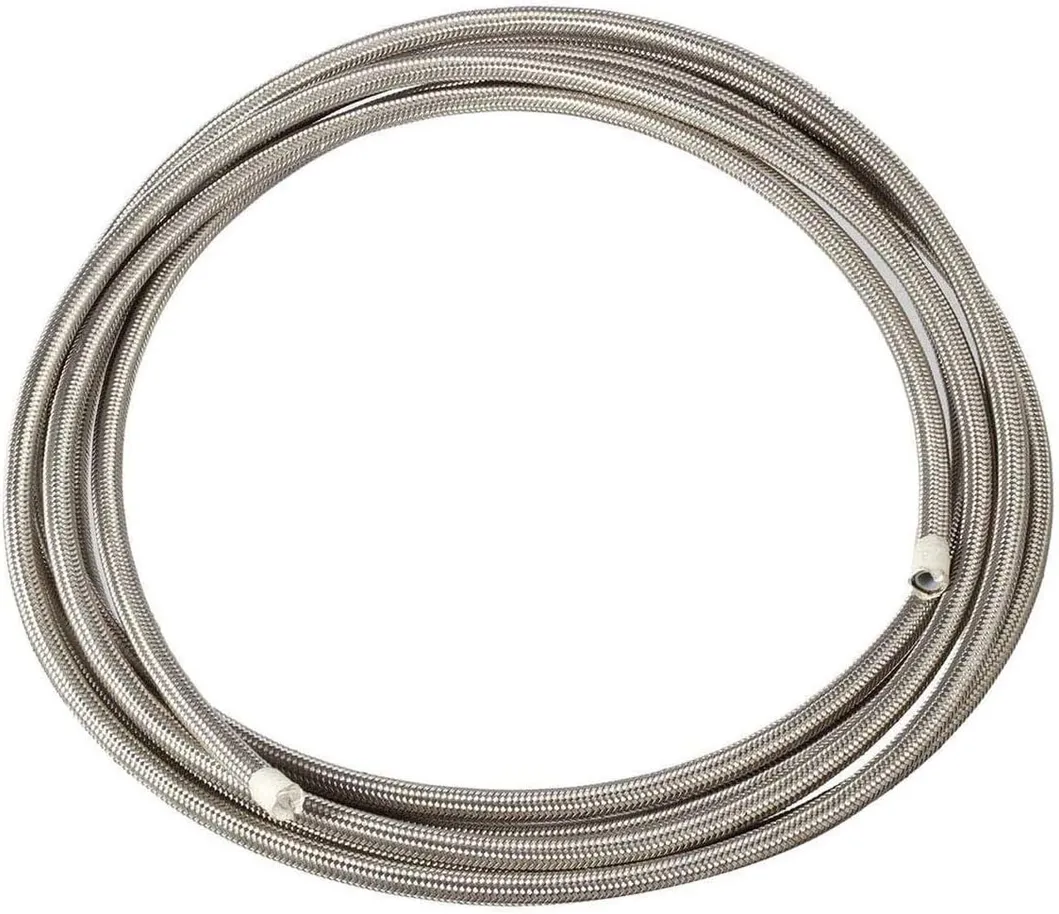

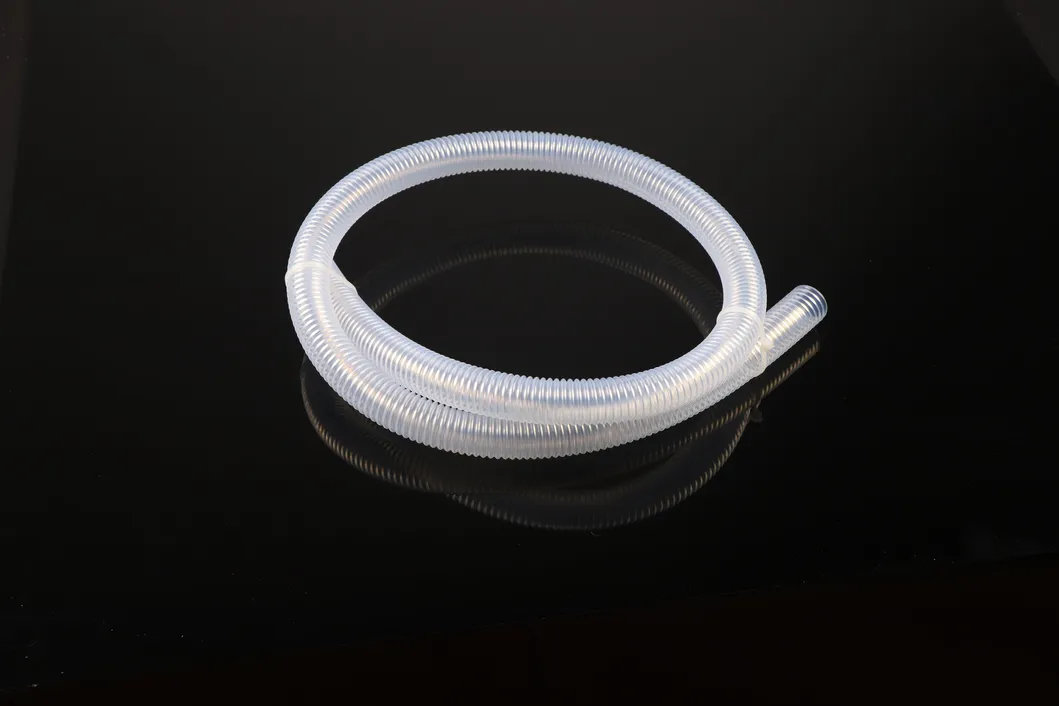

Detailed Photos

Packaging & Shipping

Package Size:80.00cm * 20.00cm * 8.00cm

Gross Weight:0.500kg

Package Types:Roll, Reel, Carton, Pallet, Wooden Case

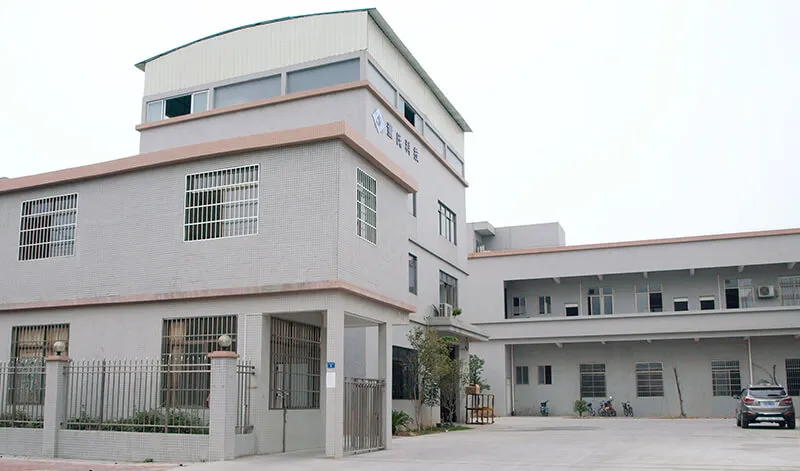

Company Profile

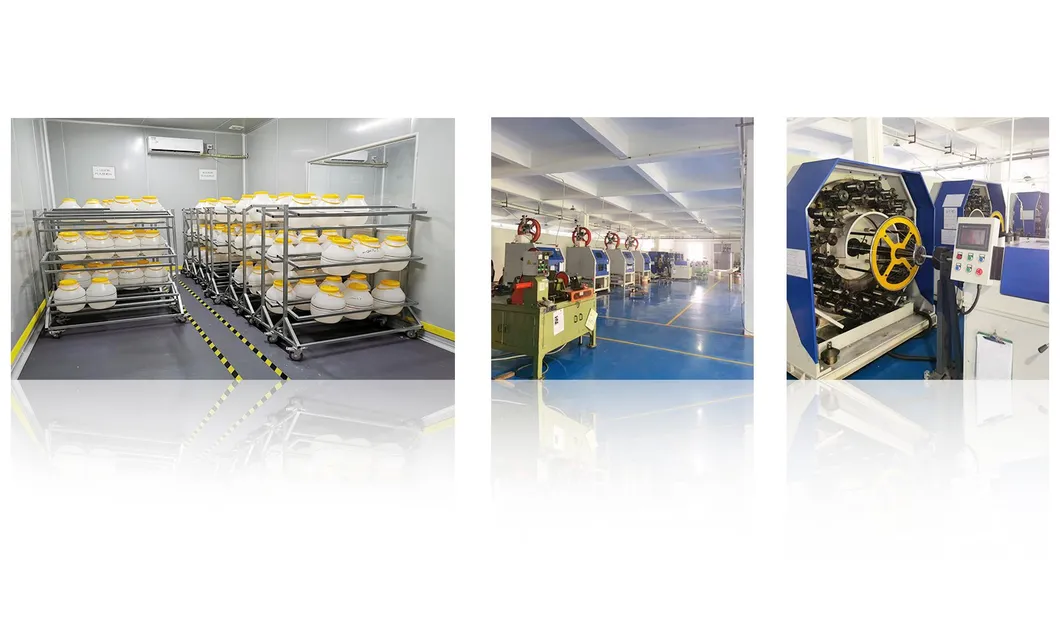

Founded in 2012, we are a high-tech enterprise specializing in the research, development, and manufacturing of Polytetrafluoroethylene (PTFE) equipment and hoses. With two major production bases, we achieve an annual output of over 10 million meters of various industrial hoses.

Our products serve critical industries globally, including petrochemical, medical equipment, semiconductor, rail transit, and food machinery. We are committed to becoming a leader in PTFE hose intelligent manufacturing.

Certifications & Advantages

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a professional manufacturer with over 12 years of production experience and 5 years of international export expertise in PTFE solutions.

2. What are your primary product lines?

We specialize in PTFE tubing, hydraulic hoses, PTFE braided hoses, and PTFE corrugated tubing, along with a comprehensive range of industrial fittings.

3. What size specifications are available for your tubing?

Standard specifications include capillary tubes (ID 0.3mm-6mm), inner tubes (ID 2mm-100mm), and braided hoses (1/8" to 2"). We also offer full customization based on your specific requirements.

4. What materials are used for the outer reinforcement layers?

Options include Stainless Steel 304 or 316 wire braiding, Nylon/Cotton coating, Silicone jackets, and PVC or PU covers.

5. Do you provide product certifications or testing?

Yes, we have passed numerous factory and product tests including ISO9001. We can provide samples for your internal testing and accommodate specific certification needs.

6. What is the temperature and pressure tolerance of your PTFE hoses?

Our hoses are designed to withstand temperatures ranging from -65ºC to +260ºC and pressures up to 82 bar depending on the diameter and reinforcement type.
