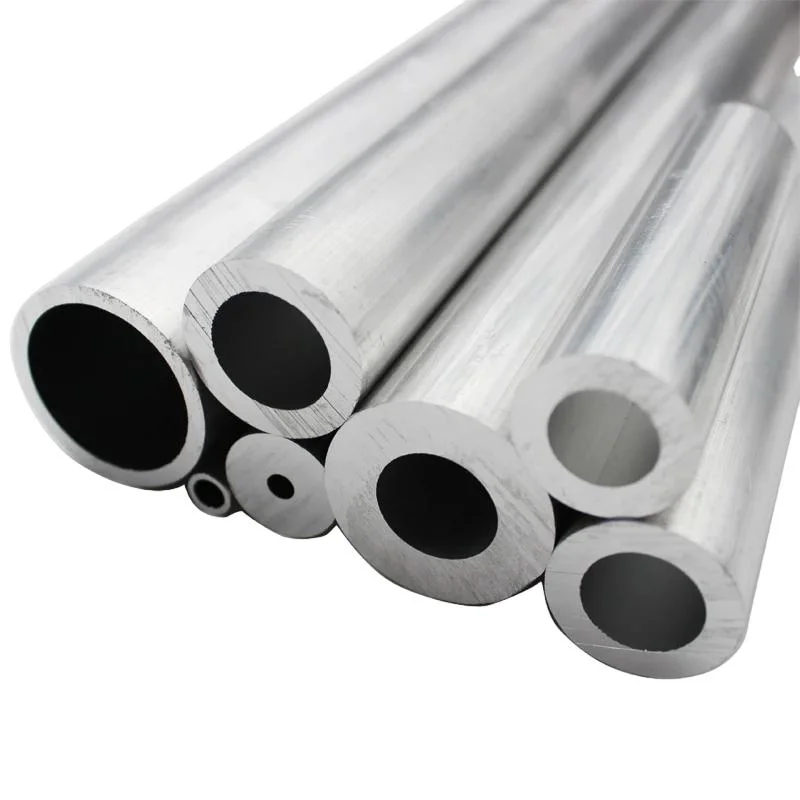

Small Diameter 1060 3003 6061 1050 Extrusion Aluminium Flexible Tubing

1 / 5

Small Diameter 1060 3003 6061 1050 Extrusion Aluminium Flexible Tubing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

1050

Grade

1000 Series

Alloy

Non-alloy

Temper

T3 - T8

Outside Diameter

2.5mm to 560mm

Thickness

0.2mm to 60mm

Length

Cut as Requirement

MTC

En 10204/3.1

Standard

ASTM B210, B221, B483, B491, B547 etc.

Color

Cream White, Anodized, Natural

Keyword

1050 Aluminum Pipe

Origin

China

HS Code

7608201010

Capacity

500 Tons/Month

Product Description

1050 aluminium alloy is an aluminium-based alloy in the "commercially pure" wrought family (1000 or 1xxx series). It is usually formed by extrusion or rolling. It is commonly used in the electrical and chemical industries due to high electrical conductivity, corrosion resistance, and workability.

⚡ Key Properties

Higher thermal conductivity than other alloys (excellent for heat sinks).
Excellent corrosion resistance and workability.
High electrical conductivity.
Can be strengthened by cold working (not heat treatable).

🔧 Welding & Tempers

Welding: Recommended filler wire is 1100 for self-welding. Use 5356 for 5083/5086 or 7XXX series. Use 4043 for other alloys.

Common Temper: H14 - work hardened by rolling to half hard, not annealed after rolling.

🏗️ Applications

Chemical process plant equipment
Food industry containers
Architectural flashings & reflectors
Cable sheathing & vessels

Pyrotechnic powder
Pharmaceutical industries
Architecture and paneling
Heat sink manufacturing

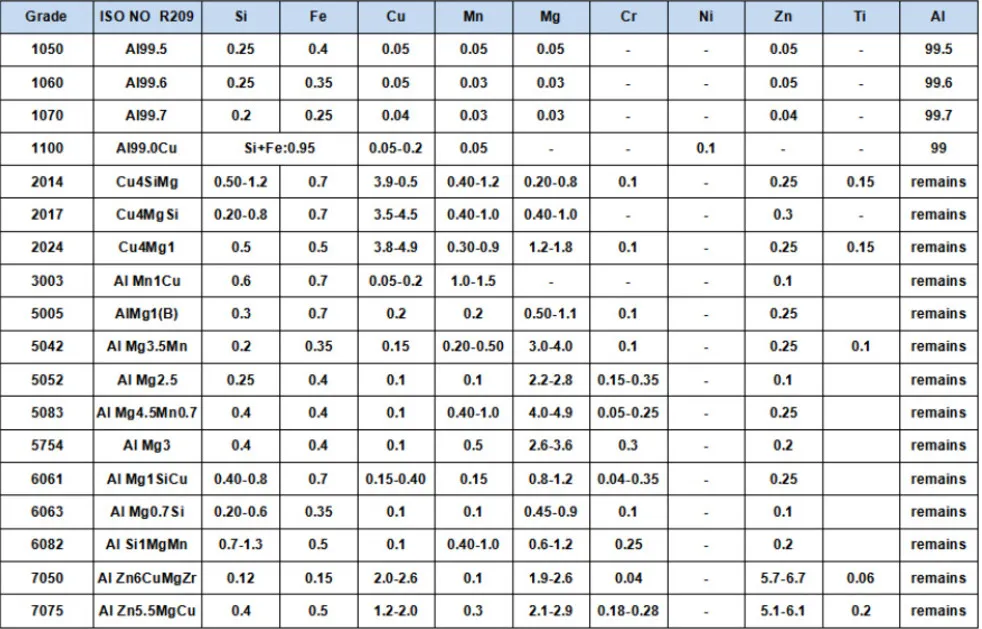

Chemical Composition & Grading

Series	Major Alloying Element
1XXX	Aluminum 99% or greater
2XXX	Copper
3XXX	Manganese
5XXX	Magnesium
6XXX	Magnesium and Silicon
7XXX	Zinc

Aluminum Grades Reference

1000 series: 1035, 1050, 1060, 1100, etc.
2000 series: 2014, 2017, 2024, etc.
3000 series: 3003, 3004, 3105, etc.
5000 series: 5052, 5083, 5754, etc.
6000 series: 6061, 6063, 6082, etc.
7000 series: 7050, 7075, etc.

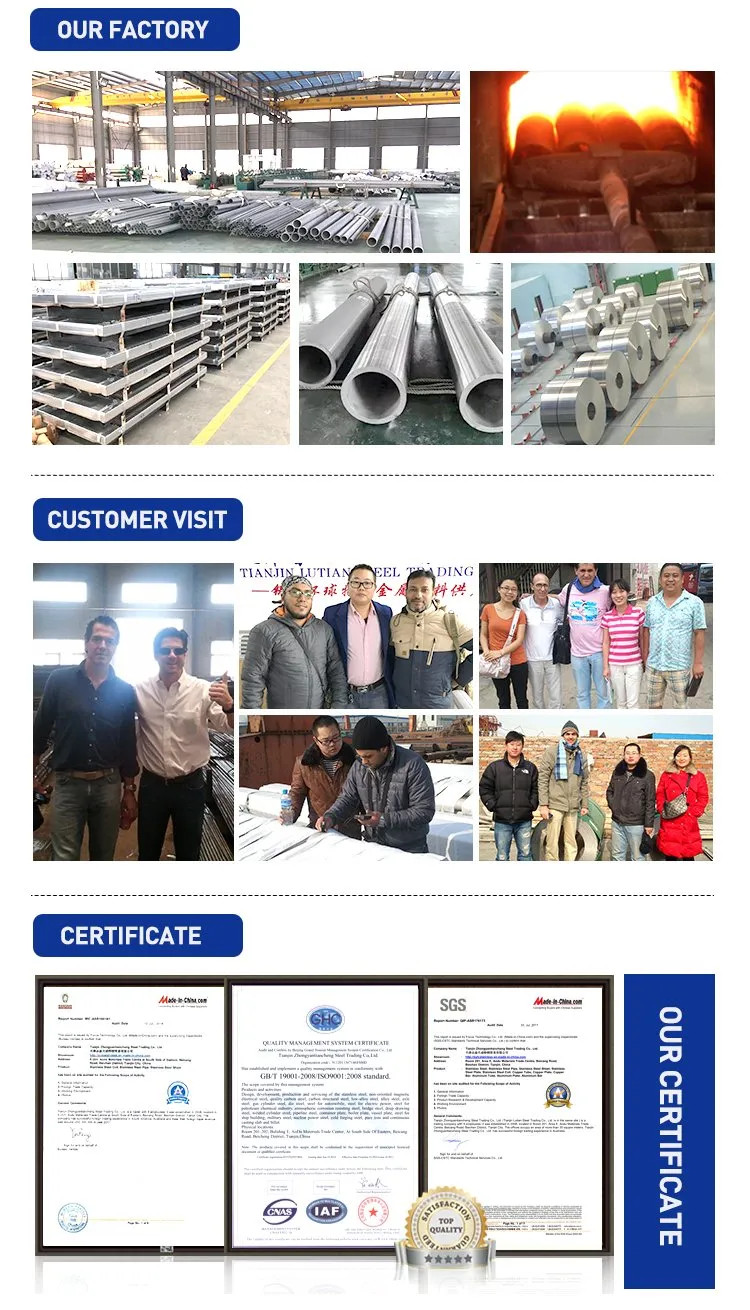

Production Process & Packaging

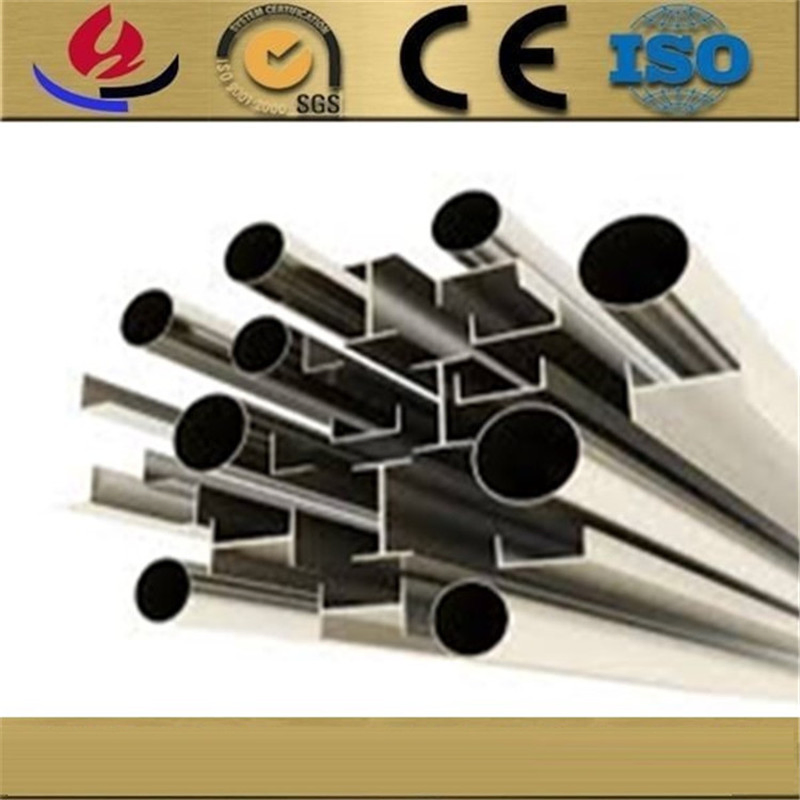

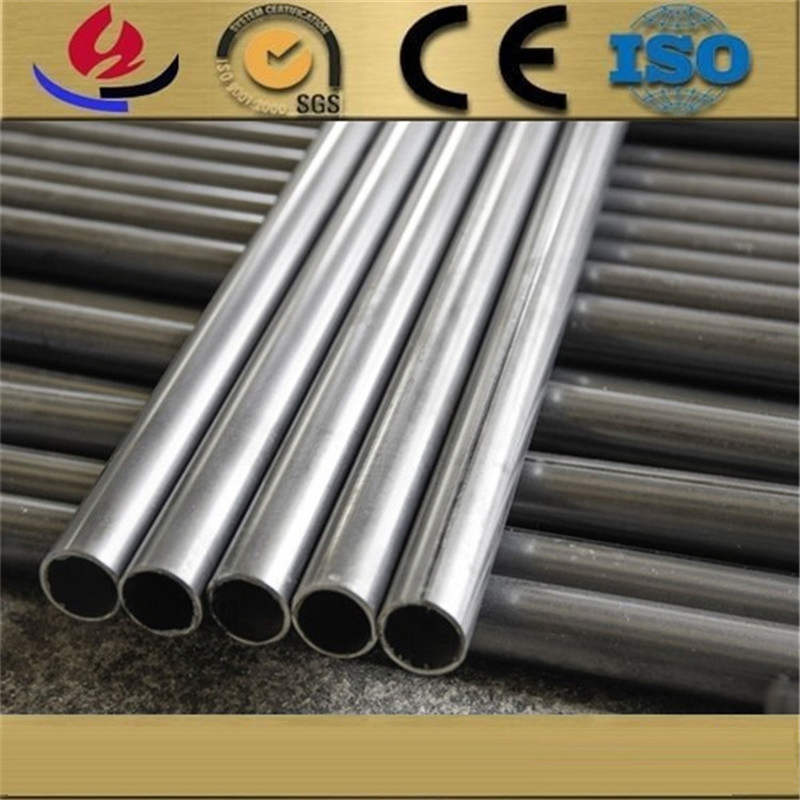

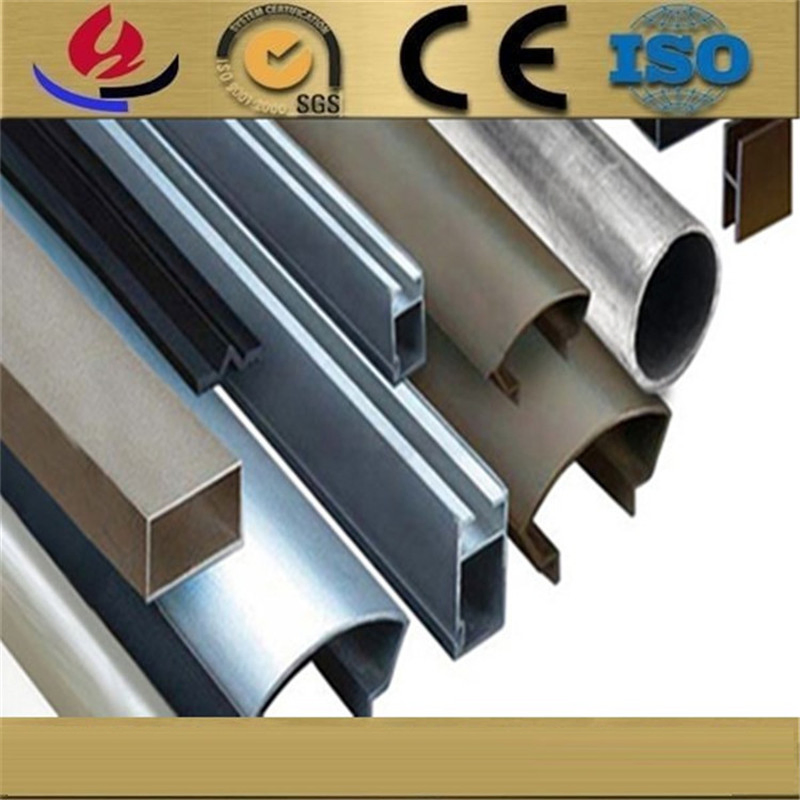

Product Display

Frequently Asked Questions

Q1: What are the main characteristics of 1050 aluminum? A: 1050 aluminum is known for its high purity (99.5%), excellent corrosion resistance, high electrical and thermal conductivity, and superb workability.

Q2: What is the most common temper for 1050 aluminum pipes? A: The most common temper is H14, which refers to the metal being work-hardened by rolling to a half-hard state.

Q3: Can 1050 aluminum be used for electrical applications? A: Yes, due to its high electrical conductivity, it is frequently used in the electrical industry for cable sheathing and other components.

Q4: Is 1050 aluminum suitable for chemical processing? A: Absolutely. Its excellent corrosion resistance makes it ideal for chemical process plant equipment and pharmaceutical containers.

Q5: Can 1050 aluminum be strengthened by heat treatment? A: No, 1050 is a non-heat-treatable alloy. It can only be strengthened through cold working processes.

Q6: What is the size range for these aluminum pipes? A: We offer outside diameters ranging from 2.5mm to 560mm and thicknesses from 0.2mm to 60mm.
