Advanced Bioreactor Storage and Distribution Solutions by Nailii

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Storage and Distribution System
Automatic Grade	Semi-Automatic
Application	Milk, Yogurt, Milk Powder, Cheese
Customized	Customized
Origin	China

Product Description

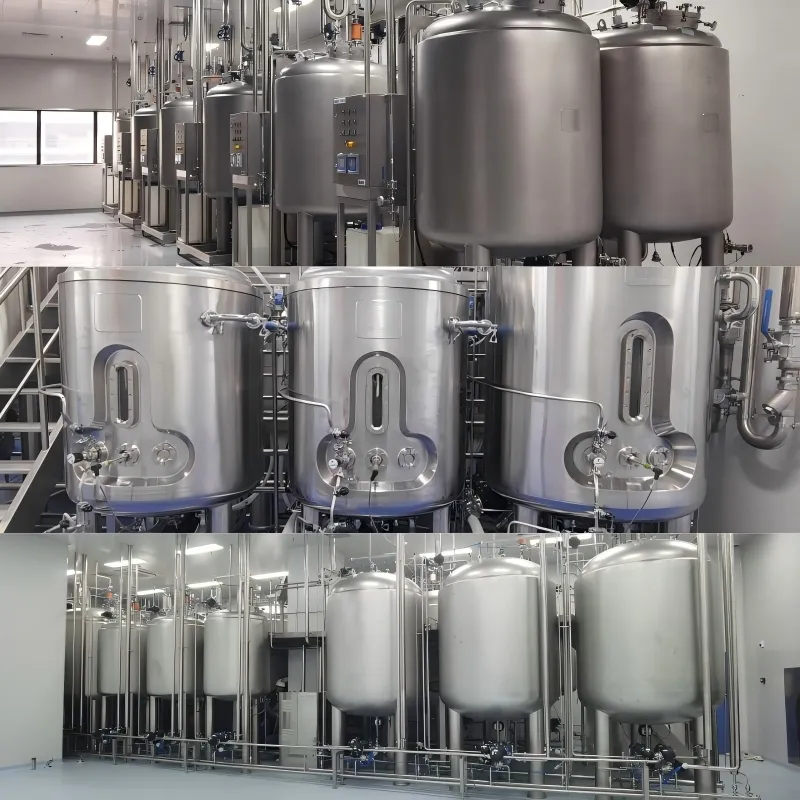

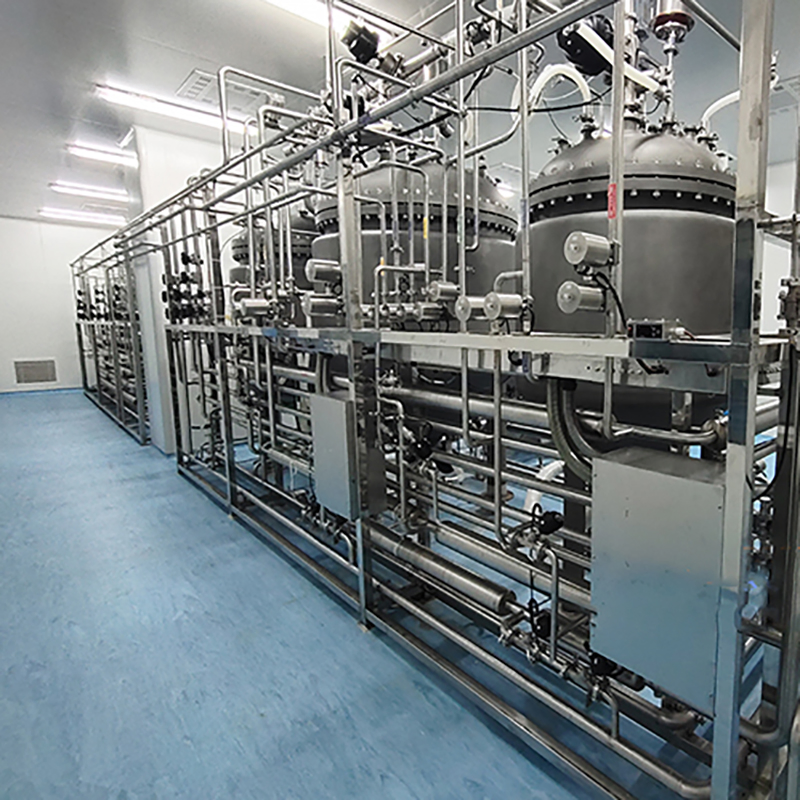

Storage and Distribution System

The Storage and Distribution System is a fully integrated solution for safe storage, preparation, and transfer of liquids in pharmaceutical, biotechnology, food, chemical, and lab environments. Built with 316L stainless steel, it features sanitary design, smooth surfaces, precise temperature control, and a sealed pipeline for product safety and purity.

Modular design allows configuration of tanks, mixing modules, filtration units, pumps, and pipelines for specific workflows, supporting preparation and distribution of media, buffers, reagents, and WFI-grade water.

Key Advantages

316L Stainless Steel Construction: Internal polishing Ra≤0.4 μm, GMP/FDA compliant.
Modular Design: Flexible configuration for storage, mixing, filtration, and transfer.
Sanitary & Fully Sealed: Zero dead corners, CIP/SIP available for sterile handling.
Intelligent Monitoring: Real-time tracking of temperature, volume, pressure, and flow rate.
Operational Safety: Pressure-protected vessel design and leak-proof connections.
Consistent Quality: Supports continuous and batch distribution for large-scale manufacturing.

Industry Applications

1. Pharmaceutical & Biotechnology: Storage and distribution of media, buffers, WFI water, and reagents for vaccine or protein production.
2. Laboratory & R&D: Small-scale solution preparation and sterile transfer for research experiments.
3. Food & Beverage: Ingredient mixing, syrup storage, and hygienic transfer of food-grade liquids.
4. Chemical Processing: Storage of acids, bases, and organic solvents; liquid blending and formulation prep.
5. Cosmetics: Preparation and transfer of lotions, essences, and raw materials in hygienic settings.

Technical Specifications

Model Range	100L - 1000L
Tank Inner Diameter	630mm - 1200mm
Tank Outer Diameter	740mm - 1300mm
Tank Inner Height	400mm - 900mm
Capacity	100L/Batch - 1000L/Batch
Weight	100 - 400kg
Sterile Temperature	45 - 90 degree (Adjustable)

Service & Support

Professional repair and parts services are provided to ensure lifecycle management and preventive maintenance. Our team responds quickly with targeted maintenance and original parts to extend equipment life.

7x24 hours service window
Periodic maintenance and return visits
Professional engineers for parts replacement
OEM/ODM capabilities and turnkey project solutions

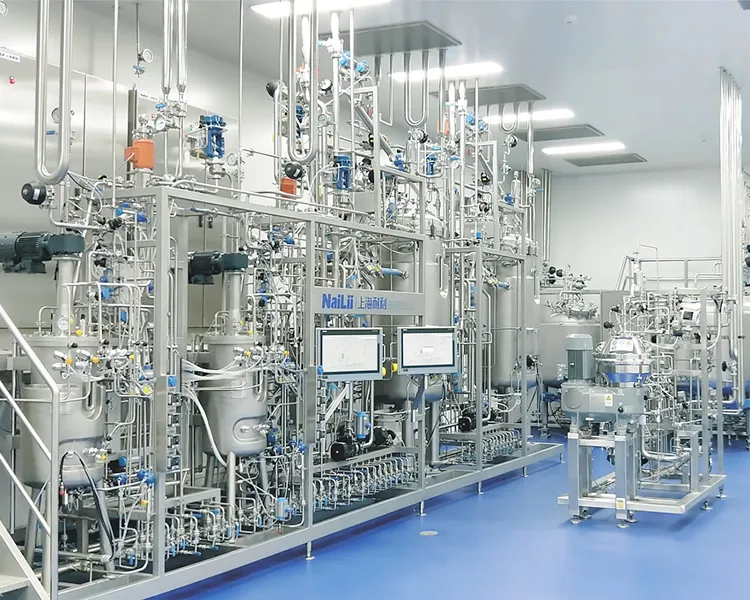

Other Available Systems

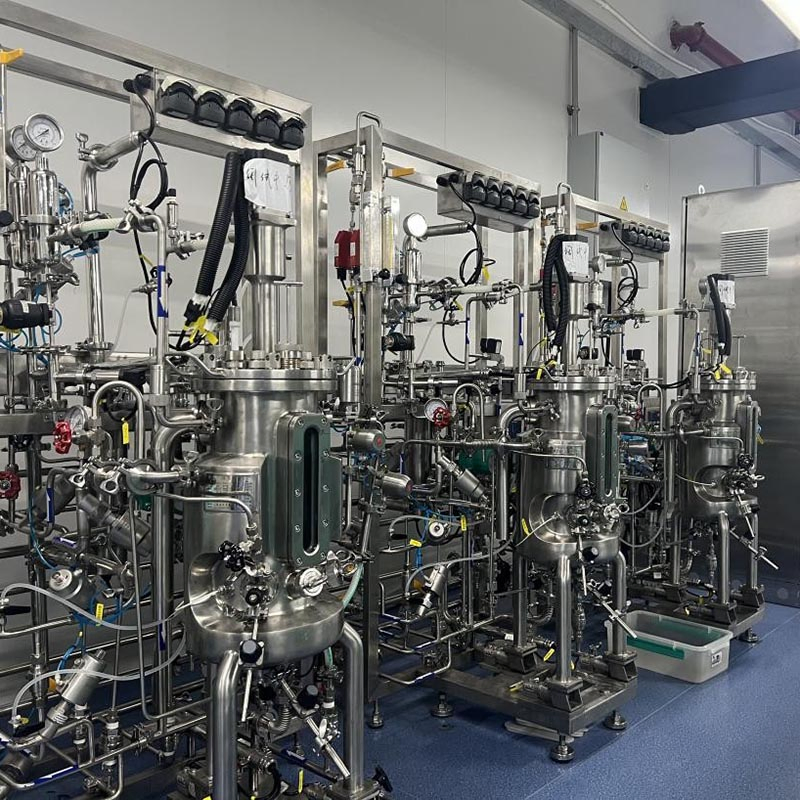

Disposable Bioreactors, Fermenters, Centrifuges, CIP Systems, and Advanced Filtration Units.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a professional manufacturer of laboratory and industrial equipment with our own dedicated factory.

Q: What materials are used in the Storage and Distribution System? A: All contact parts are constructed from high-grade 316L stainless steel with internal polishing of Ra≤0.4 μm to meet GMP and FDA standards.

Q: Does the system support automated cleaning? A: Yes, the system features a sanitary design with zero dead corners and is fully compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.

Q: What is the typical delivery time for an order? A: Generally, items in stock are delivered within 7 working days. For customized or non-stock items, the lead time is approximately 15 days depending on the quantity.

Q: Do you provide a warranty for the equipment? A: Yes, we offer a 1-year warranty for spare parts and provide professional after-sales support for maintenance.

Q: Can the system be customized for specific laboratory needs? A: Absolutely. Our modular design allows for flexible configuration of tanks, mixing modules, and filtration units to meet specific workflow requirements.
