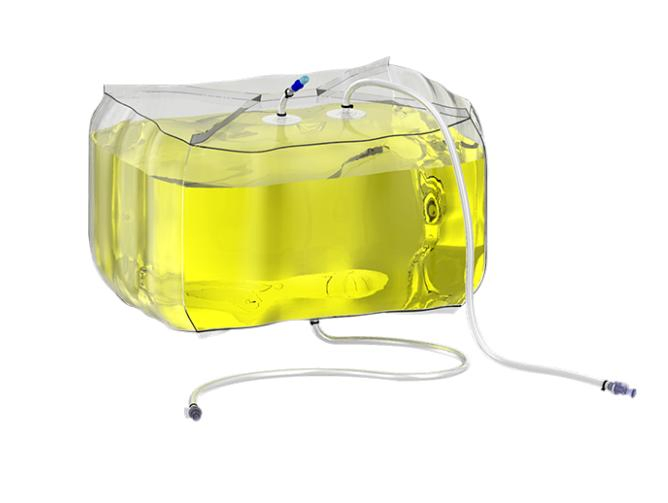

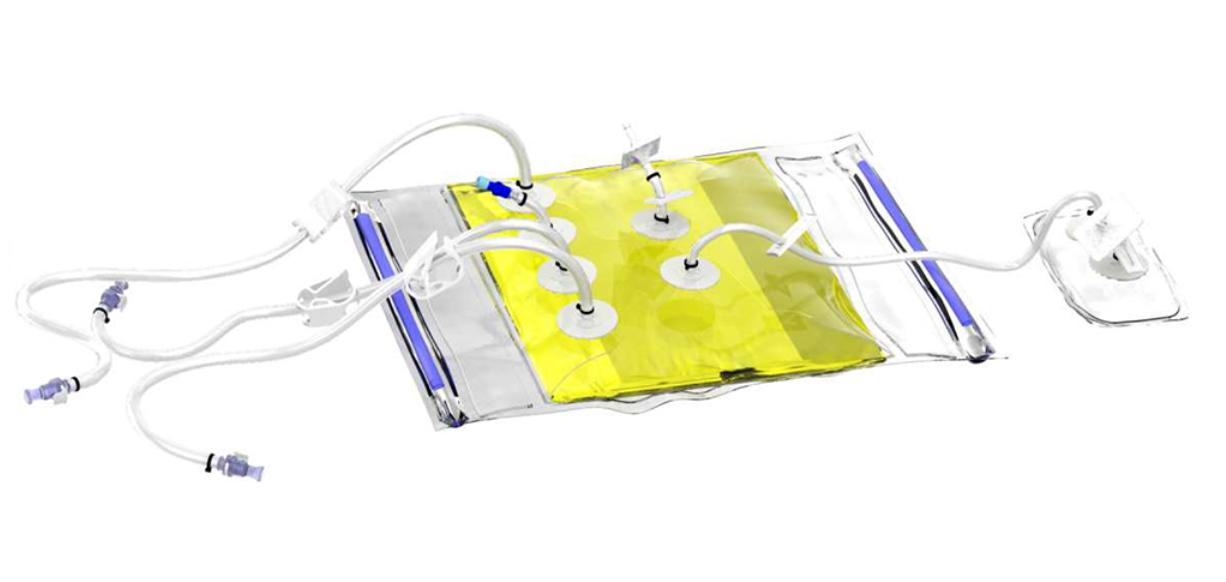

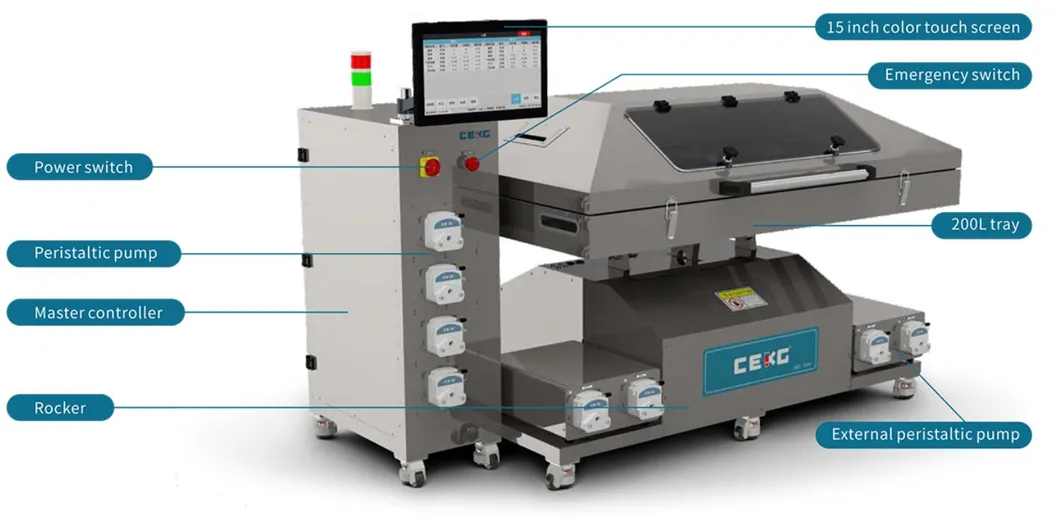

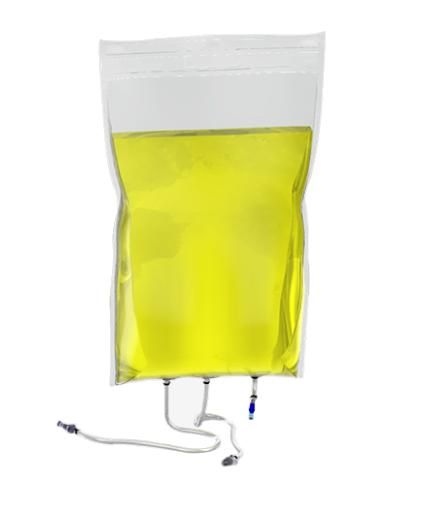

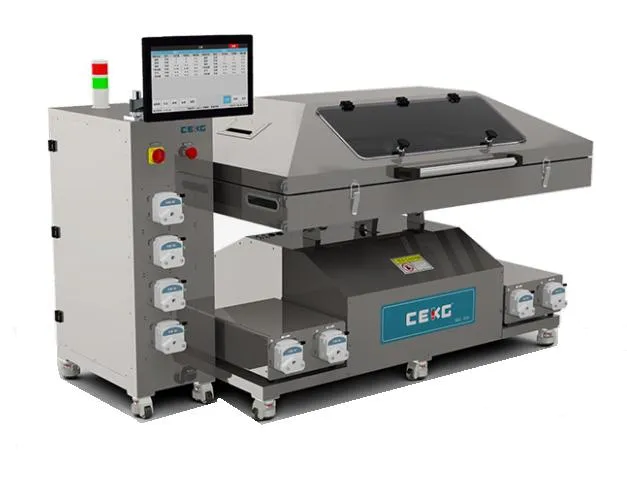

The SKC600 200L bioreactor is specifically developed for advanced cell culture applications. It utilizes a high-precision rocker platform to accommodate single-use suspension cell culture bags or fabric carrier culture bags. The system provides integrated control over rocking speed, tilt angle, gas flow, temperature, pH, DO, and concentrations of CO2 and O2. Designed for GMP production environments, it serves as an ideal solution for preparing suspended or adherent seed cells for large-scale bioreactors exceeding 200L.
| Control system | Siemens PLC, 15-inch color touch screen, Ethernet interface, USB interface |
| Temperature control | Heating plate, PID automatic control, accuracy: ±0.2°C; Range: 5-40°C above ambient |
| Rocker speed | 1-25 rpm |
| Tilt angle | 1-10° |
| Gas Control | 3 thermal mass flow controllers (Air/O2/CO2), 1 thermal mass flow meter with 3 gas mixer optional |
| Exhaust | Exhaust condenser, exhaust filter heater optional |
| pH Control | Single-use pH probe, control range: 6-8, accuracy: ±0.05pH; PID control |
| DO Control | Single-use DO probe, control range: 0-100%, accuracy: ±3%; PID control |
| Load cell | Load: 0-200kg, accuracy: ± (0.050 + 1% loading sampling) kg |
| Power supply | AC220V, 50/60HZ, 10A |
