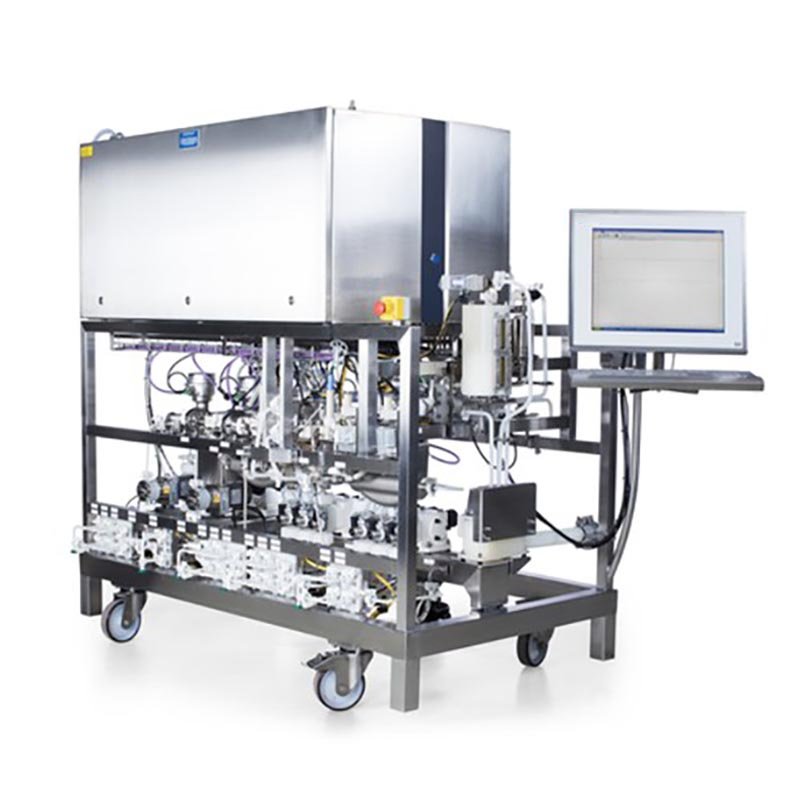

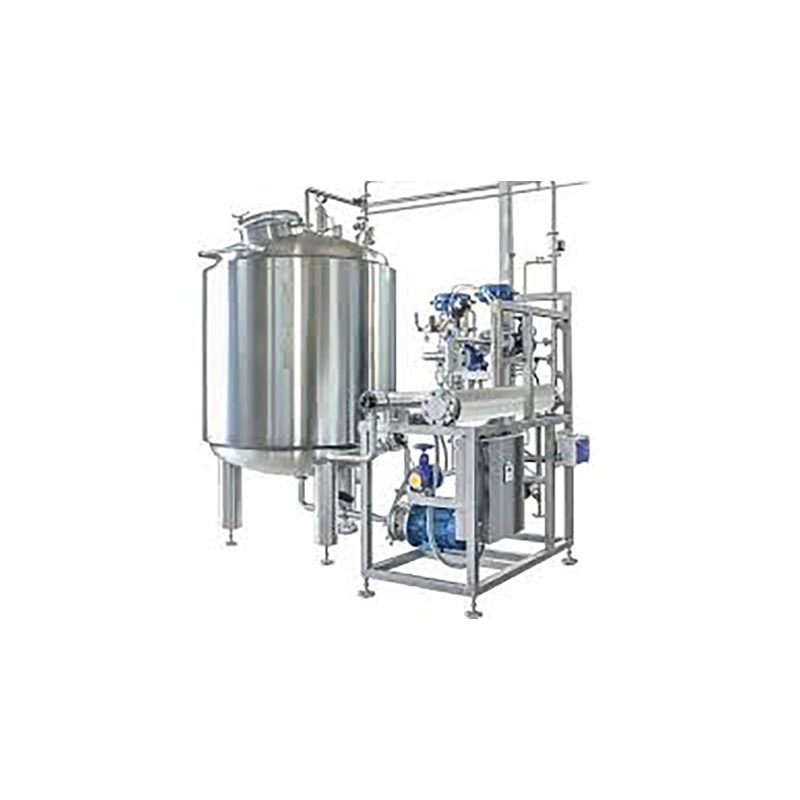

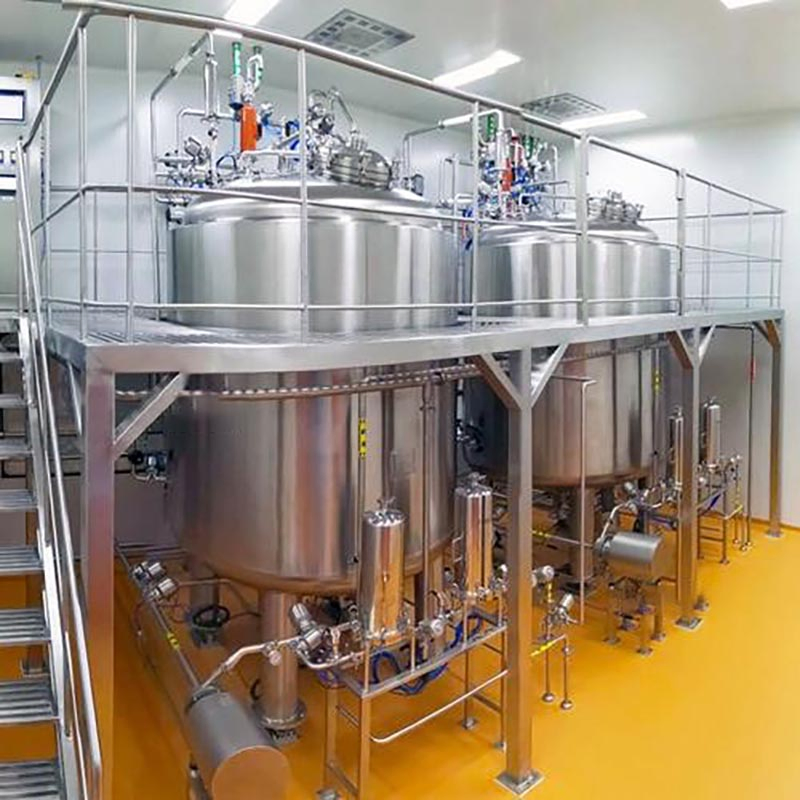

Comprehensive Storage and Distribution System for Bioreactors by Nailii

Product Overview

Model NO.:

Storage and Distribution System

Automatic Grade:

Semi-Automatic

Application:

Milk, Yogurt, Milk Powder, Cheese

Customized:

Available

Origin:

China

A fully integrated solution for safe storage, preparation, and transfer of liquids in pharmaceutical, biotechnology, food, chemical, and laboratory settings. Built with 316L stainless steel, featuring a sanitary design, smooth surfaces, precise temperature control, and a fully sealed pipeline for safety and purity.

Key Advantages

🛡️ Premium Material

Contact parts made from 316L stainless steel with Ra≤0.4 μm internal polish. Corrosion-resistant and GMP/FDA compliant.

⚙️ Modular Design

Flexible configuration including storage tank modules, mixing modules, filtration units, and transfer/distribution modules.

🧼 Sanitary Standards

Zero dead corners, CIP/SIP available. Ensures sterile, contamination-free handling for sensitive biological liquids.

📊 Intelligent Control

Real-time monitoring of temperature, volume, pressure, and flow via PLC control with touch screen and data logging.

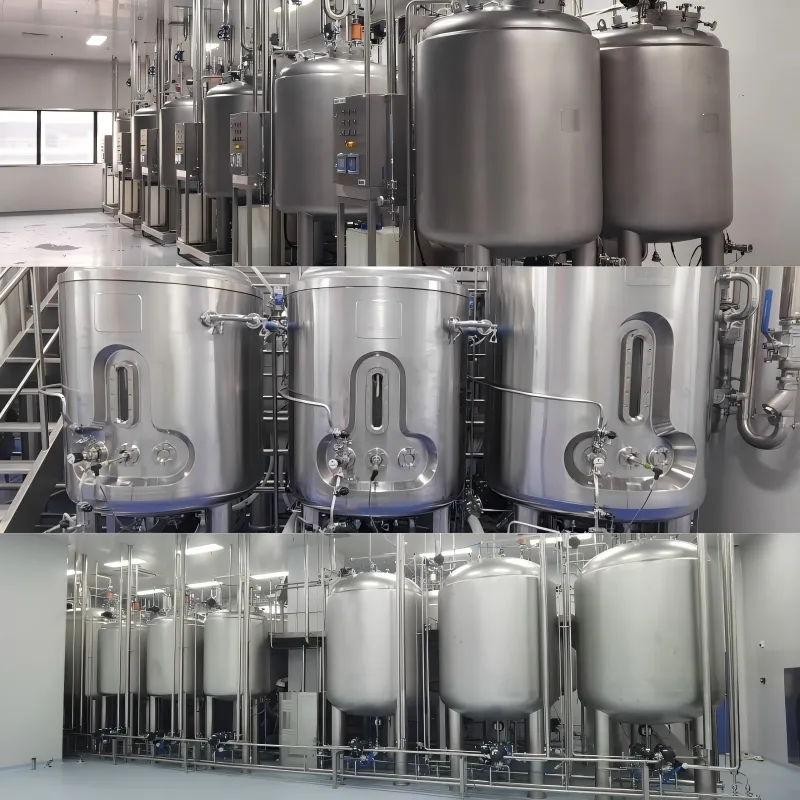

Product Display

Technical Specifications

Parameter	Specifications
Model	100L - 1000L
Tank Inner Diameter	630mm - 1200mm
Tank Outer Diameter	740mm - 1300mm
Tank Inner Height	400mm - 900mm
Capacity	100L/Batch - 1000L/Batch
Weight	100 - 400kg
Sterile Temp	45 - 90 degree (Adjustable)

Wide Applications

Biopharma: Storage of media, buffers, WFI water, and reagents for vaccines and proteins.

Food & Beverage: Ingredient mixing, syrup storage, and hygienic liquid transfer.

Chemical Industry: Blending of acids, bases, and formulation preparation.

Cosmetics: Preparation and transfer of lotions, essences, and extracts.

After-Sales & Logistics

🛠️ Professional Service

7x24 hours service window
Regular maintenance and check-ins
Original parts replacement service
Elite after-sales engineering team

🚚 Shipping & Delivery

Air Express: 3-10 workdays via DHL, TNT, FEDEX.

Sea Freight: 25-50 workdays for large-scale orders.

Expert freight forwarders handle customs clearance support.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of laboratory and industrial equipment with our own dedicated factory.

Q2: What materials are used in the storage system?

A: All liquid contact parts are constructed from high-grade 316L stainless steel, meeting strict GMP and FDA requirements.

Q3: Do you provide samples?

A: Yes, we offer samples. Due to the high value of the equipment, samples are not free, but we provide the most competitive pricing including shipping for our clients.

Q4: What is the standard warranty period?

A: We provide a 1-year warranty for all spare parts and offer long-term technical support.

Q5: How long is the delivery time?

A: Usually 7 days post-payment if items are in stock. For custom or large orders, delivery typically takes 15 days.

Q6: Can the system be integrated with existing CIP systems?

A: Yes, the system features a sanitary design with zero dead corners and is fully compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.
