High-Capacity Single Use Bioprocess System with Customizable Bioreactor

📦 Basic Information

Model NO.

disposable bioreactor

Capacity

5~5000L

Pressure

Negative

Agitator Model

Frame Agitator

Heating

Electric Heating

Structure

Jacketed

Automatic Grade

Automatic

Condition

New

🔬 Product Description

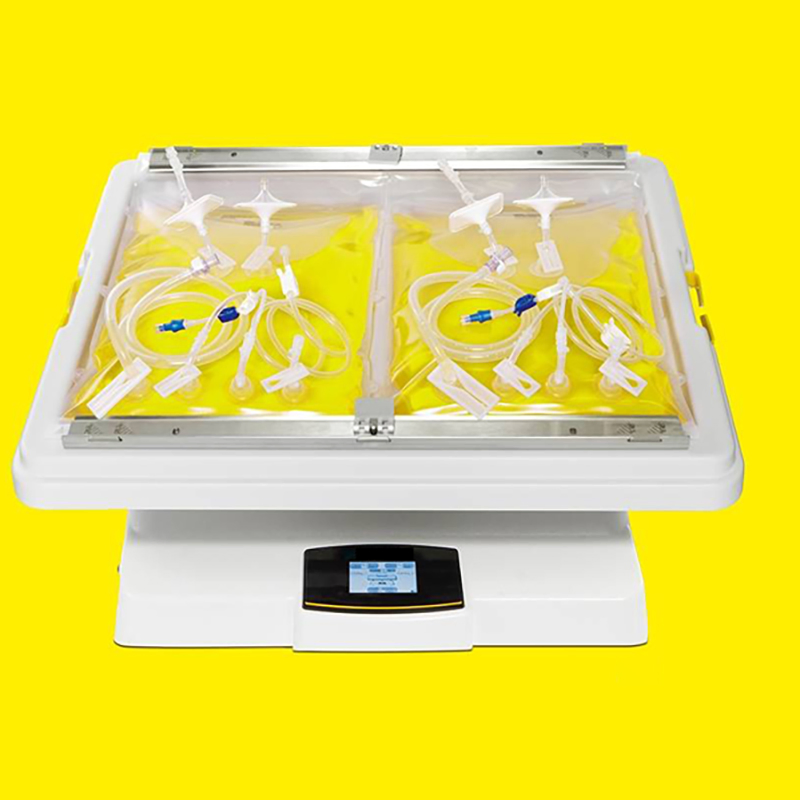

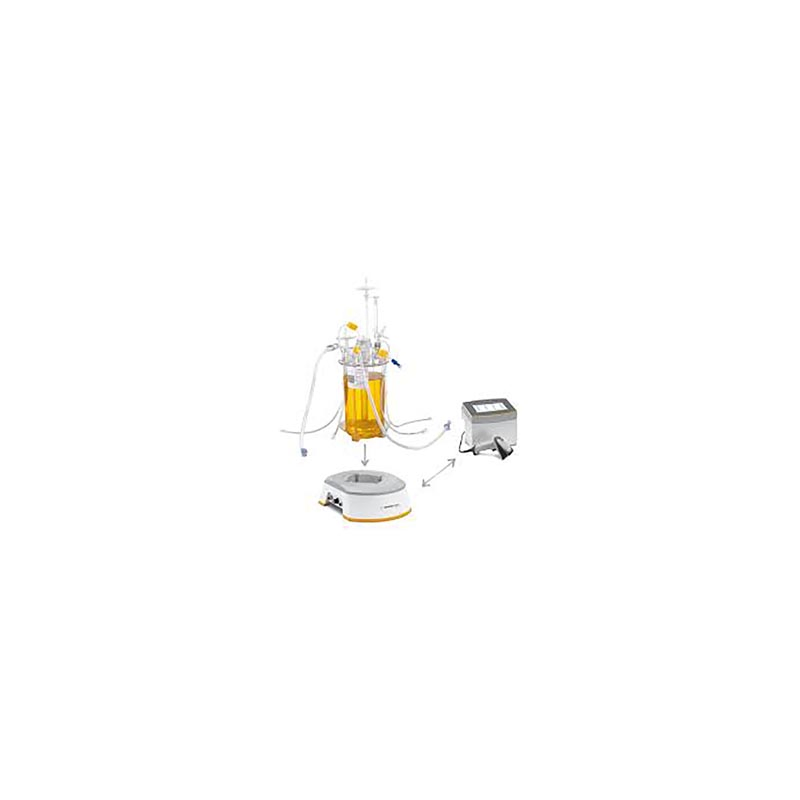

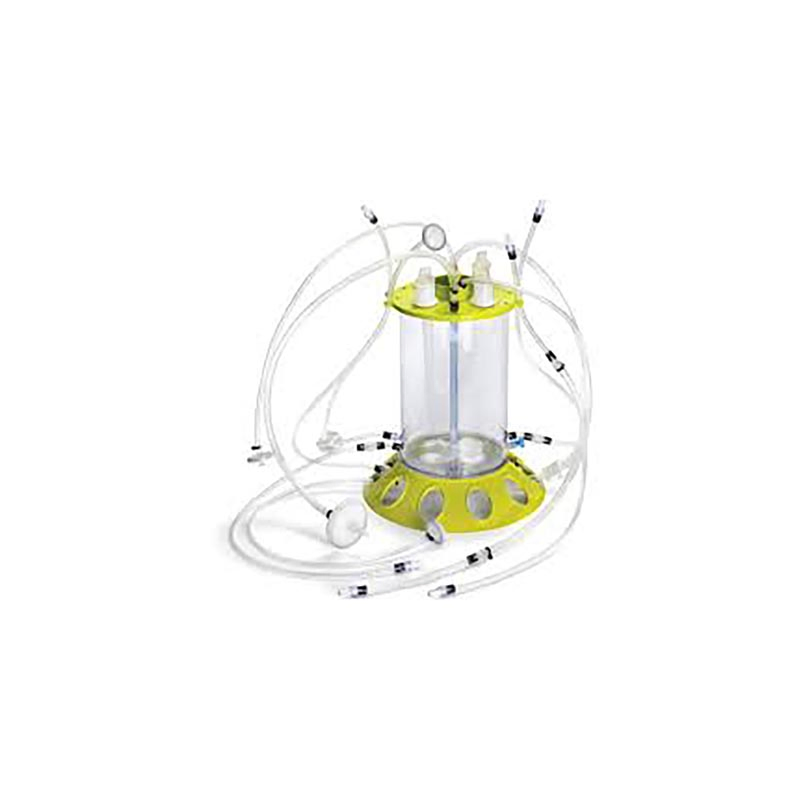

Single Use Bioreactor (SUB) System

Single-Use Bioreactors (SUB) use plastic bags as reaction vessels, replacing traditional stainless steel tanks. Post-use, no cleaning is needed; simply replace the bag for rapid turnaround and a contamination-free culture process.

Core Advantages

No CIP/SIP needed, cutting cleaning and sterilization time
Prevents cross-contamination risks
Quick installation and fast turnaround
Fits pilot, intermediate, high-throughput, and multi-batch processes
Ideal for animal, immune, and insect cell cultures

🛠️ Material & Technical Specifications

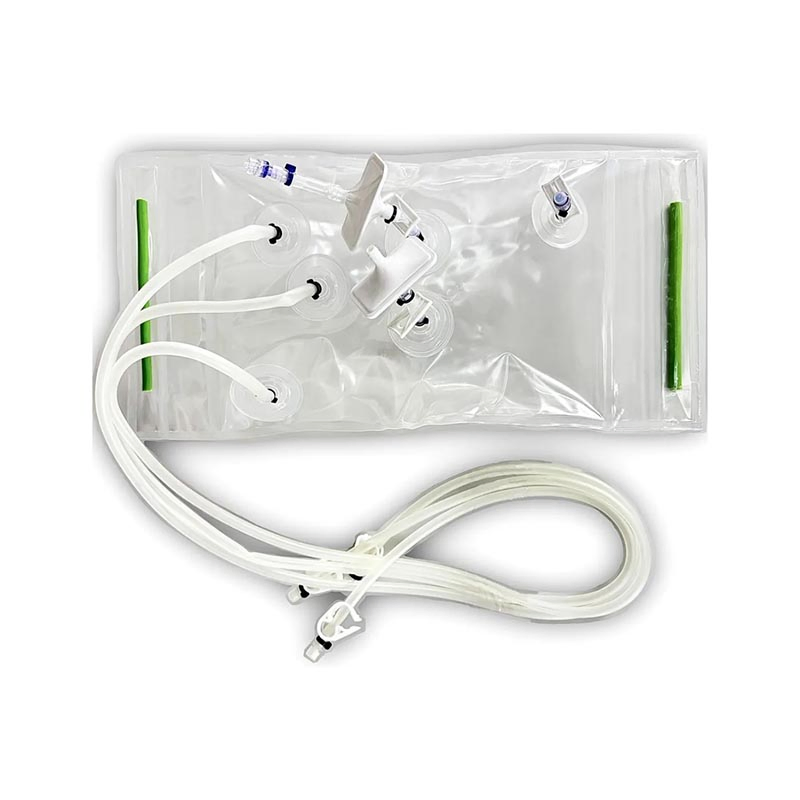

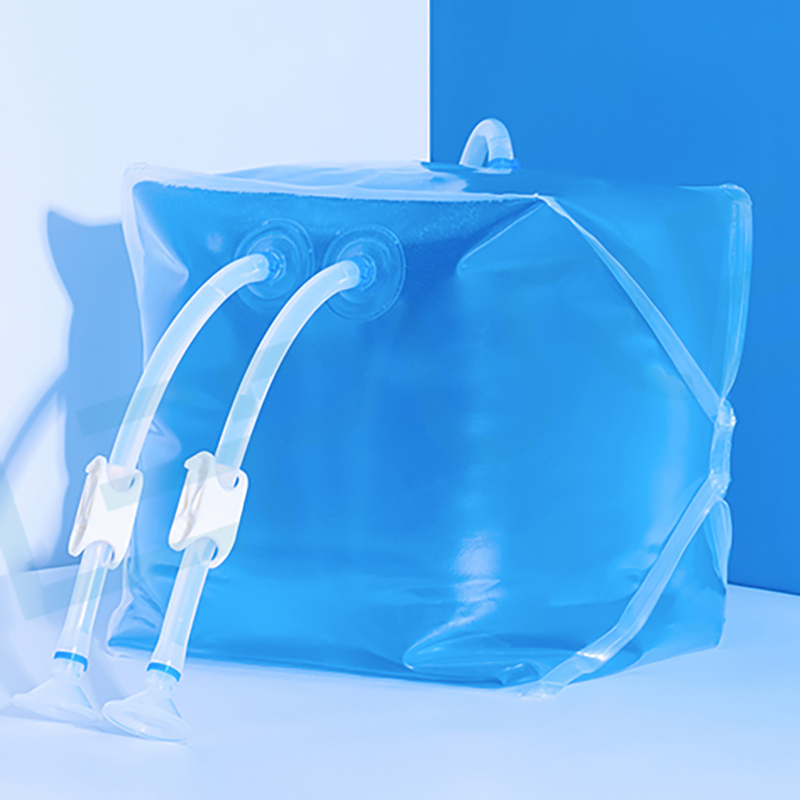

Single-use bags made from multi-layer medical-grade polymers, including Outer: PE, EVA, Nylon (strength); Middle: EVOH (gas barrier); Inner: Medical-grade PE or PP (contacting medium). Gamma Sterilization meets USP Class VI & ISO 10993 standards.

Container size	50L-2000L
Temperature control	Water jacket, PID automatic control, PT100 sensor, accuracy ±0.5°C, range 8-45°C (Max. 60°C)
Max. speed	115RPM-360RPM
Gas Control	4 thermal mass flow controller (Air/O2/N2/CO2), optional 3 gas mixer
Gas pressure	Measured and controlled
Load cell	Optional
Signal interface	Optional

🚀 Key Applications

Monoclonal Antibody Production (mAbs)
Cell Therapy (CAR-T, Immune Cells)
Vaccines (Viral Vectors, mRNA Upstream Process)
Protein Expression (CHO, HEK293)
Gene Therapy Viral Production (AAV, LV)
Process Development, Pilot Scale-up

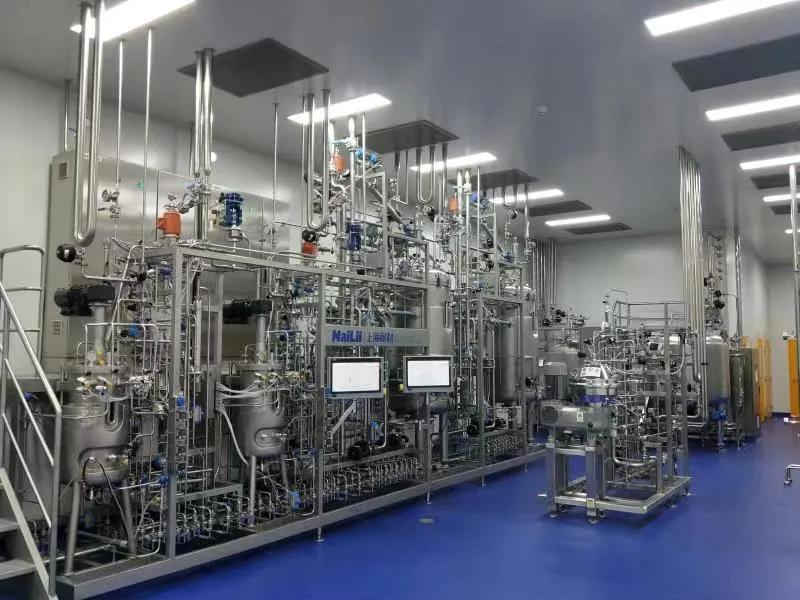

🛠️ Support & After-Sales Service

We provide professional maintenance, repairs, and original parts service. Our expert team offers equipment tracking, lifecycle management, and preventive maintenance to extend equipment life and minimize loss.
