High-Quality PE Film for Durable Air Dunnage Packaging

Customization: Available
Material: PA/PE/PA
Type: Multi Layer 7/9 Co-Extruded Blowing Film

Product Description

Basic Product Information
Model NO.
HK-F0031
Transparency
Transparent
Hardness
Soft
Molding method
Blow Molding
Item
PE Film for Dunnage Bag
Width
≤1600mm
Thickness
30-300mic
Temperature
-40'c to 100'c
OEM
Available
HS Code
3920109000
Production Capacity
500 Ton/Month
Specification
PA/PE/PA coextrusion Film
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 110.00cm
Gross Weight
600.000kg

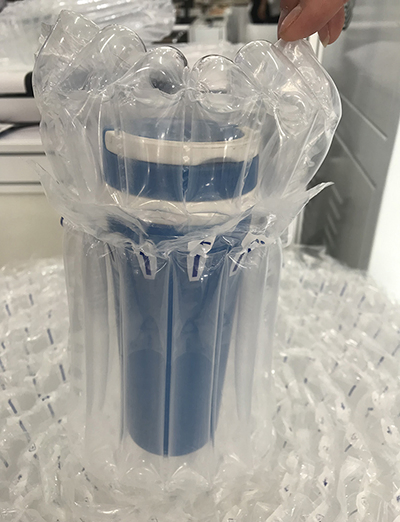

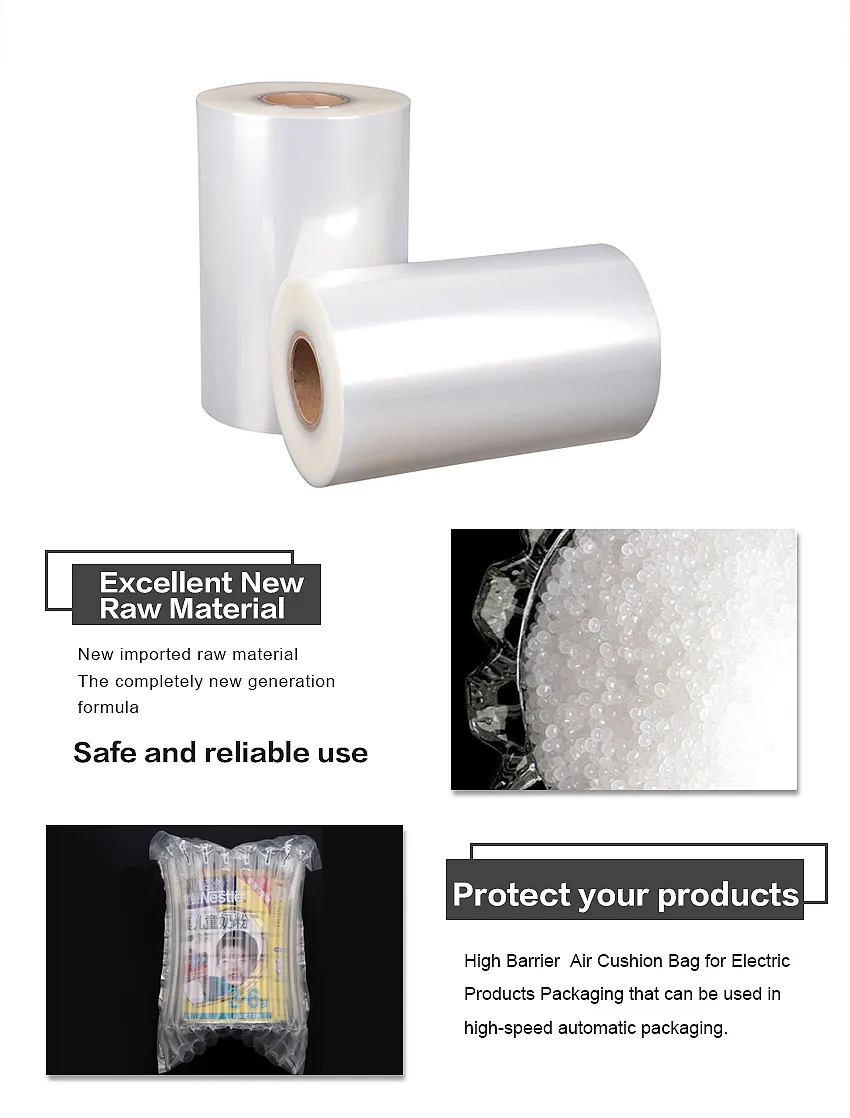

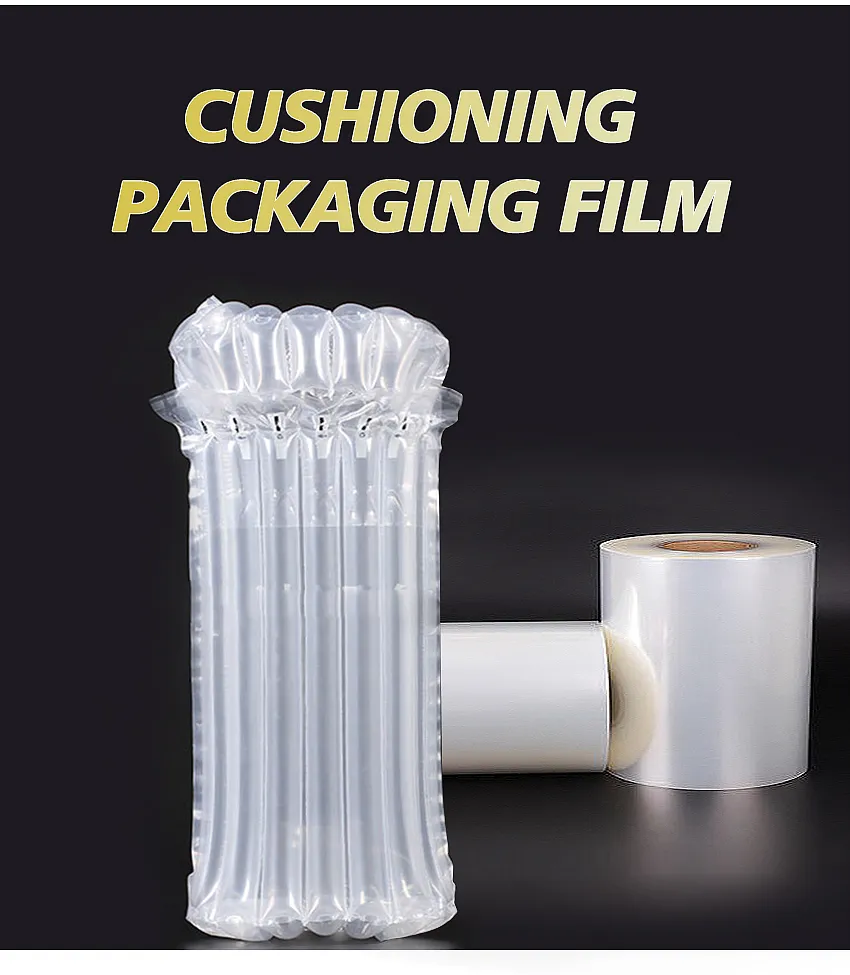

Air Column Protection Bag/Film Rolls

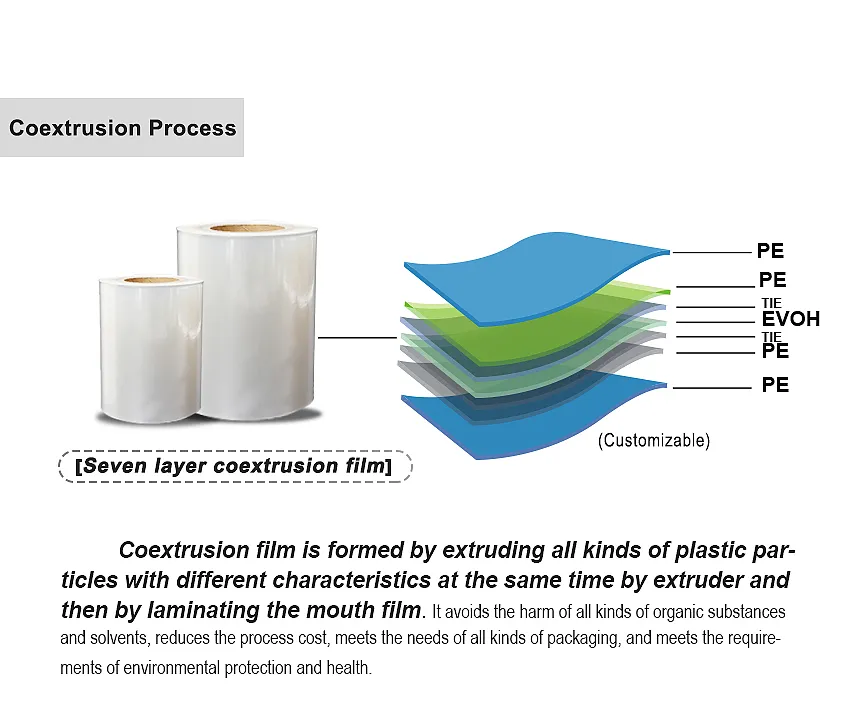

Our packaging products are manufactured using 7 or 9 layers of co-extruded film, primarily composed of Nylon and PE. These solutions include high-performance air column bags and air bubble bags designed for maximum protection.

  • Structure: PE/PA/PE multi-layer co-extrusion.
  • Applications: Ideal for air column bags, bubble bags, and inflatable air cushion films.
  • Key Features: High strength, low creep deformation, and excellent air retention.
  • Sealing: Outstanding sealing performance, suitable for 2 or 4 layer heat sealing.
  • Thickness Range: Available from 30um to 100um.

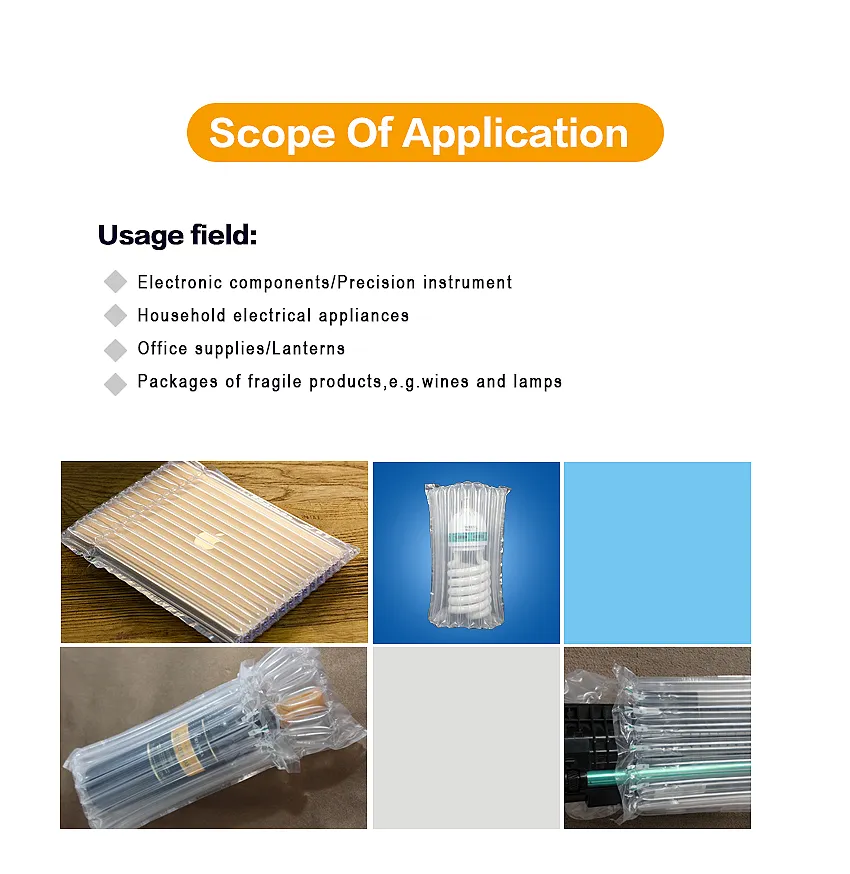

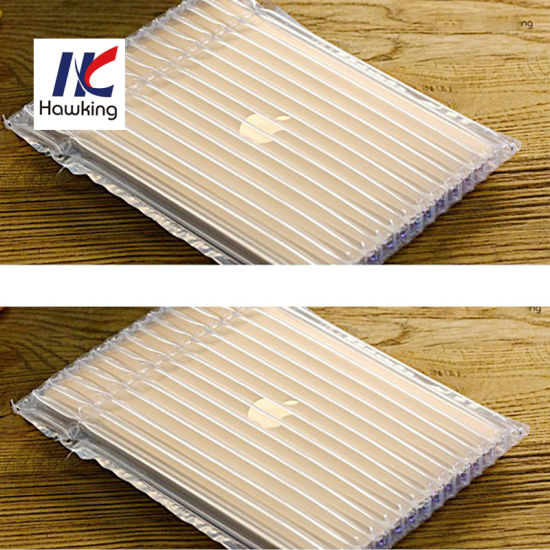

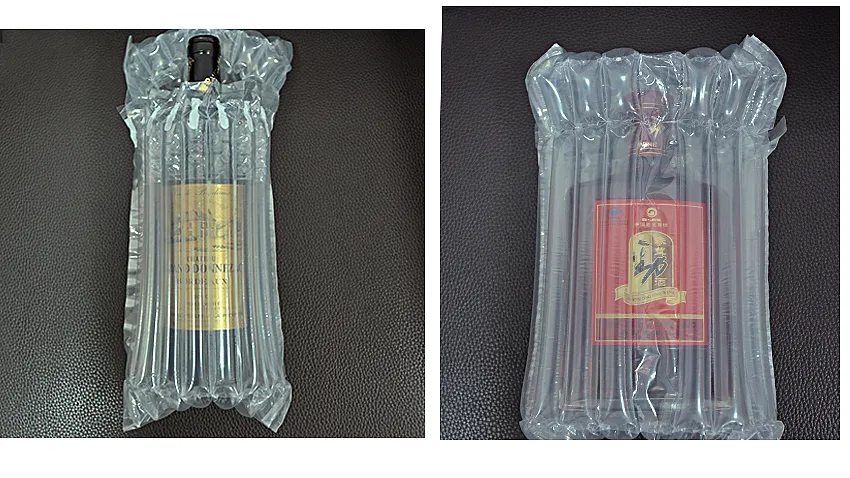

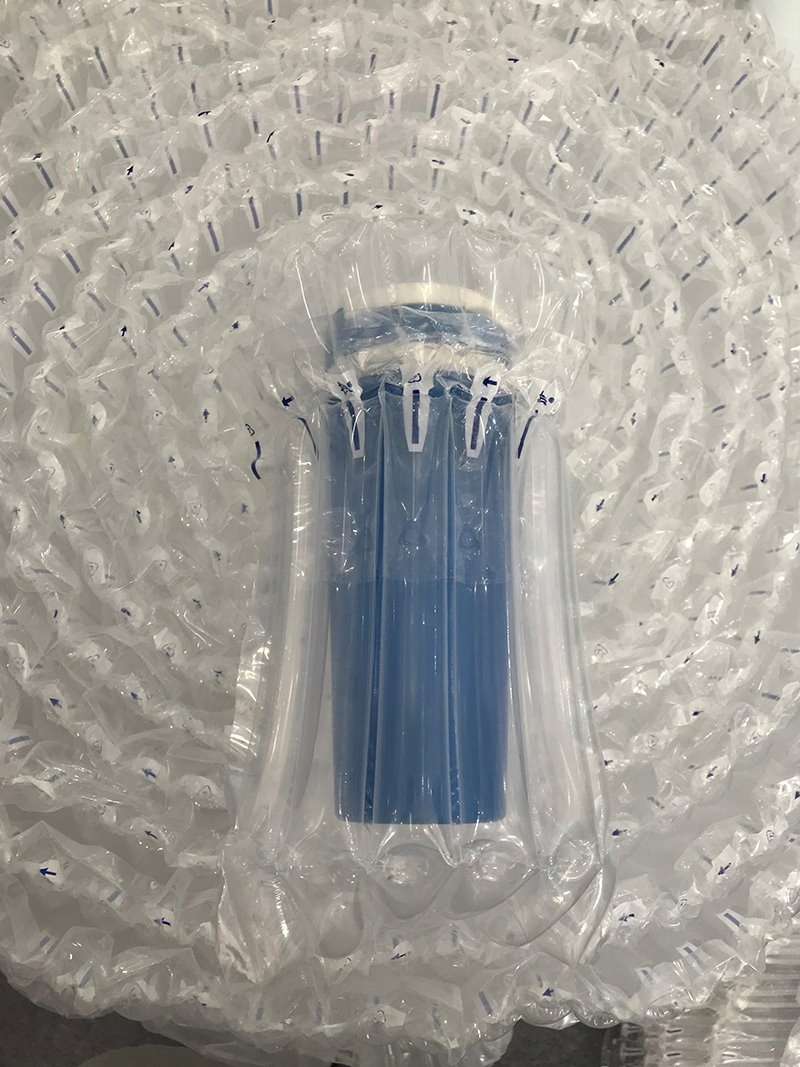

These inflatable bags are widely used for protecting toner cartridges, wine bottles, milk cans, computers, and various electronic products. They provide exceptional buffering during transportation; even if a single column is damaged, others remain intact to protect the cargo. Features include waterproof material, durability, softness, and eco-friendly safety.

Technical Property Parameters
Property Test Method Unit Typical Values (Thickness in μm)
Thickness ASTM F2251 μm 30354048546790100
Tensile Strength (MD/TD) ASTM D882 MPa 2828282828282828
Elongation (MD/TD) ASTM D882 % 350380400400400400450450
Heat Seal Strength ASTM F88 N/15mm 1213141719253635
Light Transmittance ASTM D 1003 % 8989898989888888
Haze ASTM D 1003 % 99101012131517
OTR (23ºC, 0% HR) ASTM D 3985 cm³/m².d.bar <150<150<130<130<100<70<55<50
Why Choose Our Airbag Packaging?
  • Raw Material: Eco-friendly, non-toxic, food-grade materials.
  • Design Capability: Professional design team available for customized artwork and solutions.
  • Quality Assurance: 100% inspection by dedicated QC teams before shipment.
  • Competitive Pricing: Factory direct sales ensuring high quality at low costs.
  • Dedicated Service: 1-to-1 personalized customer support to ensure efficient communication.
  • Rapid Response: All inquiries receive a response within 12 hours.

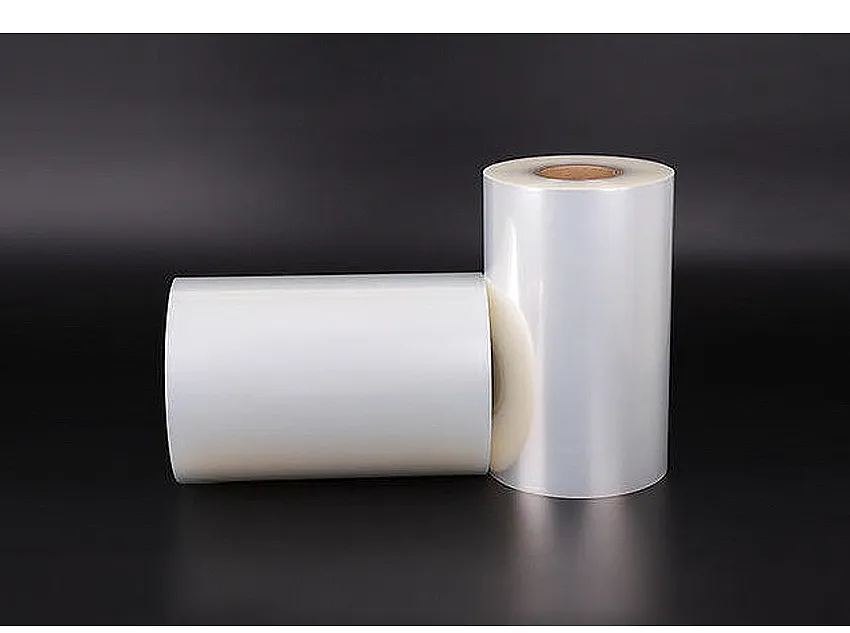

Product Visuals
Frequently Asked Questions (FAQ)
What materials are used in the air column protection bags?
The bags are made from a multi-layer co-extruded film structure, specifically PE/PA/PE, utilizing high-quality Nylon and Polyethylene for superior strength.
What temperature range can this PE film withstand?
The film is designed to perform reliably in extreme conditions, with a temperature resistance range from -40°C to 100°C.
Is the material safe for food-related items?
Yes, the raw materials used are eco-friendly, non-toxic, and classified as food-grade, making them safe for various sensitive applications.
What happens if one air column gets punctured during transit?
The columns are independent. If one is damaged, the remaining columns stay inflated, ensuring continued protection for the product.
Can I customize the thickness and width of the film?
Yes, we offer OEM services. The thickness can be customized between 30-300mic, and the width can reach up to 1600mm.
What are the primary advantages of this packaging?
It offers high tensile strength, excellent air retention, low creep deformation, and is waterproof, durable, and highly transparent.
