Premium 11-Layer Co-Extruded Flexible Thermoforming Film for Food

1 / 5

Premium 11-Layer Co-Extruded Flexible Thermoforming Film for Food

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	HK-50
Transparency	Transparent
Hardness	Soft
Molding method	Casting Plastic
Thickness	30-350mic

Width	≤ 2700mm
Temperature Range	-18°C to 100°C
Certification	SGS, ISO9001, ISO14001, QS
Production Capacity	500t/Month
HS Code	3921909090

🔍 Product Overview

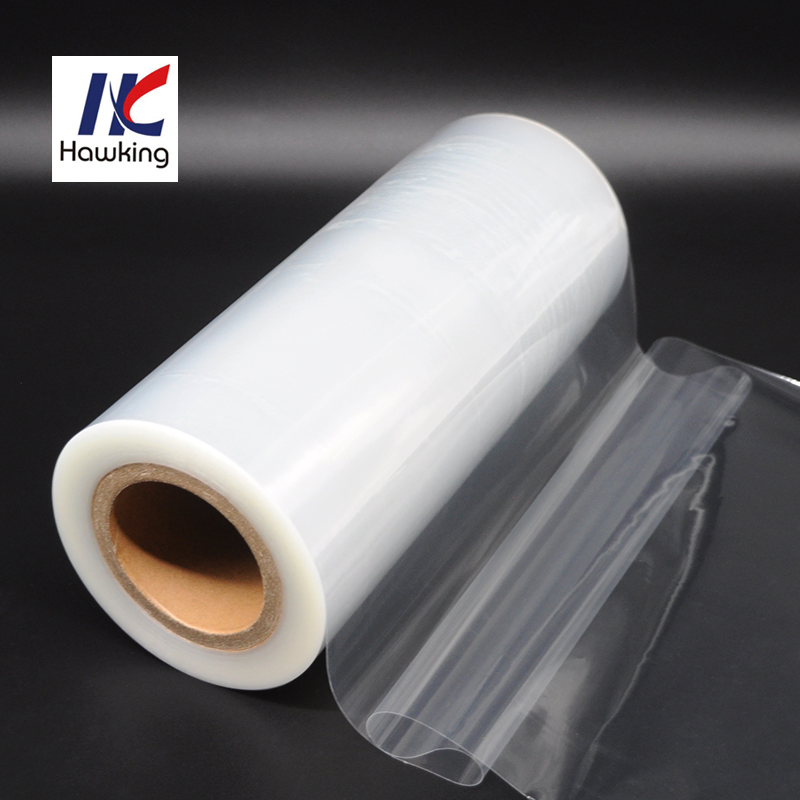

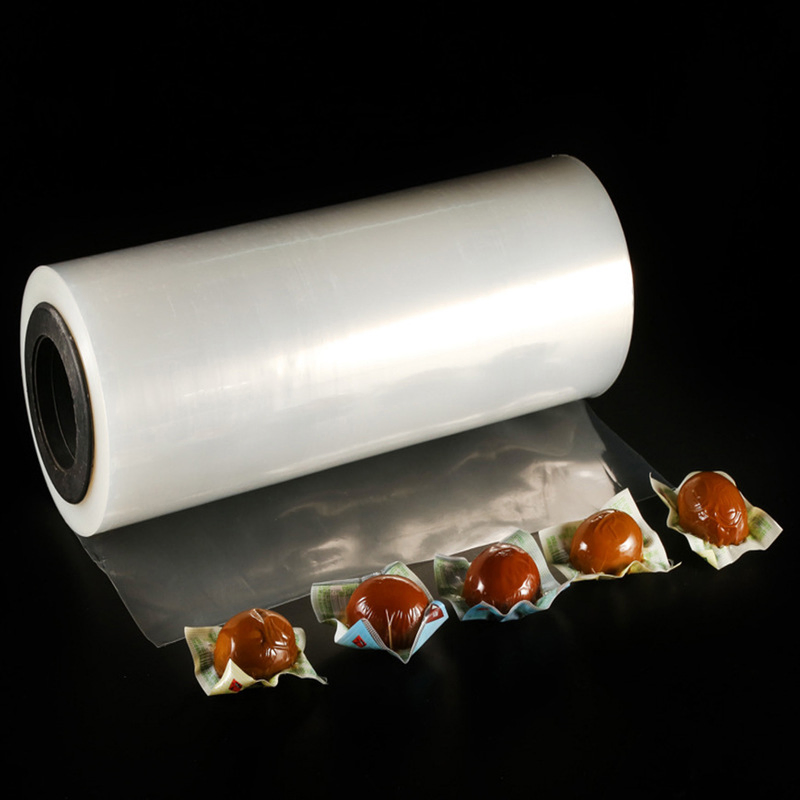

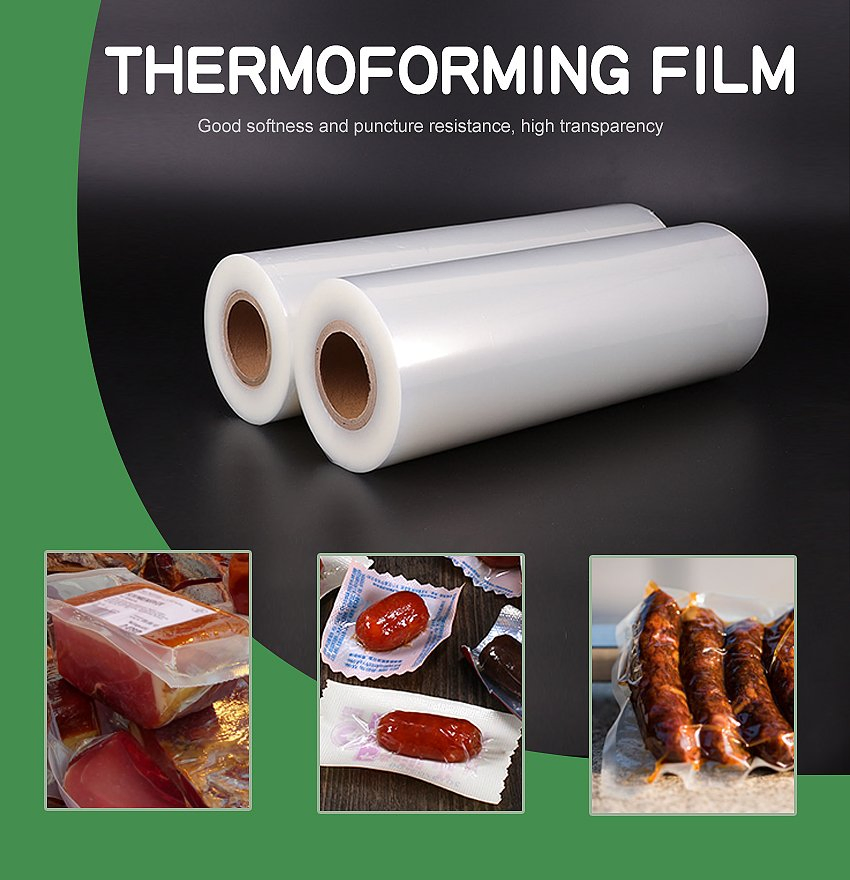

Food Grade Coextruded Thermoforming Top and Bottom Film

Our 11-layer co-extrusion casting production line ensures premium quality and high barrier performance for various food packaging needs.

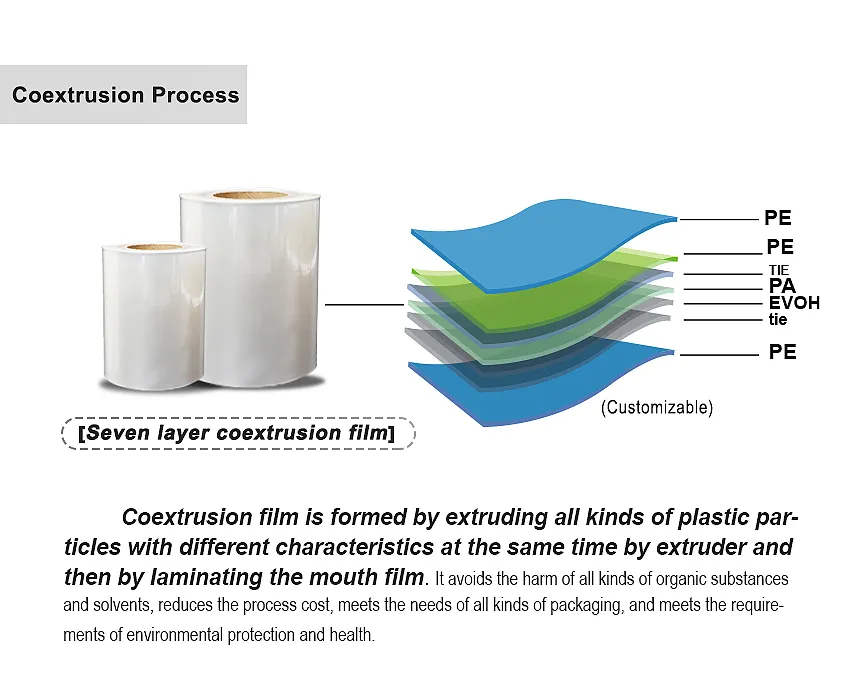

Available Structures: PA/PE, PA/EVOH/PE, PA/PP, PA/EVOH(MXD6)/PP, PP/PA/EVOH/PA/PE

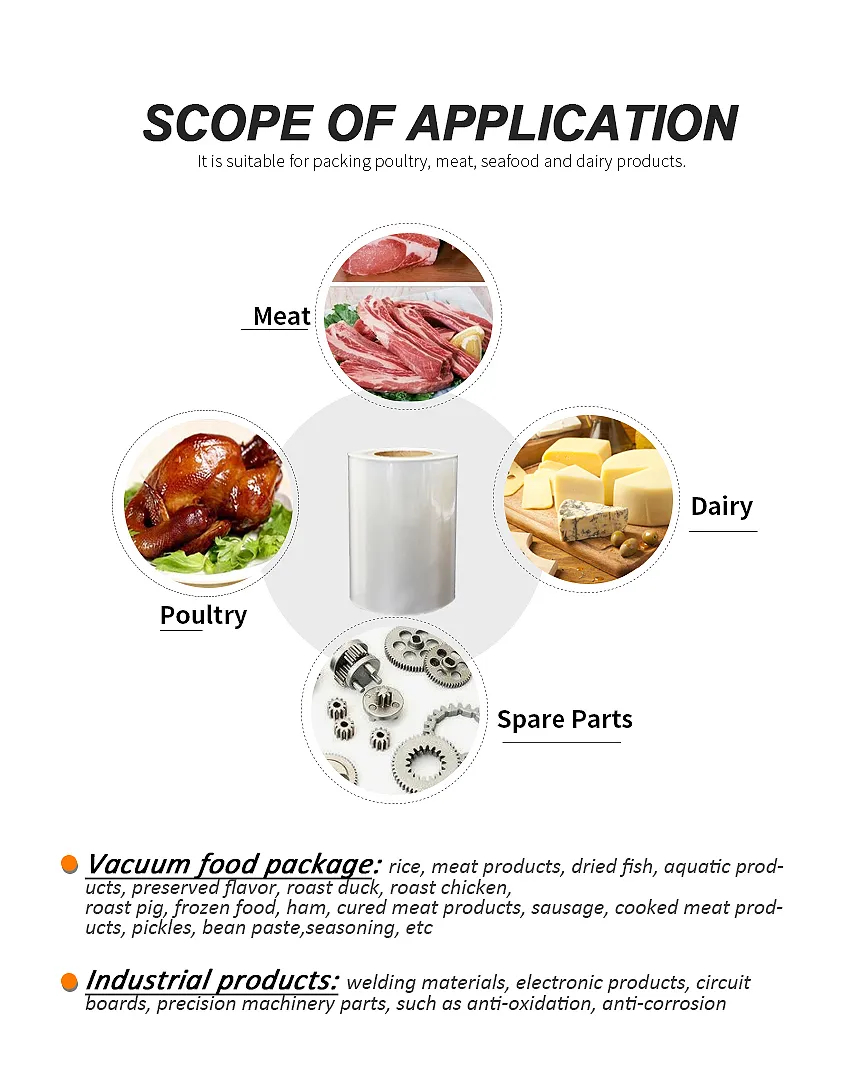

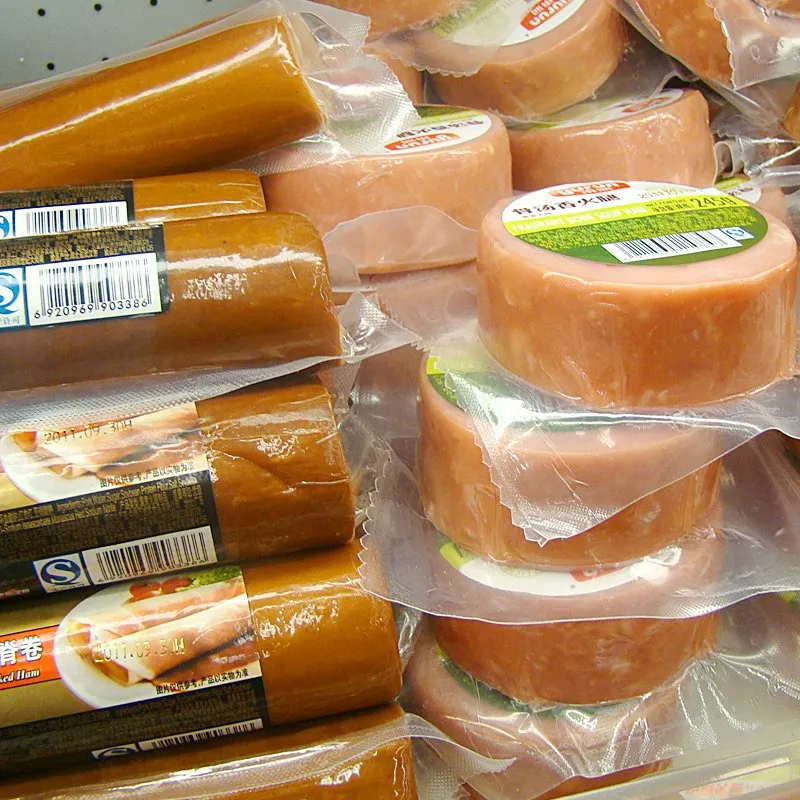

Primary Applications: Raw meat, eggs, processed food, cooked food, dairy products, snack foods, and more.

🔬 Technical Parameters

Property	Test Method	Unit	Typical Value (Reference)
Thickness	ASTM F2251	μm	80 - 350
Tensile Strength (MD/TD)	ASTM D882	MPa	28 - 30
Elongation (MD/TD)	ASTM D882	%	400 - 450
Heat Seal Strength	ASTM F88	N/15mm	28 - 100
Light Transmittance	ASTM D 1003	%	88 - 91
Haze	ASTM D 1003	%	5 - 23
COF (Coefficient Of Friction)	ASTM D 1894	-	0.2 - 0.3
OTR (23ºC, 0% HR)	ASTM D 3985	cm³/m².day.bar	< 1 - 2
WVTR (38ºC, 90% HR)	ASTM F1249	g/m².day.bar	< 1.5 - 6

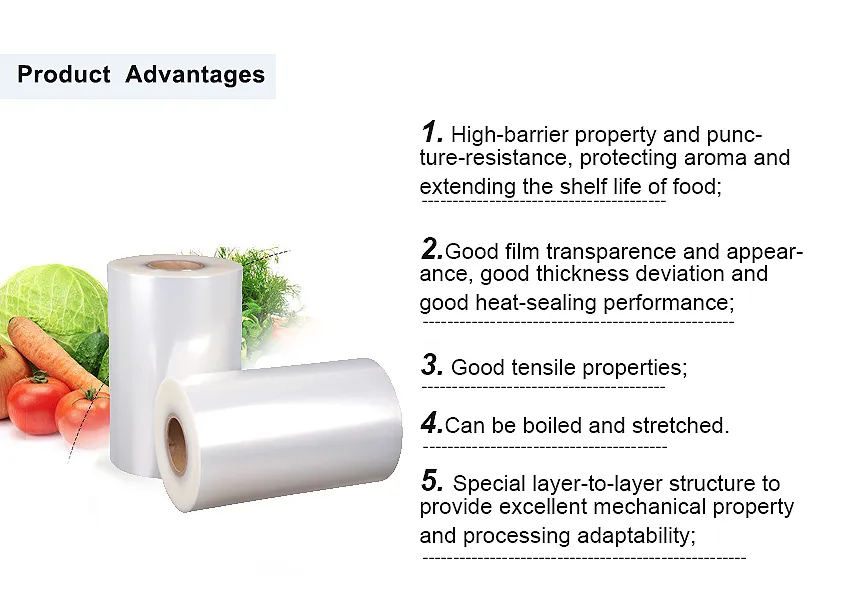

✨ Key Features & Benefits

✔ High Barrier: Achieving exceptional barrier effects against oxygen, water, carbon dioxide, and odors.

✔ Versatile Resistance: Oil resistant, moisture resistant, and suitable for high-temperature cooking (100°C) or freezing (-18°C).

✔ Excellent Formability: Ideal for deep-forming applications with high transparency for better product visibility.

✔ Flexible Design: Customizable structural designs to meet specific quality requirements for different products.

✔ Mechanical Strength: High tensile strength and superior flexibility ensure reliable sealing.

✔ Optimal Capacity: Volume and capacity ratio close to 100%, outperforming glass or metal cans.

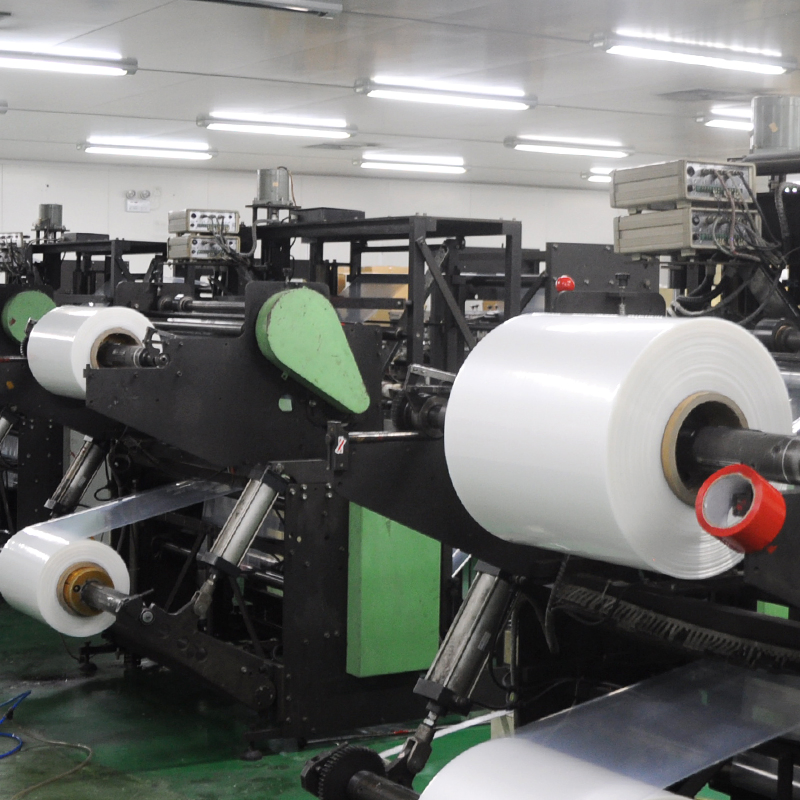

📷 Product Display

🎖 Why Choose Us

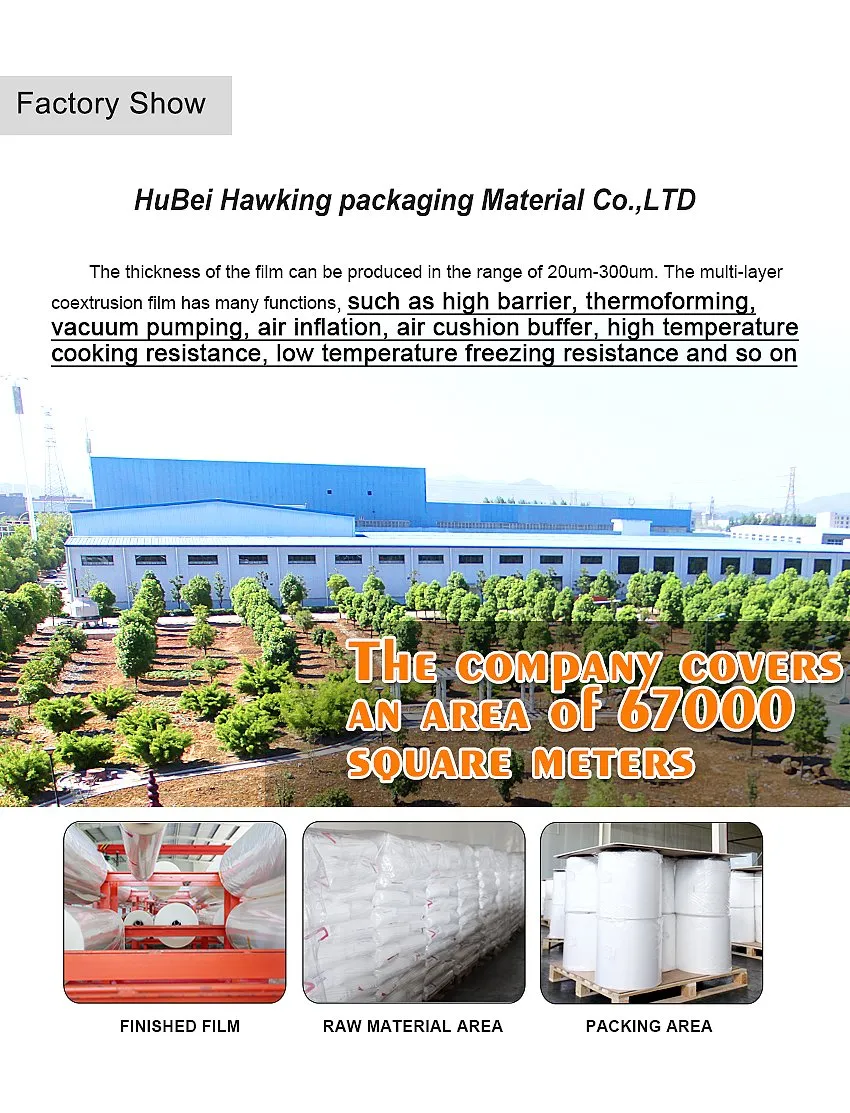

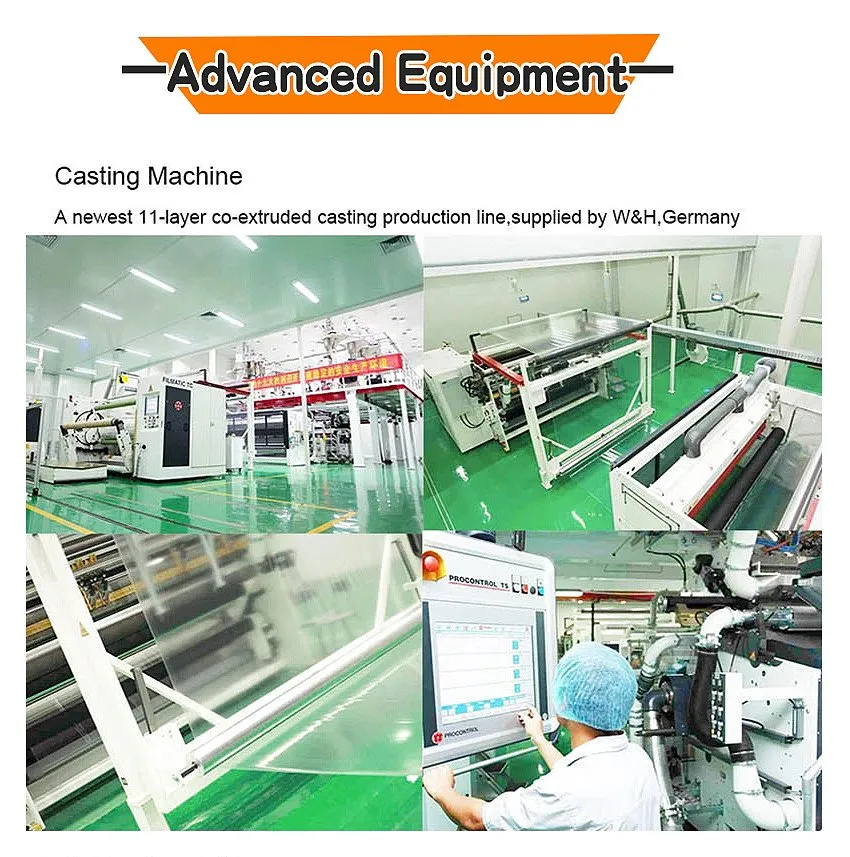

🛠 Advanced Equipment: Utilizing Germany W&H eleven-layer co-extruded cast film production lines.

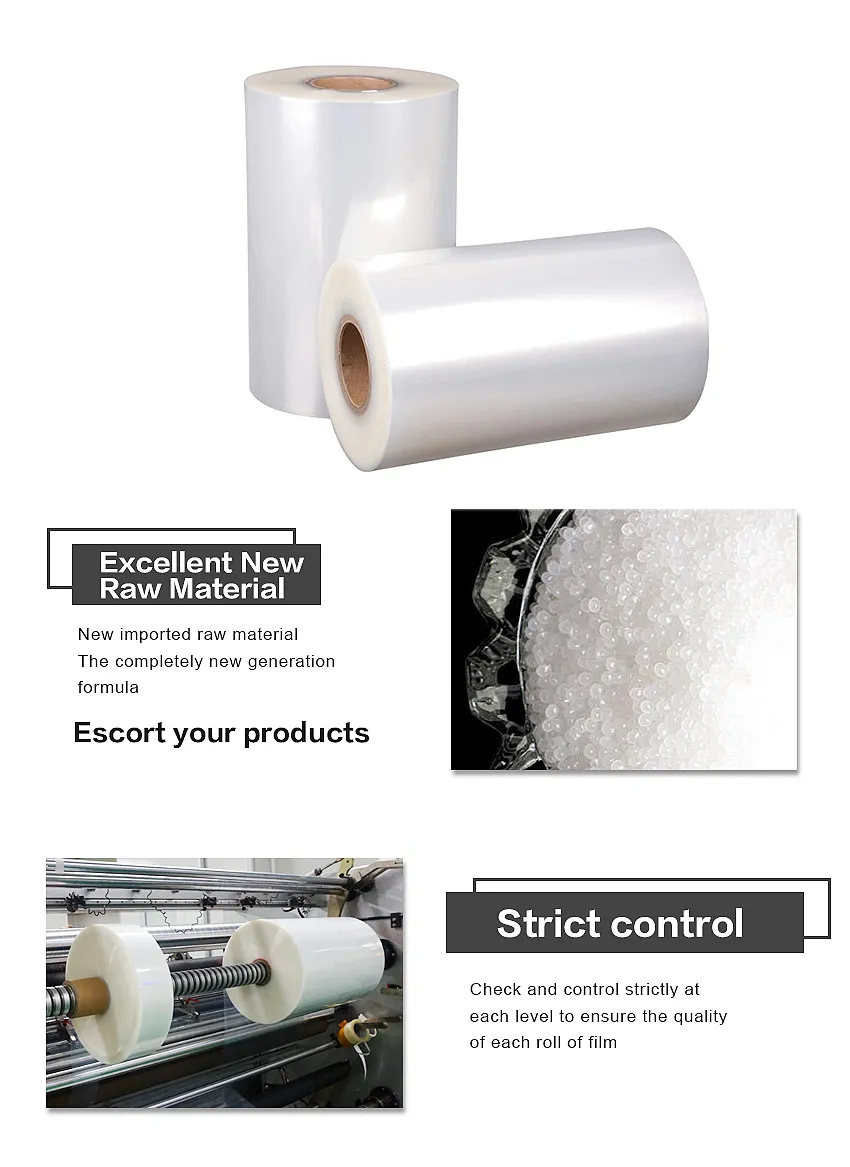

📦 Premium Materials: All films are manufactured using high-quality imported food-grade raw materials.

⚙ Large Capacity: Strong technique and extensive production experience with a monthly output of 500 tons.

💬 Dedicated Support: One-to-one service with response within 24 hours to address all technical needs.

❓ Frequently Asked Questions

Q1: What are the main applications for this thermoforming film? A: It is widely used for vacuum packaging of raw meat, eggs, processed foods, cooked meals, dairy products, and snack foods.

Q2: Can this film withstand high-temperature cooking and freezing? A: Yes, it is suitable for deep freezing down to -18°C and high-temperature cooking up to 100°C.

Q3: What thickness ranges do you offer? A: We provide a wide range of thicknesses from 30 microns up to 350 microns to meet different packaging requirements.

Q4: What are the barrier properties of the film? A: Our co-extruded film provides a high barrier against oxygen, water vapor, carbon dioxide, and odors, ensuring long-term shelf life.

Q5: Is the material food-grade certified? A: Yes, our products are made from imported food-grade raw materials and carry SGS, ISO9001, ISO14001, and QS certifications.

Q6: What is the maximum width available for the film? A: We can produce films with a width of up to 2700mm.
