Premium High Barrier Vacuum Forming Film for Frozen Foods

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HK-F192

Transparency

Transparent

Hardness

Soft

Molding Method

11 Multi-Layer Co-Extruction Casting

Item

Forming Anti-Cold Fog Film

Width

</=2700mm

Temperature

-40'c to 121'c

Roll Dia.

3"--6"

Weight

50kg-100kg/Roll

OEM

Available

Specification

PA/PE Co-extruded Film

Capacity

500t/Month

Product Parameters

Property	Test method	Unit	Typical value
Thickness	ASTM F2251	μm	80	100	125	150	175	200	250	300	350
MD/TD Tensile strength	ASTM D882	MPa	28	30	30	30	30	30	30	30	30
MD/TD Elongation	ASTM D882	%	400	400	400	400	400	450	450	450	450
MD/TD Heat seal strength	ASTM F88	N/15mm	28	30	38	48	55	65	75	90	100
Light transmittance	ASTM D 1003	%	91	91	90.5	90	90	89.5	89.5	89	88
Haze	ASTM D 1003	%	5	6	6	7	8	11	16	20	23

Key Features & Applications

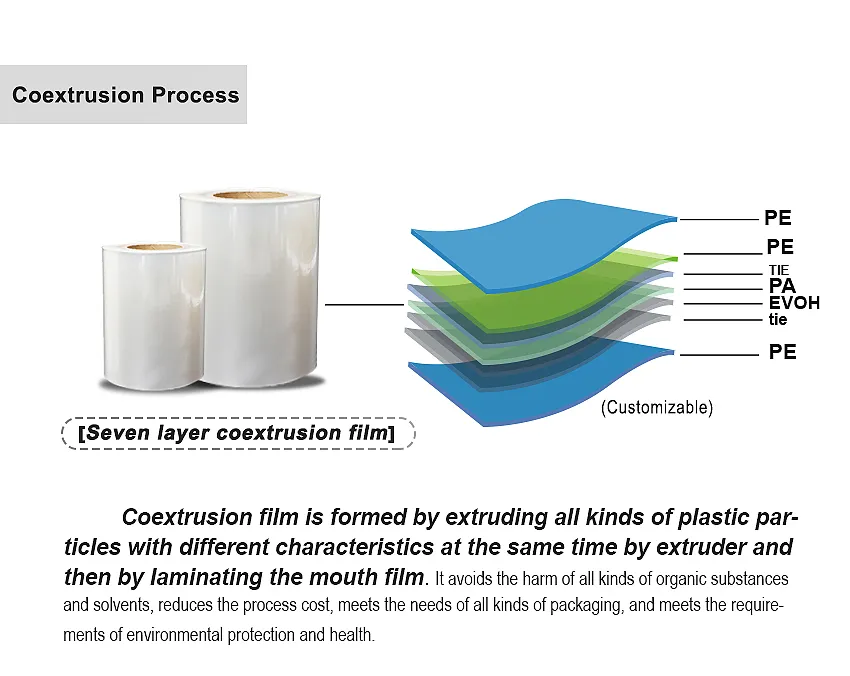

Advanced Structure PA/PE, PA/EVOH/PE, PA/PP, PA/EVOH(MXD6)/PP, PP/PAEVOHPA/PE. High barrier effect for oxygen, water, and odors.

Versatile Applications Ideal for raw meat, eggs, processed food, cooked food, dairy products, snack foods, and deep freezing applications.

High Performance Oil resistant, moisture resistant, and suitable for high-temperature cooking up to 100°C or freezing down to -18°C.

Superior Strength Excellent formability for deep-forming, high tensile strength, good flexibility, and superior sealing properties.

Technical Specifications

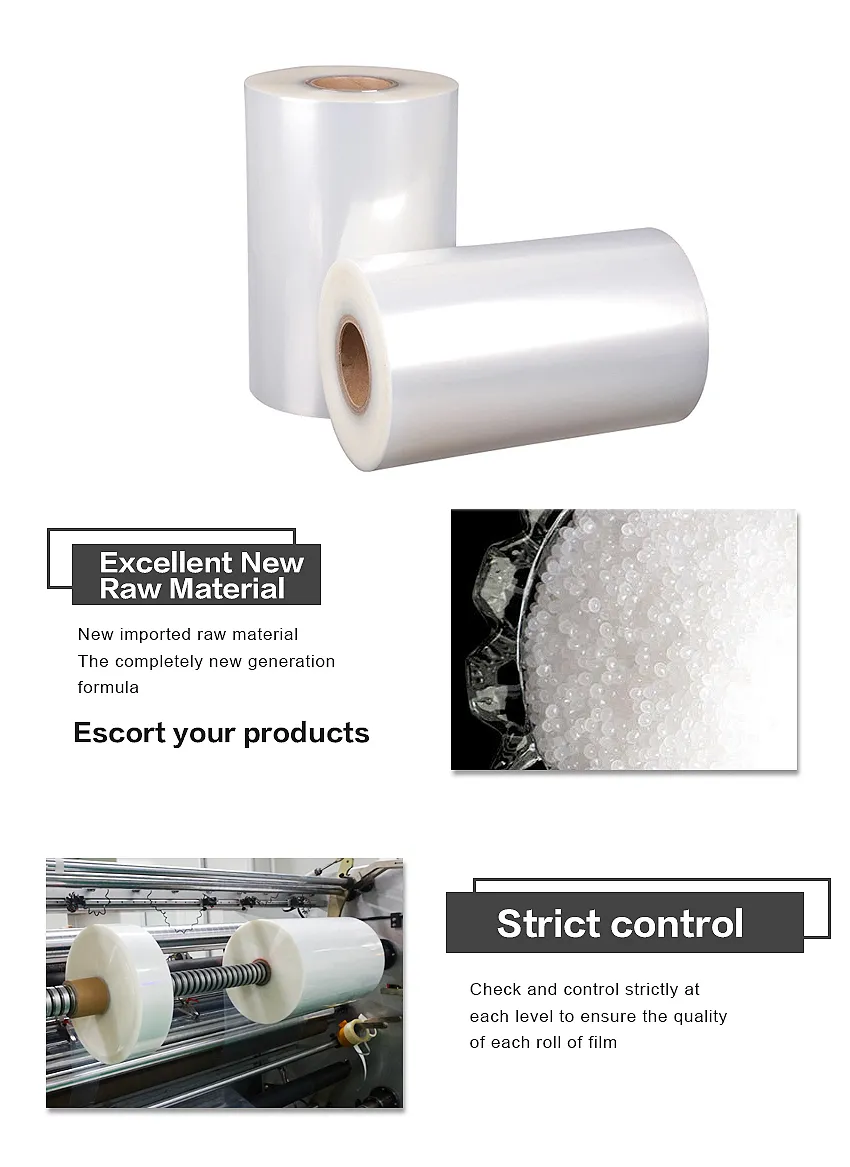

Raw Material

PA/PE, TIE (Imported from USA/Japan)

Thickness Opt.

100 Micron / 200 Micron

Color

High Transparent

Printable

Yes, Available

Certificates

SGS, ISO9001, ISO14001, QS

Equipment

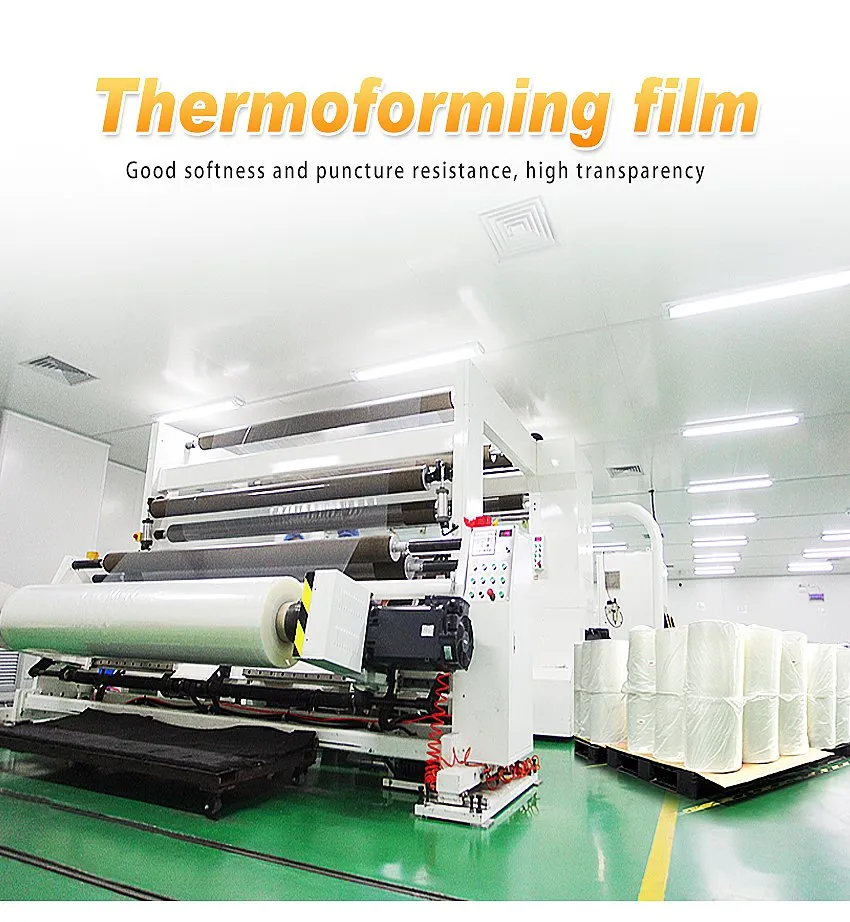

Germany W&H 11-Layer Co-extruded Line

Product Showcase

Frequently Asked Questions

What are the main applications for this thermoforming film?

This film is widely used for vacuum packaging of raw meat, eggs, processed foods, cooked foods, dairy products, and various snack foods.

Can this film withstand high-temperature sterilization?

Yes, it is suitable for high-temperature cooking and pasteurization up to 100°C, as well as deep freezing down to -40°C.

What makes your co-extruded film superior to traditional packaging?

Our 11-layer co-extruded film provides a much higher barrier against oxygen and moisture. It is more flexible and has a volume-to-capacity ratio close to 100%, outperforming glass and cans.

Is the film compatible with deep-draw forming machines?

Absolutely. The film features excellent formability, making it ideal for deep-forming applications without compromising the barrier properties.

What is the maximum width available for the film rolls?

We can produce films with a width of up to 2700mm, customized to meet your specific packaging machinery requirements.

Are the raw materials used food-safe?

Yes, all our cast films are manufactured using high-quality, food-grade raw materials imported from the USA and Japan, and are fully certified by SGS and ISO.
