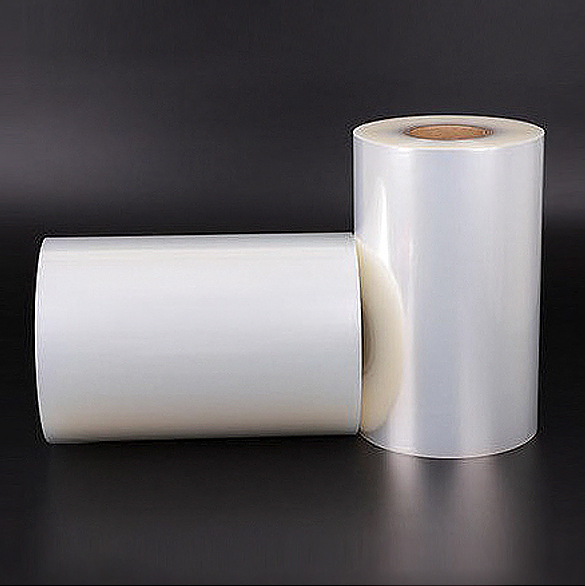

W&H 11 Layer Co-Extruded Food Thermoforming Film Deep Drawing

Customization:	Available
Material:	PA/PE or Customized
Usage:	Packaging Film, Food Cling Film

Send Inquiry

Product Description

Basic Specifications

Model NO.:HKC191201

Processing Type:W&H 11 Multi Layer Co-Extruded Casting

Transparency:Transparent

Feature:Moisture Proof, Soft

Width:</=2700mm

Temperature:-18'c to 100'c

Roll Weight:50kg-100kg/Roll

Capacity:500t/Month

Technical Parameters

Property	Test Method	Unit	Typical Values
Thickness	ASTM F2251	μm	80	150	250	350
Tensile Strength (MD/TD)	ASTM D882	MPa	28	30	30	30
Elongation (MD/TD)	ASTM D882	%	400	400	450	450
Heat Seal Strength	ASTM F88	N/15mm	28	48	75	100
Light Transmittance	ASTM D1003	%	91	90	89.5	88
OTR (23ºC, 0% HR)	ASTM D3985	cm3/m2·d·bar	<2	<2	<1	<1

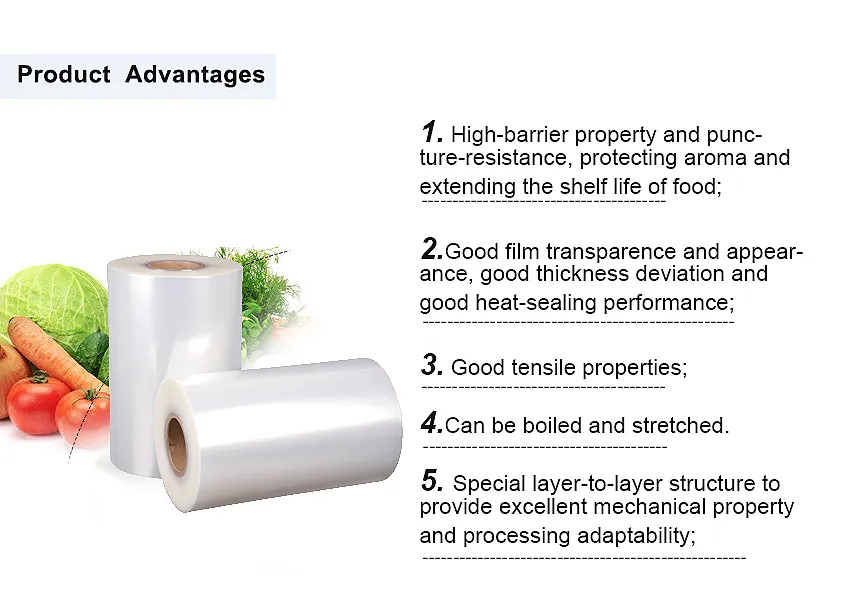

Product Highlights

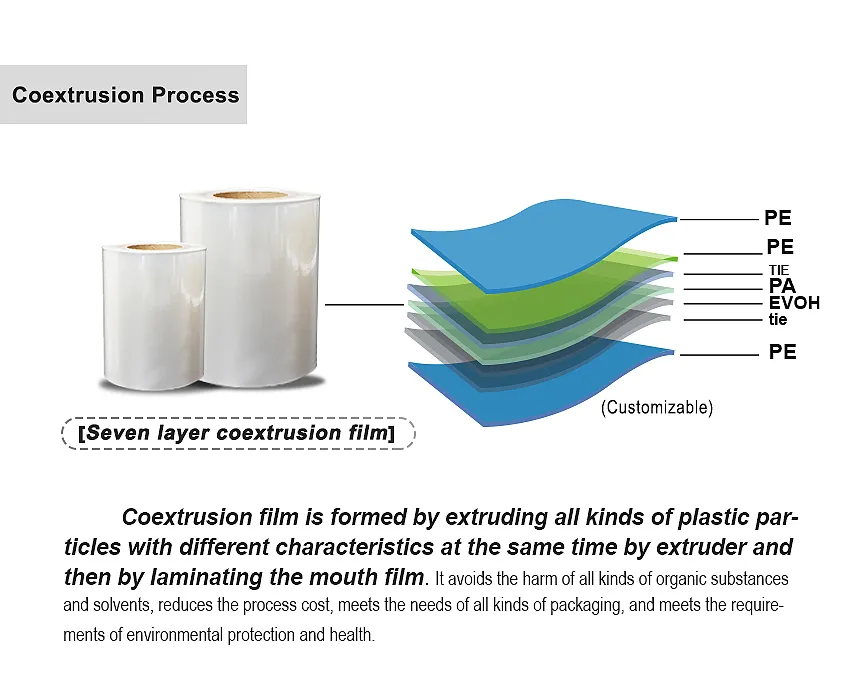

Material Structure: PA/PE, PA/EVOH/PE, PA/PP, PA/EVOH(MXD6)/PP, PP/PA/EVOH/PA/PE

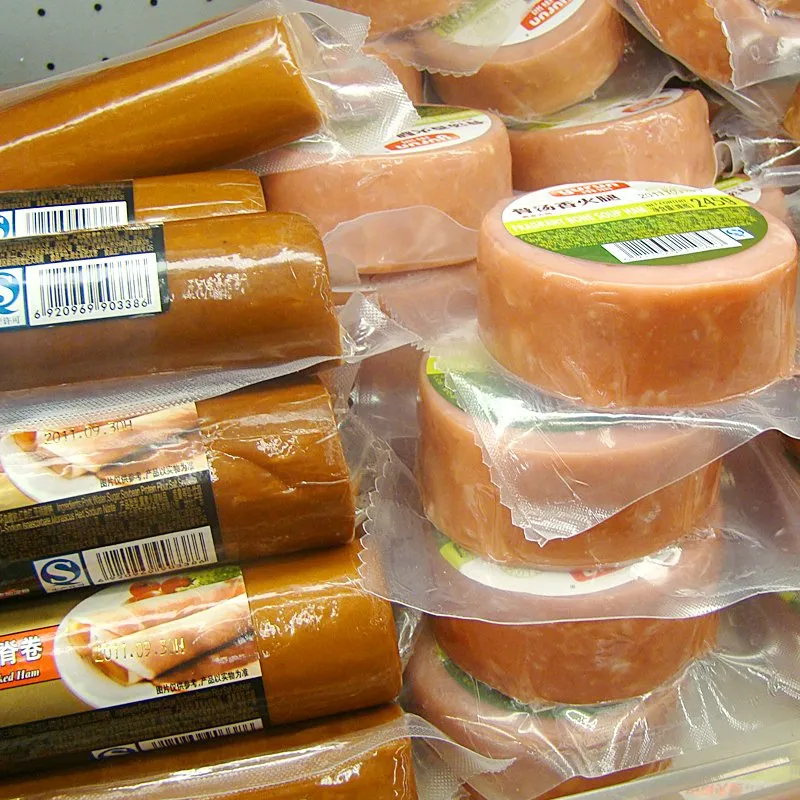

Ideal Applications: Raw meat, eggs, processed food, cooked food, dairy products, snack foods, etc.

Excellent formability, suitable for deep-drawing applications.
High transparency for superior product visibility.
Multiple barrier options (PA/EVOH) to meet specific shelf-life requirements.
Oil resistant and moisture resistant.
High tensile strength and excellent sealing characteristics.
Efficient volume-to-capacity ratio for vacuum shrink packaging.

Production Details

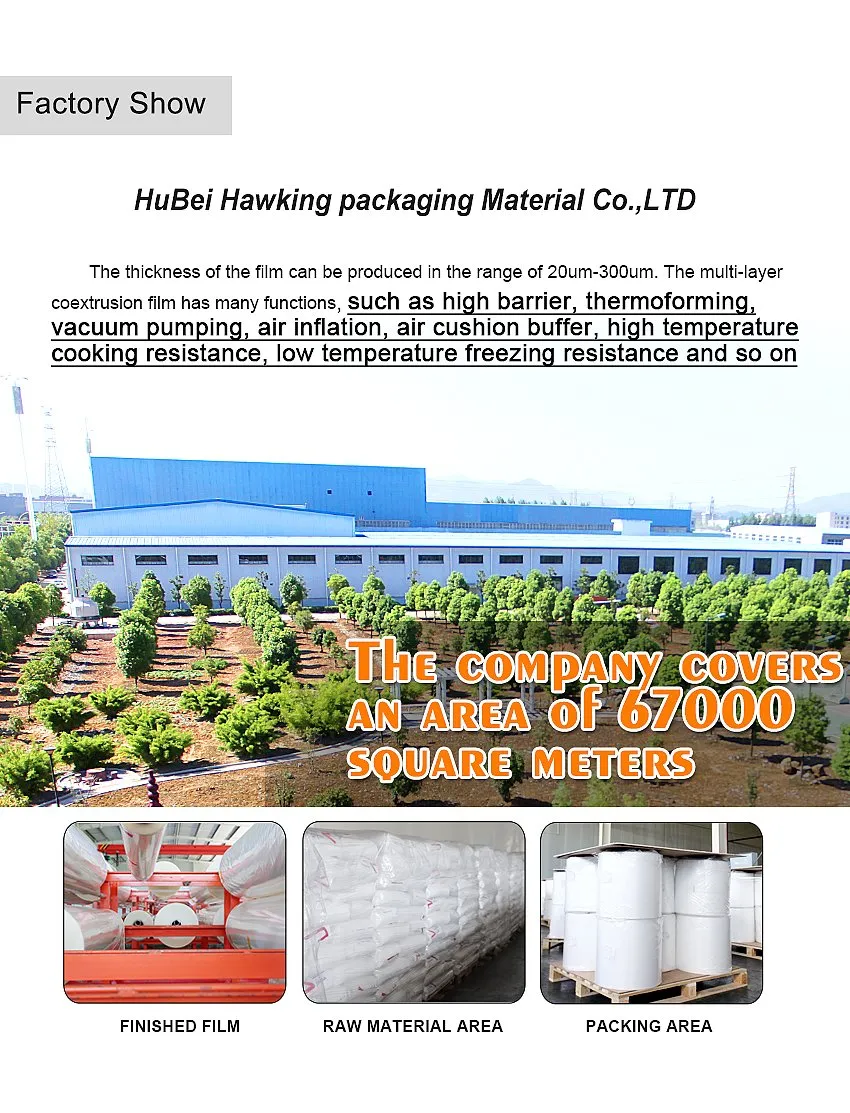

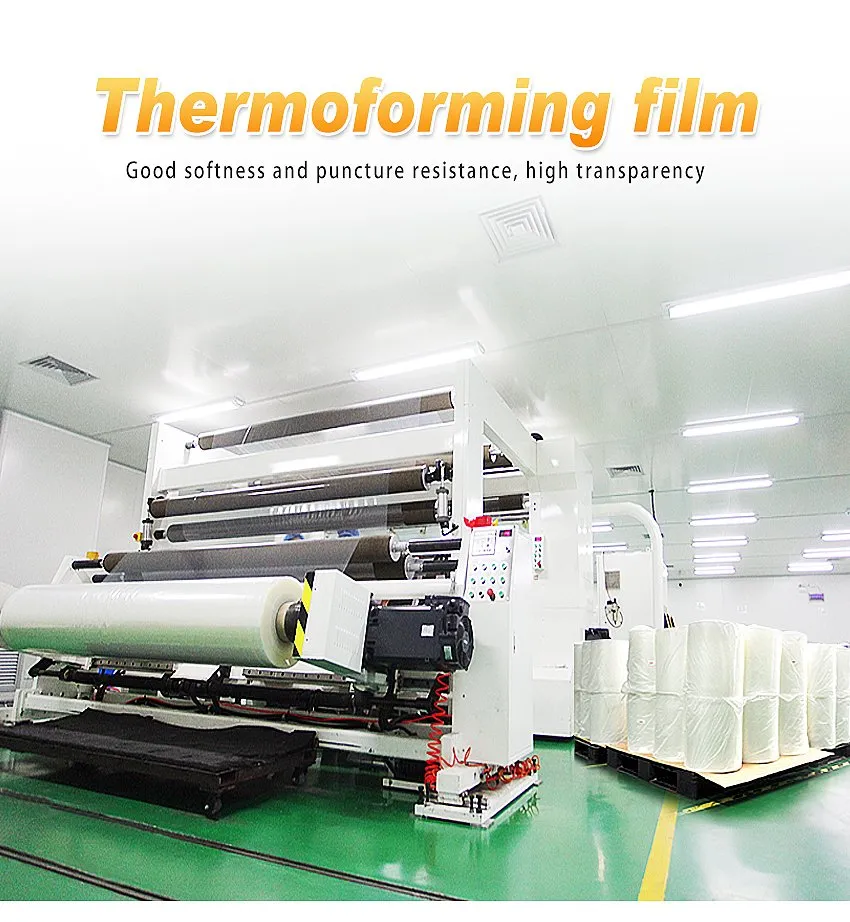

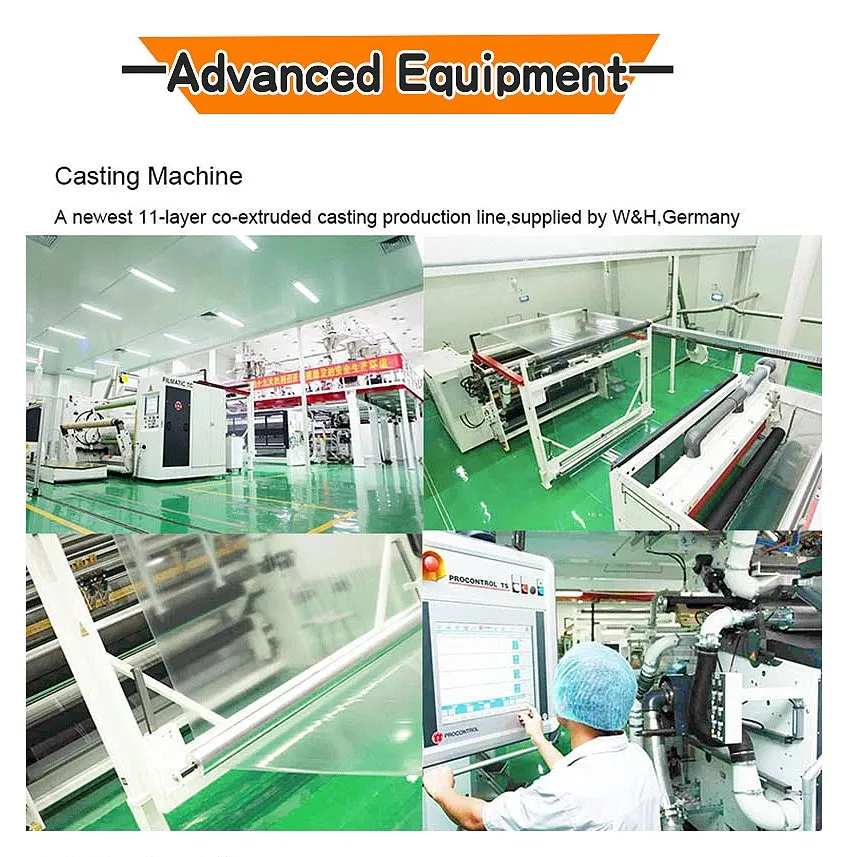

Production Line	Germany W&H 11-Layer Co-extruded Cast Line	Certificates	SGS, ISO9001, ISO14001, QS

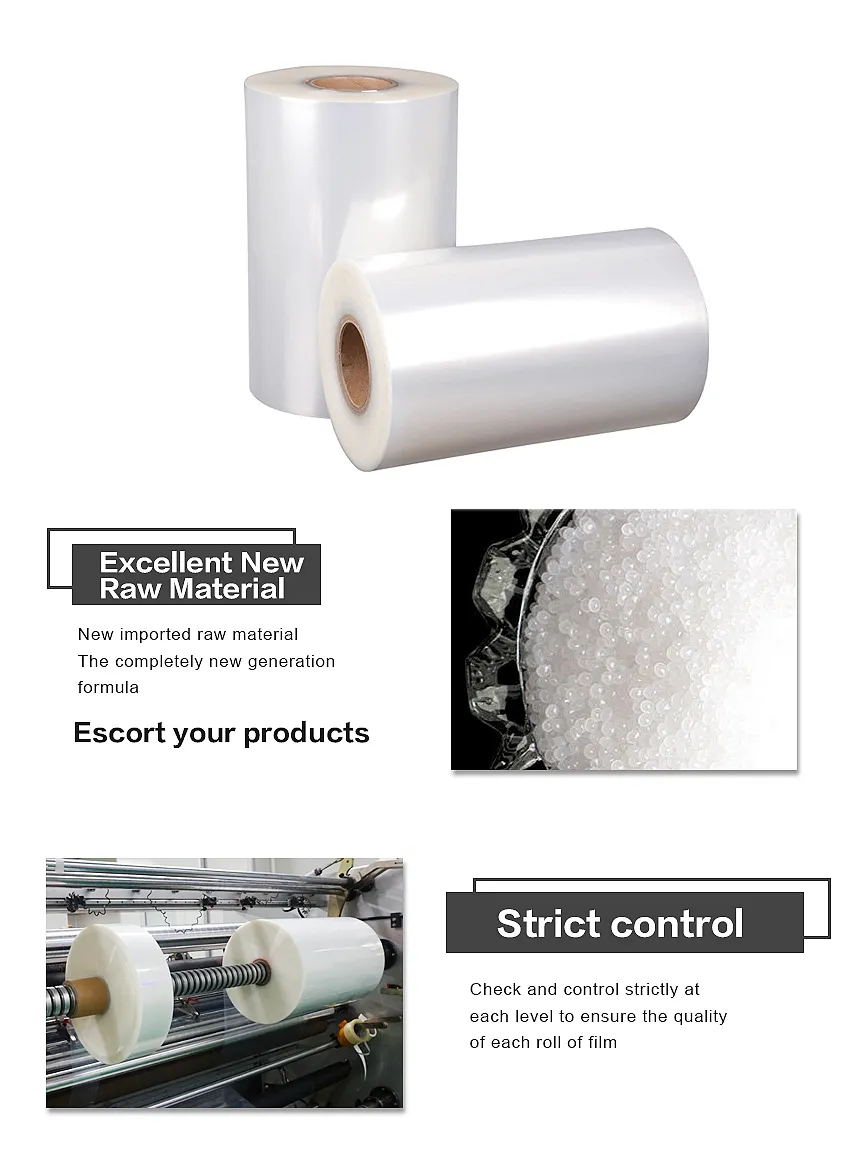

Raw Materials	Imported Food Grade PA/PE/EVOH	Lead Time	15-20 Days
Temp Range	Deep Freeze (-18°C) to Cooking (100°C)	Printing	Available

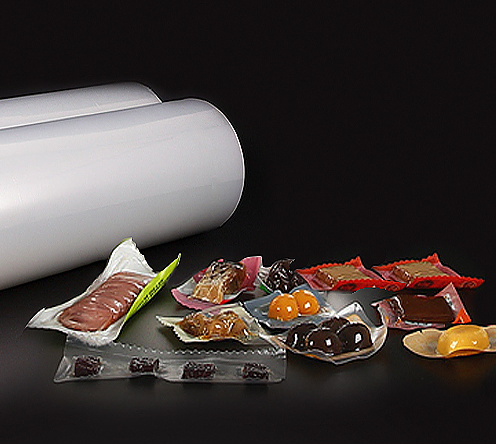

Product Display

Frequently Asked Questions

What materials are used in the co-extruded film?

We utilize high-quality food-grade raw materials including PA, PE, EVOH, PP, and PET to create multi-layer structures tailored for different barrier needs.

What is the temperature resistance of the film?

Our films are versatile, suitable for deep freezing down to -18°C and high-temperature cooking up to 100°C.

Is this film suitable for deep-drawing applications?

Yes, the 11-layer co-extruded cast film has excellent formability, making it ideal for deep-forming and various thermoforming requirements.

What kind of products can be packaged with this film?

It is perfect for raw meat, dairy products, eggs, processed foods, snacks, and other items requiring moisture and oxygen barriers.

Do you provide custom sizes and printing?

Yes, width can be customized up to 2700mm, and we offer professional printing services to meet your branding needs.

What certifications do your packaging materials have?

Our production process and products are fully certified by SGS, ISO9001, ISO14001, and QS.
