| Model NO. | 1.2 Micron Hydrophobic PTFE Filter | Type | Folding Microporous Filter |
|---|---|---|---|
| Filter Connector | 226 Connector | Filtration Grade | 0.1-3.0 Micron |
| Support Layers | Polypropylene | Filtration Area | 0.65 M² Per 10'' |
| pH Compatibility | 1~14 | Max Temp | 85 ºC (185ºF) at P≤1.0 Bar |
| Inner Core | Polypropylene/Stainless Steel | Certification | CE ; ISO |

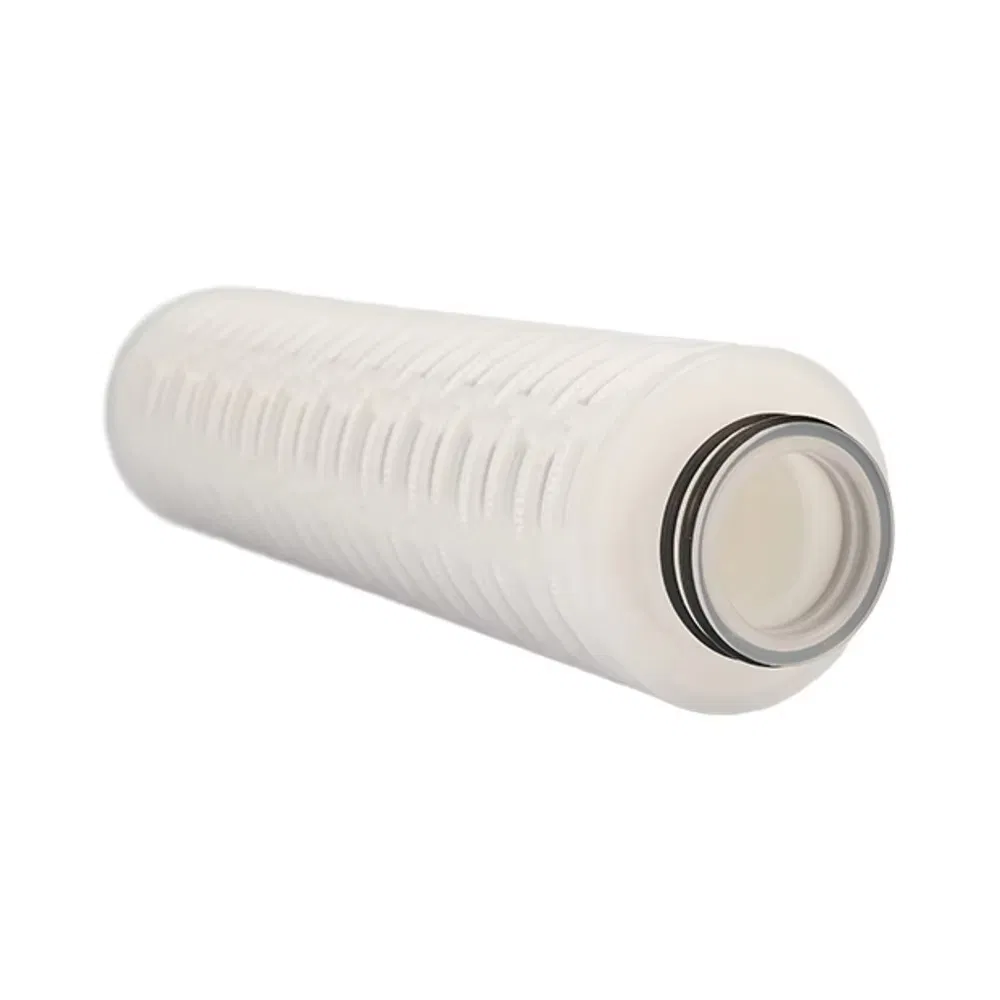

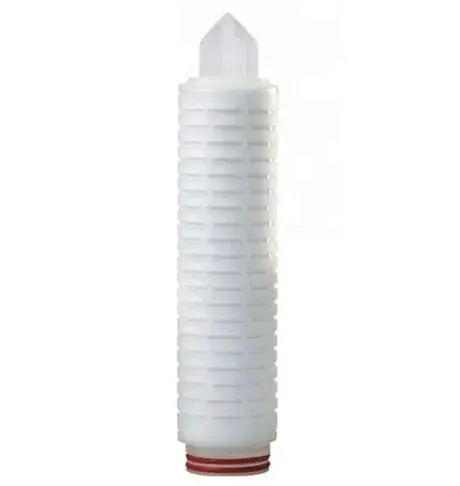

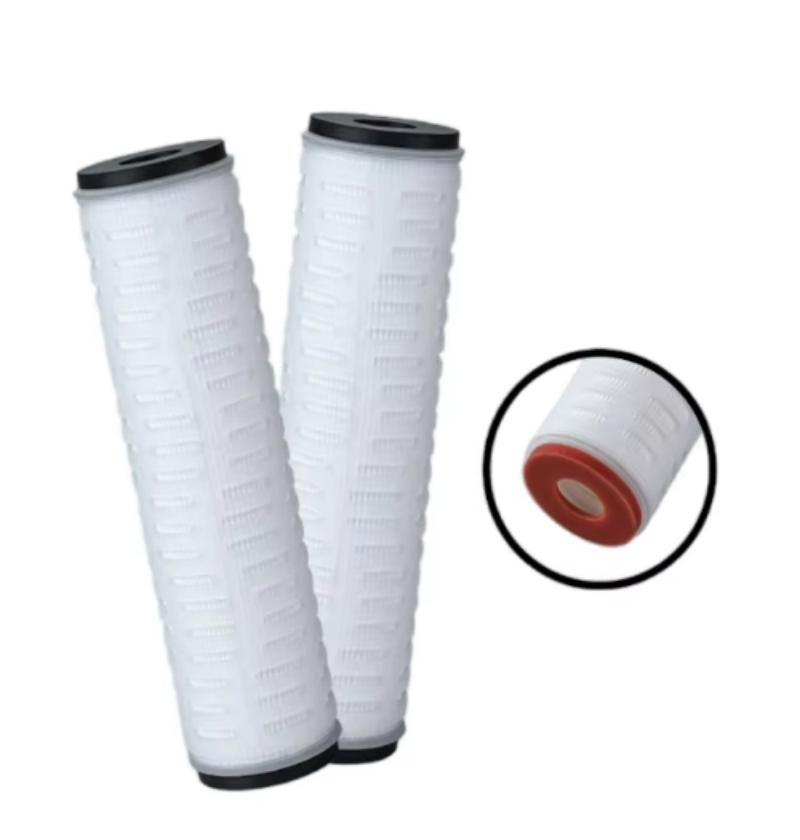

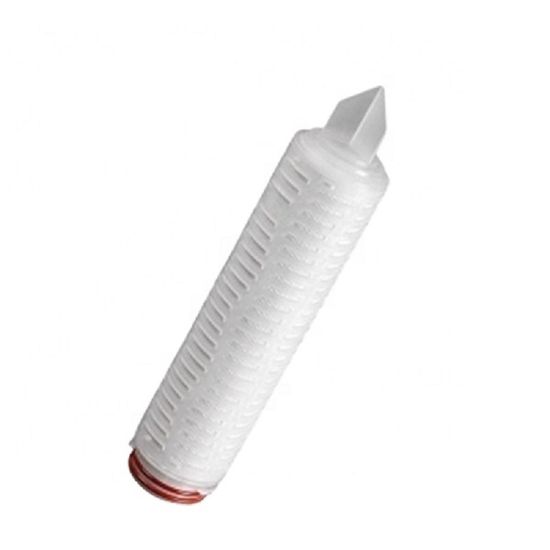

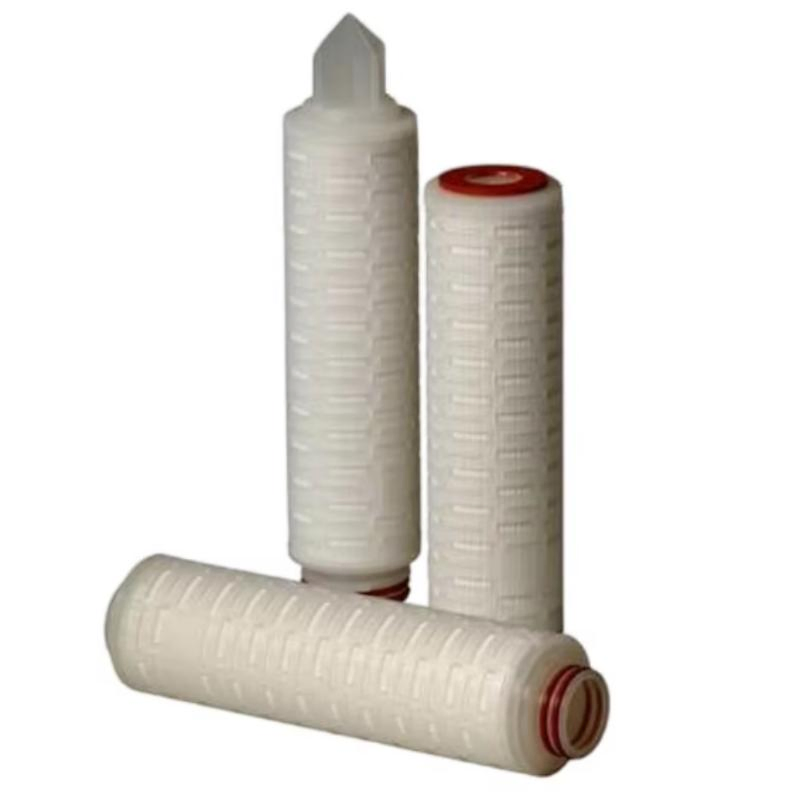

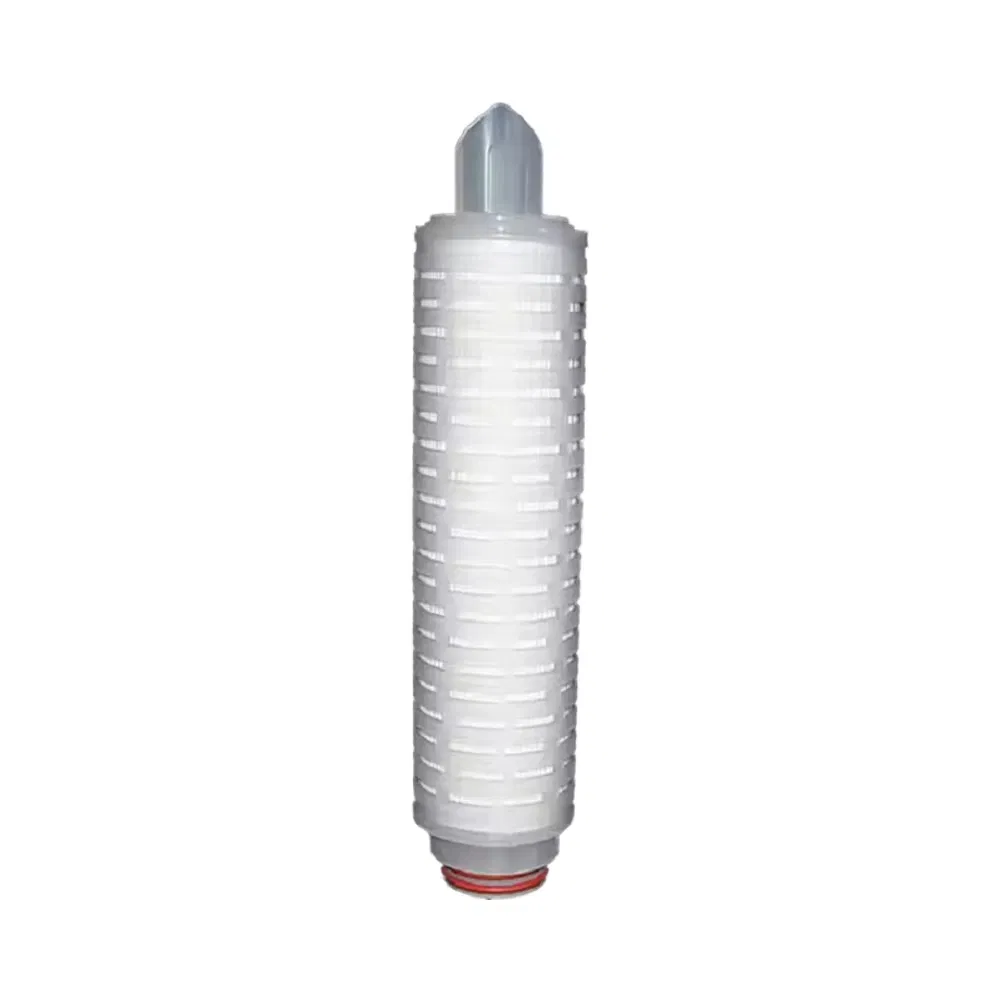

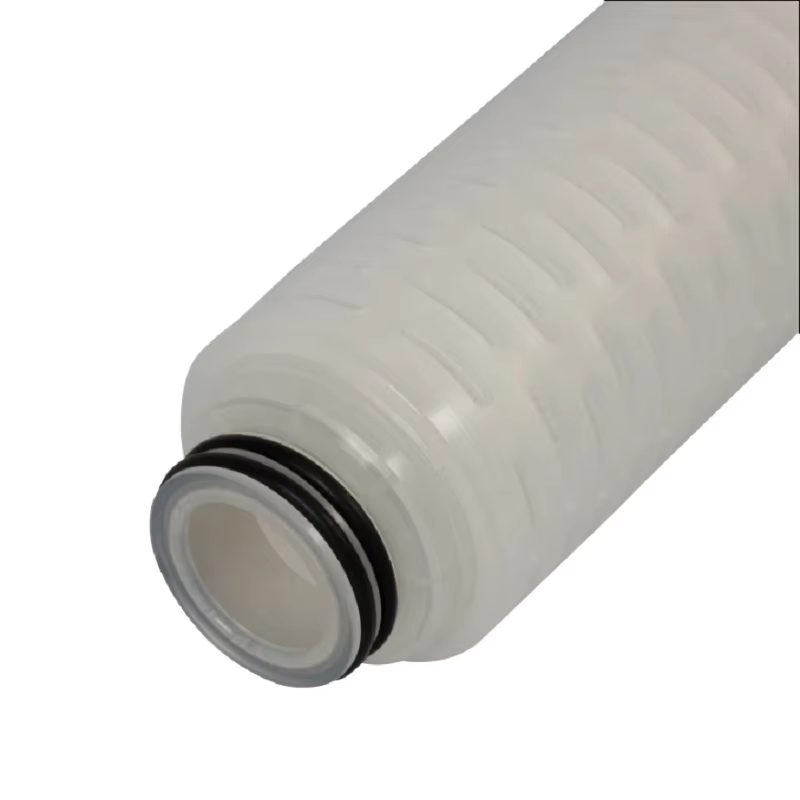

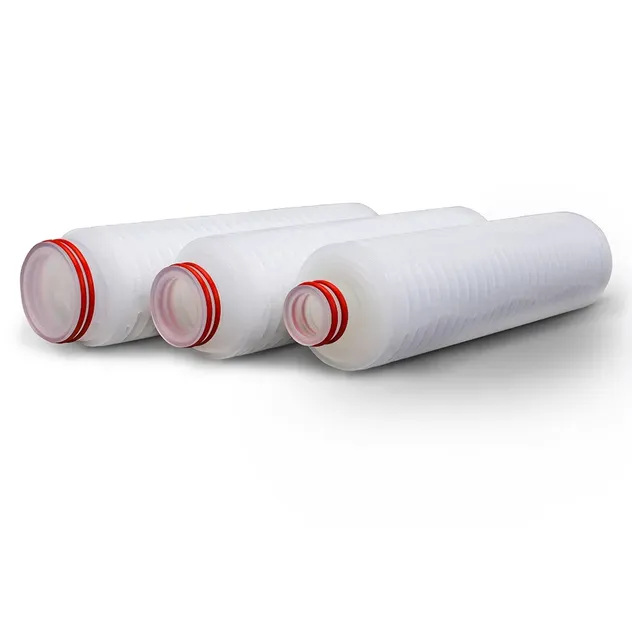

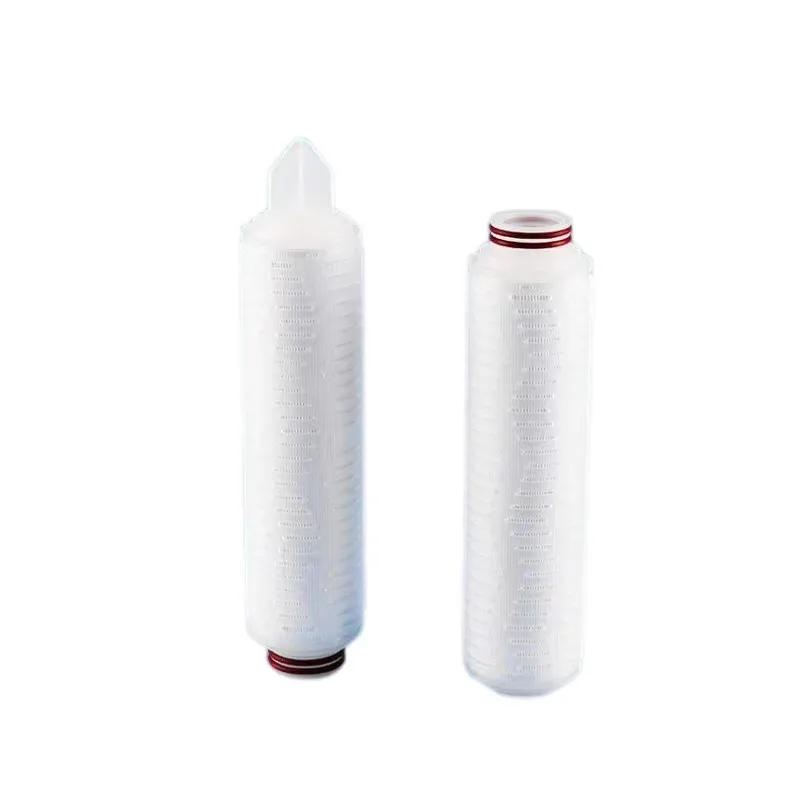

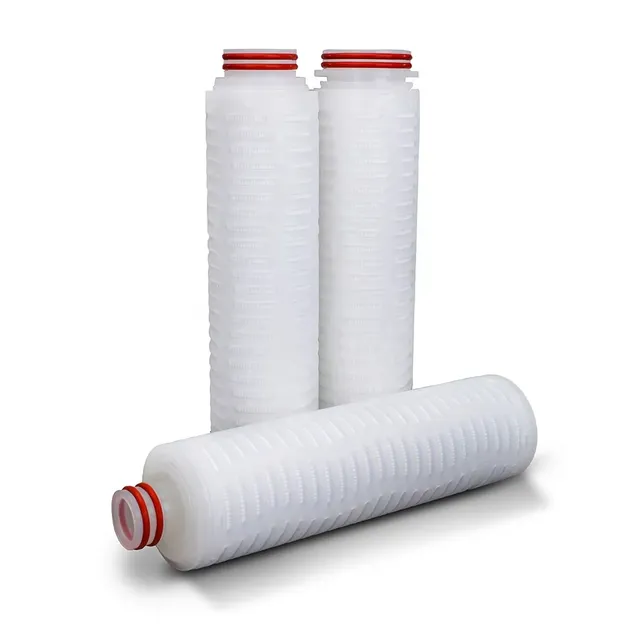

PF series pleated filter cartridge is designed for air and gas filtration, using a naturally hydrophobic PTFE membrane with outstanding performance. These filters feature wide chemical compatibility, acid and alkali resistance, corrosion resistance, and high temperature resistance. They can be steam sterilized, making them highly suitable for gas applications or aggressive solutions.
| Micron (um) | Length (inch) | End Cap | O-Ring / Gasket |
|---|---|---|---|
| 0.1, 0.2 | 5 | 220 | Silicone |
| 0.45, 0.65 | 10 | 226/Fin | Nitrile |
| 1.0, 3.0 | 20 | 222/Fin | EPDM |
| 5.0 | 30, 40 | 222/Flat Seal | T / V |

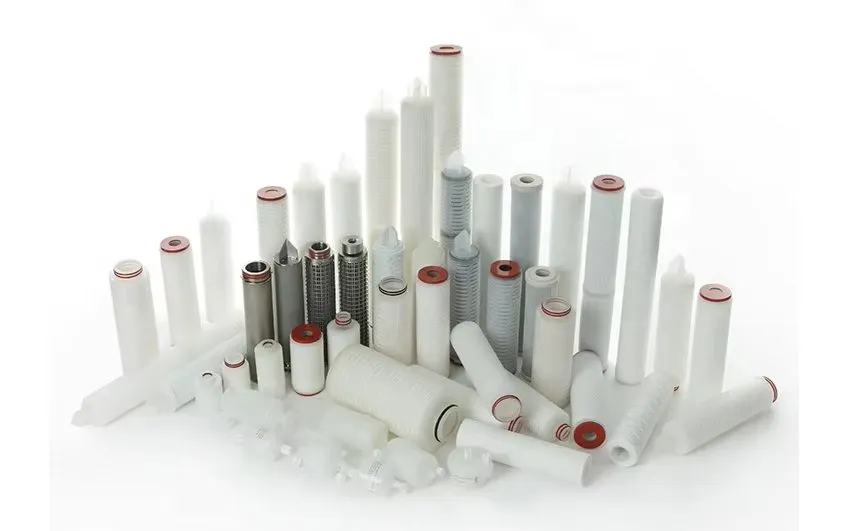

We provide a comprehensive range of filtration solutions including Filter cartridges, Stainless steel Filter housings, Capsule filters, Filter cloths, Filter bags, and Filter membranes.
