Hygienic Sight Glass with Flange Connection

1 / 5

Hygienic Sight Glass with Flange Connection

Customization:	Available
Connection Type:	Weld,Clamp,Thread,Flange
Max Pressure:	4-10bar

Send Inquiry

Product Description

Basic Specifications

Grade

Sanitary/Aspetic

Product Name

Aseptic Tri Clover Sight Glass Zero Dead Angle

Keyword

Aseptic Tri Clover Sight Glass

Transport Package

Carton/Plywood Case

Specification

CE, 3A, FDA, ISO

Origin

China

HS Code

8481804090

Capacity

100,000 PCS

Product Description

INTRODUCTION

This series of hygienic sight glass with flange connection is designed for high-precision observation. The products are manufactured with 3A, CE, and FDA certification, following strict production management. Utilizing advanced technology and an excellent quality control system, these sight glasses meet the requirements of national high-tech standards and innovative enterprise models.

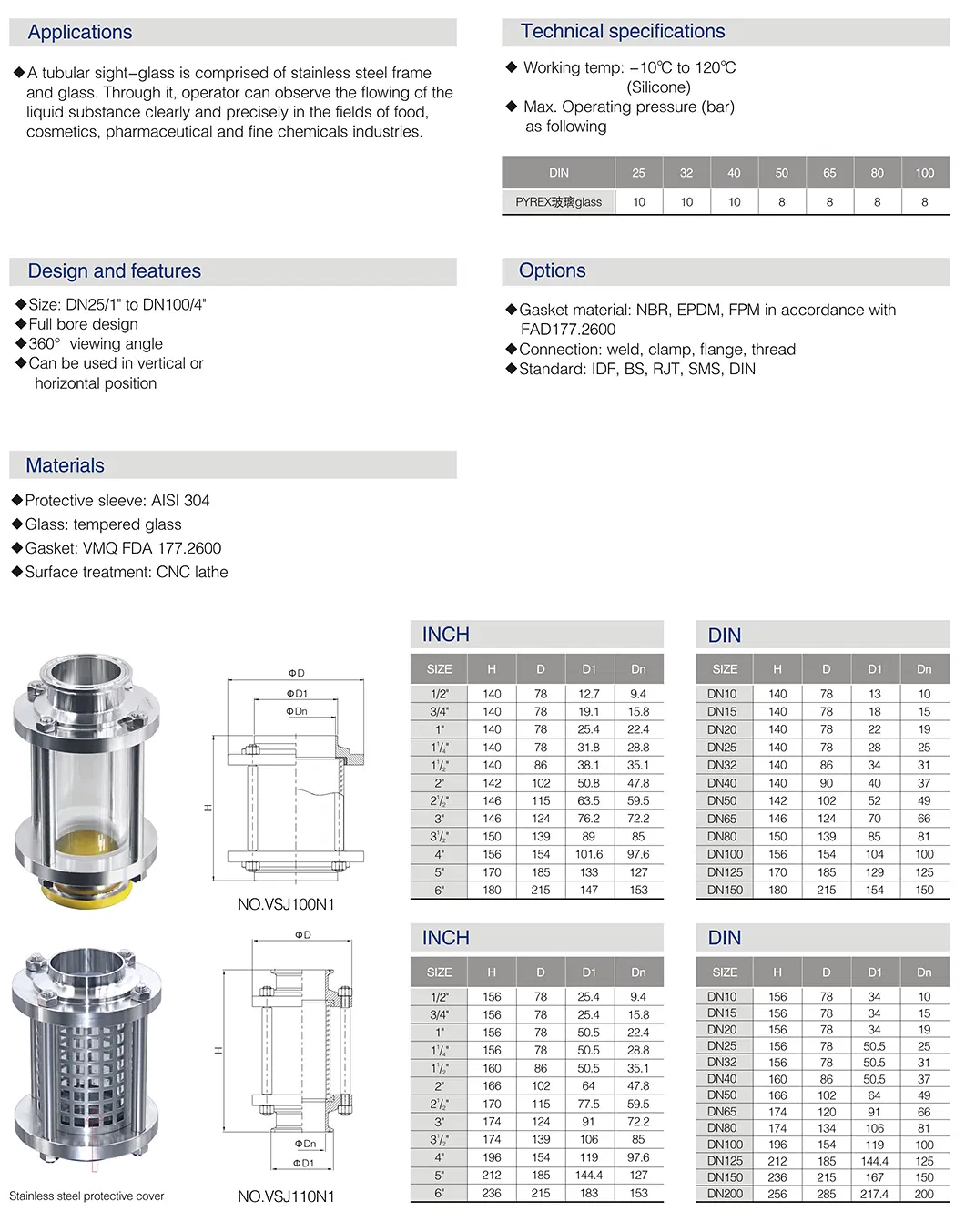

APPLICATION

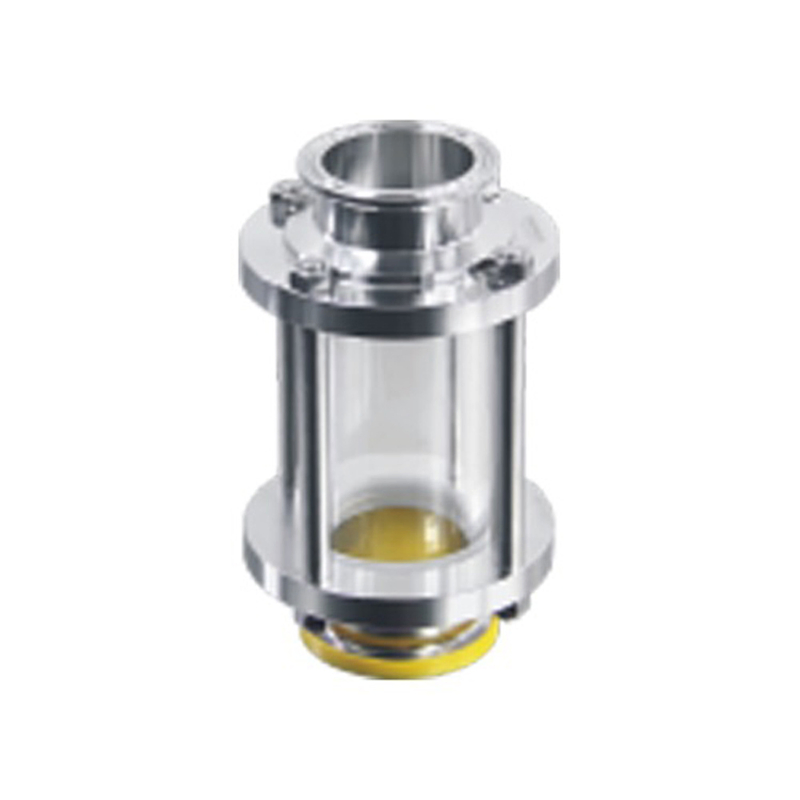

A tubular sight glass is comprised of a stainless steel frame and glass. It allows operators to observe the flow of liquid substances clearly and precisely in the fields of food, cosmetics, pharmaceutical, and fine chemical industries.

DESIGN AND FEATURES

✓

No retention and no dead angles to avoid contamination.

✓

Hygienic design, waterproof, and explosion-proof.

✓

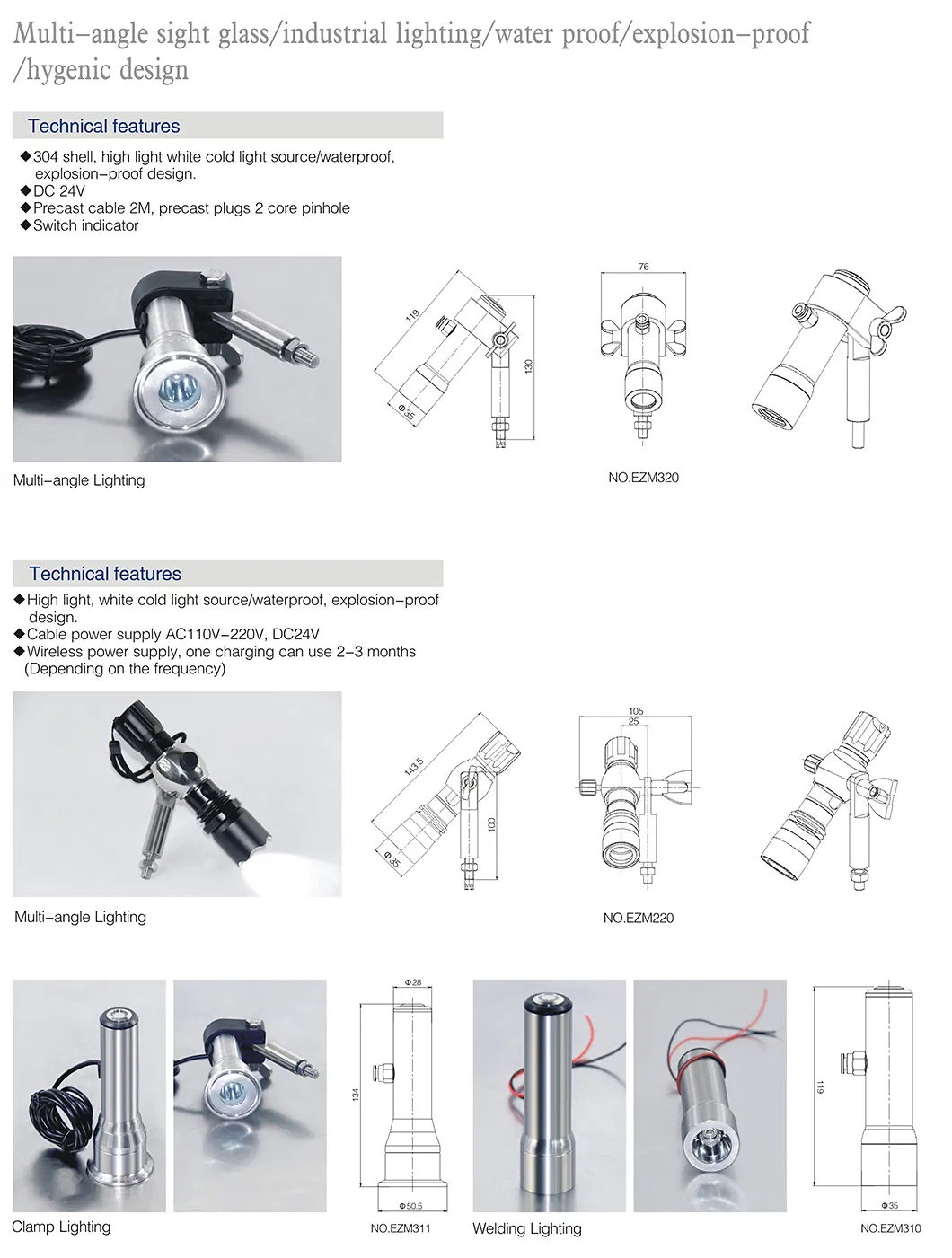

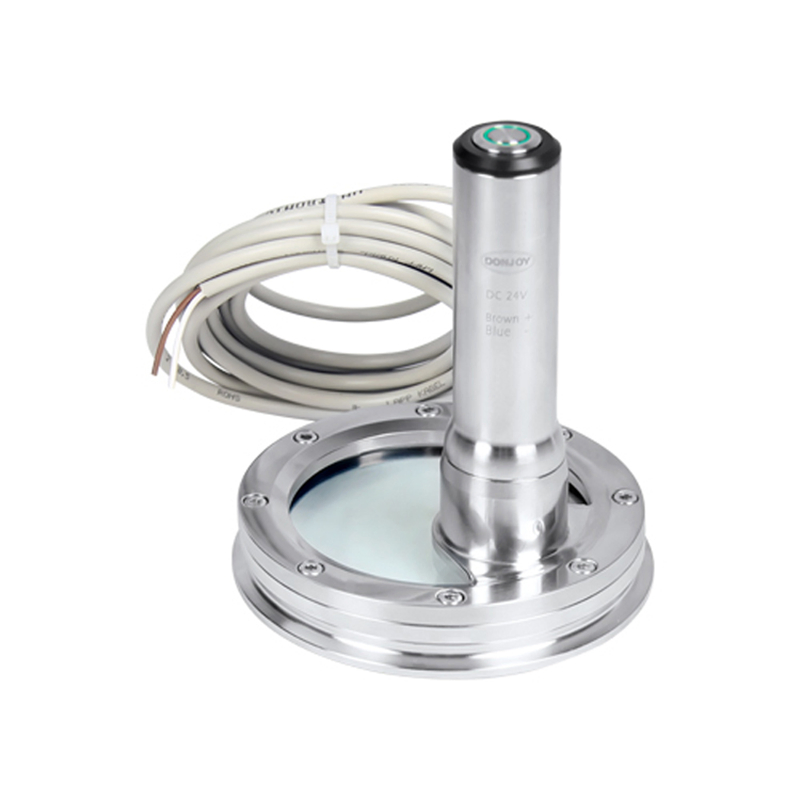

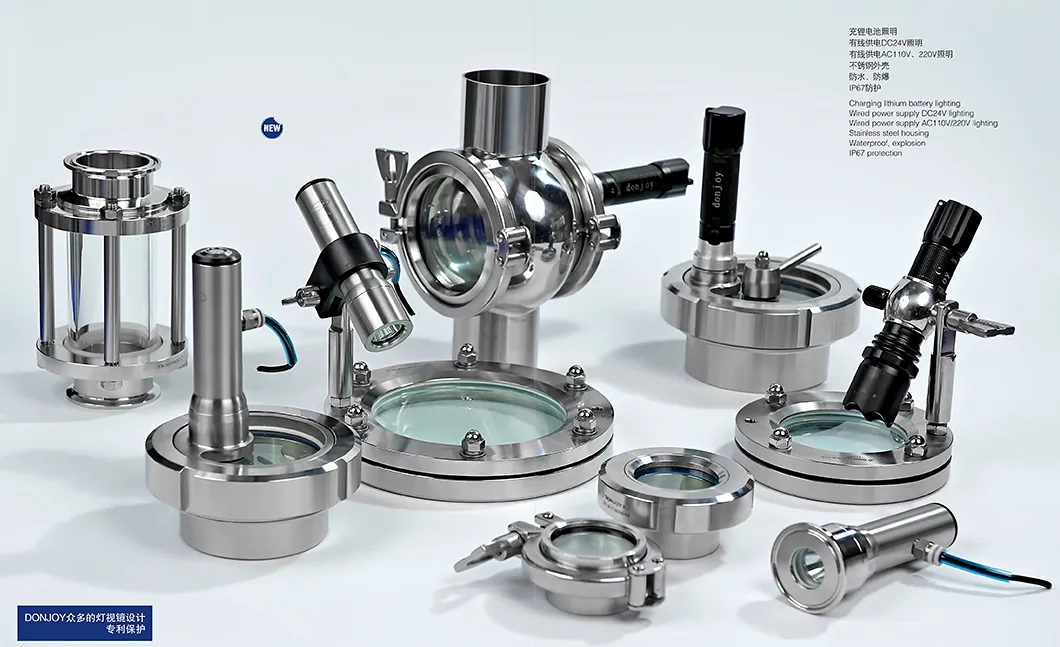

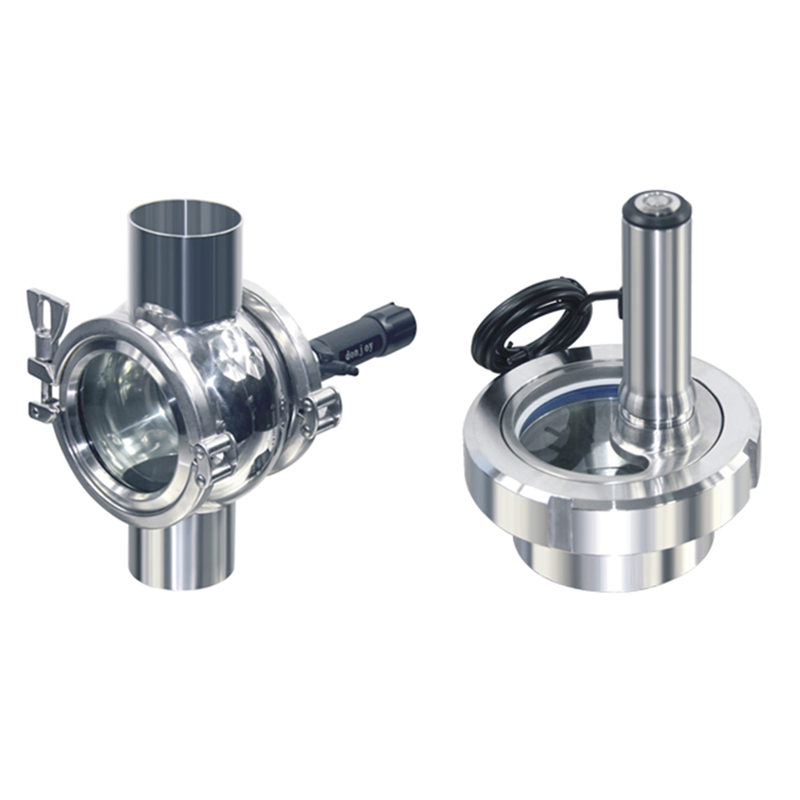

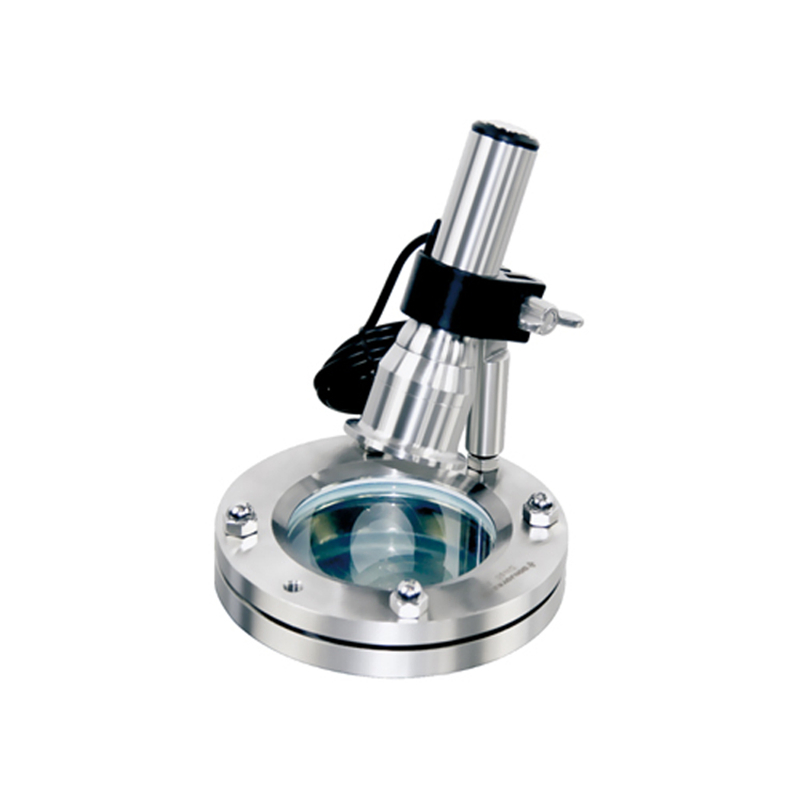

Available with lighting and cable options (AC110V/220V, DC24V).

✓

Full port design providing 360° viewing angle.

✓

Flexible installation for both vertical and horizontal positions.

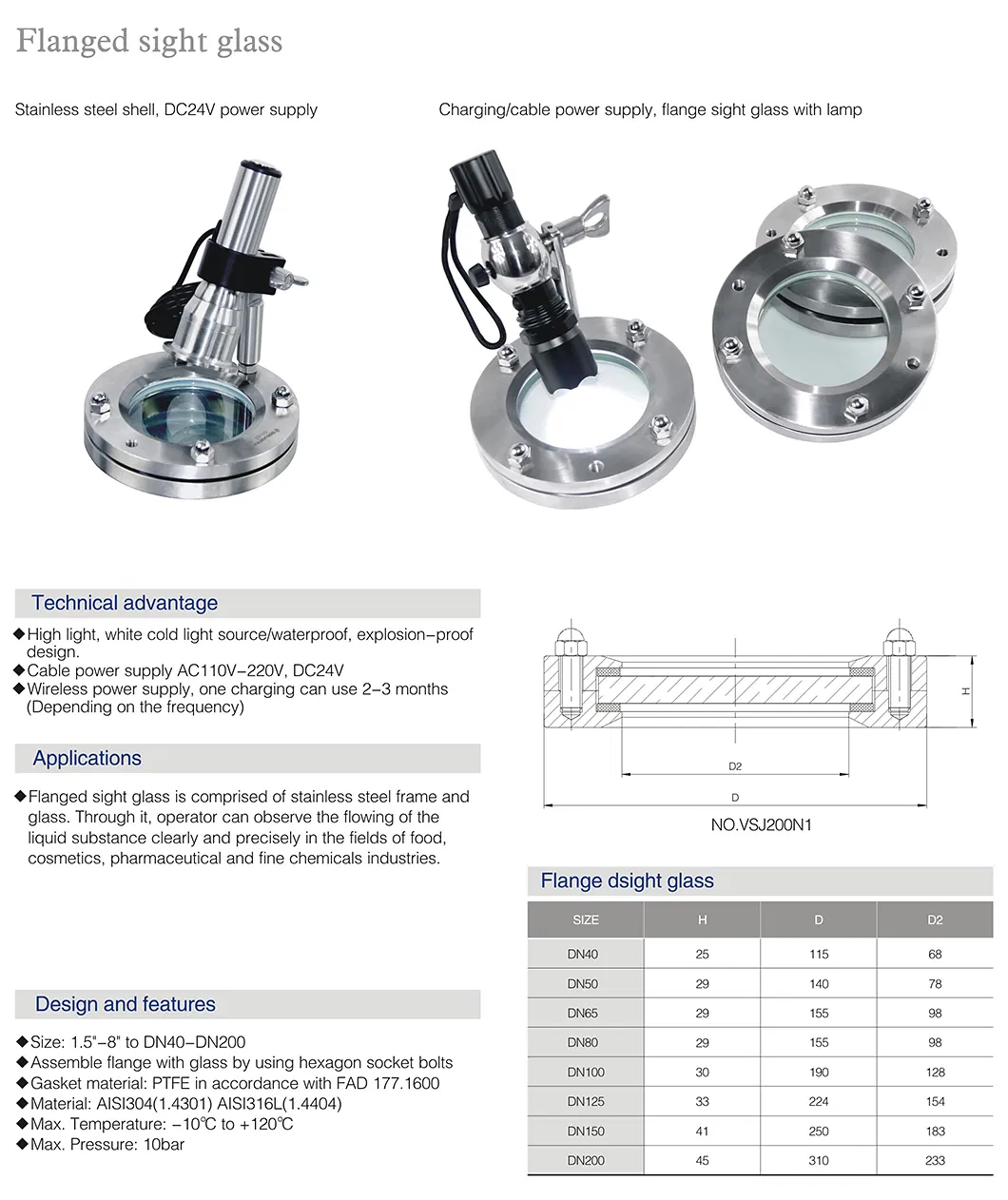

Size	1.5''-8'' to DN40-DN80
Structure	Assemble flange with glass by using hexagon socket bolts
Gasket material	PTFE in accordance with FDA177.2600
Material	AISI304 (1.4301) AISI 316L(1.4404)
Max. temperature	-10ºC to 120ºC
Max. pressure	10bar

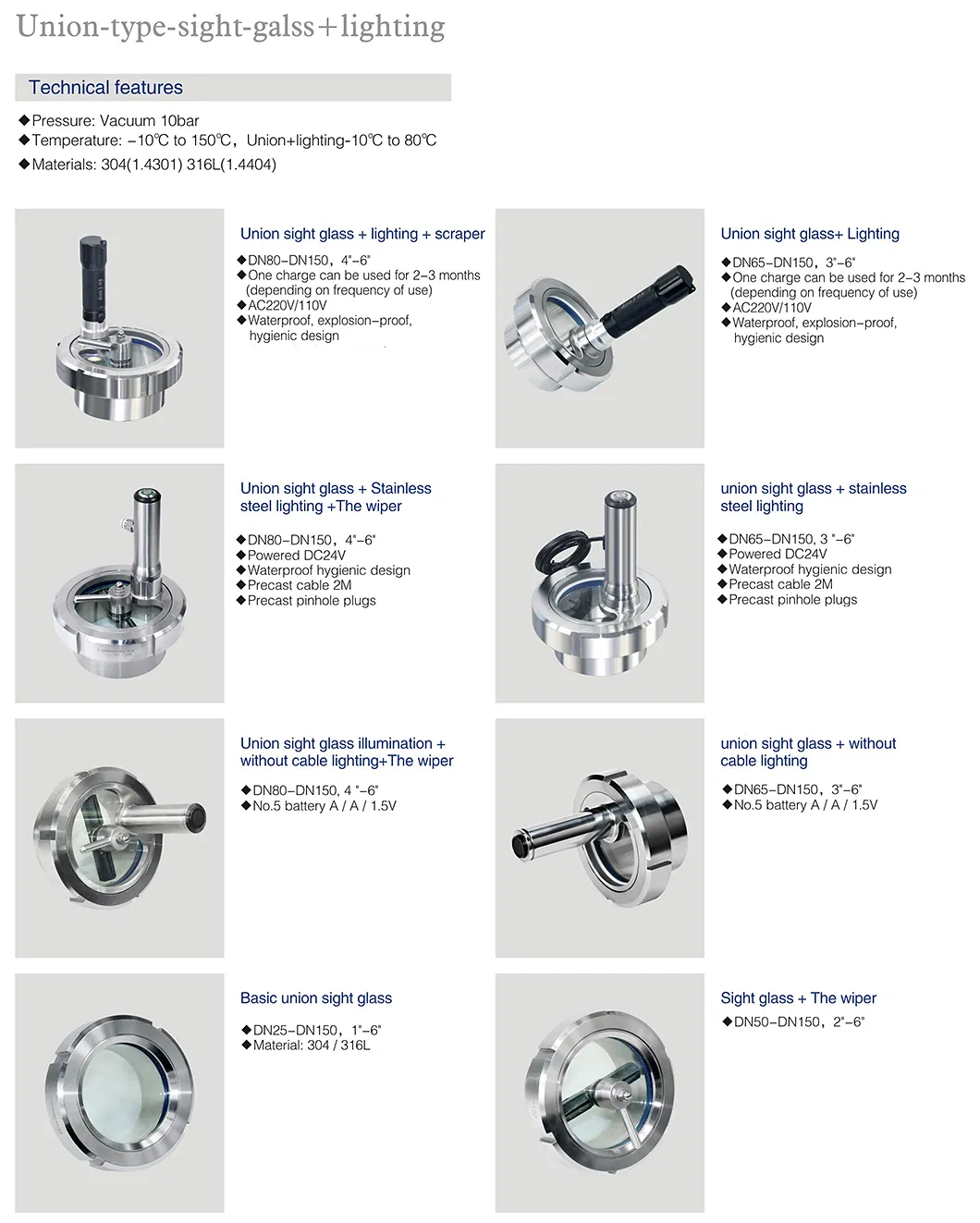

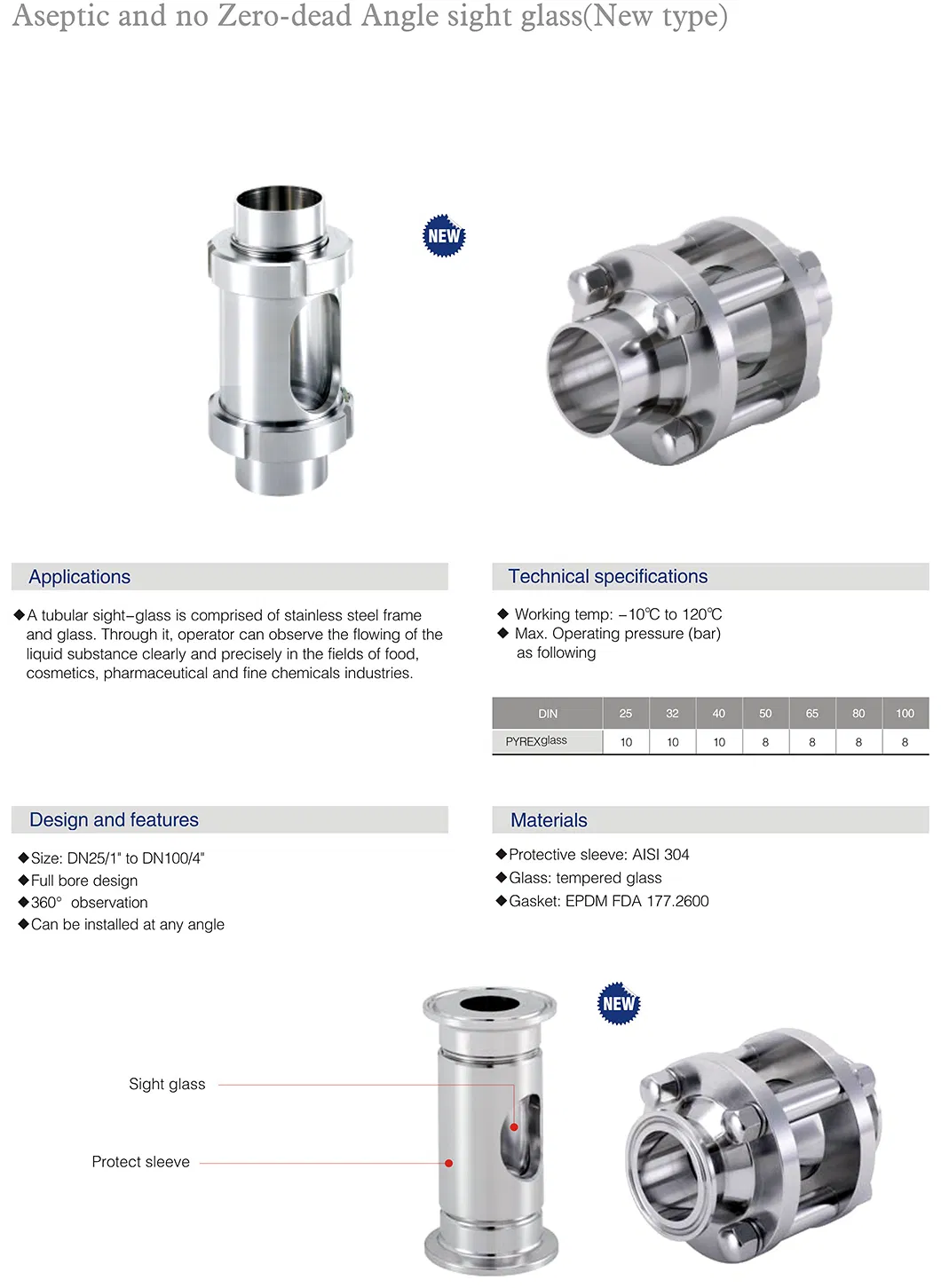

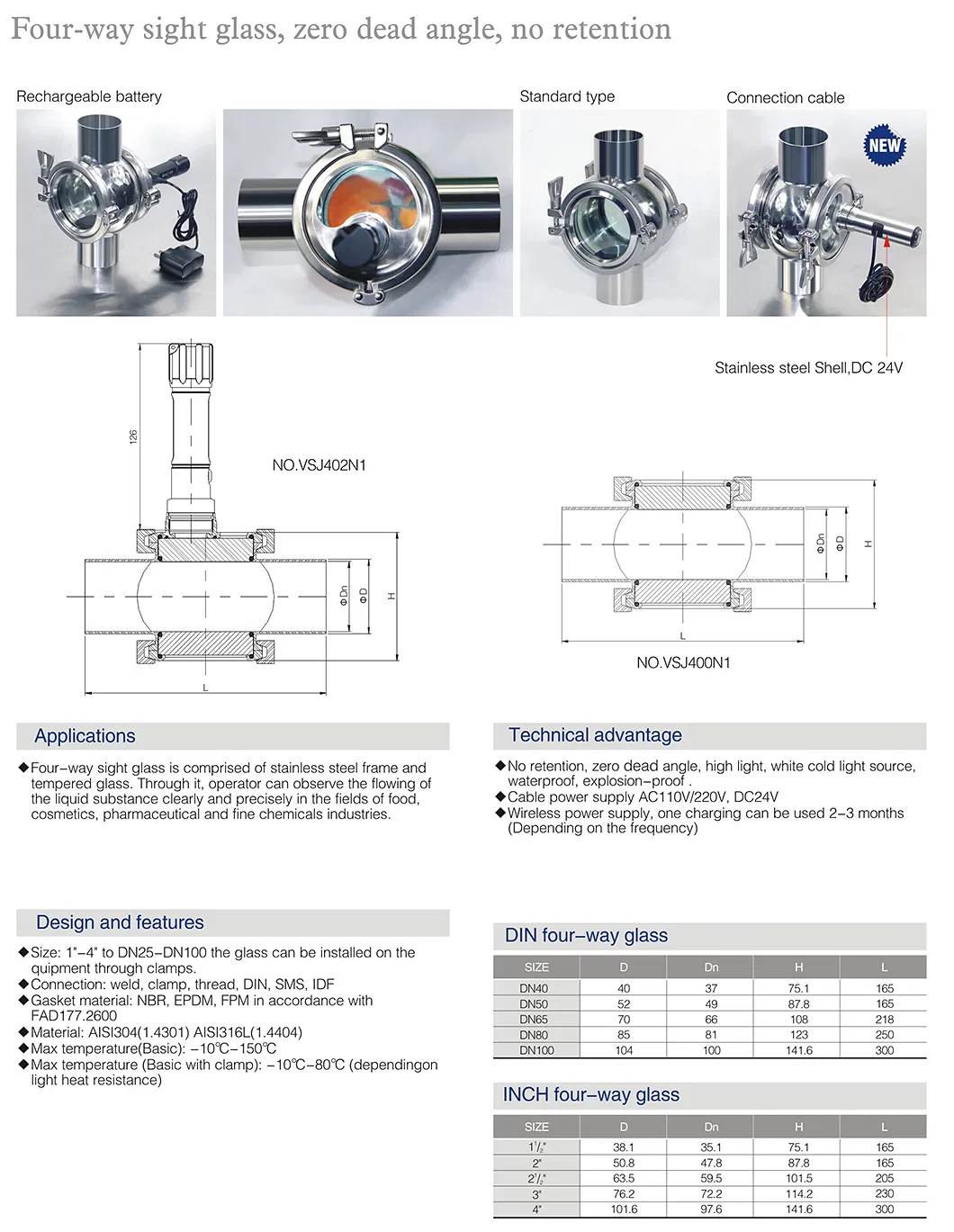

Product Gallery

Frequently Asked Questions

What industries use the Hygienic Sight Glass?

It is widely used in food, cosmetics, pharmaceutical, and fine chemical industries for observing fluid flow.

What materials are available for the sight glass body?

The frame is available in stainless steel AISI 304 (1.4301) and AISI 316L (1.4404).

Does this design prevent contamination?

Yes, it features a hygienic "zero dead angle" design with no retention zones, ensuring the highest level of sanitary safety.

What are the temperature and pressure limits?

The equipment can handle a temperature range from -10ºC to 120ºC and a maximum pressure of up to 10 bar.

Is lighting available for better visibility?

Yes, models can be equipped with waterproof and explosion-proof lighting with AC110V/220V or DC24V power supplies.

What certifications does the product hold?

The products are compliant with 3A, CE, and FDA certifications, with management under ISO9001-2008 standards.
