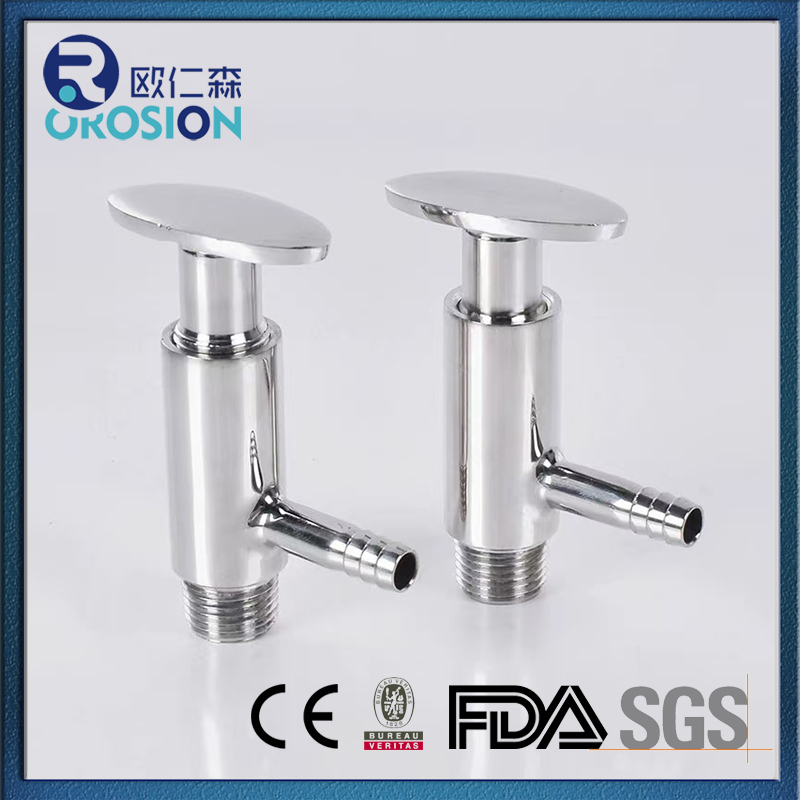

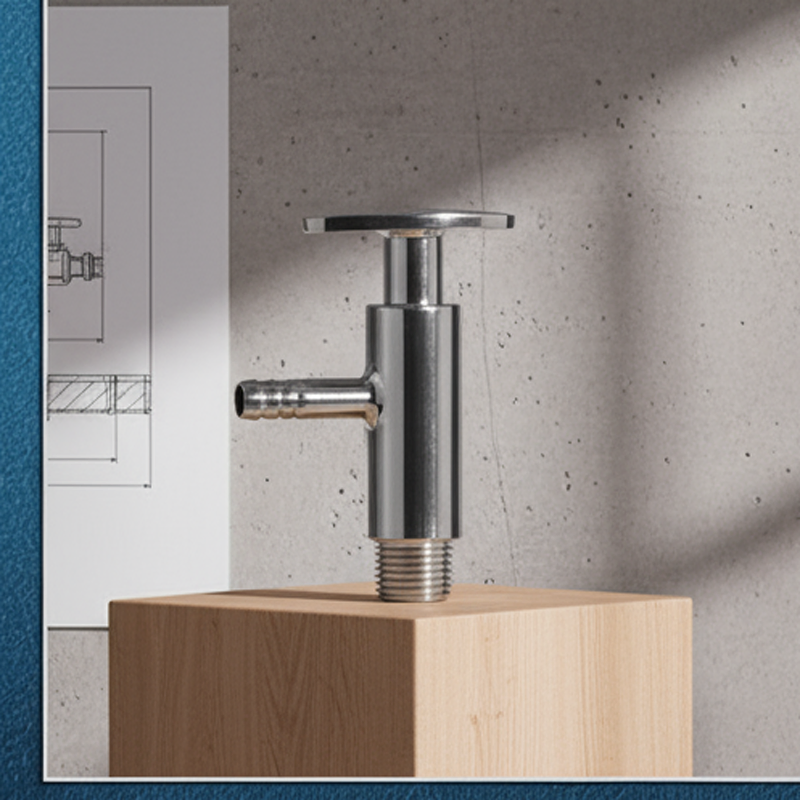

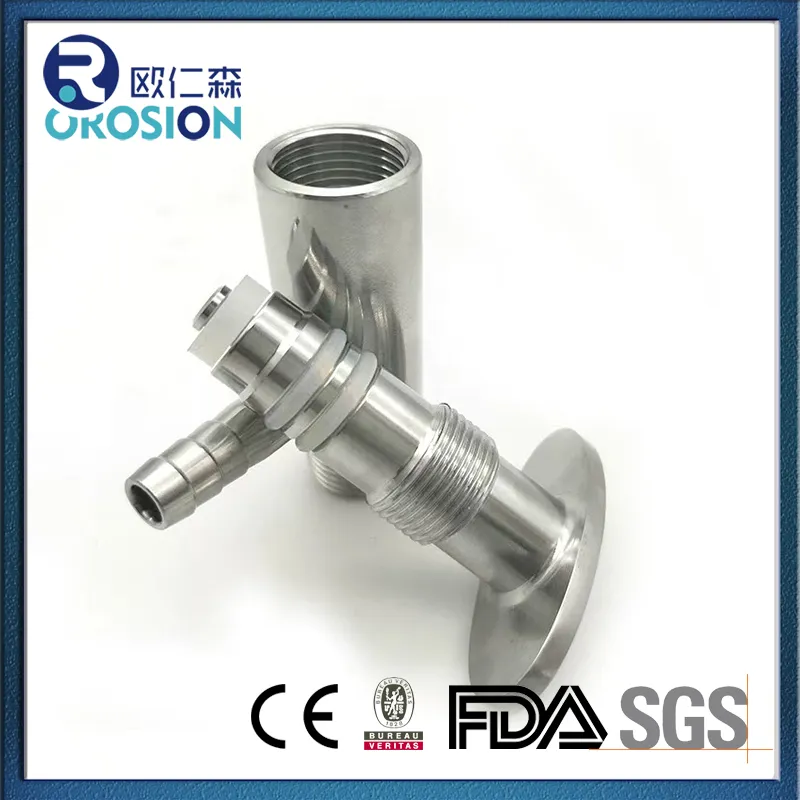

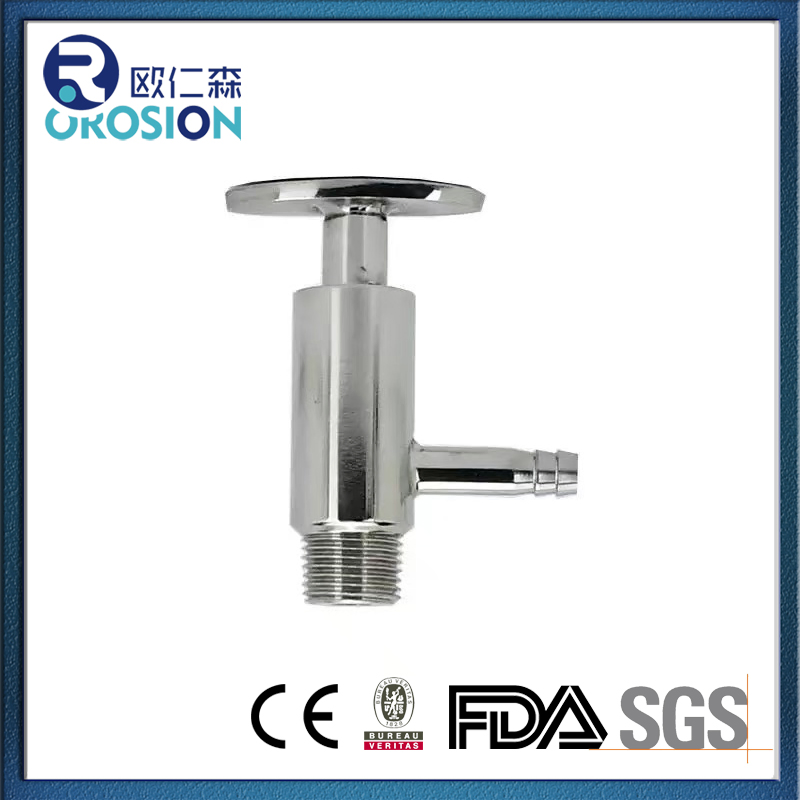

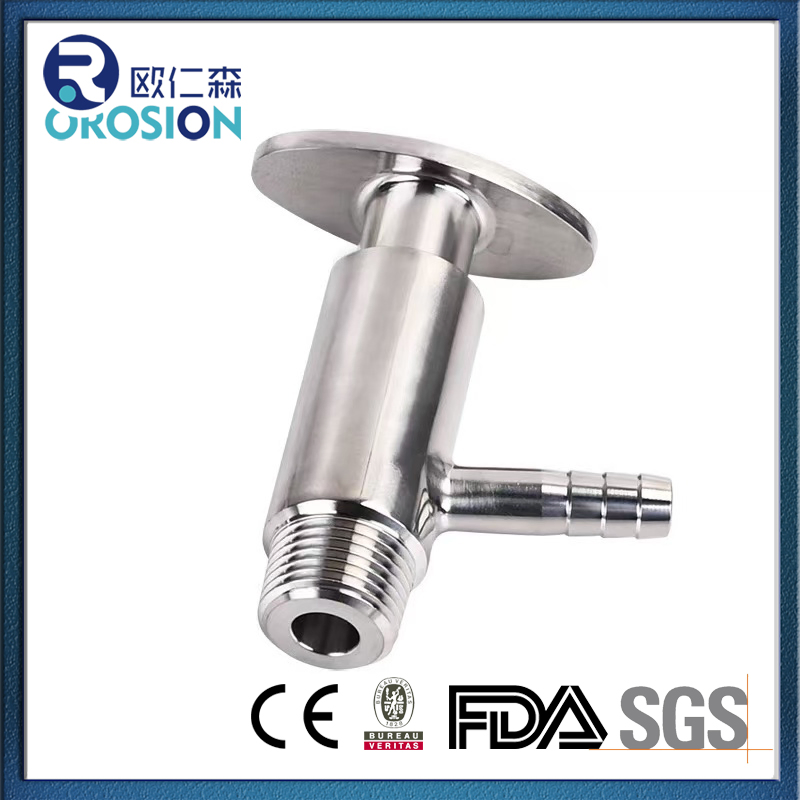

Premium Sanitary Stainless Steel Sampling Valve with BSPT Connection

Basic Information

Model NO.:

ORO-QYF

Connection:

Clamp, TC, Weld, Thread, Flange

Size Range:

1/2”-12”, DN10-DN300

Material:

SS304, SS316, CF8, CF8m

Application:

Medicine, Food, Drink, Dairy, Oil

Max Pressure:

0-10kg (10bar)

Certificates:

CE, SGS, BV, FDA

Seal Material:

PTFE, Silicone, NBR, Rubber

Production:

50,000 Pieces/Year

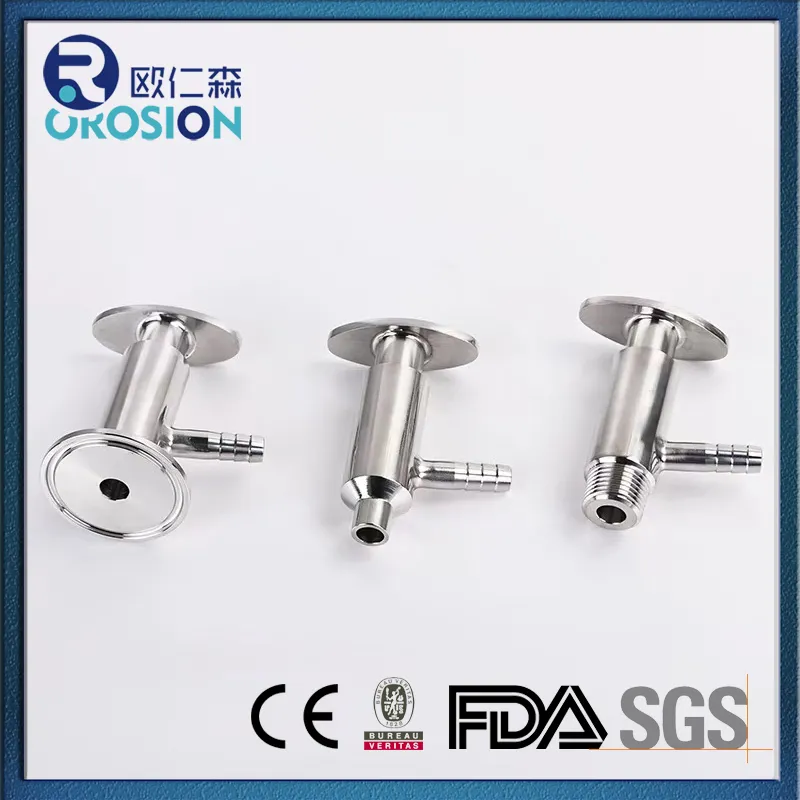

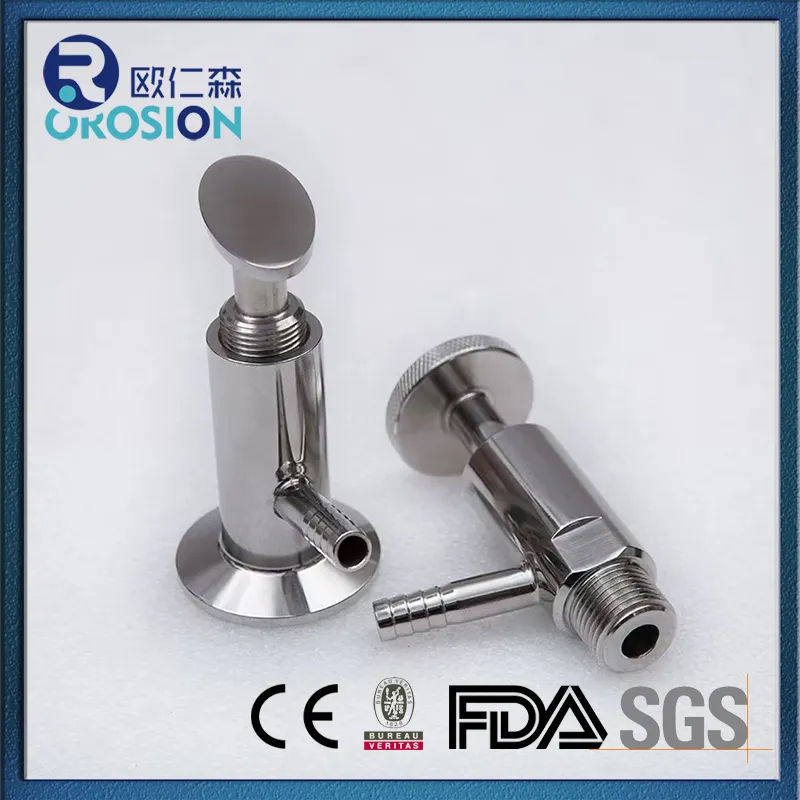

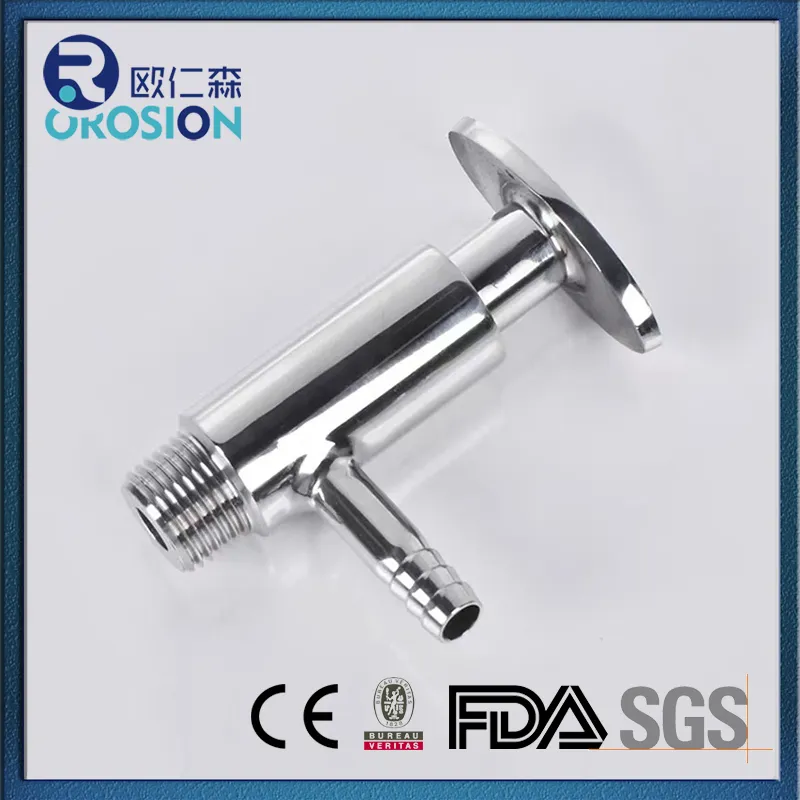

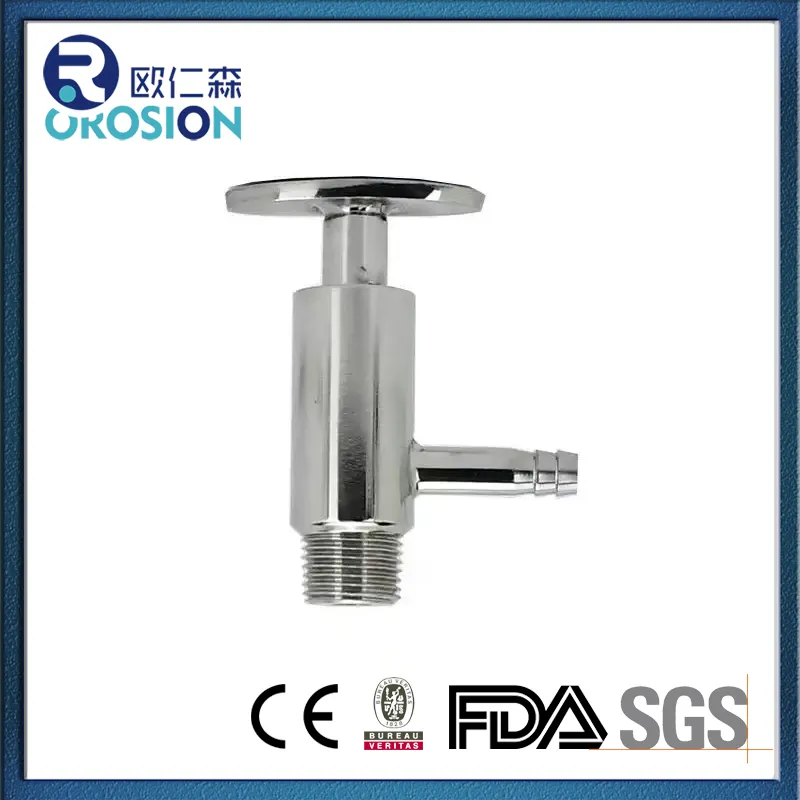

Product Description

The food-grade stainless steel sampling valve is specifically designed to obtain liquid samples for inspection within processing systems. It features a high-precision casting body and is engineered for ease of maintenance and cleaning.

Key Features:

Structural Features: Made of high-quality 316L stainless steel for superior corrosion resistance and sanitary performance.
Dead-Angle Free: Simple internal structure prevents bacterial growth and medium residue.
Sealing Technology: Advanced sealing ensures zero leakage when closed, preventing sample contamination.
Working Principle: Controlled manually or pneumatically to allow precise extraction of pipeline media.
Operating Temperature: Durable from -60°C to 180°C.

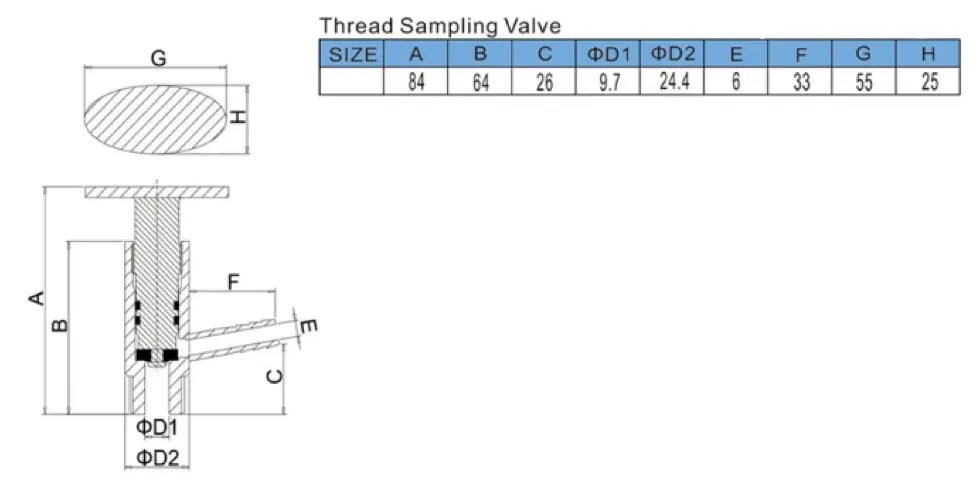

Product Parameters

Product Name	Stainless Steel Sanitary Clamped Sampling Valve
Working Pressure	10 Bar
Temperature Range	-60 to 180 Degree Celsius
Working Mode	Manual or Pneumatic Type
Gaskets	PTFE, EPDM or Silicone
Connection End	Tri-clamped
Surface Finish	Ra0.4 Inside
Available Sizes	1/4", 1/2", 1"
Standards	DIN, 3A

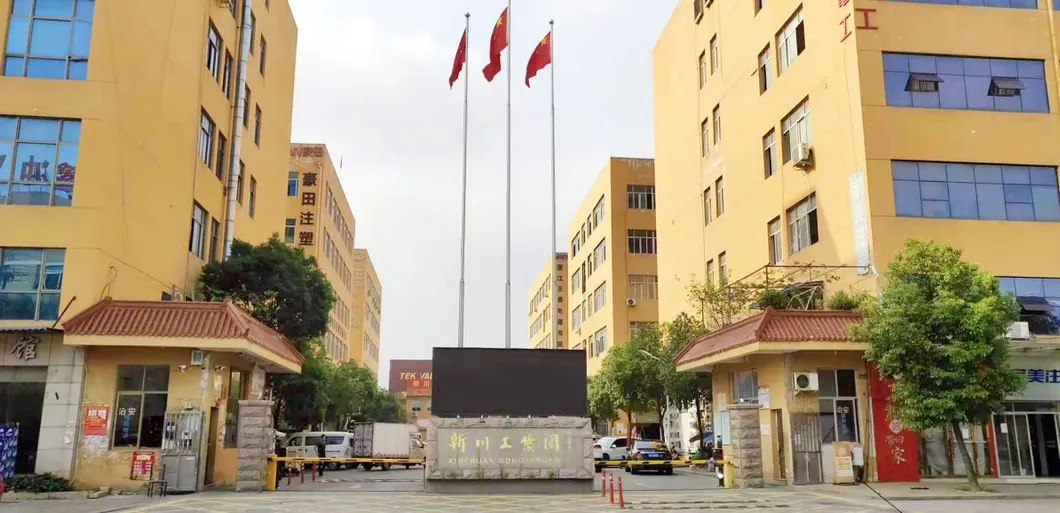

Manufacturing Excellence

With extensive experience in global trade and production, our manufacturing facilities have been a beacon of excellence since 2012. We specialize in a diverse range of stainless steel products including valves, fittings, and pumps for complex liquid handling systems. Our commitment is driven by "quality first" and "customer-centric" principles.

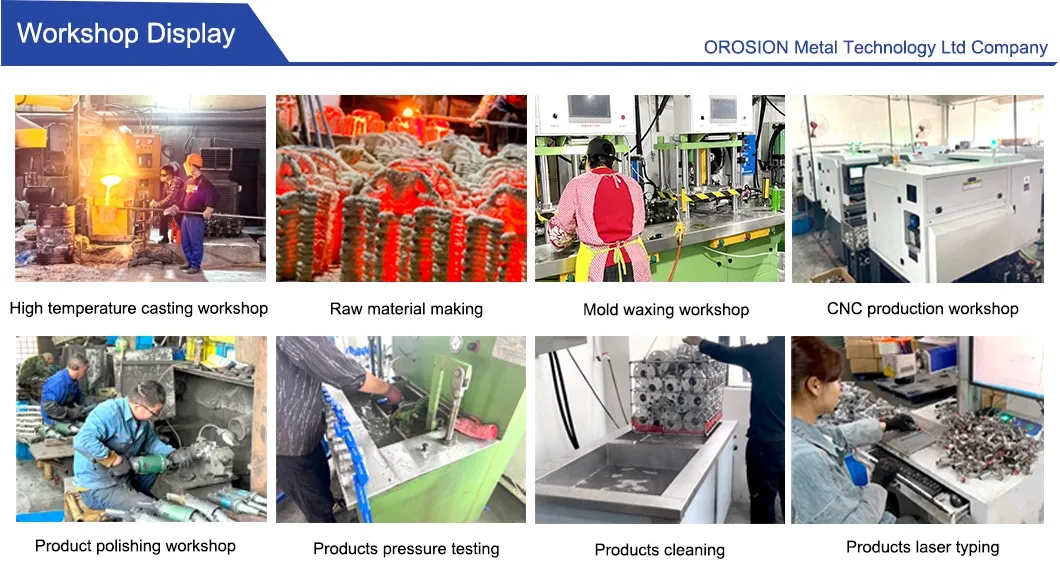

Workshop & Delivery

Quality Certificates

Frequently Asked Questions

1. Are you a trading company or a manufacturer? We are a manufacturer with our own factory and exporting license, ensuring direct quality control and competitive pricing.

2. How do you ensure the quality of materials? We test all materials using PMI machines before purchase and perform multiple sampling detections before packing to prevent material mixing.

3. What is your typical delivery time? For standard products, delivery is within 3-10 days. Bulk orders typically take 15-35 days, depending on the specific requirements.

4. Do you provide a warranty for your products? Yes, we provide a 3-year warranty for all stainless steel products. Note that gaskets and wearable parts are excluded due to varying application environments.

5. What is the Minimum Order Quantity (MOQ)? We welcome start-up cooperation with an MOQ as low as 1 piece.

6. Do you have international certifications? Yes, our products are certified by FDA, CE, BV, and SGS, meeting global sanitary and safety standards.
