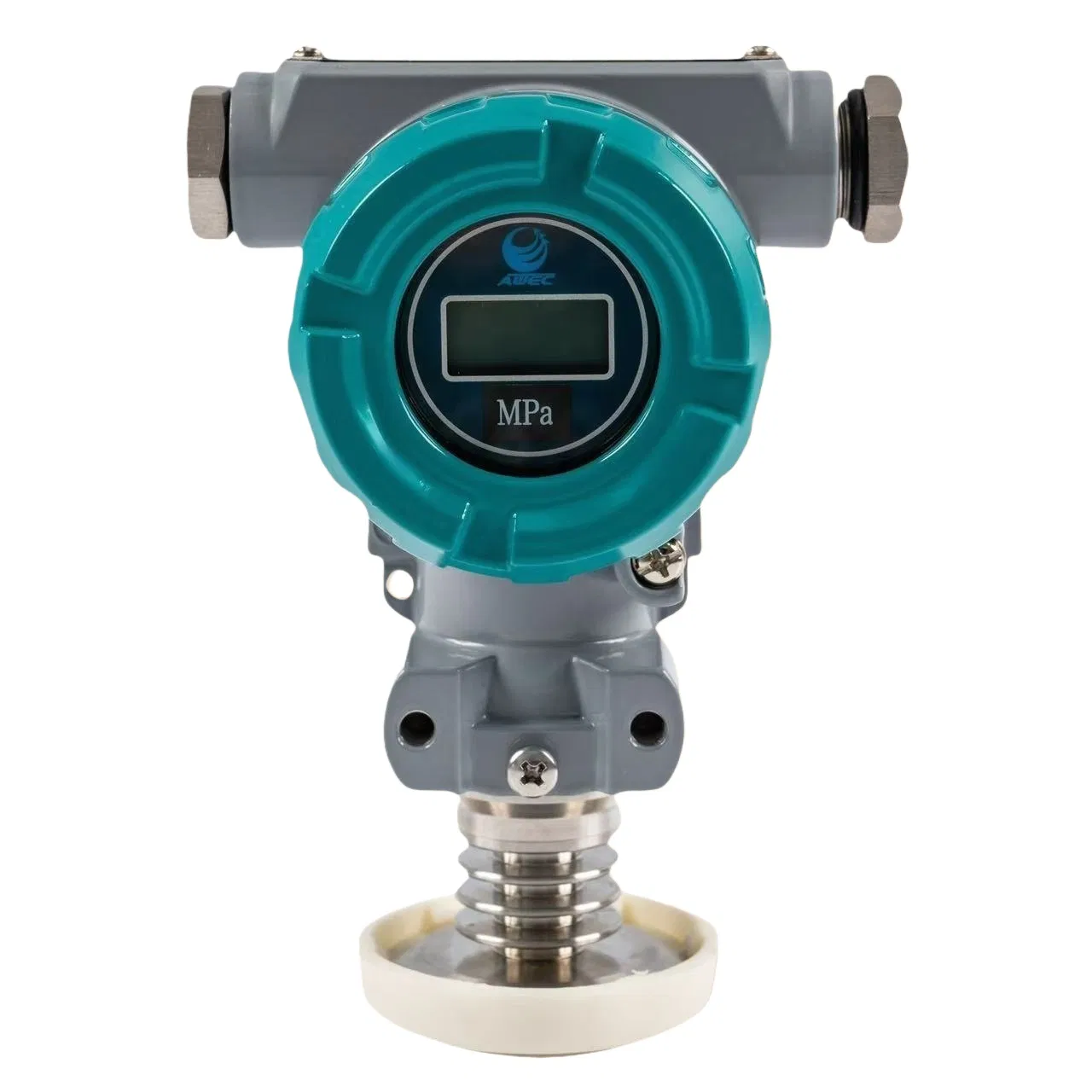

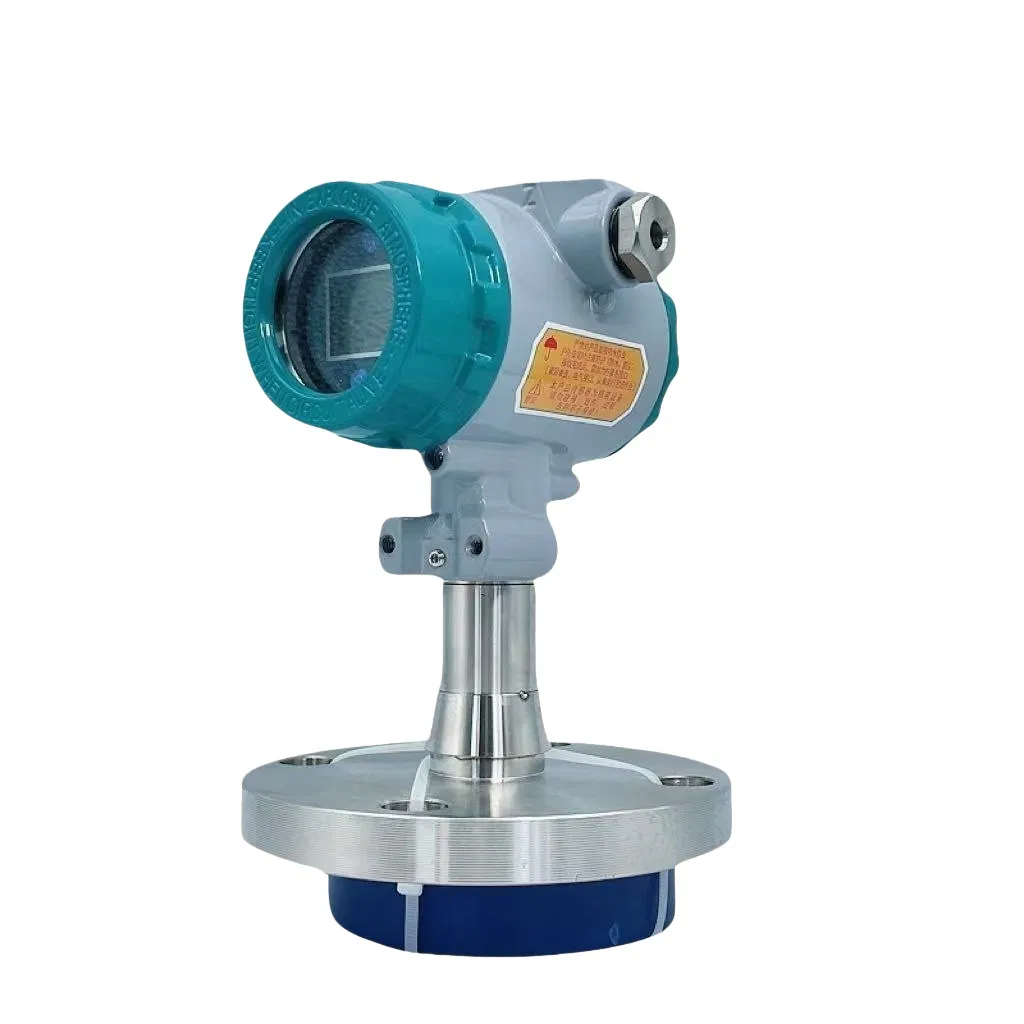

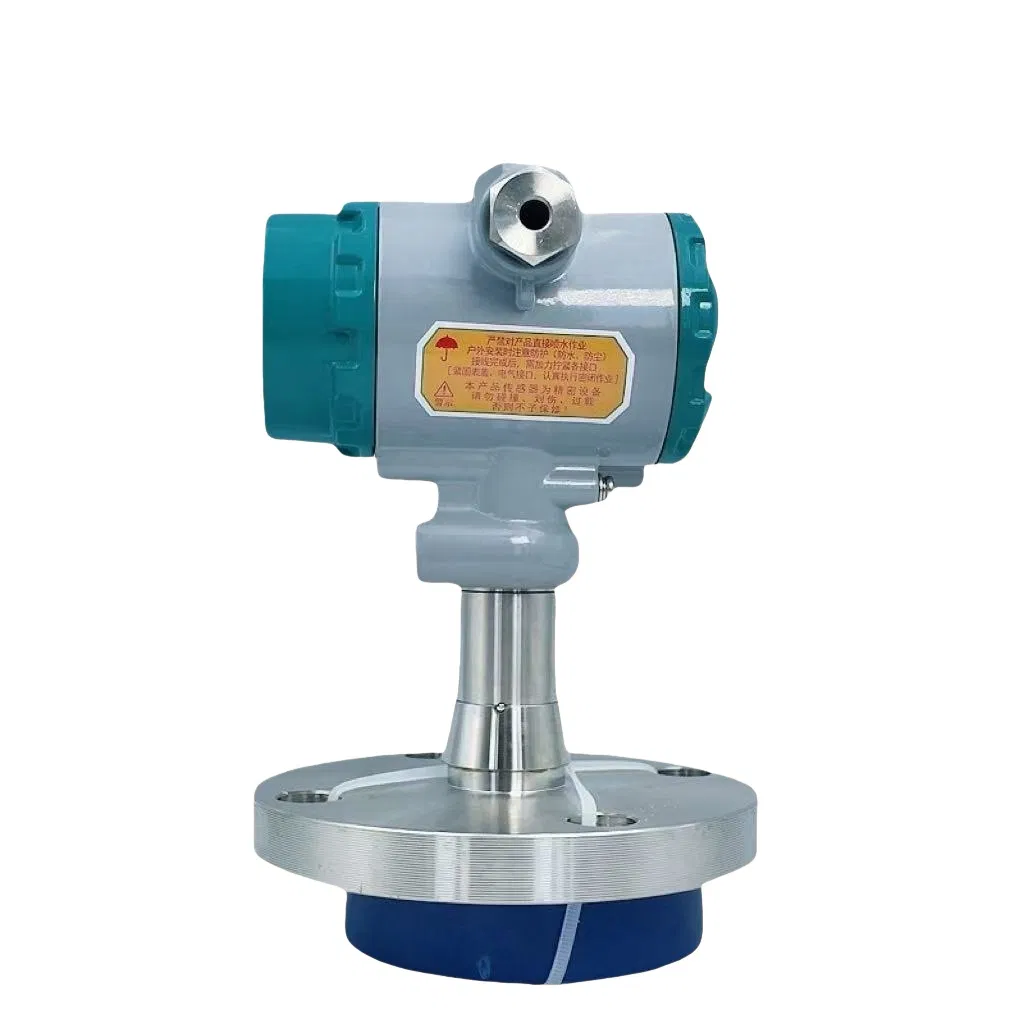

Product Description

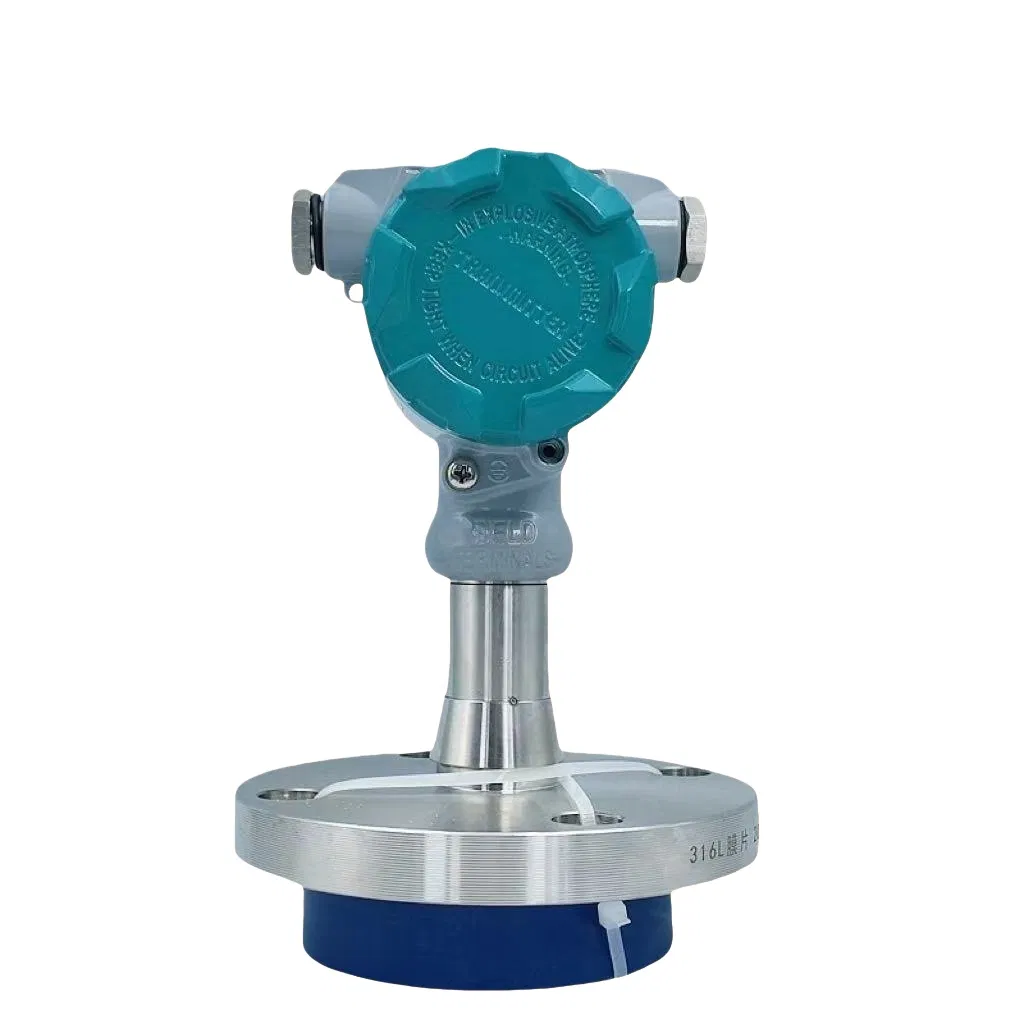

The AO950 diaphragm pressure transmitter is specifically designed to meet the needs of the food, pharmaceutical, and biotechnology industries. High quality materials are used in accordance with hygiene standards. In this type of product, particular emphasis is placed on high-quality surfaces.
Key Advantages
- Wide measurement range from 10KPa to 10MPa.
- Low linear error, including hysteresis, less than ±0.2% of the full scale.
- Varistor-based measurement system, resistant to vacuum and overload.
- Fully compliant with hygiene requirements for materials and surface quality.
- Liquid receiving part made of fully welded high-grade stainless steel.
- Standard signal output of 4 to 20 mA.

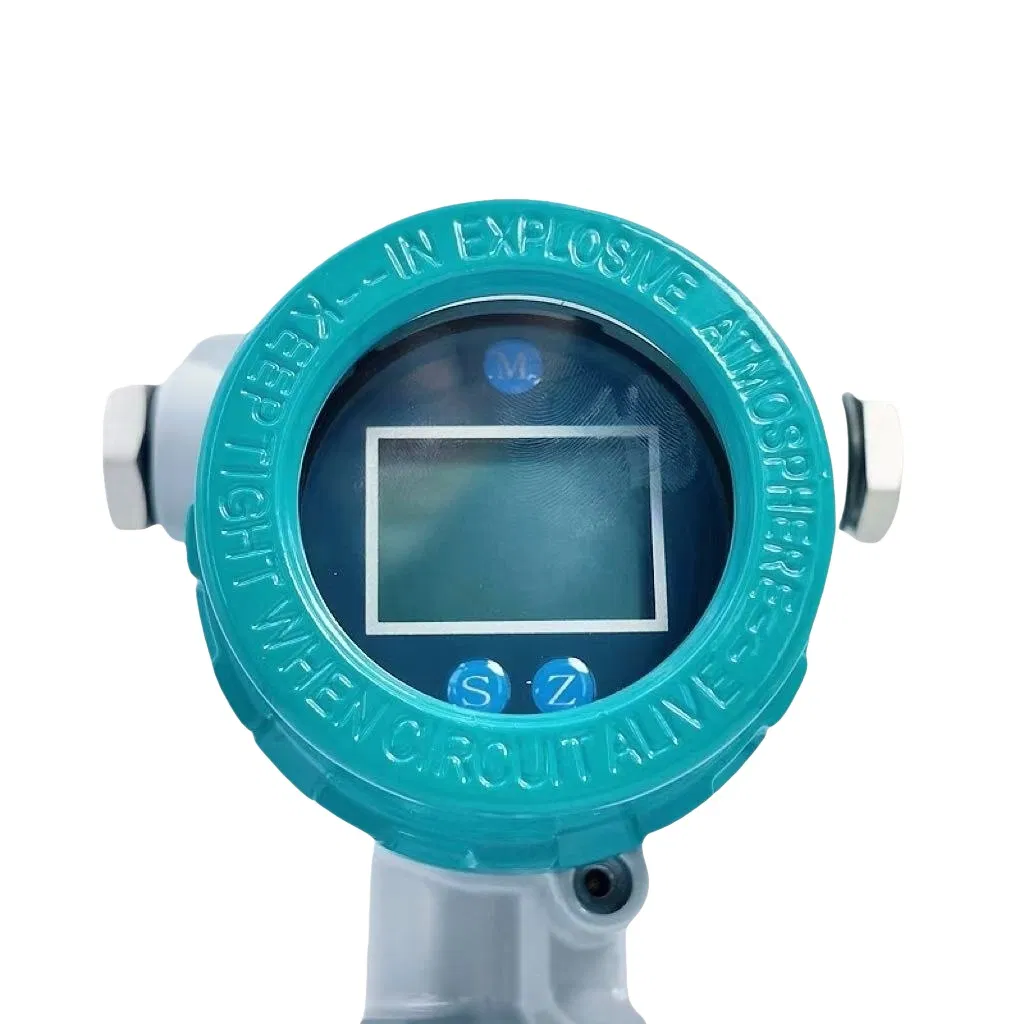

- Stainless steel shell protection level IP65 (Optional IP67).
- Process temperature handling up to 200°C for convenient and safe cleaning.
⚙️
Product Parameters
1. Measurement Accuracy
Comprehensive error: ± 0.2% FS or ± 0.5% FS
Long term stability: Better than 0.1% FS per year
2. Allowable Temperature
Environmental temperature: -40 ºC to +80 ºC
Storage temperature: -40 ºC to +120 ºC
3. Environmental Impact (per 10K)
-20ºC ~ +80ºC: ±0.15%
-20ºC ~ -40ºC: ±0.25%
-80ºC ~ +120ºC: ±0.25%
🏢
Professional Profile

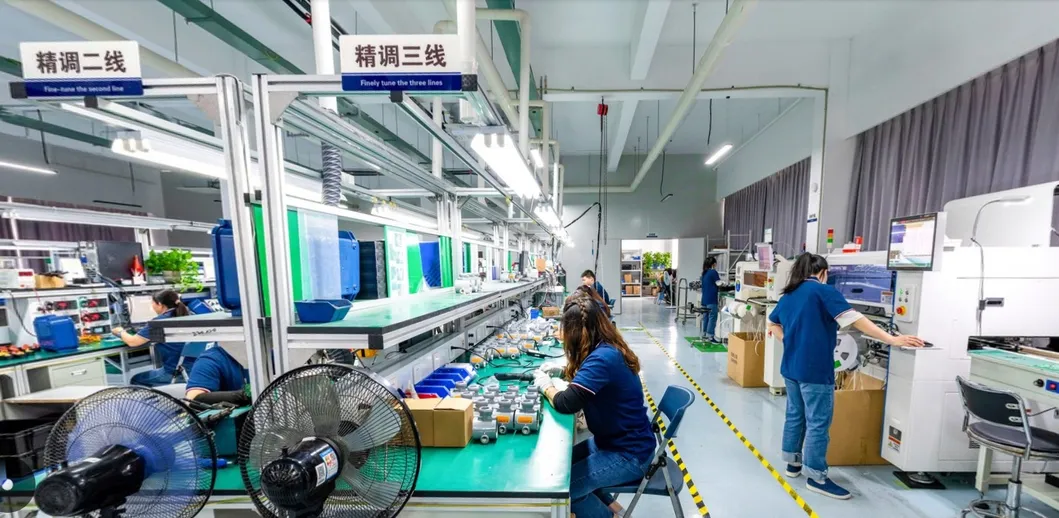

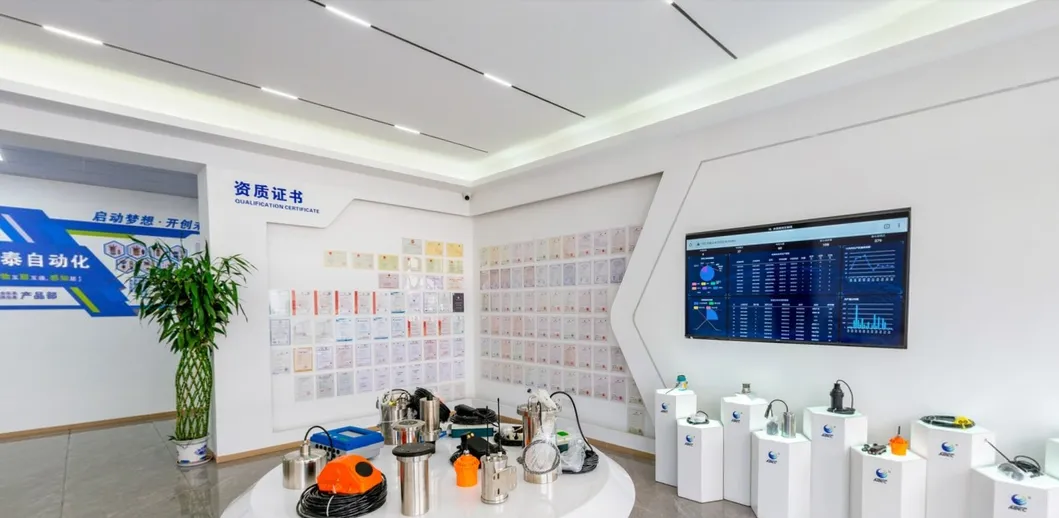

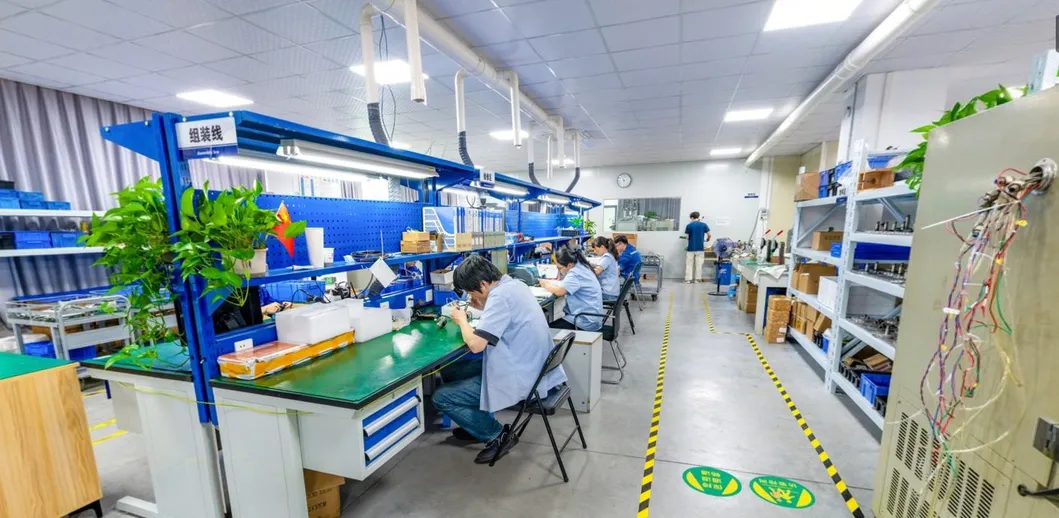

Founded in 2007, this enterprise is dedicated to providing measurement and control instruments and equipment for "intelligent manufacturing", "smart water" and "smart city". The company's goal is to become an enterprise with advanced technology, professional service and strong competitiveness in the industry. Since its inception, it has been adhering to the concept of research and development, production, sales and service of instrumentation, and striving to create value for customers.
Frequently Asked Questions
What industries is the AO950 transmitter designed for?
It is specifically engineered for high-hygiene industries such as food processing, pharmaceuticals, and biotechnology, ensuring compliance with strict material and surface quality standards.
What is the measurement accuracy and stability?
The AO950 offers a comprehensive error rate of ±0.2% or ±0.5% FS, with long-term stability better than 0.1% FS per year.
Can this device handle high-temperature sterilization?
Yes, the process temperature can reach up to 200 °C, making it safe and convenient for steam cleaning and high-temperature processes.
What materials are used for the sensor diaphragms?
Depending on your requirements, sensor materials include 316L Stainless Steel, Hastelloy, Tantalum, or PTFE (Petf) to ensure chemical compatibility.
What are the available output signals?
The transmitter supports a standard 4~20 mA DC output and is compatible with Intelligent HART Fieldbus protocols for advanced digital integration.
Is the transmitter waterproof and dustproof?
The stainless steel shell comes with a standard IP65 rating, with an optional IP67 protection level available for more extreme environments.
