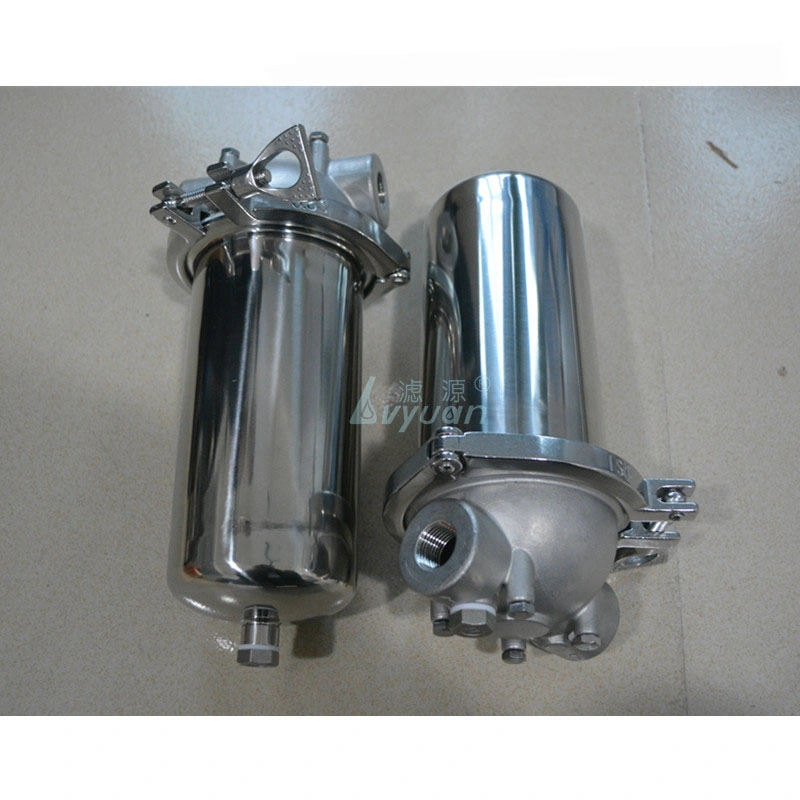

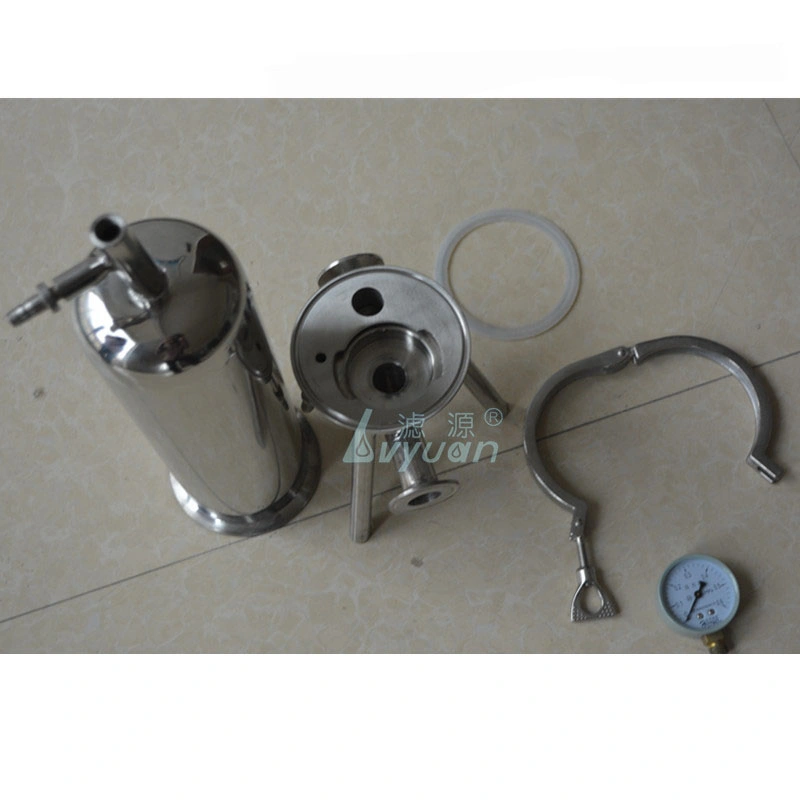

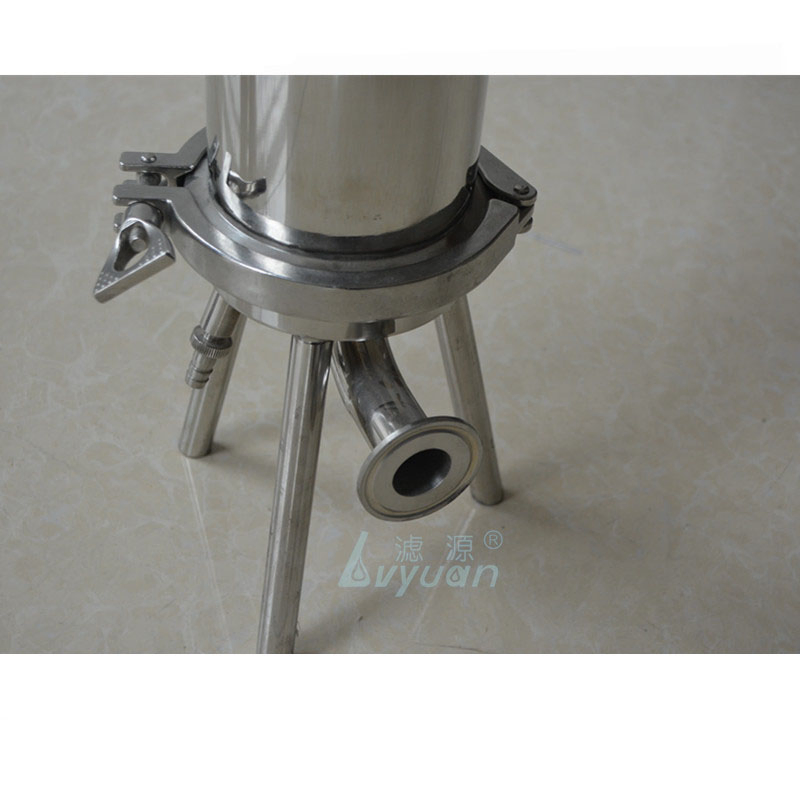

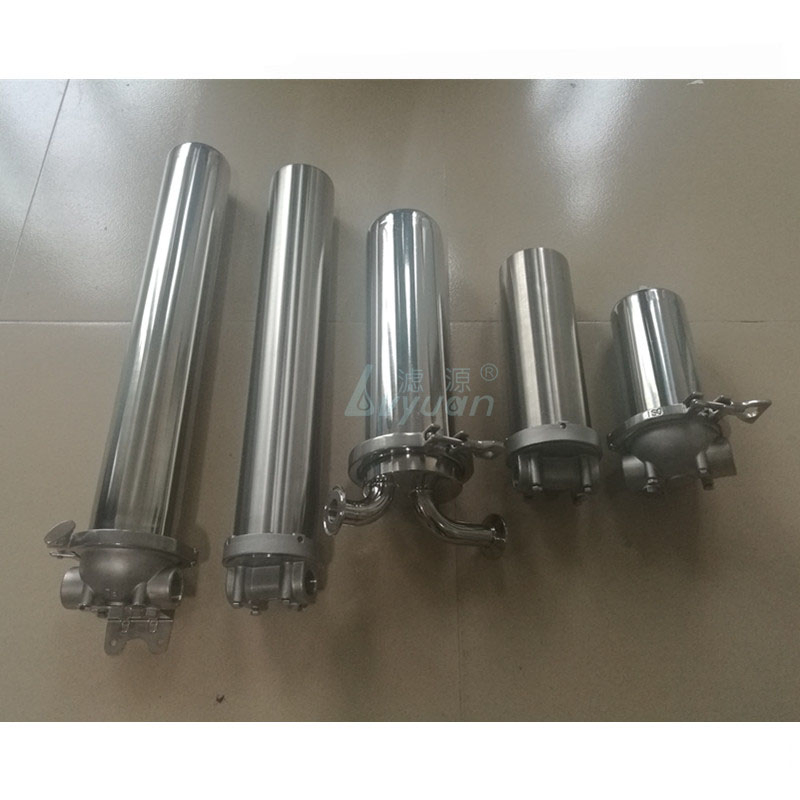

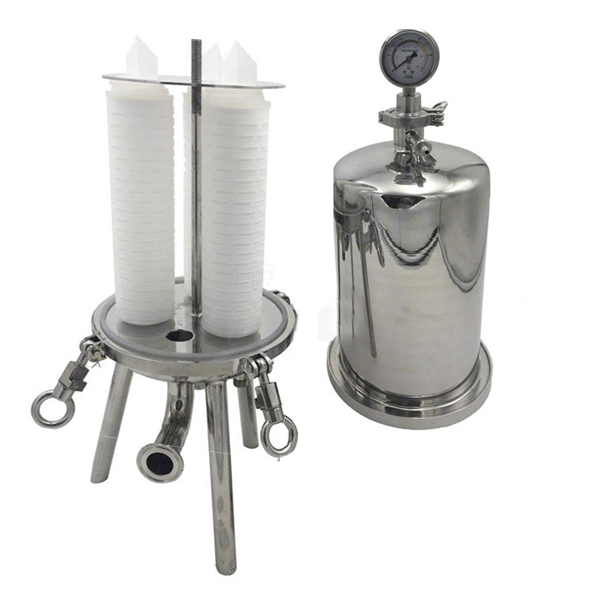

Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
1 / 5
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection
Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection

Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing with 226 Connection

Customization: Available
Material: Stainless Steel
Medium Material: Stainless Steel
Send Inquiry

Product Description

Basic Info.
Model NO.
LY-SFH
Type
Single Cartridge Filter Type
Usage
Liquid Filter
Filtration Grade
PRE Filter
Cartridge Installation
Vertical Lifting
Length
10/20 Inch
in & out Port
1/2", 3/4", 1"
Max. Pressure
5-15kg
Drain Port
1/4"
O-Rings
NBR, Fluorine Rubber, Teflon
Thickness
2mm
Transport Package
Paper Box with Foam
Specification
10/20 inch
Trademark
No mark
Origin
Guangzhou, China
HS Code
8421999000
Production Capacity
100pieces/Day
Product Description

Floor standing type sanitary grade stainless steel 316L 10/20 inch single fluid filter housing with 226 connection:

  • Widely used in UF, RO, EDI security filtration and end-filtration, medicine injection, large infusion, eye drops.
  • Chinese herbal medicine liquid filtration, biological agents extraction, purification and concentration.
  • Electronics and semiconductor industry high purity water preliminary filter and terminal filter.
  • Oil field back water injection, boiler makeup water, chemical reagent, and liquid organic products.
  • High purity chemicals, strong medicine and other high-precision filtration.
  • Drinking pure water, mineral water, fruit juice, tea beverages, and health drinks filtering.
  • Liquor, wine, beer, yellow wine and other fruit wine filtration; pure draft beer aseptic filtration.
  • Life and production waste water treatment and water recycling process.
  • Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment.
Technical Specifications
ParameterDetails
Housing materialSUS304/316L
Bag materialPP/PE/Nylon
In & out connectionFlange/Thread 3/4" to 2.5"
Seal materialEPDM/Silicone/Viton/PTFE
Surface treatmentPolished/Sandblast
Working temp.20~120 degree
Max. working pressure0.75-1.6Mpa
Bag Item Flow Rate(m³/h) Filtration area(m²) Length(mm) Bag Diameter(mm)
#1200.25410(16")180(7")
#2400.5810(32")180(7")
#360.1210(8.25")102(4")
#4120.15356(14")102(4")
#5250.3870(34")175(6, 7/8")
Models & Specifications

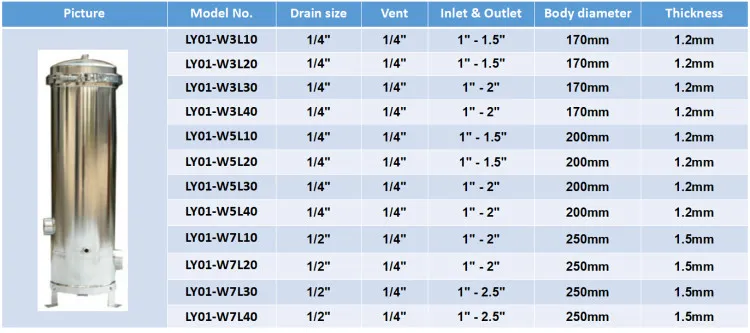

Specifications 1

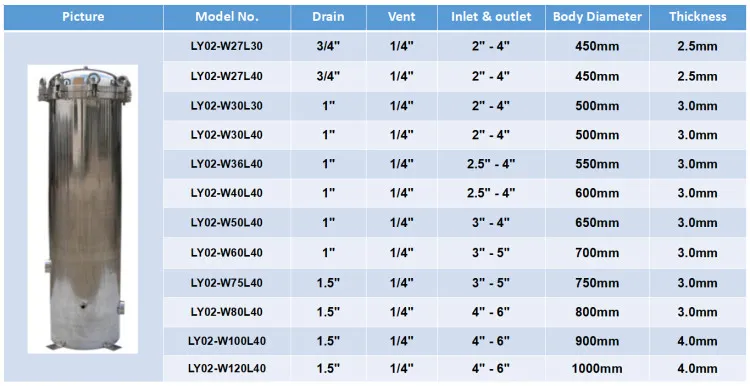

Specifications 2

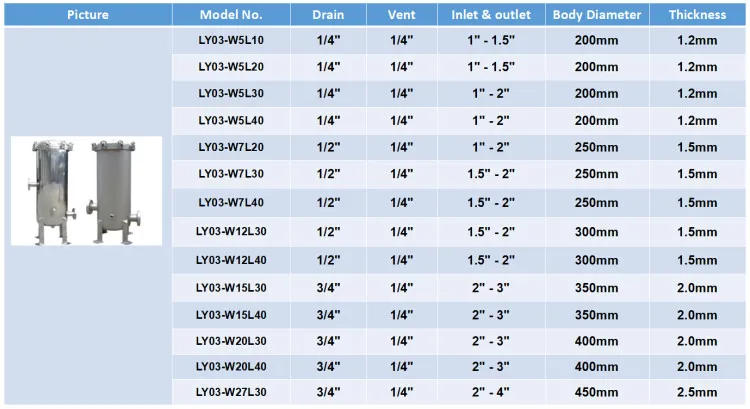

Specifications 3

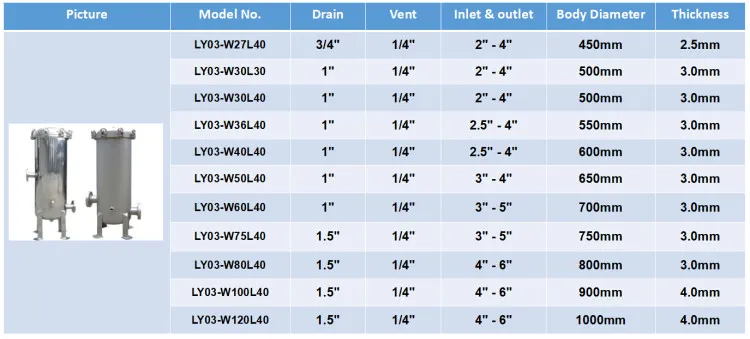

Specifications 4

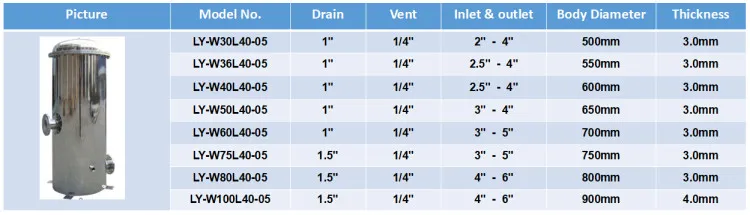

Specifications 5

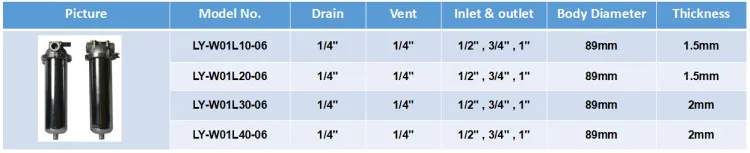

Specifications 6

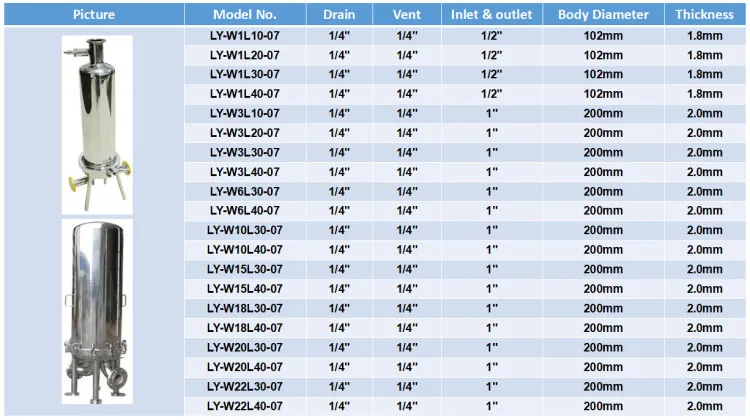

Specifications 7
Product View

Single-cartridge filter housing:

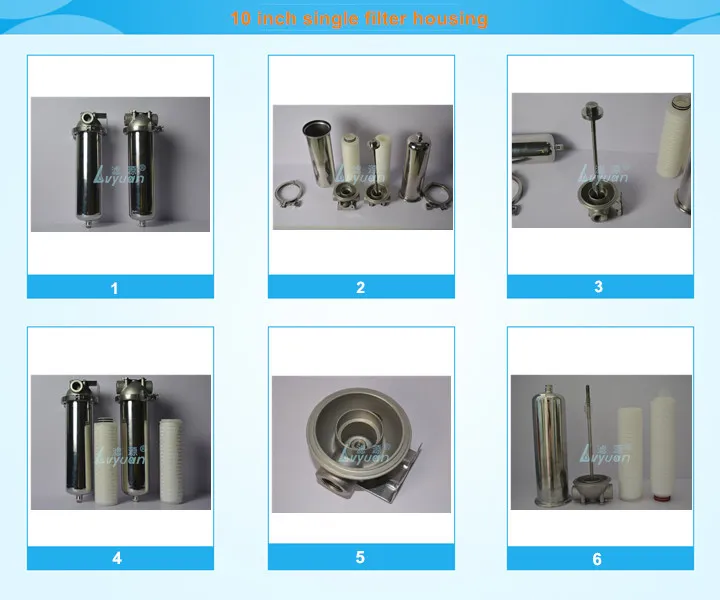

Single-cartridge filter housing

Multi-cartridge filter housing:

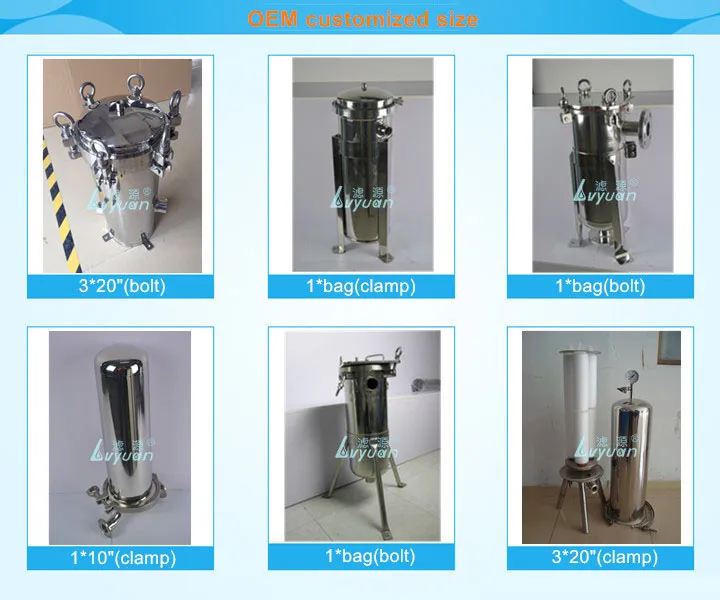

Multi-cartridge filter housing

Single-bag filter housing:

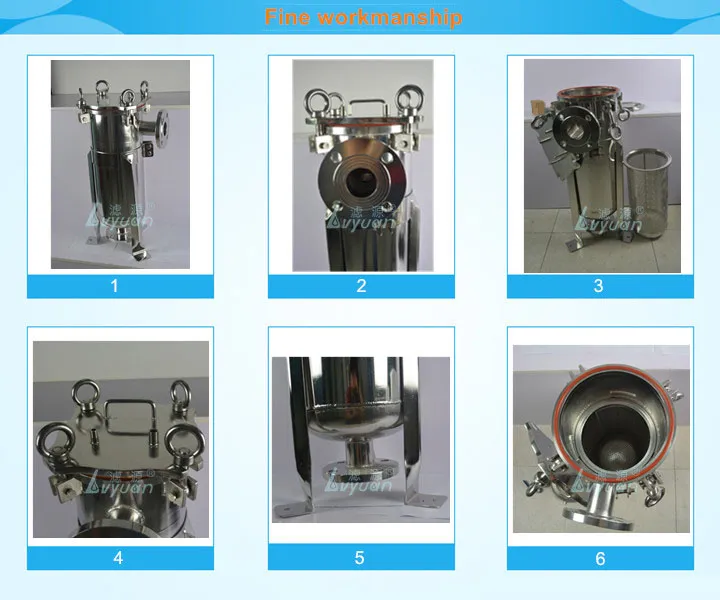

Single-bag filter housing 1

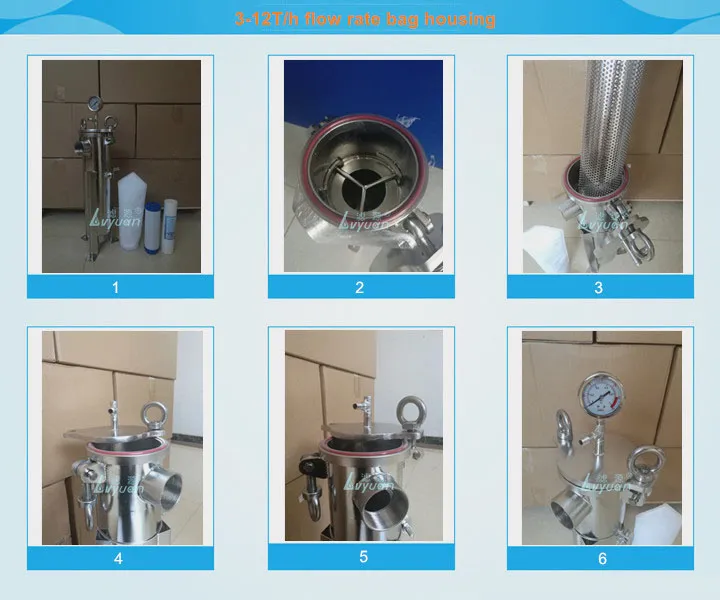

Single-bag filter housing 2

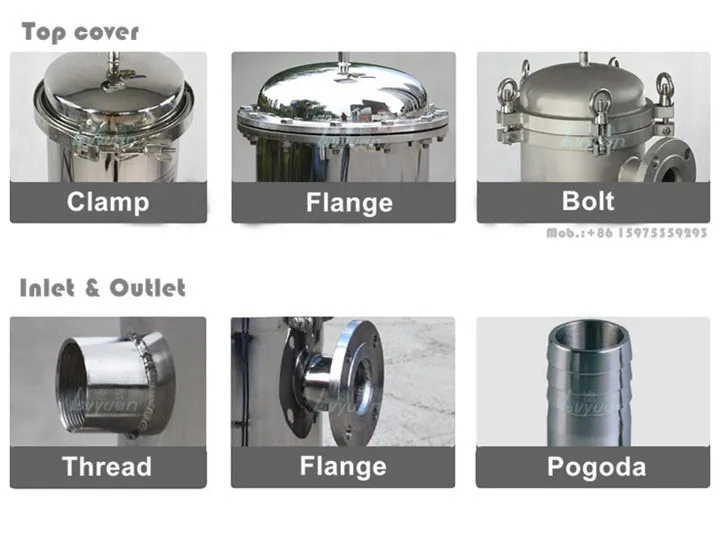

Different models selection:

Different models selection
Frequently Asked Questions
What materials are available for the filter housing?
The housing is primarily available in high-quality Stainless Steel SUS304 or SUS316L for superior corrosion resistance and sanitary applications.
What is the maximum working pressure for these housings?
Depending on the specific model and configuration, the maximum working pressure ranges from 0.75Mpa to 1.6Mpa (approximately 5-15kg).
Can the filter housing handle high-temperature liquids?
Yes, our stainless steel filter housings are designed to operate within a temperature range of 20 to 120 degrees Celsius.
What types of connections are supported for inlet and outlet?
We offer flexible connection options including Flange and Thread types, with sizes ranging from 3/4" to 2.5" to fit your piping requirements.
Are customized OEM services available for specific filtration needs?
Yes, we provide OEM customized services to meet specific industrial requirements regarding size, material, and connection types.
What sealing materials are used to prevent leakage?
We offer various O-ring materials including EPDM, Silicone, Viton, and PTFE (Teflon) to ensure compatibility with different chemical and temperature conditions.
