Diaphragm valve, with manual and pneumatic operation, is specially used in the hygiene and aseptic process in pharmaceutical industries. The valve is specially suitable for flow control and on/off operation.
Compared with other valves in design, this valve is more easily cleaned and performs better with media containing particles.

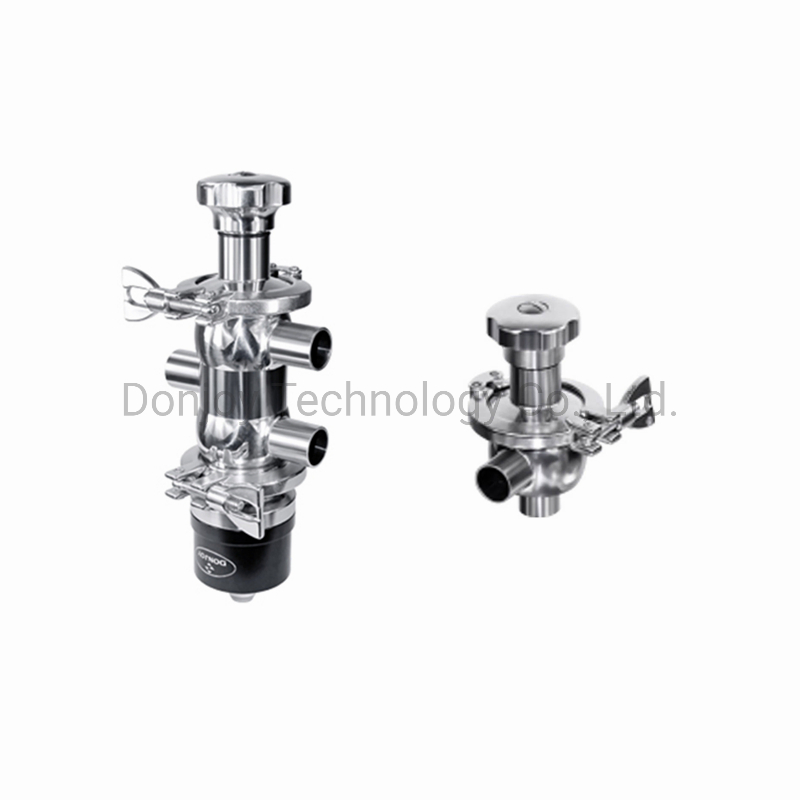

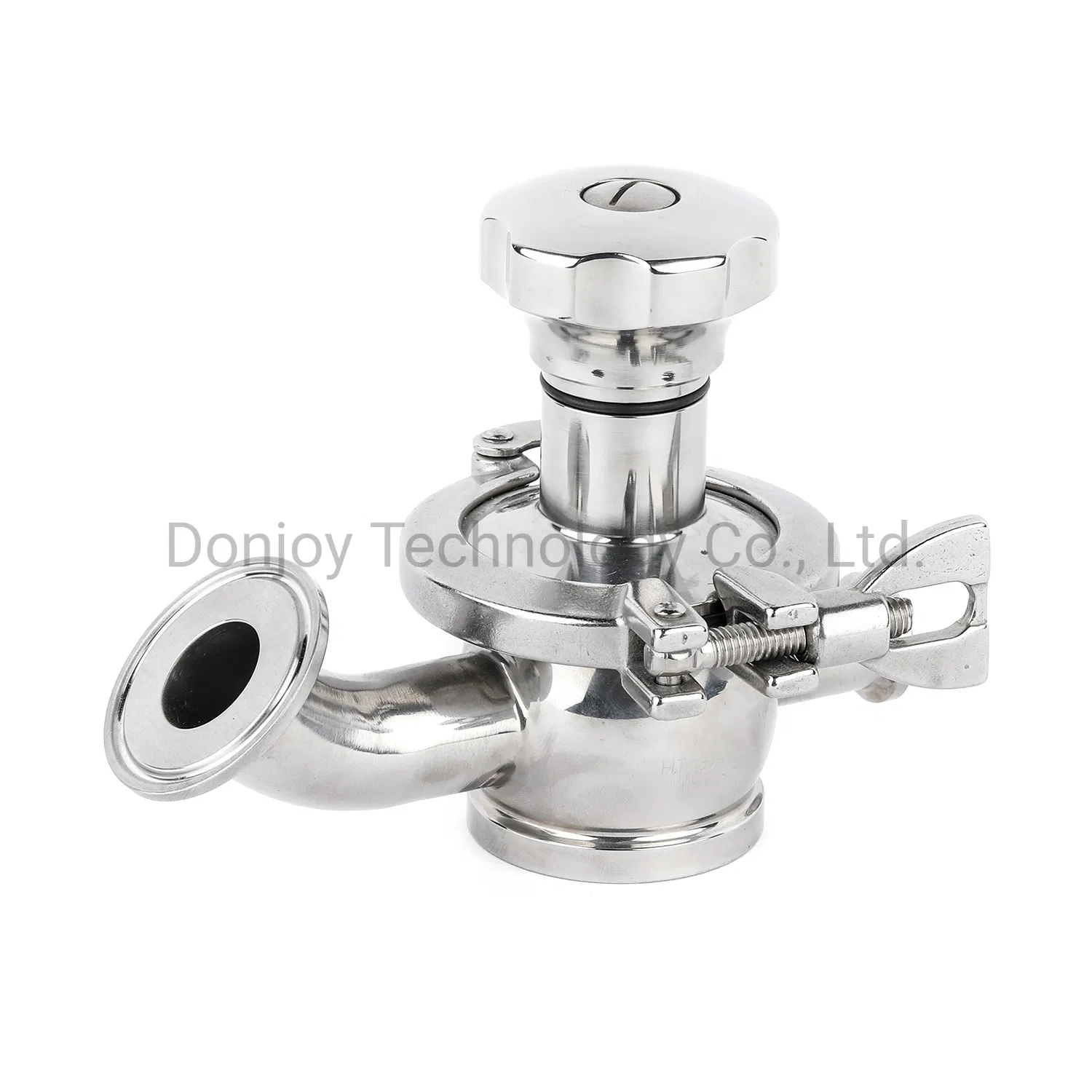

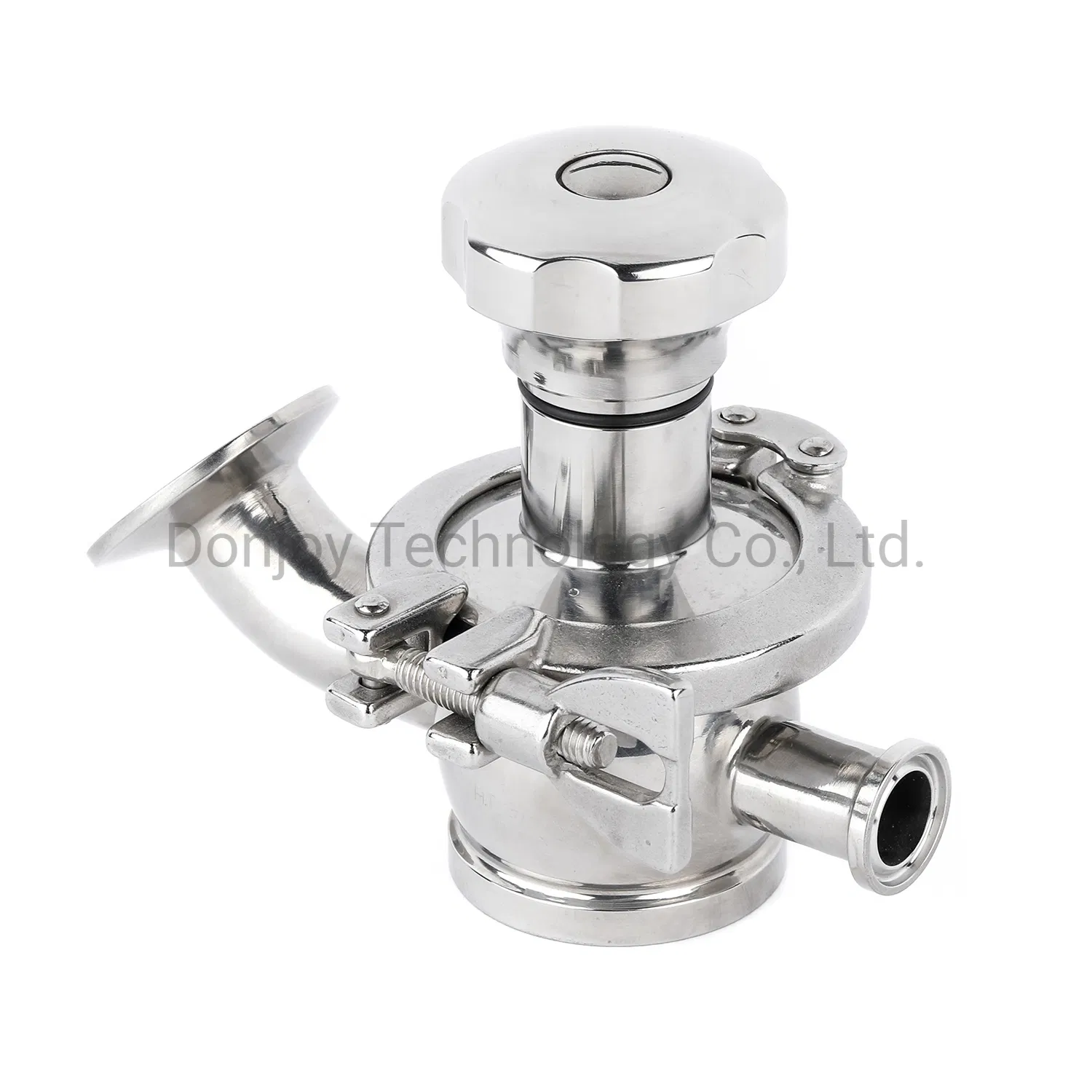

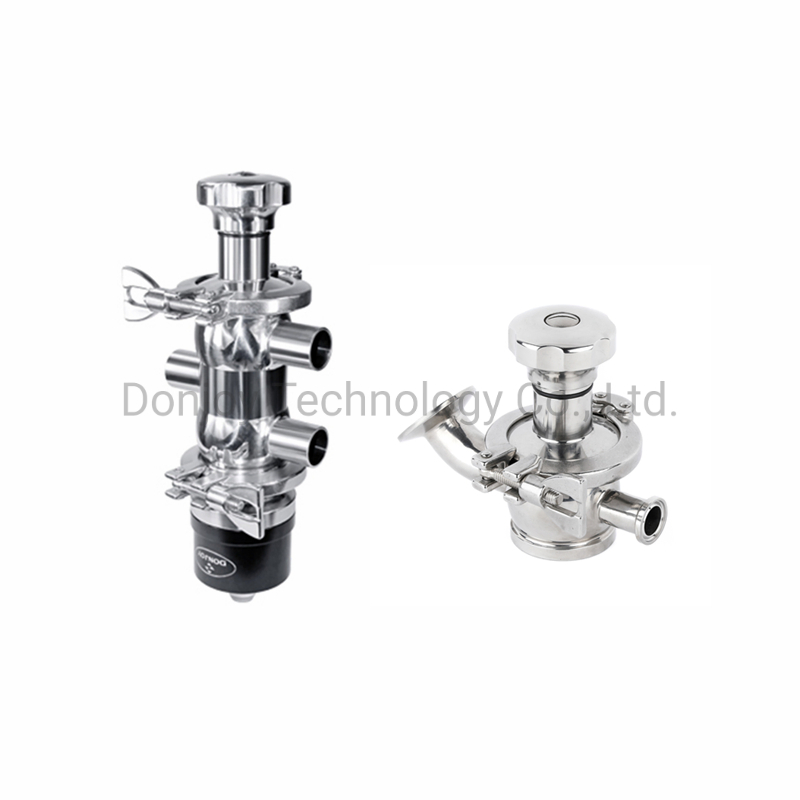

| ITEM: | Radial Diaphragm valve |
| Material of valve body: | SS316L |
| Seal material: | EPDM+PTFE, EPDM |
| Size: | 1/2-3 INCH |
| Max. temperature: | -10~120 degree centigrade (up to diaphragm gasket) |
| Max. pressure: | Standard NC: EPDM (6BAR), PTFE (4.5BAR) | Optional up to 8BAR |

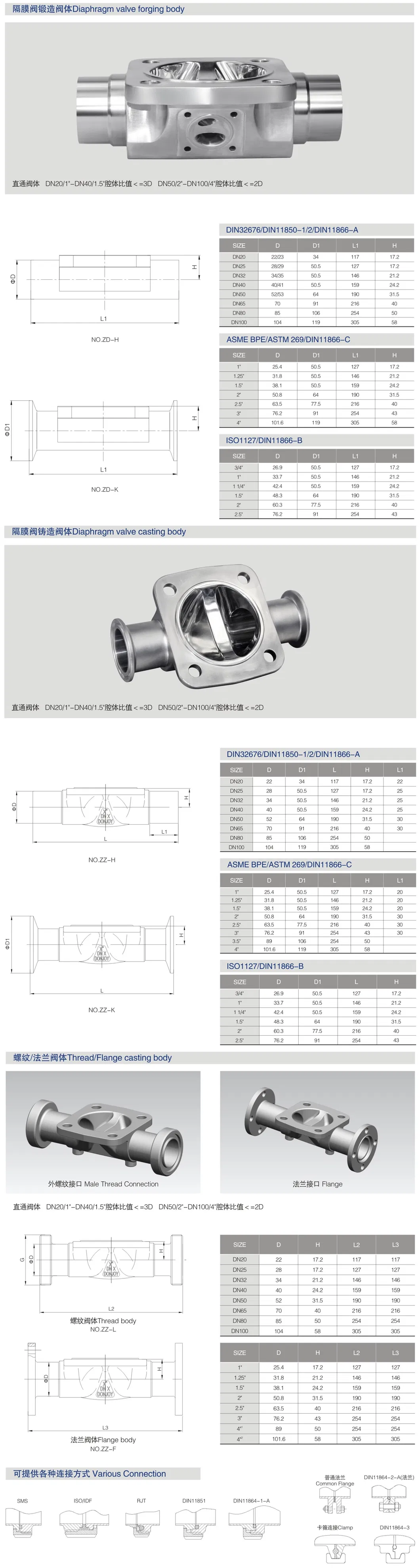

| Casting valve body: | 1.4404/316L |
| Forging valve body: | 1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5% |
| Connection way: | Welded, clamped, flanged, threaded |

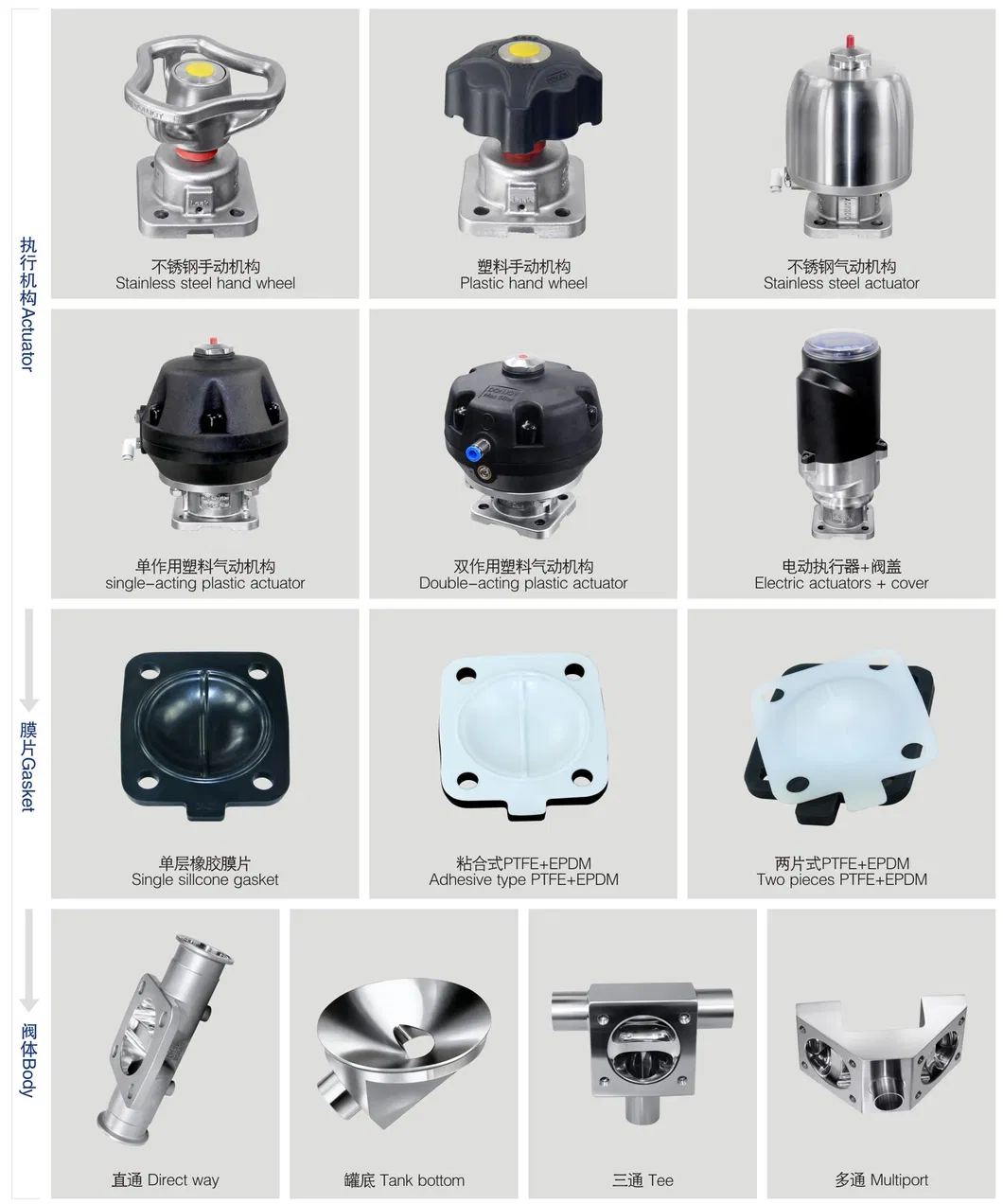

| Optional operation: | By pneumatic actuator, electric actuator, control unit, positioner etc. |
| Optional flow port: | 2 way, 3 way, multi-port |
| Application: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Certification: | 3A, CE, ISO, FDA |
| Standard: | 3A/BPE/DIN/ISO/IDF |
