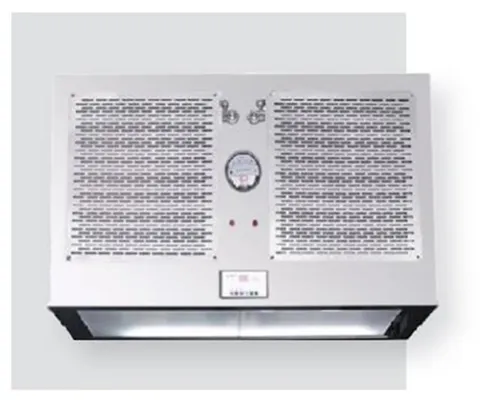

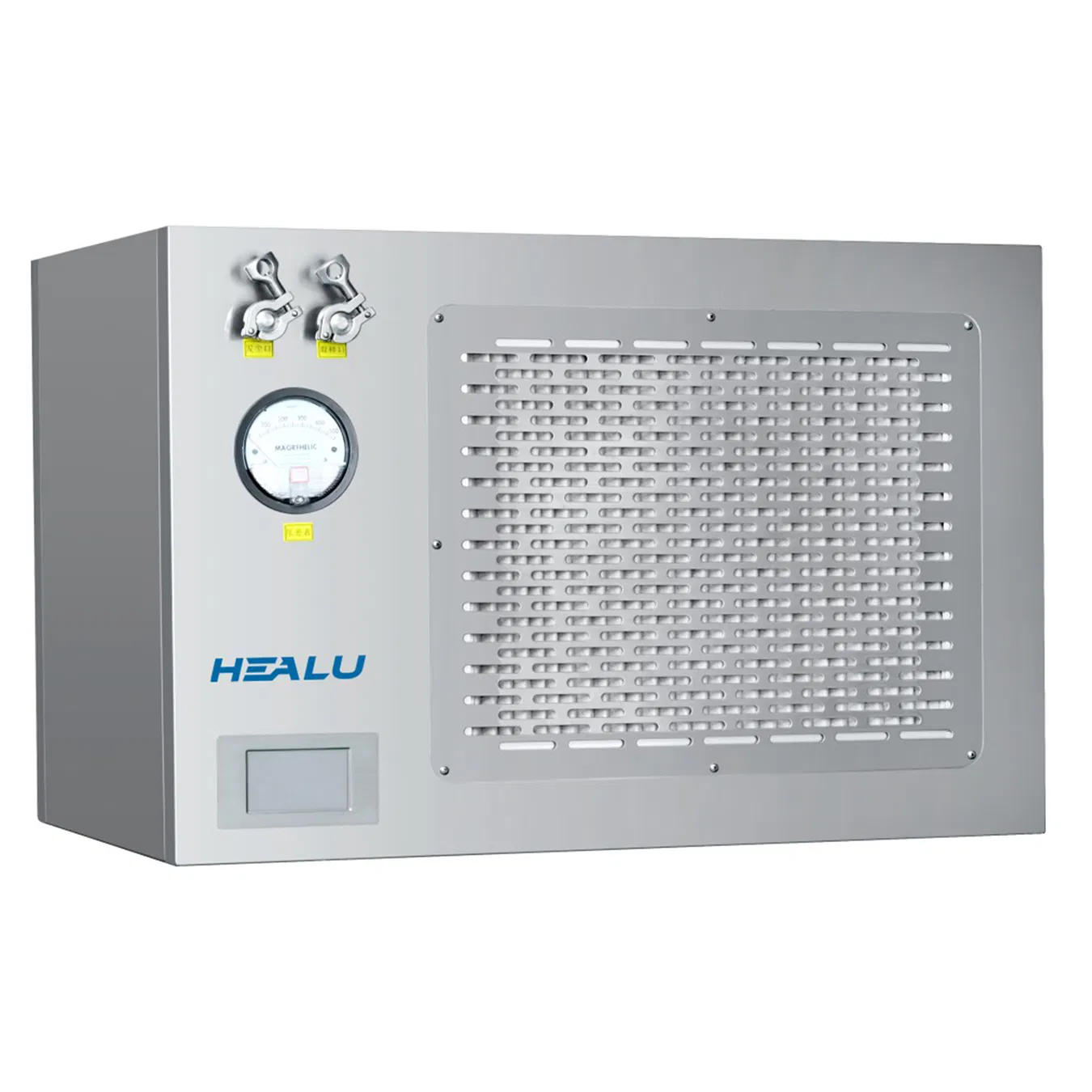

This purifying equipment provides Class A unidirectional flow, creating an environment with high local cleanliness. Clean air passes through high-efficiency filters and is evenly distributed by a damping layer to the work area. It is an essential component for aseptic core areas, typically operated within a Class B background area.

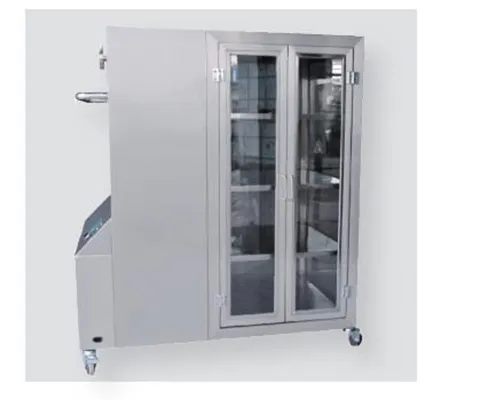

Designed for the aseptic transfer of materials and appliances between procedures. Features include automatic lifting worktables for height consistency and various connection door options (automatic or manual). Available in vertical or horizontal unidirectional flow models to suit different material requirements.
| Model | Dimensions (LxWxD) mm | Work Area (LxW) mm | Air Speed (m/s) | Cleanliness | Noise (dB) | Power (KW) |
|---|---|---|---|---|---|---|
| LUFH12-120.60 | 1200×600×600 | 1200×600 | 0.45±20% | A | 65~75 | 0.3 |
| LUFH24-120.120 | 1200×1200×600 | 1200×1200 | 0.45±20% | A | 65~75 | 0.6 |
| LUFT8-120.60 | 800×650×1800 | 720×600×750 | 0.45±20% | A | 65~75 | 0.18 |

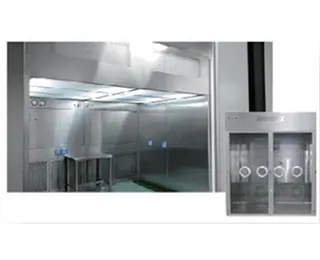

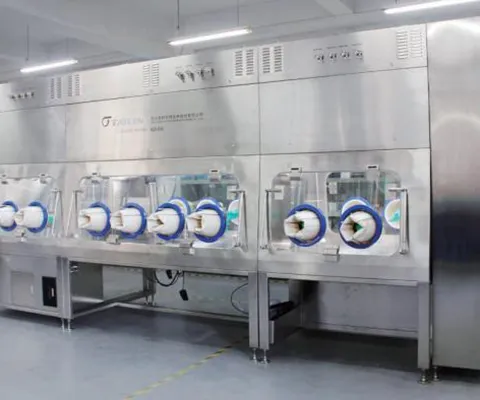

Forms an air flow barrier between core and background areas. Operators interact through glove boxes to minimize contamination risks. Compatible with online monitoring for wind speed, pressure, and cleanliness.

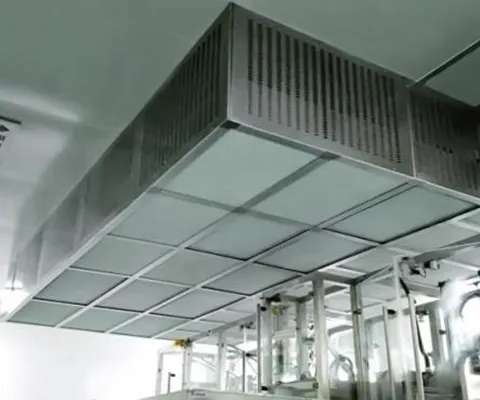

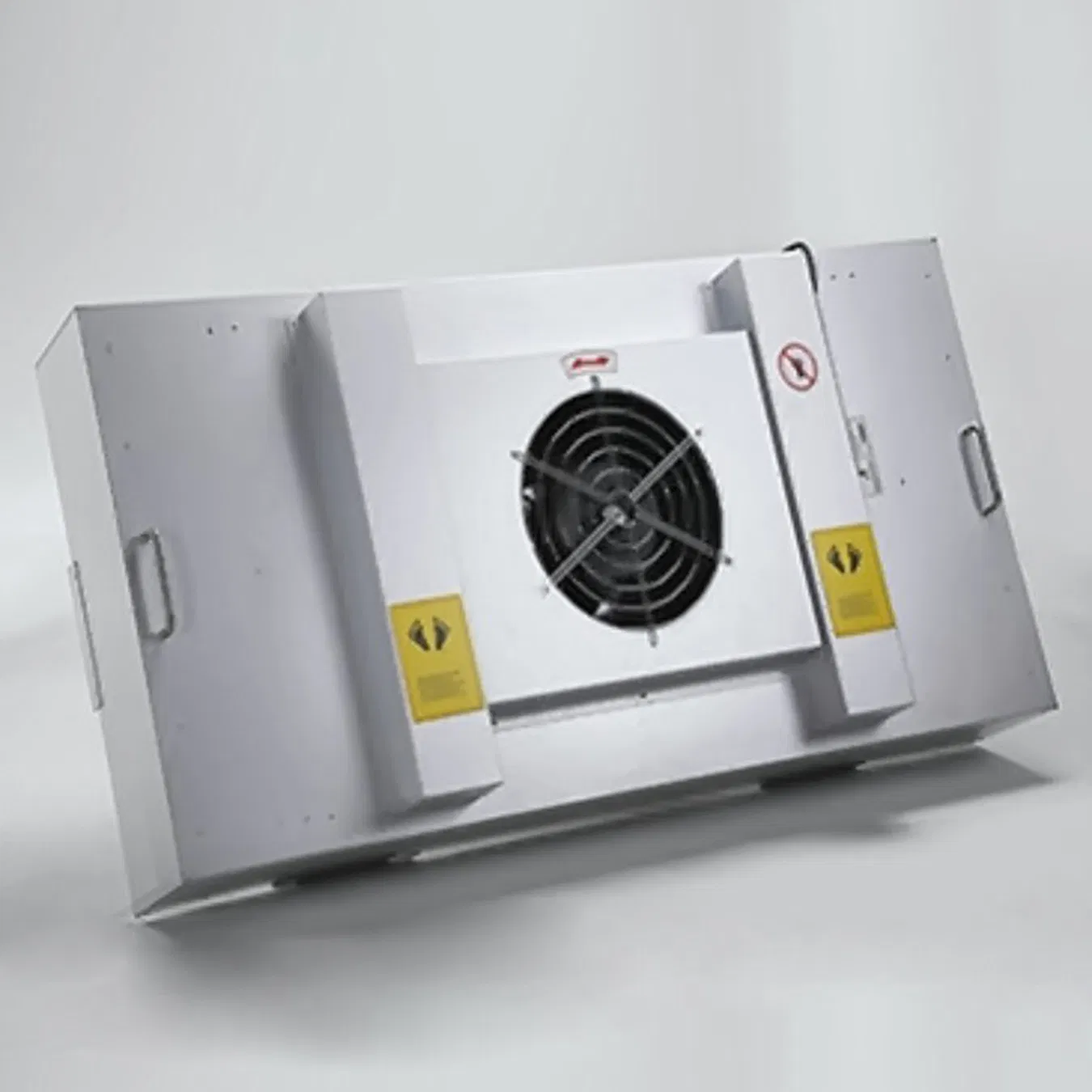

FFU units can work independently or in groups to achieve 100-grade local purification. Versatile for various clean room configurations.

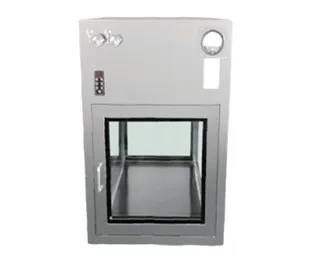

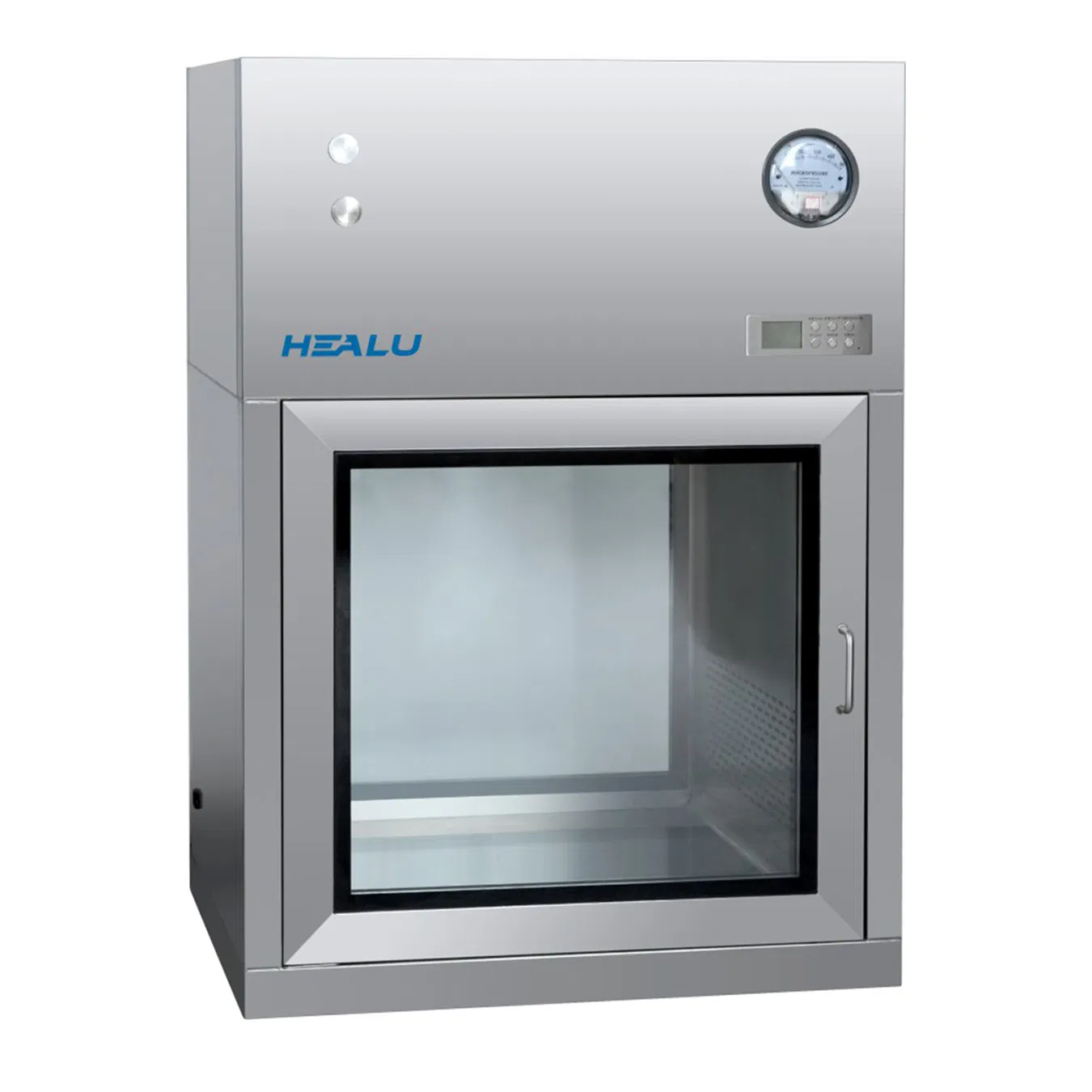

Facilitates material transfer into aseptic areas under Class A protection. Includes UV sterilization and optional ozone generation. Ideal for transitions between Class C and Class B areas.

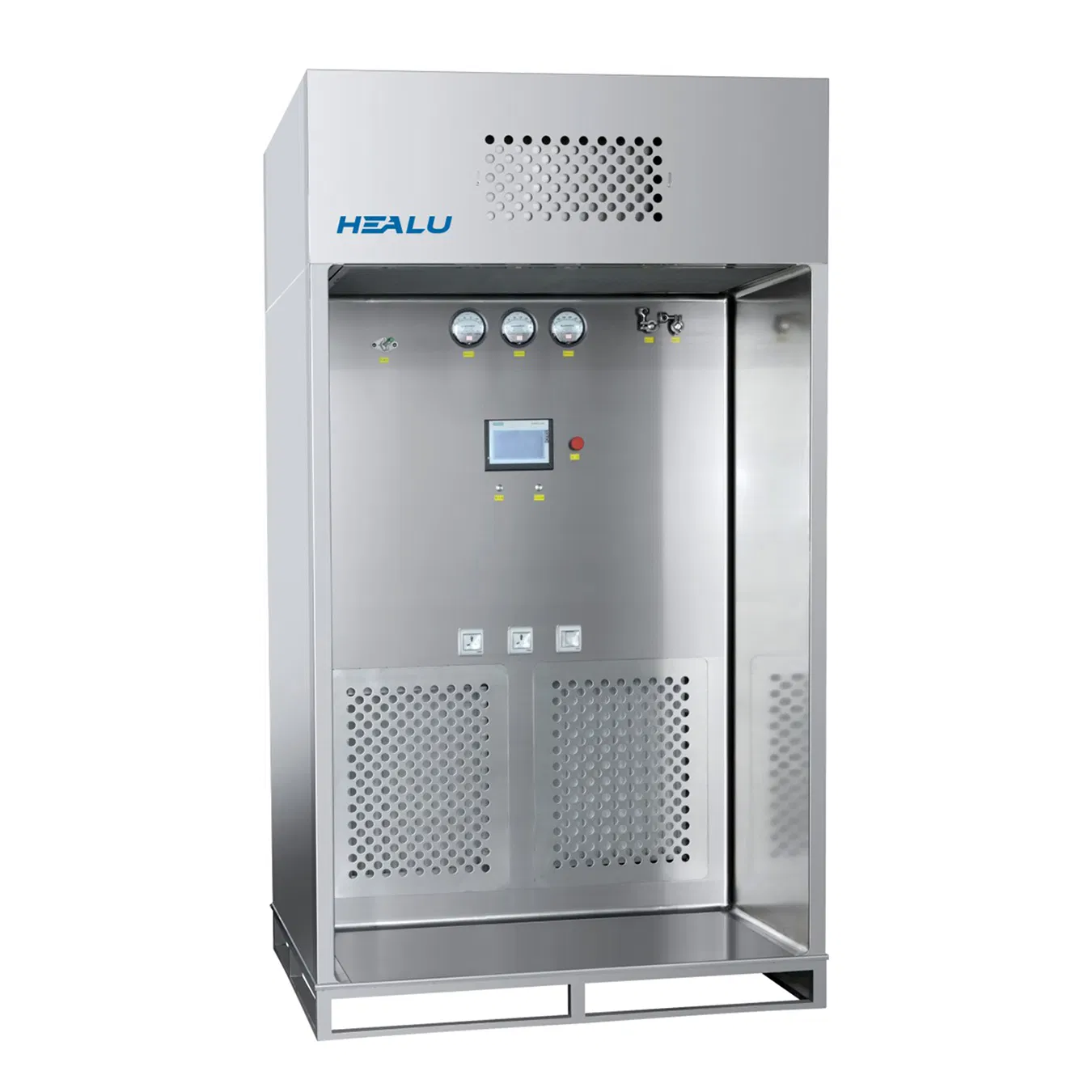

Designed for weighing dusty materials like active carbon. Negative pressure prevents dust dispersal, protecting the environment and operators from cross-contamination.

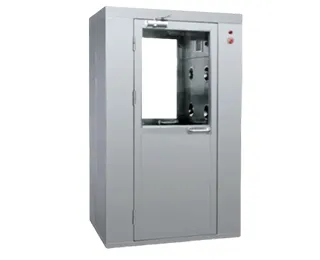

Air Shower (LASR): Vital passage for personnel and cargo to remove dust before entering clean areas using high-speed filtered air.

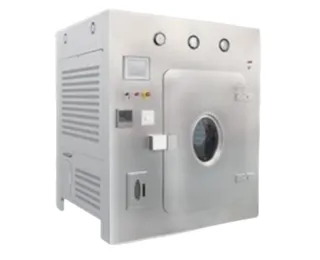

Aseptic Transfer Compartment (LATM): Uses vaporized hydrogen peroxide (VHP) for surface sterilization during transfer from low-level to high-level clean areas.

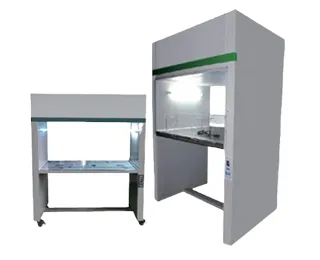

Clean Bench (LCW): Provides local high-purity air flow (horizontal or vertical) for laboratory and precision manufacturing tasks.

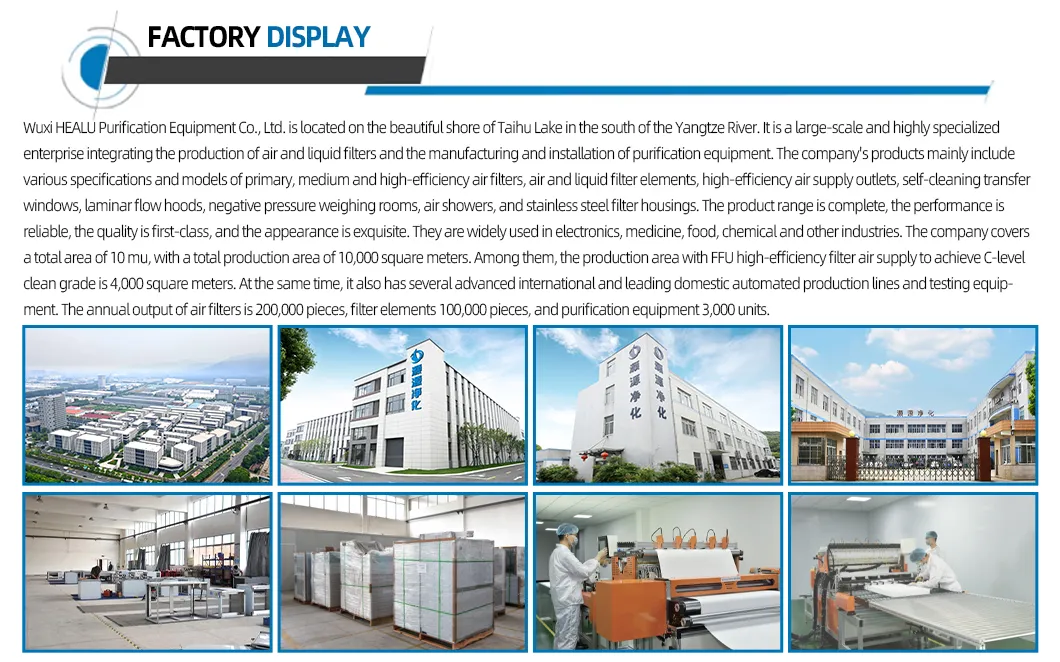

Our facility is a large-scale specialized enterprise integrating the production of air and liquid filters with the manufacturing of advanced purification equipment. Our product range includes primary, medium, and high-efficiency air filters, laminar flow hoods, negative pressure weighing rooms, and stainless steel filter housings.
The production area covers 10,000 square meters, including a 4,000 square meter C-level clean grade zone equipped with FFU high-efficiency filters. With international automated production lines and advanced testing equipment, we achieve an annual output of 200,000 air filters and 3,000 units of purification equipment, serving industries in electronics, medicine, food, and chemicals.
