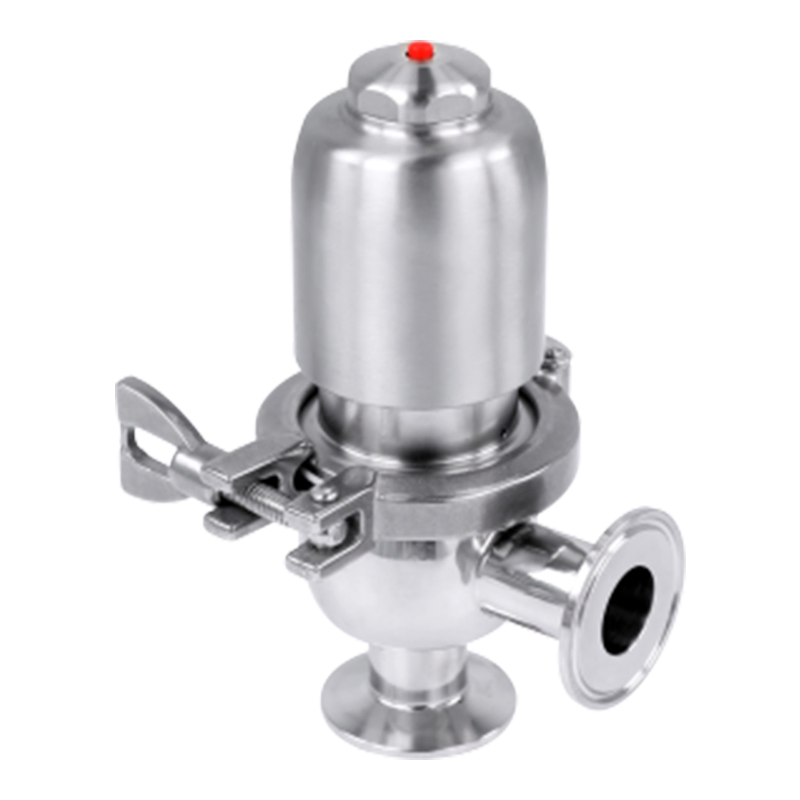

Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
1 / 5
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection
Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection

Hygienic SS316L Pneumatic Diaphragm Radial Valve with Welded Connection

Customization: Available
Media: Water
Temperature: Ordinary Temperature
Send Inquiry

Product Description

Basic Information
Actuator:Pneumatic
Connection:Welded Diaphragm Valve
Material:Stainless Steel
Structure:Radial
Pressure:Low Pressure
Flow Direction:Radial
Usage:Flow Control
Standard:DIN, GB, ANSI, SMS, Rjt, Idf, 3A
Max. Pressure:6 Bar
Working Temperature:-10°C to 120°C
Gasket:EPDM+PTFE
Specification:1/2"-3", Dn10-Dn80
HS Code:8481804090
Production Capacity:500PCS/Month
Product Description

Hygienic SS316L Pneumatic Diaphragm Radial Valve With Welded Connection

Hygienic SS316L Pneumatic Diaphragm Radial Valve

Diaphragm valve, with manual and pneumatic operation, is specially used in the hygiene and aseptic process in pharmaceutical industries. The valve is specially suitable for flow control and on/off operation. Compared with other valves in design, it is more easily cleaned and performs better on media with particles.

ITEMRadial Diaphragm valve
Material of valve bodySS316L
Seal materialEPDM+PTFE, EPDM
Size1/2-3 INCH
Max. temperature-10~120 degree centigrade (up to diaphragm gasket)
Max. pressureStandard NC: EPDM (6BAR), PTFE (4.5BAR); Optional NC/NO/AA up to 8BAR
Casting valve body1.4404/316L
Forging valve body1.4404/316L, ASME BPE/1.4435 Nb2 Fe < 0.5%
Connection wayWelded, clamped, flanged, threaded
Optional operationPneumatic actuator, electric actuator, control unit, positioner etc.
ApplicationDairy, food, beverage, pharmacy, cosmetic etc.
Certification3A, CE, ISO, FDA
Standard3A/BPE/DIN/ISO/IDF
Diaphragm Valve View
Separator

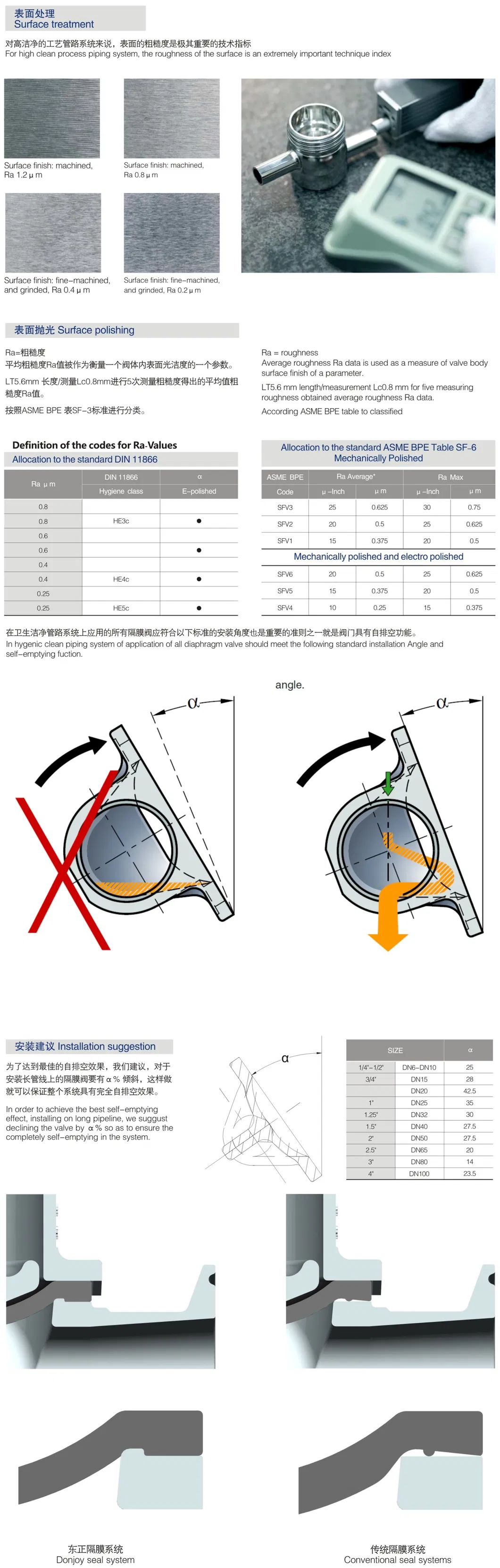

Technical Drawing 1

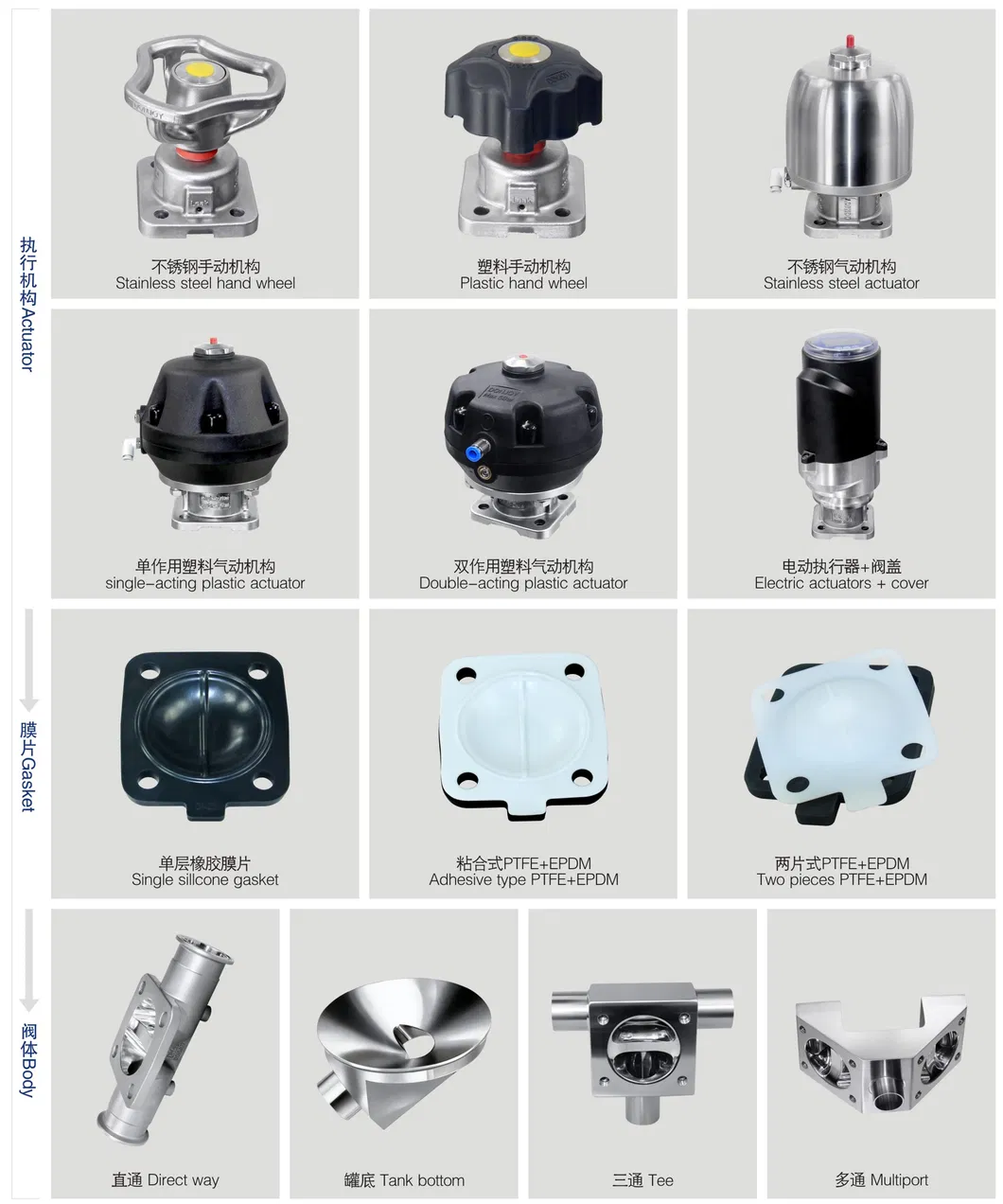

Technical Details
Separator 2

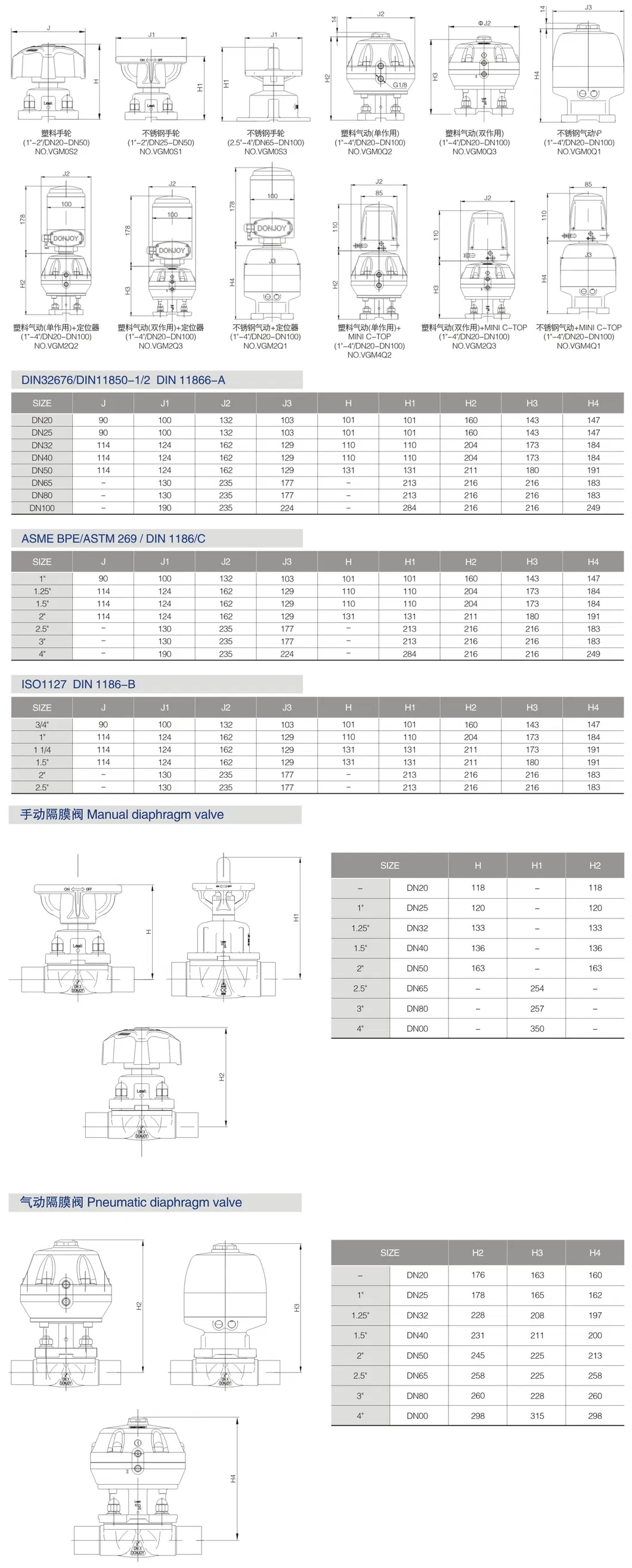

Technical Drawing 2

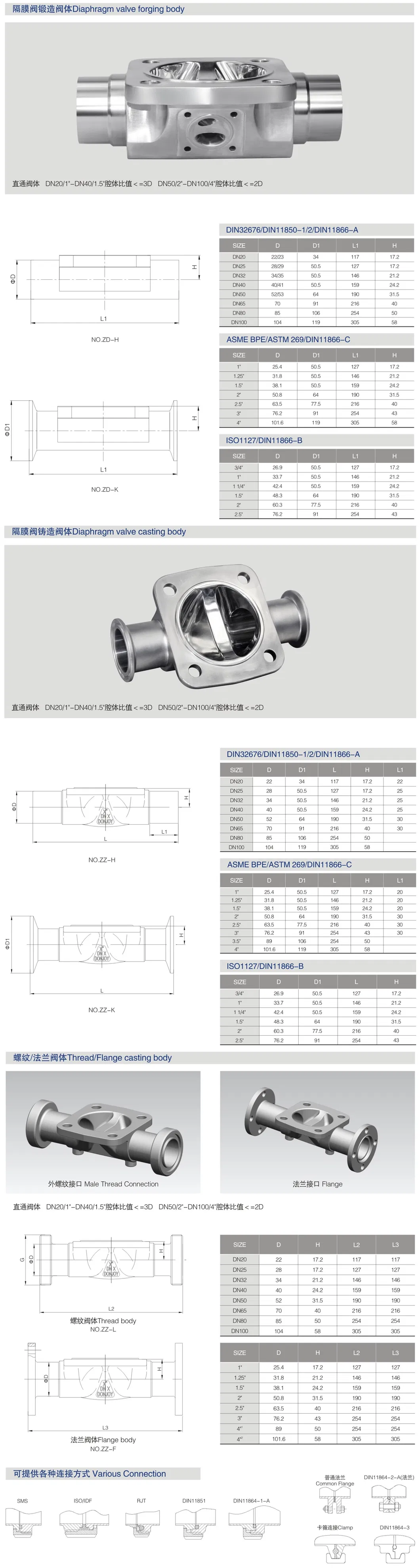

Technical Chart

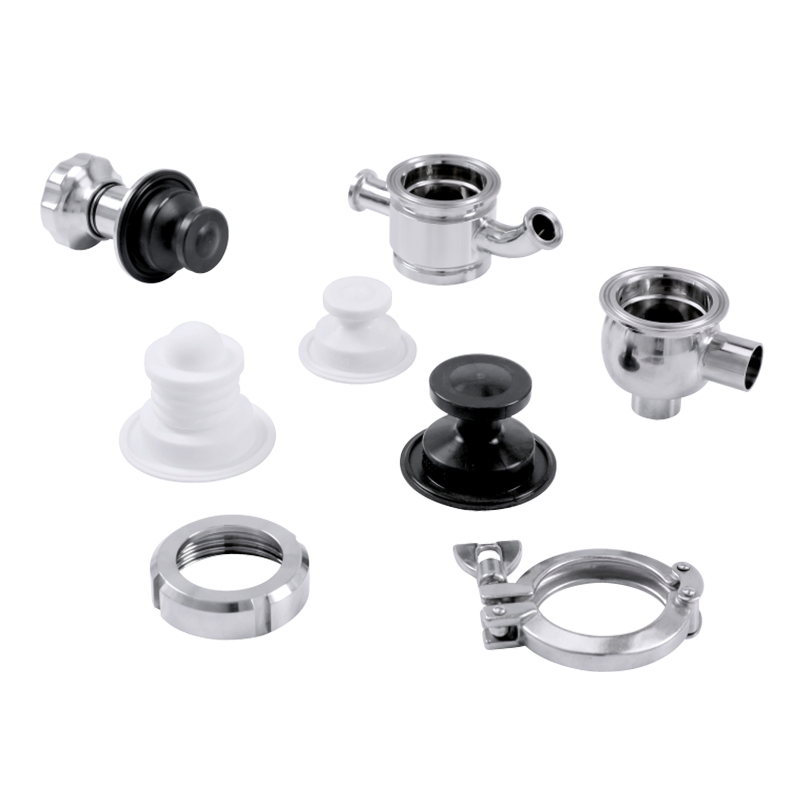

Valve Component
Valve Body
Dimensions
Frequently Asked Questions
What industries are these radial diaphragm valves used in?
These valves are specifically designed for high-hygiene industries such as dairy, food processing, beverage production, pharmaceuticals, and cosmetics.
What is the advantage of the radial design?
The radial structure allows for better flow control and makes the valve much easier to clean and sterilize, which is critical for aseptic processes.
Which seal materials are available?
We offer high-durability seals including EPDM and composite EPDM+PTFE, suitable for various chemical and temperature requirements.
Can this valve handle high temperatures?
Yes, it can operate efficiently in temperatures ranging from -10°C up to 120°C, depending on the diaphragm gasket material used.
What international certifications do these valves hold?
Our diaphragm valves comply with major international standards including 3A, CE, ISO, and FDA, ensuring global safety and quality compliance.
What are the available connection methods?
To provide maximum flexibility for different piping systems, these valves can be supplied with welded, clamped, flanged, or threaded connections.
