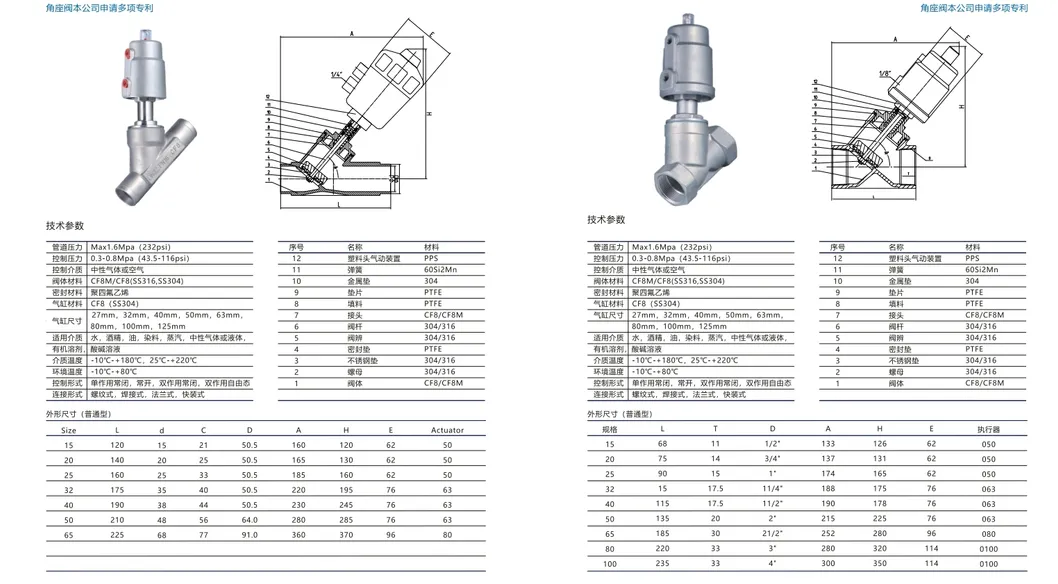

| Model | SYASV-2 | Application | Food, Pharmacy, Biological |
|---|---|---|---|

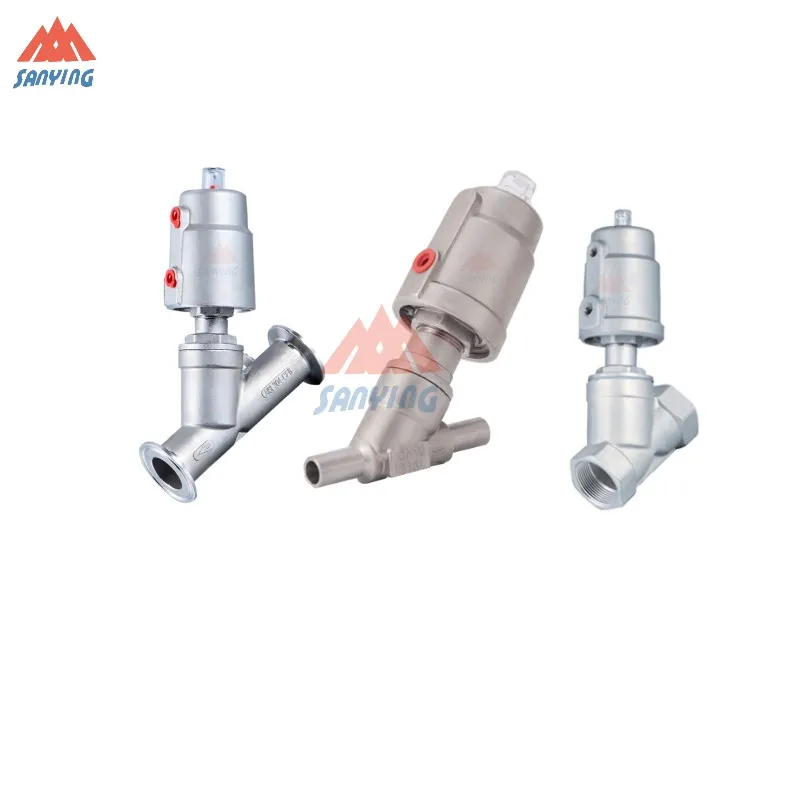

| Type | Pneumatic Single Actuating Angle Seat Valve | Structure | 45 Degree Y Type |
| Power | Pneumatic | Material | Stainless Steel 304 / 316L |
| Seal Material | PTFE (FDA Approved) | Fluid Pressure | 0~1.6MPa |
| Fluid Temp | 0~120°C (Up to 135°C with specific membranes) | Size Range | 1/2" to 4" |

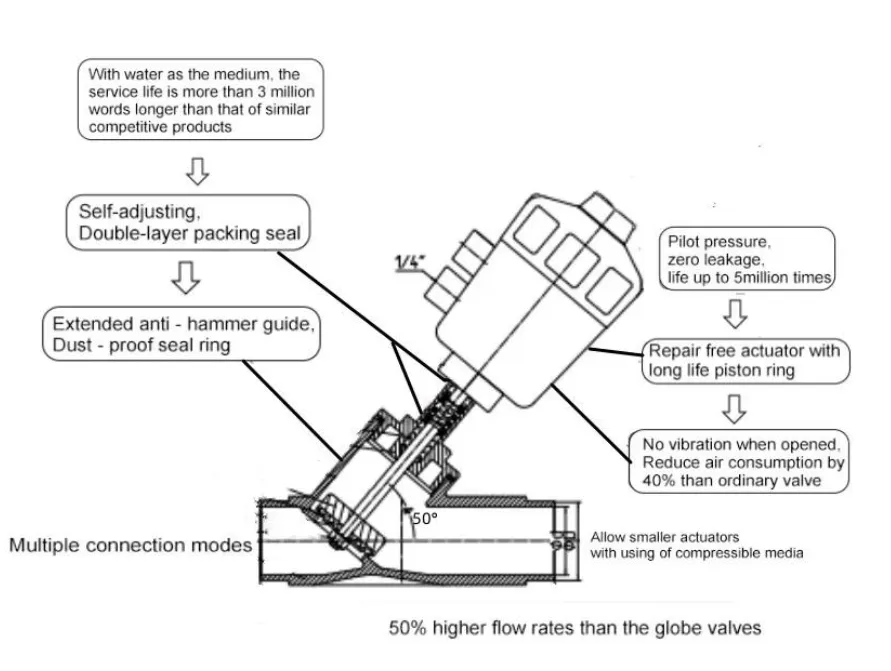

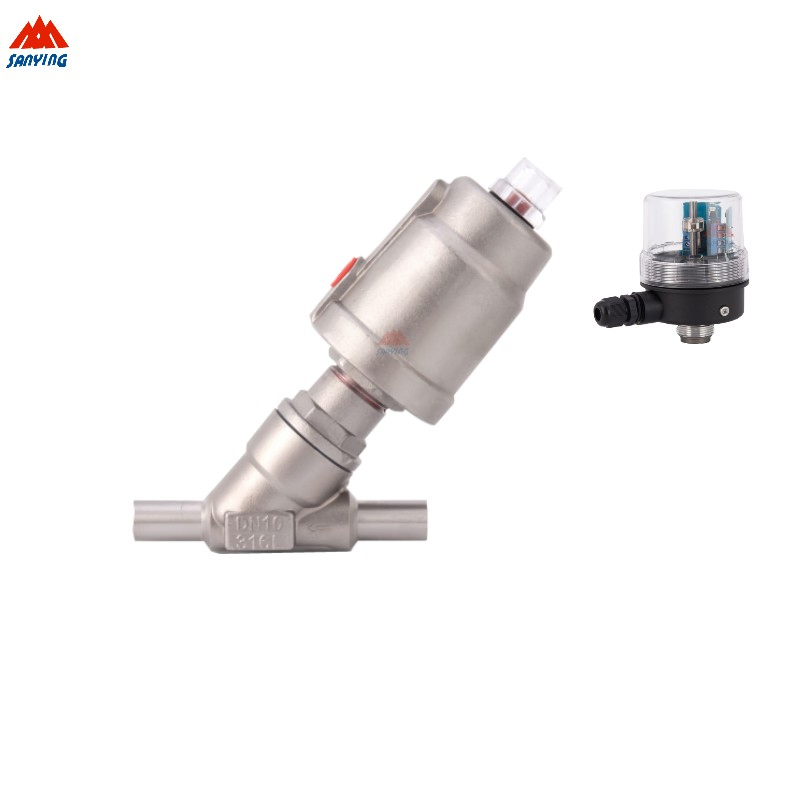

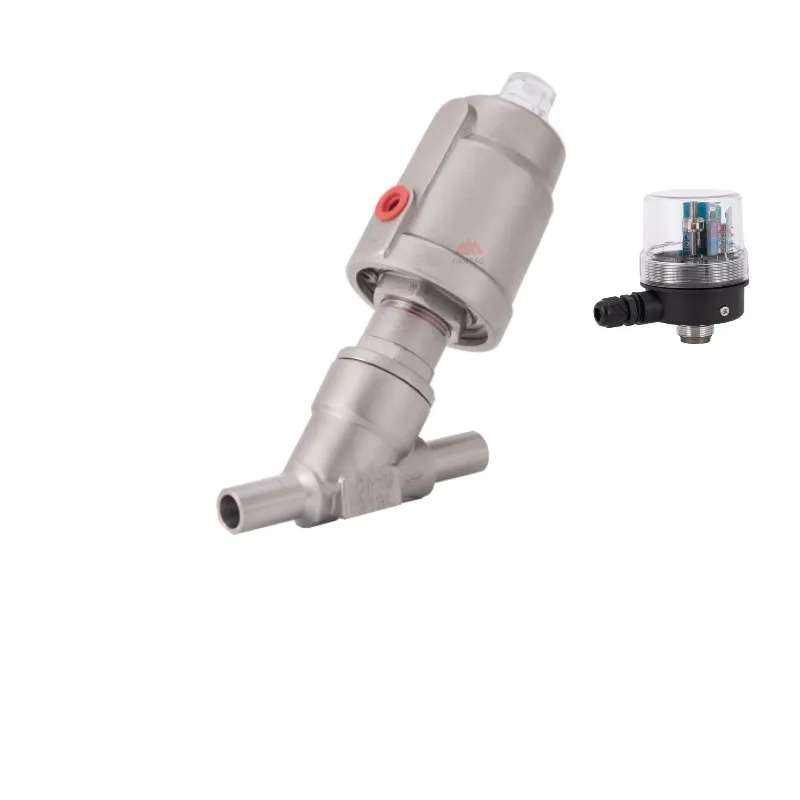

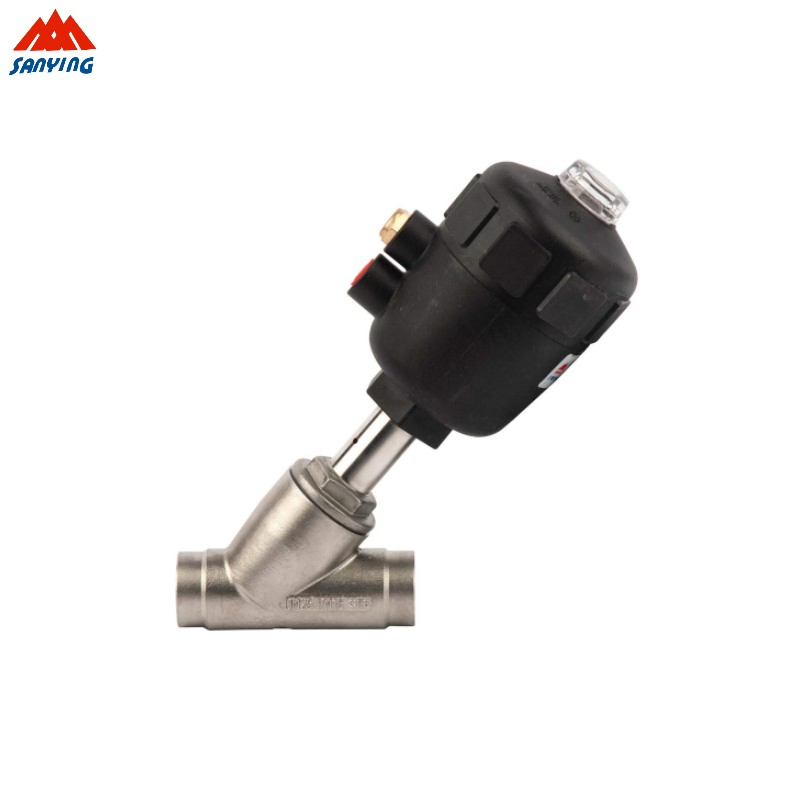

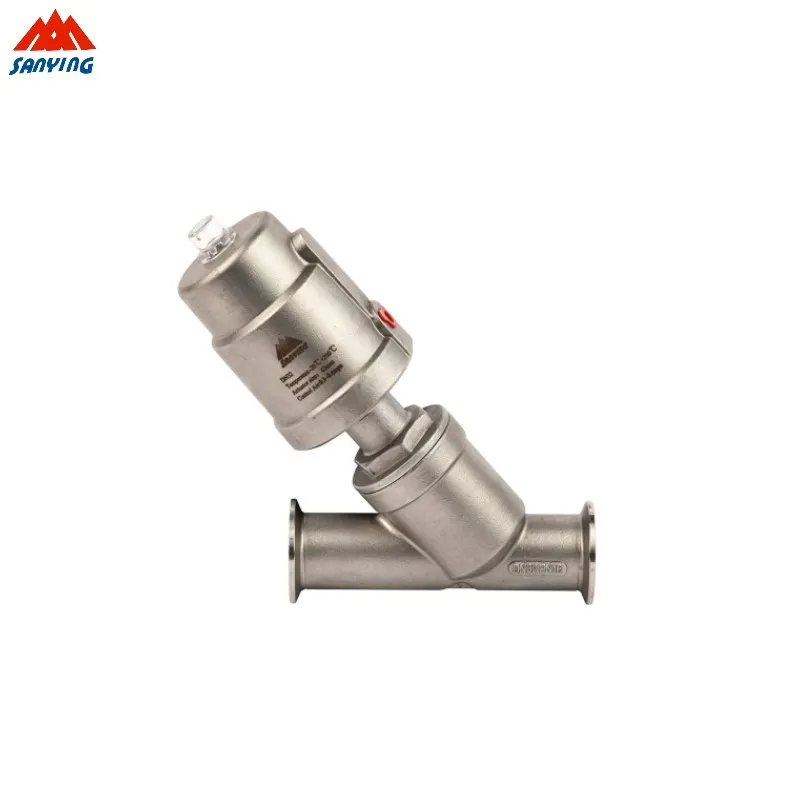

This sanitary angle seat valve features a valve body with a double spring gasket to ensure the valve and body are closely connected without falling off. Designed with a thickened stainless steel body, it provides exceptional quality assurance for high-pressure environments.
| Feature | Butterfly Valve | Check Valve | Diaphragm Valve | Angle Seat Valve |
|---|---|---|---|---|
| Size | 1/2"-4" | 1/2"-1" | 1/2"-4" | 1/2"-2.5" |
| Material | SS304, SS316L | SS304, SS316L | SS316L | SS304, SS316L |
| Max Temp | 130ºC | 130ºC | 120ºC | 180ºC |
| Inside Ra | 0.8 | 0.8 | 0.4 | 0.6 |
| Seal | Silicone/EPDM | FPM/EPDM | EPDM+PTFE | PTFE |

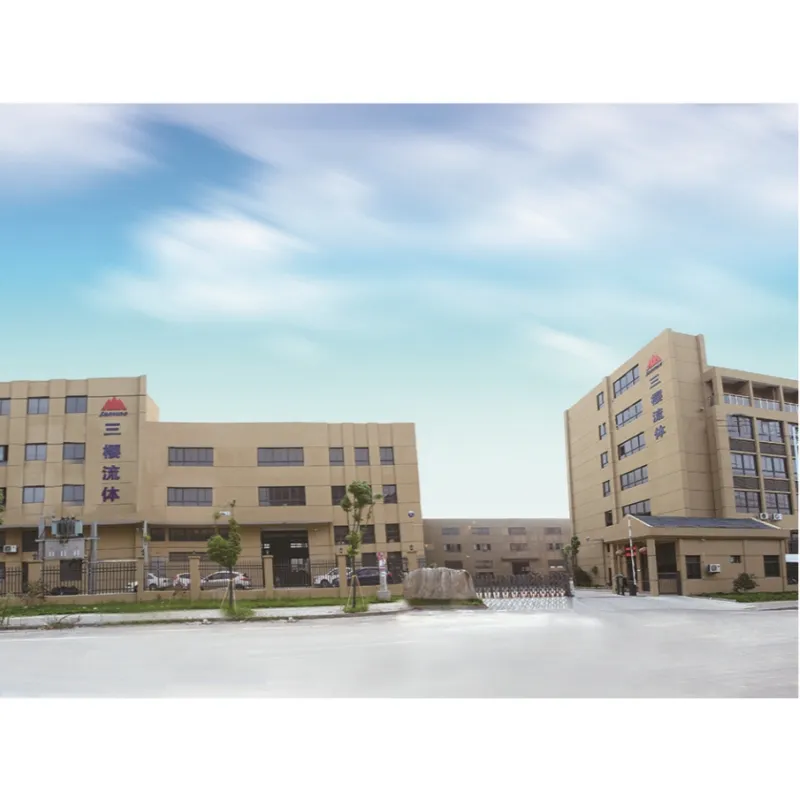

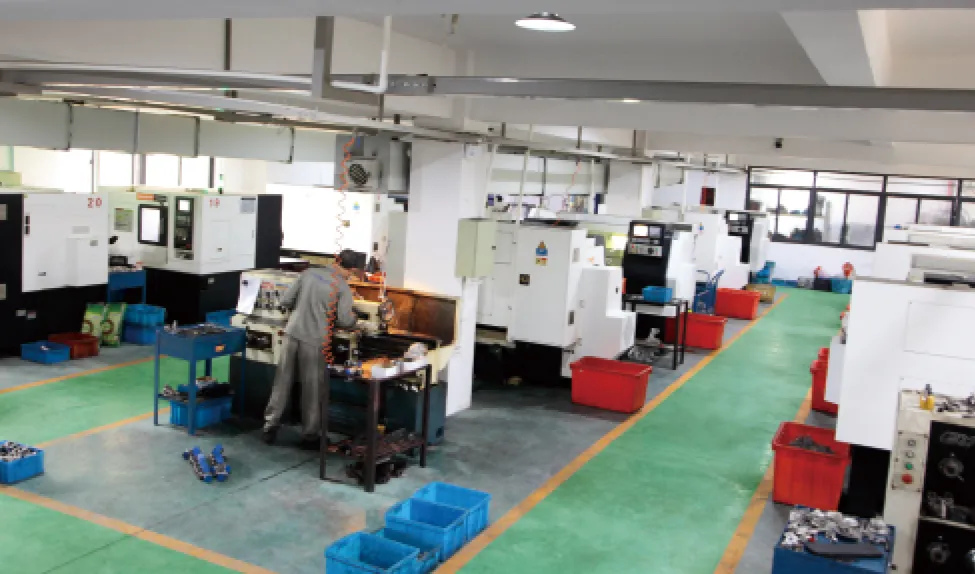

Equipped with state-of-the-art facilities including 29 sets of LG Mazak CNC machines and various testing instruments like spectro PMI, material testing machines, and roughness detectors.

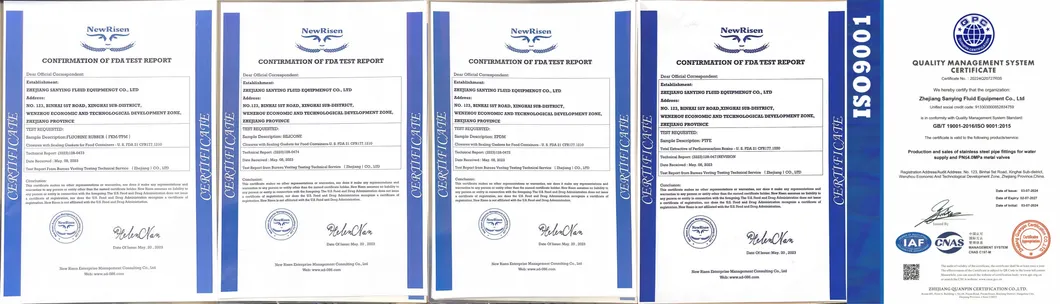

| FDA: FPM | FDA: SILICONE | FDA: EPDM | FDA: PTFE | ISO9001 |
