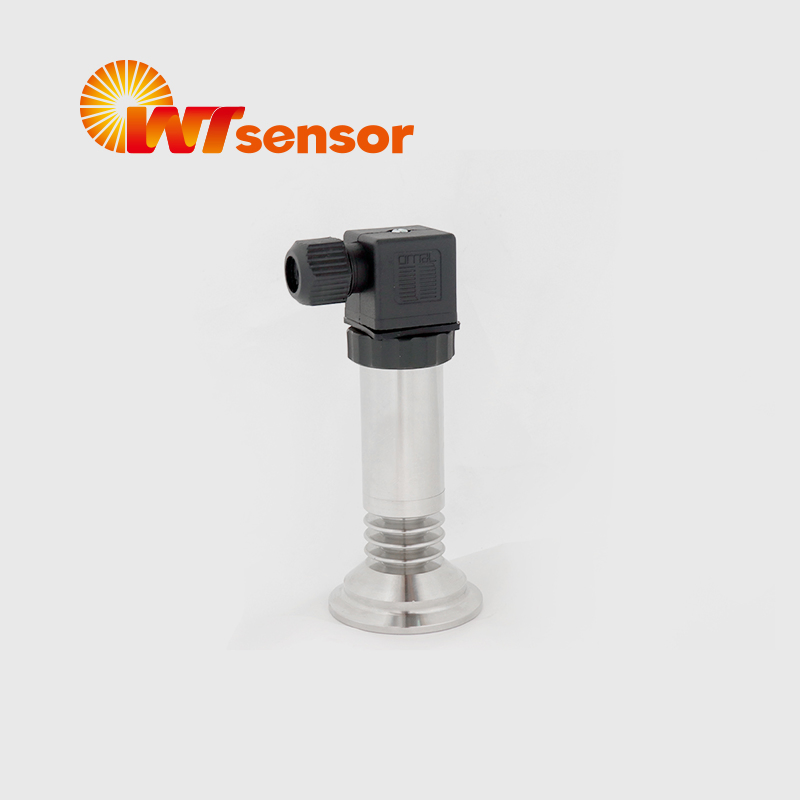

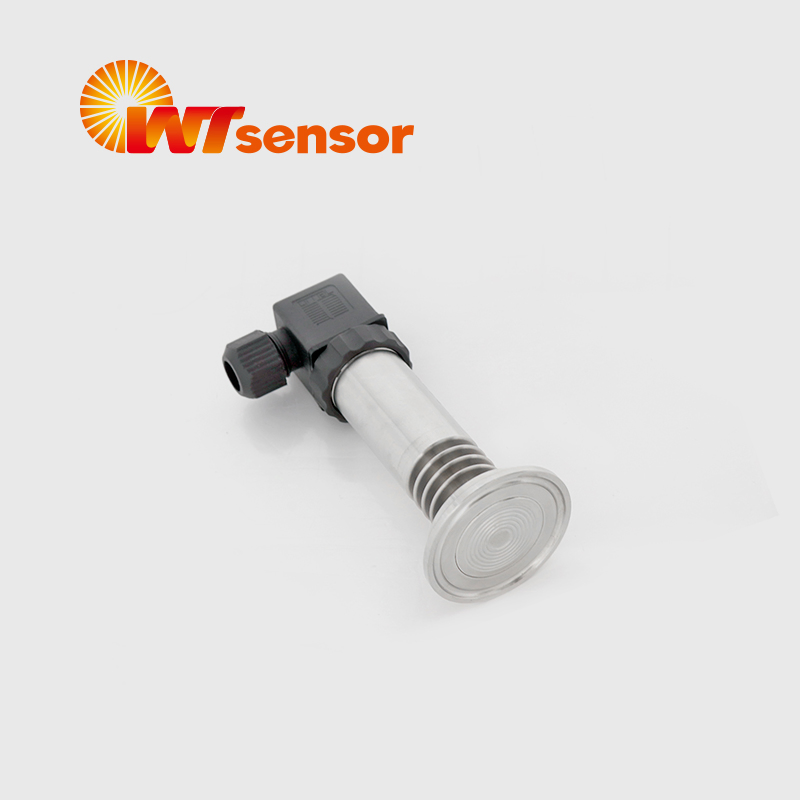

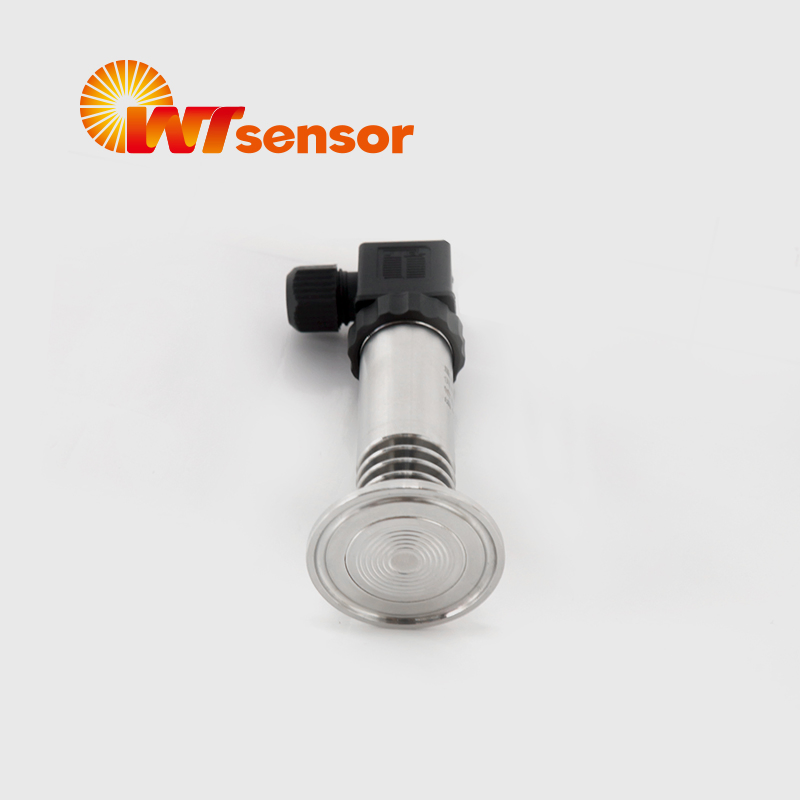

PCM1350 Flush Pressure Transmitter is applicable to food, beverage, pharmaceutical and biological engineering. Full metal flush-mounting isolation diaphragm is directly welded with process connection to ensure the precision connection between process connection and measuring diaphragm. Therefore, no additional sealing gaskets are required, and it ensures there are no measurement dead zones. The stainless steel 316L diaphragm separates the measuring medium from the pressure sensor, and the process pressure from the diaphragm to the piezoresistive sensor is transferred statically through the filling fluid which has the hygienic license.
| Pressure Range & Signal | |
| Pressure range | -100kPa…0~35kPa…2.5MPa |
| Pressure reference | Gauge pressure | Absolute pressure | Sealed gauge pressure |
| Overpressure | 300%F.S.(≤70kPa) | 200%F.S.(<10MPa) |
| Output | 4 to 20mA | 0.5 to 4.5V | 1 to 5V | 0 to 5V |
| Performance Specification | |
| Accuracy | ±0.5%F.S. (Typical) |
| Supply | 24VDC | 12VDC | 5VDC |
| Hysteresis / Repeatability | 0.1%FS |
| Response time | ≤1ms(Up to 90%FS) |
| Service life | ≥1×10^6 pressure cycles |
| Protection | IP67 |
| Insulation resistance | ≥100MΩ/250VDC |

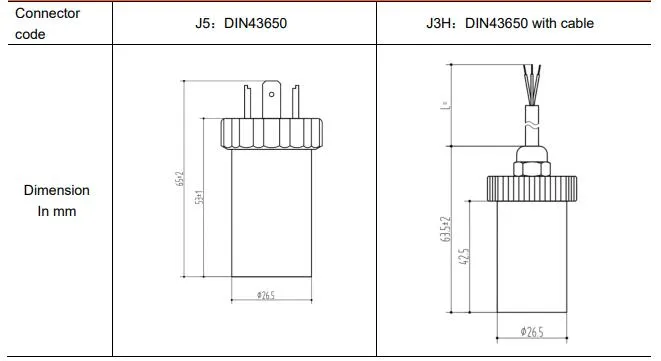

| Electrical connection | DIN43650 |
