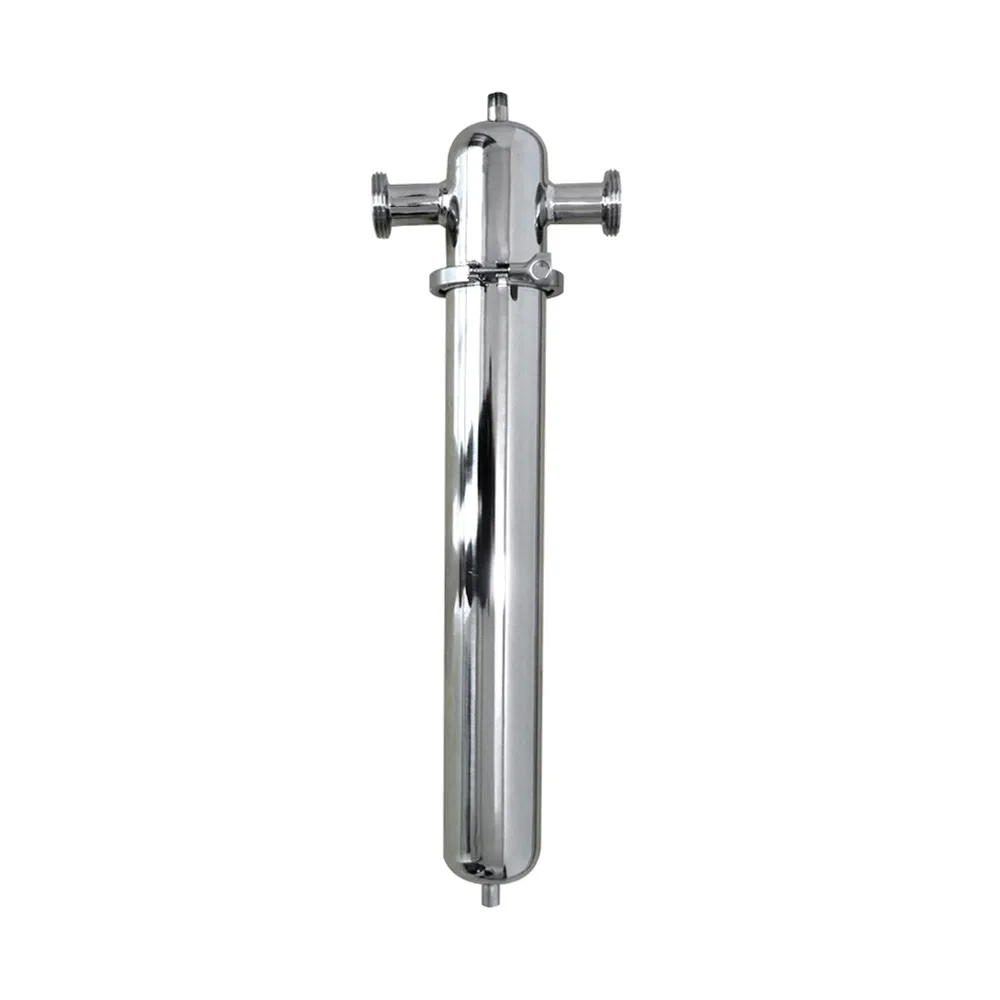

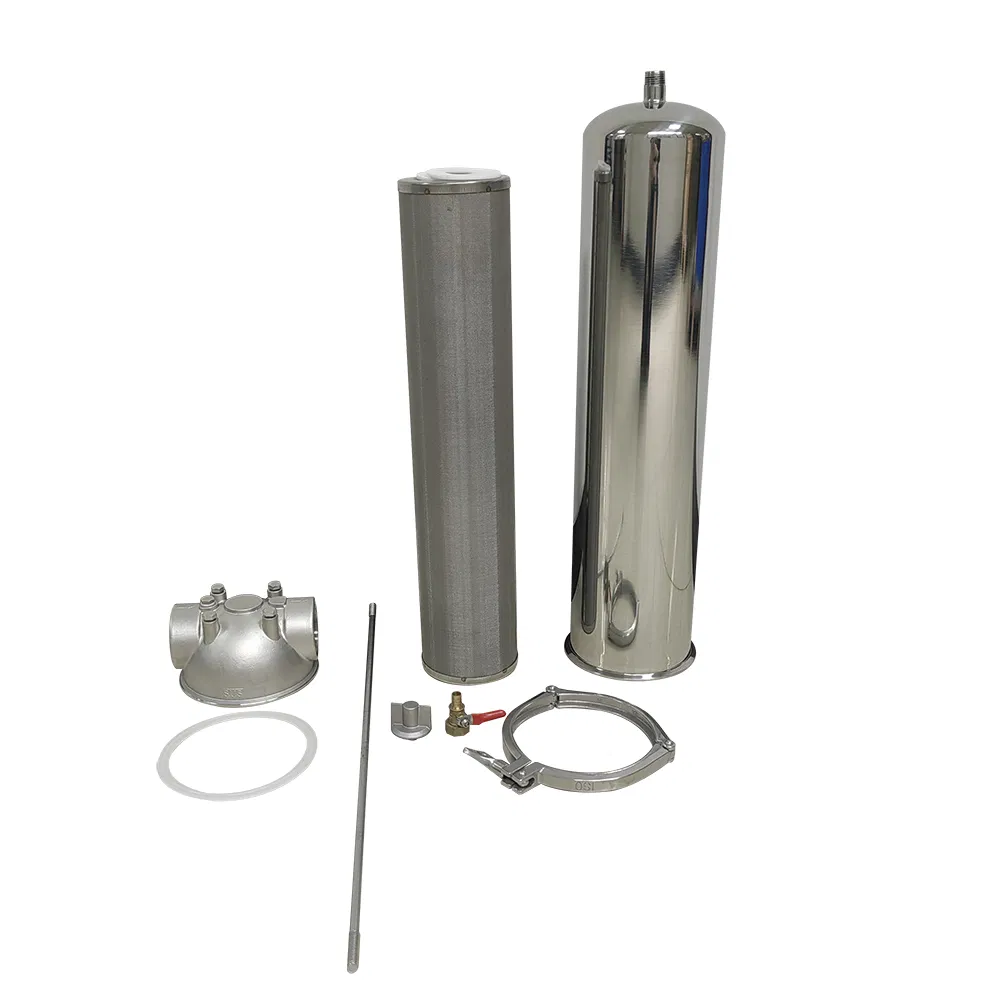

Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
1 / 5
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection
Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection

Single Filter Code 10/20/30/40 Inch Ss 304 316 Stainless Steel Water Cartridge Filter Housing with Clamp Connection

Customization: Available
Material: Stainless Steel
Medium Material: Stainless Steel
Send Inquiry

Product Description

Basic Specifications

Model NO.
LY-SFH
Type
Single Cartridge Filter Type
Usage
Liquid Filter
Filtration Grade
PRE Filter
Cartridge Installation
Vertical Lifting
Length
10/20 Inch
In & Out Port
1/2", 3/4", 1"
Max. Pressure
5-15kg
Drain Port
1/4"
O-Rings
NBR, Fluorine Rubber, Teflon
Thickness
2mm
HS Code
8421999000

Product Applications

Single filter code 10/20/30/40 inch SS 304 316 stainless steel water cartridge filter housing with clamp connection:

Widely used in UF, RO, EDI security filtration and end-filtration, medicine injection, large infusion, eye drops.
Chinese herbal medicine liquid filtration, biological agents extraction, purification and concentration.
Electronics and semiconductor industry high purity water preliminary filter and terminal filter.
Oil field water injection, boiler makeup water, chemical reagent, and liquid organic products.
Drinking water, mineral water, fruit juice, tea beverages, and health drinks filtering.
Liquor, wine, beer, and fruit wine filtration; draft beer aseptic filtration.
Waste water treatment and water recycling process pre-treatment or security filtering.
Biological engineering, oil refining, printing, dyeing, and textile industry water supply.

Technical Parameters

Feature Specification
Housing materialSUS304/316L
Bag materialPP/PE/Nylon
In & out connectionFlange/Thread 3/4" to 2.5"
Seal materialEPDM/Silicone/Viton/PTFE
Surface treatmentPolished/Sandblast
Working temp.20~120 degree
Max. working pressure0.75-1.6Mpa
Bag Item Flow Rate(m³/h) Filtration area(m²) Length(mm) Bag Diameter(mm)
#1200.25410(16")180(7")
#2400.5810(32")180(7")
#360.1210(8.25")102(4")
#4120.15356(14")102(4")
#5250.3870(34")175(6, 7/8")

Models & Specifications

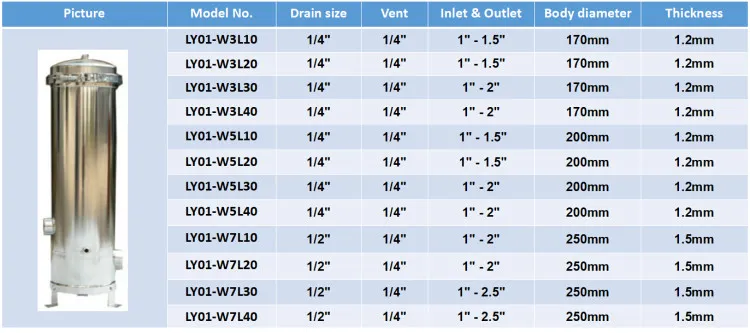

Specifications 1

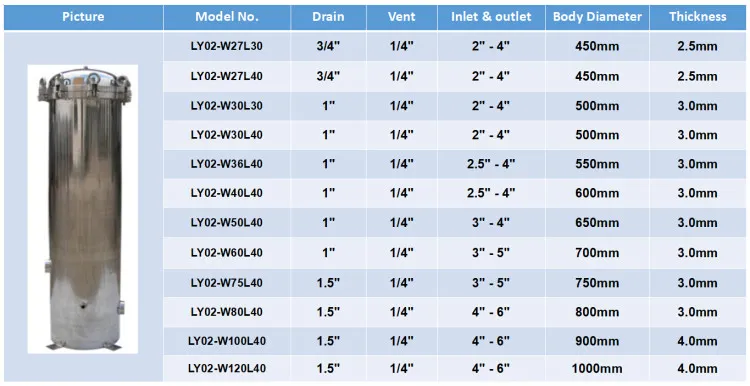

Specifications 2

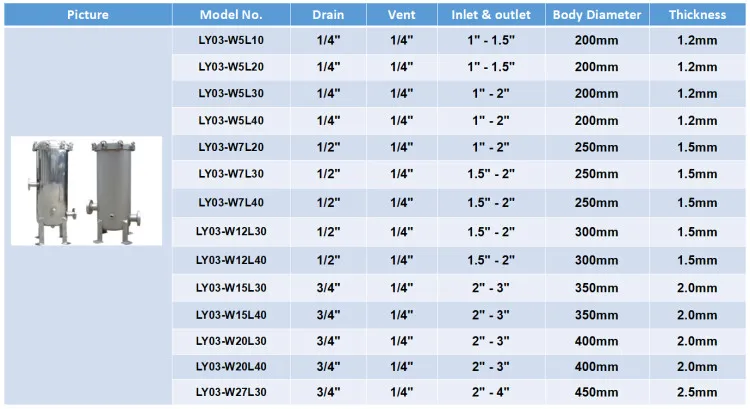

Specifications 3

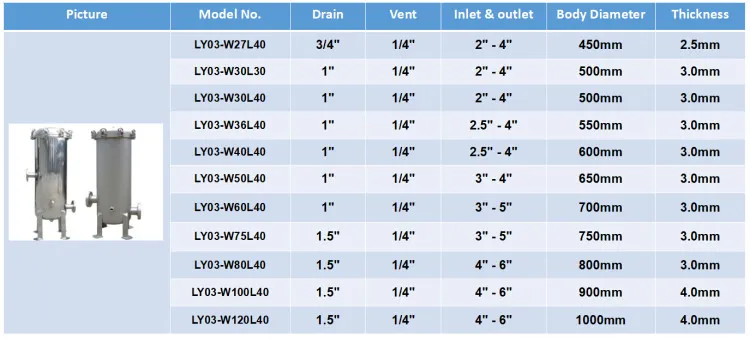

Specifications 4

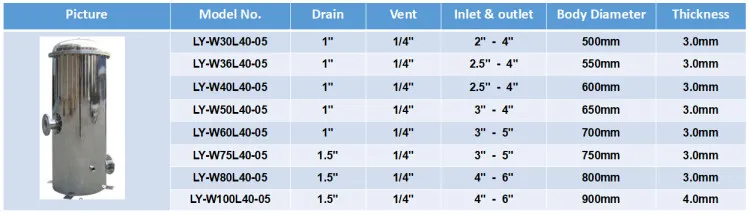

Specifications 5

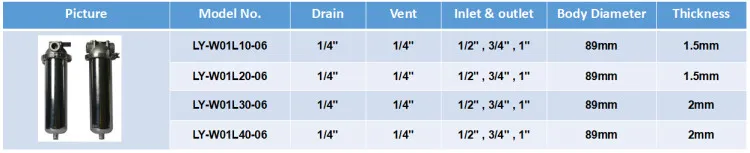

Specifications 6

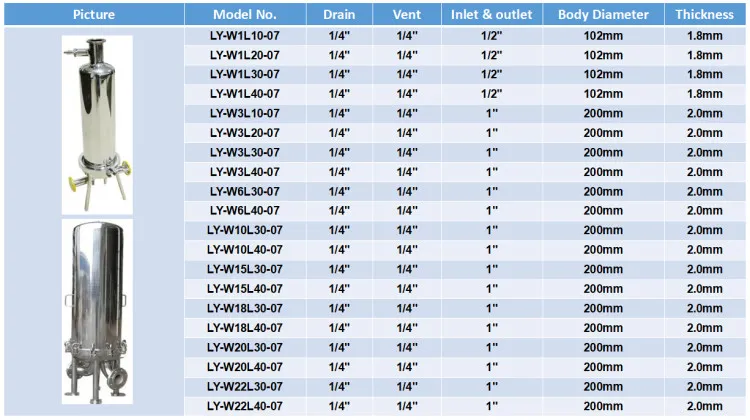

Comprehensive Chart

Product View

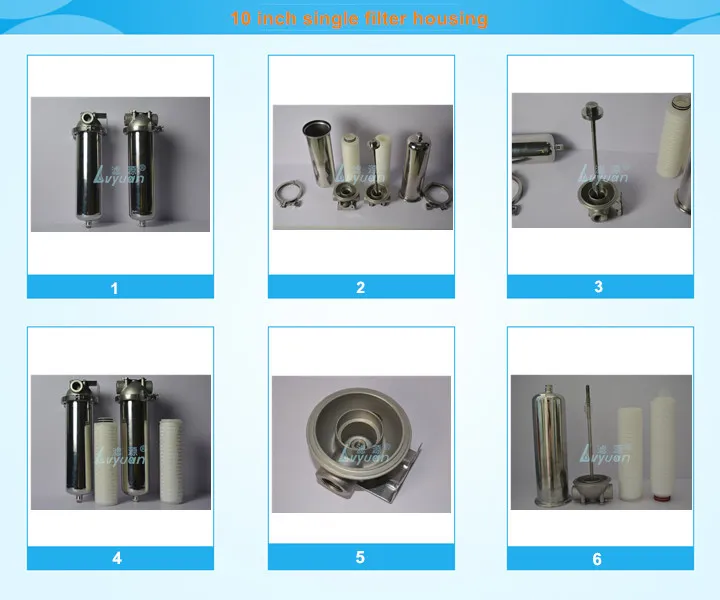

Single-cartridge filter housing
Single-cartridge filter housing

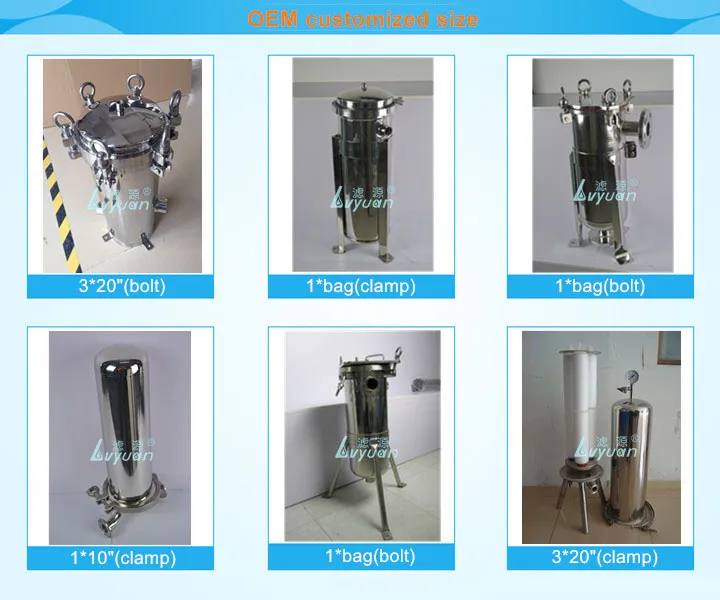

Multi-cartridge filter housing
Multi-cartridge filter housing
Single-bag filter housing

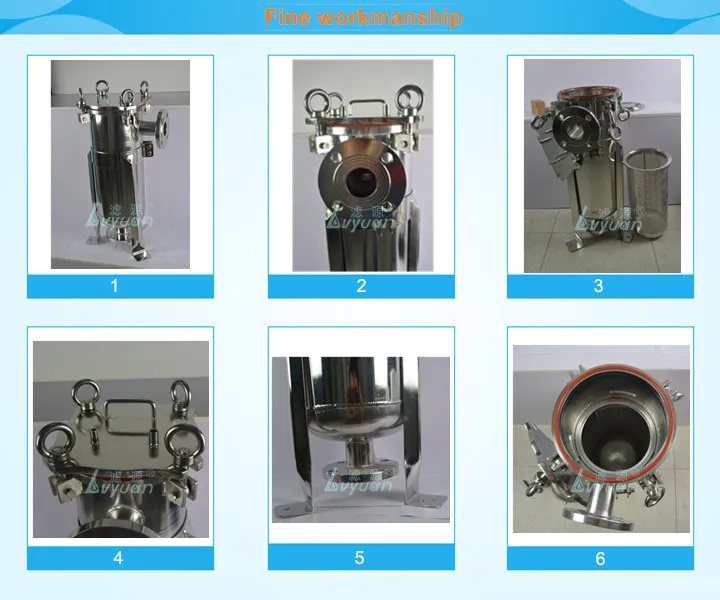

Single-bag filter housing 1

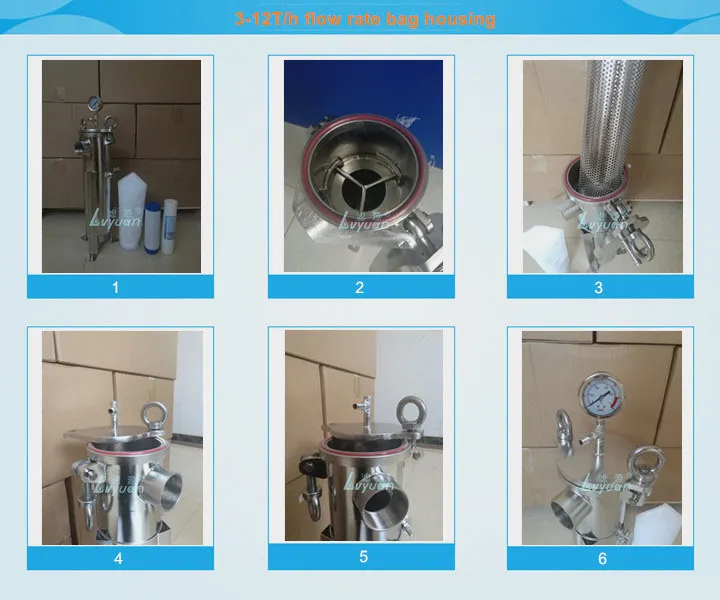

Single-bag filter housing 2
Model Selection

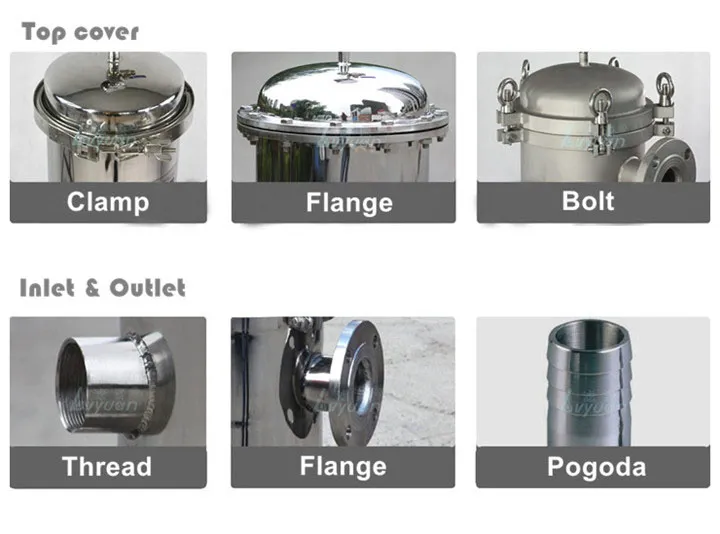

Different models selection

OEM customized services are available. Please send us your inquiry details.

Frequently Asked Questions

What materials are available for the filter housing?
The housings are primarily constructed from high-quality SUS304 or SUS316L stainless steel for excellent corrosion resistance.
What is the maximum working pressure for these housings?
The maximum working pressure ranges between 0.75-1.6Mpa (approximately 5-15kg depending on the specific model).
Which industries are these filter housings suitable for?
They are widely used in electronics, medicine, food and beverage, oil refining, and water treatment industries.
Can the seal materials be customized?
Yes, we offer multiple O-ring and seal options including NBR, Silicone, Viton (Fluorine Rubber), and PTFE (Teflon) to suit different liquid types.
What cartridge lengths are compatible?
Our housings support standard cartridge lengths of 10, 20, 30, and 40 inches.
What is the maximum operating temperature?
The equipment is designed to operate safely within a temperature range of 20 to 120 degrees Celsius.
