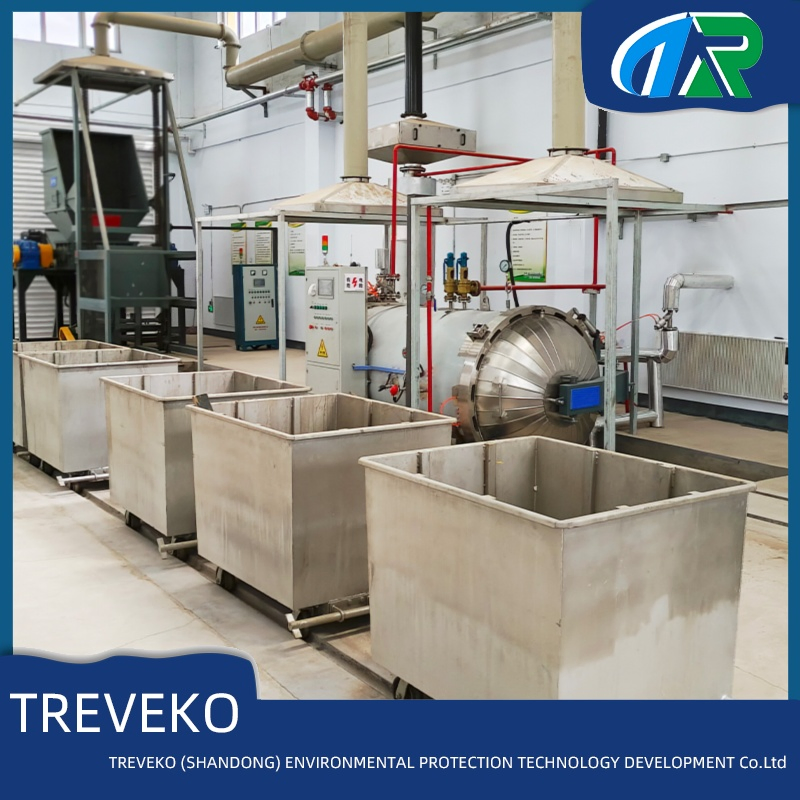

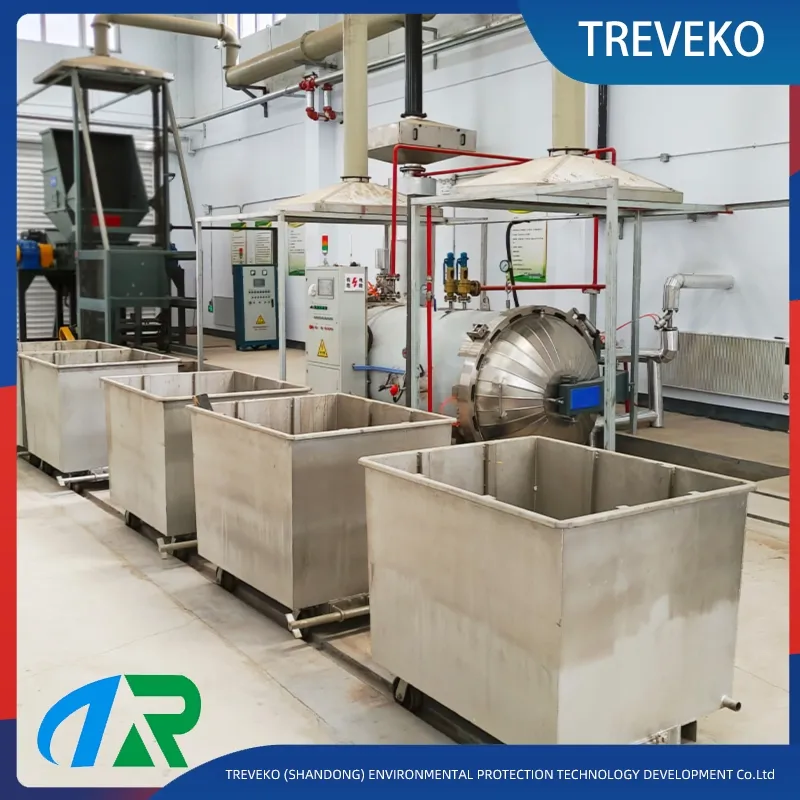

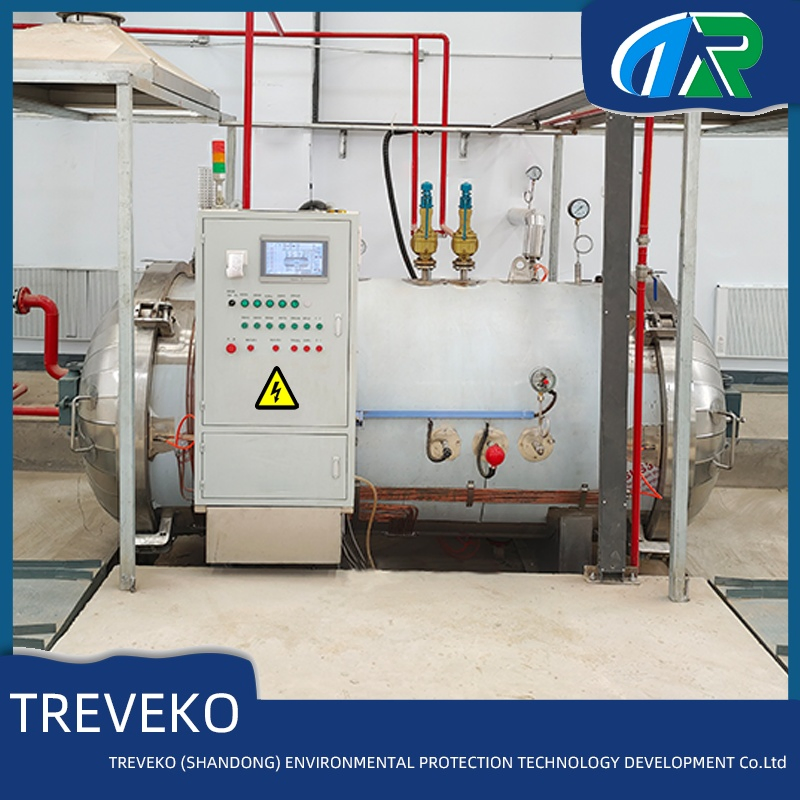

1. The medical waste emergency disposal project is designed to load medical waste into specialized sterilization vehicles, which enter a high-temperature steam treatment pot. After sterilization, the waste is crushed, destroying its shape and converting it into ordinary municipal waste suitable for landfill.
2. The system utilizes a pre-vacuum process to remove non-condensable gases and achieve bag-breaking effects. A post-vacuum process cools and dries the waste, physically reducing odors and ensuring safe disposal.

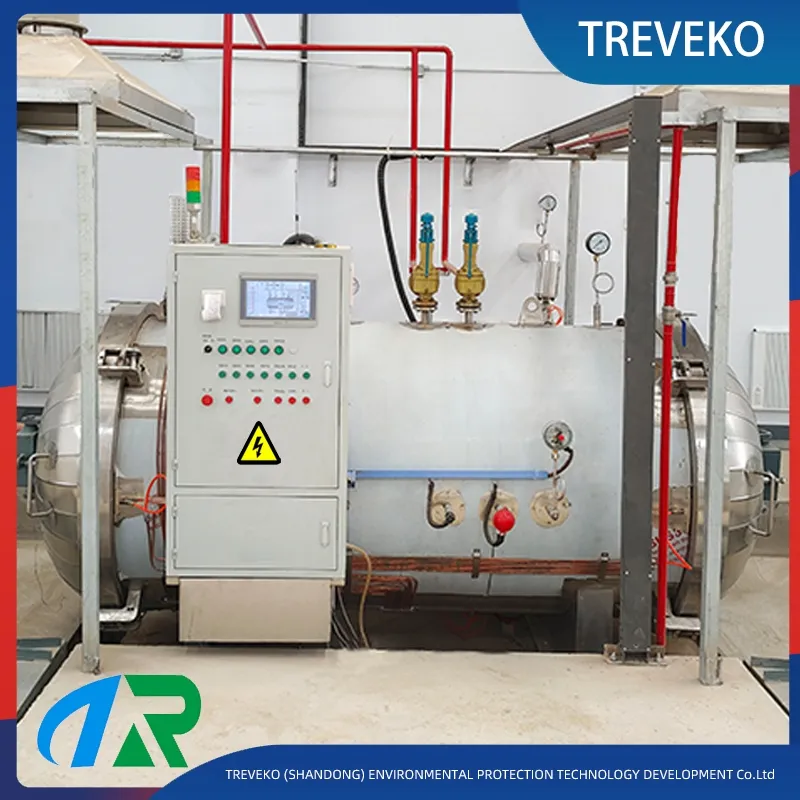

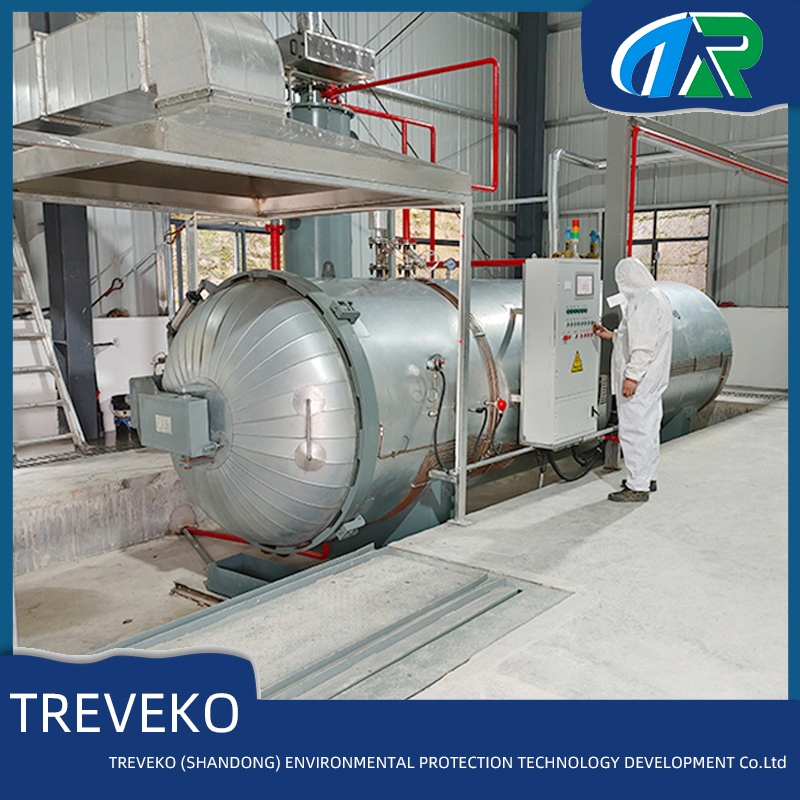

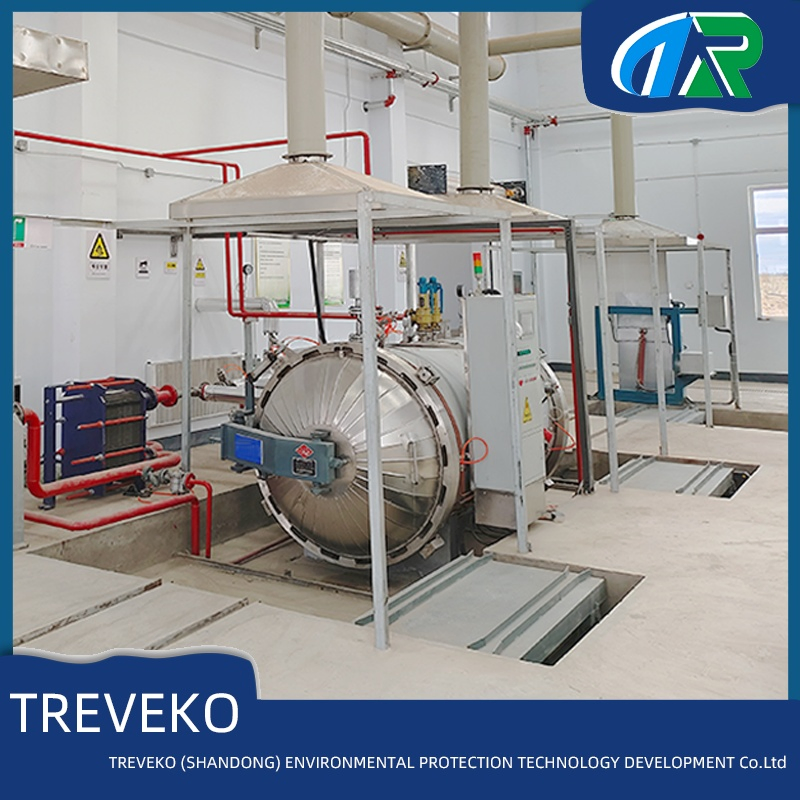

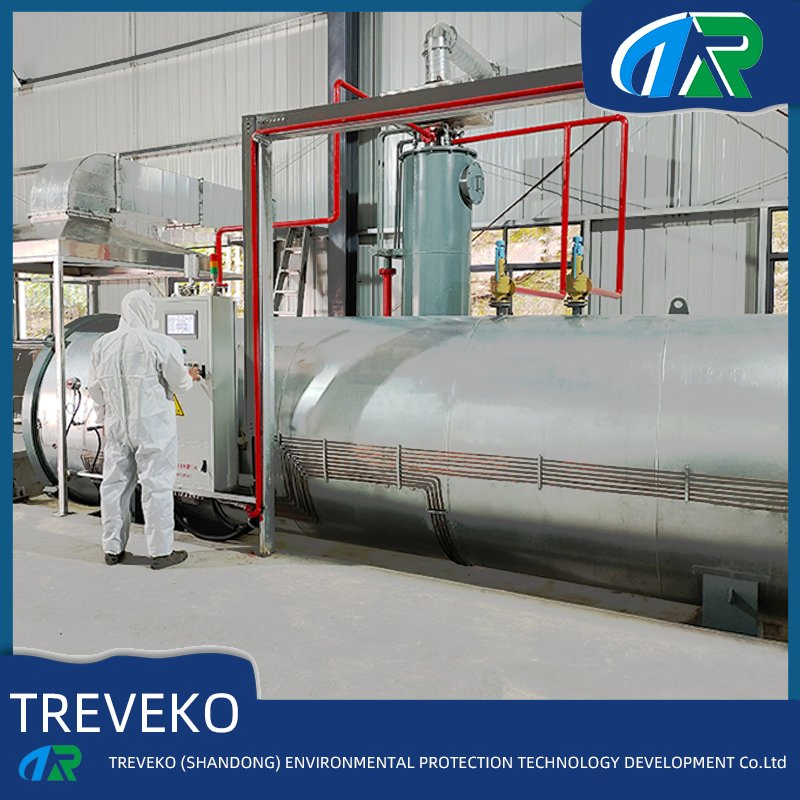

The complete high-pressure sterilization system includes: Sterilizer body (tank, instruments, sealing doors), 2 transfer carts, air compressor, water softener, electric steam generator, induced draft fan, photo-oxidation equipment, pipeline circulation pump, and PLC electrical control cabinet.
| System Unit | Project | 2.5T Type | 5T Type | 8T Type |
|---|---|---|---|---|
| Sterilization Tank | Volume | 2.5m³ | 10m³ | 12m³ |
| Material | SUS316 / Q345R (Design 0.8 MPa) | |||
| Water Softener | Power | 0.1KW | 0.2KW | 0.2KW |
| Output | ≥200KG/h | ≥500KG/h | ≥500KG/h | |
| Steam Generator | Power | 72KW×2 | 180KW×2 | 180KW×2 |
| Pressure | ≥0.7Mpa (Temp ≥170℃) | |||
| Exhaust Fan | Power | 7.5KW | 7.5KW | 7.5KW |
• Logistics providers are selected based on heavy medical equipment transportation experience.
• Full logistics tracking and insurance services are provided for all shipments.
• Custom labeling and tamper-proof designs facilitate easy warehousing and asset management.
• Rigorous "Packaging Inspection Standards" are enforced before any equipment leaves the factory.
