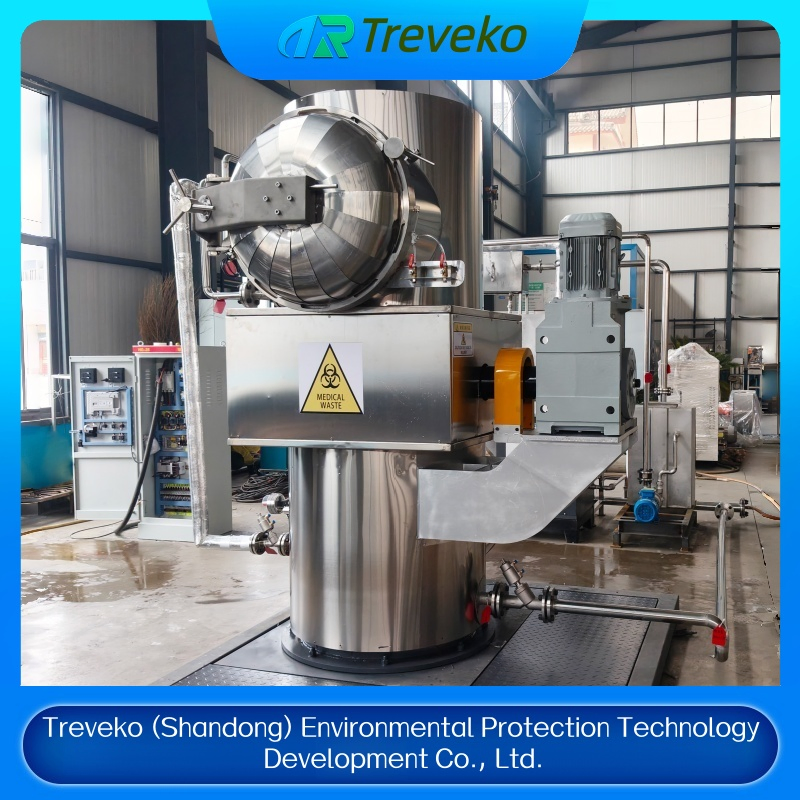

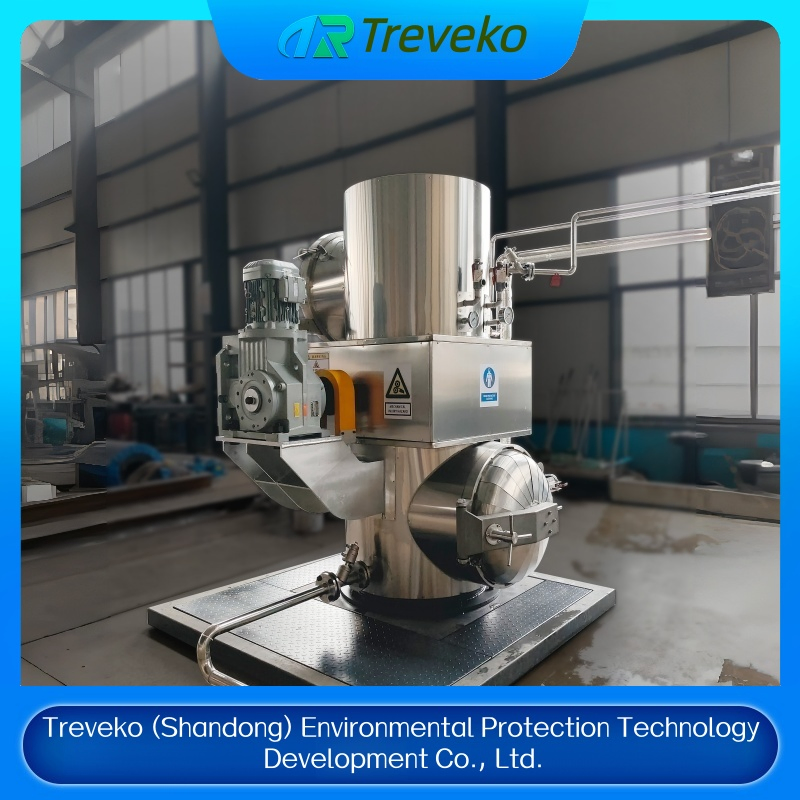

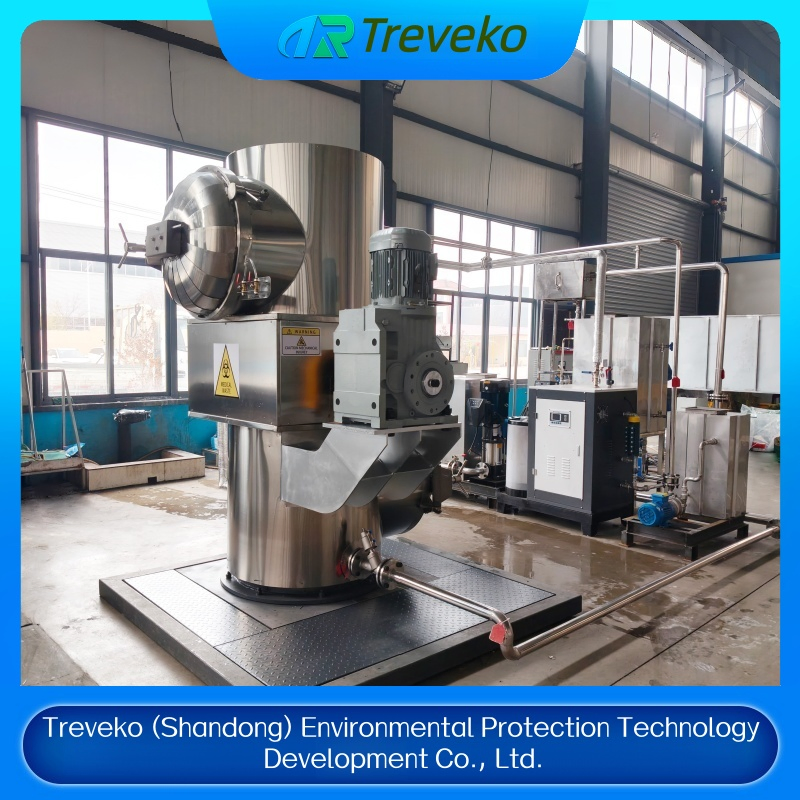

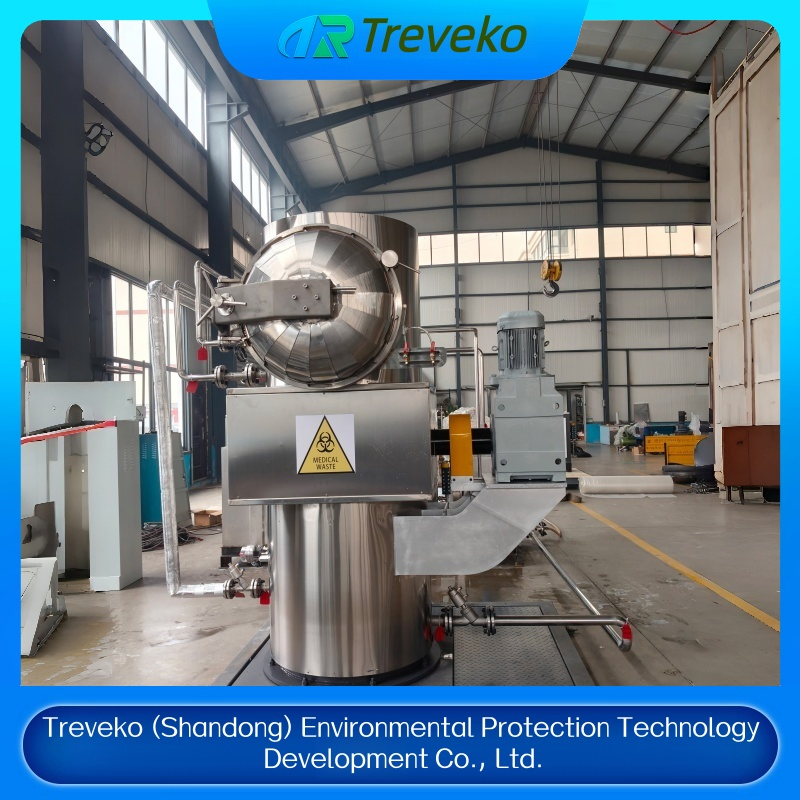

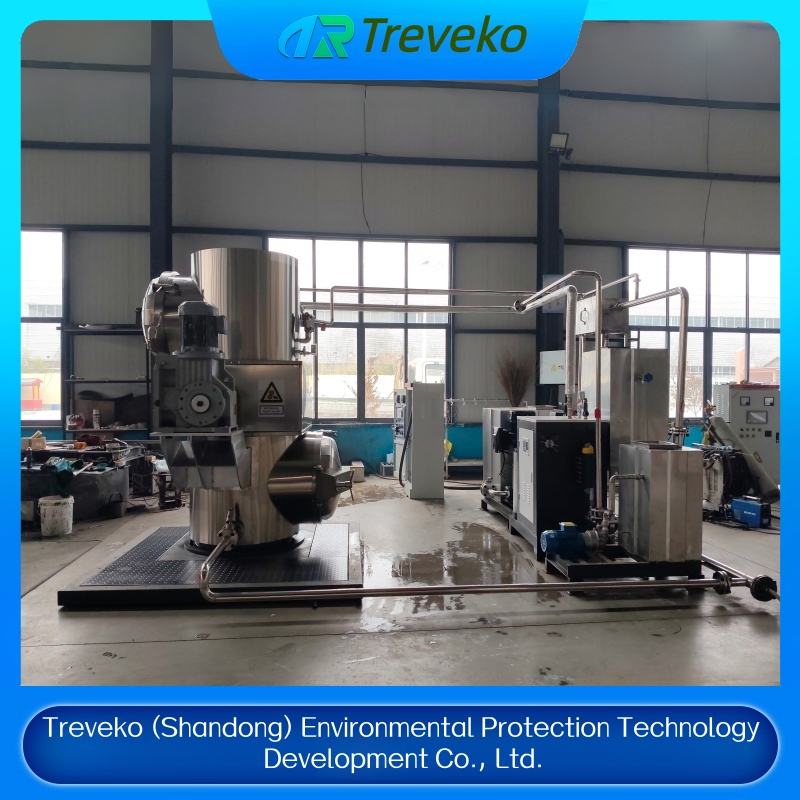

High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
1 / 5
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste
High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste

High-Capacity Vertical Steam Sterilizer for Pathogen Inactivation in Medical Waste

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
TR-VMT
Condition
New
Certification
ISO, CE
Automation
Automatic
Screw
Twin-Screw
Treatment
Steam
Processing Capacity
60kg/H
Sterilization Method
High-Temperature Steam
Working Temperature
134℃
Volume Reduction Rate
85%
Material
Stainless Steel
Volume
420L

Product Description

This series of vertical medical waste high-temperature steam sterilizers utilizes a vertical, sealed, pressure-resistant structure and saturated high-temperature steam sterilization technology. It is specifically designed for the centralized and harmless treatment of infectious and hazardous medical waste in healthcare facilities. The equipment uses high-temperature and high-pressure steam penetration to quickly and thoroughly kill bacteria, viruses, spores, and other pathogenic microorganisms.

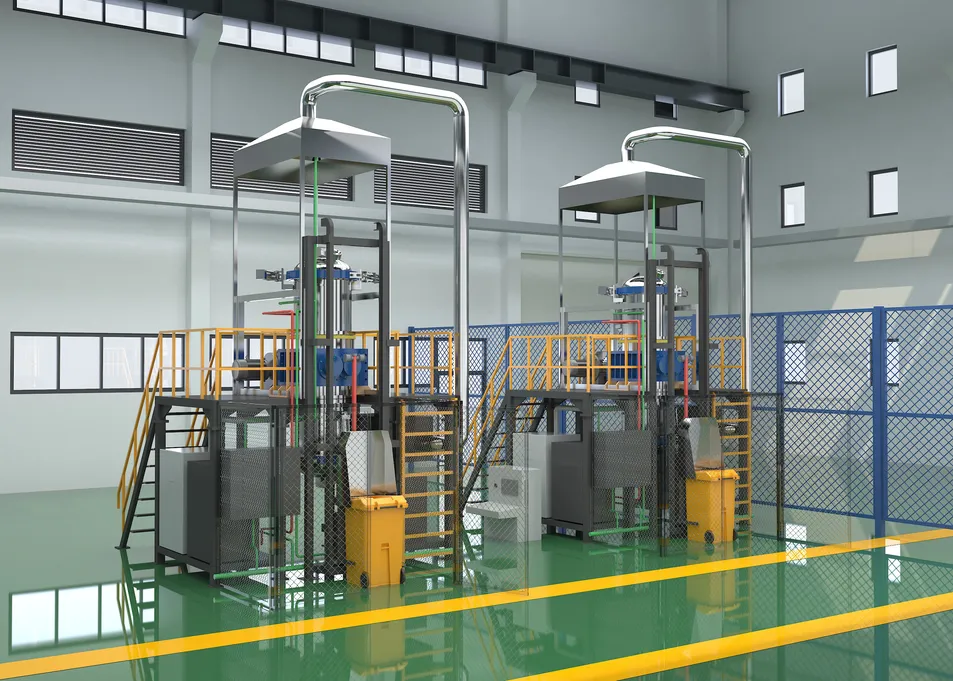

Vertical Steam Sterilizer View 1

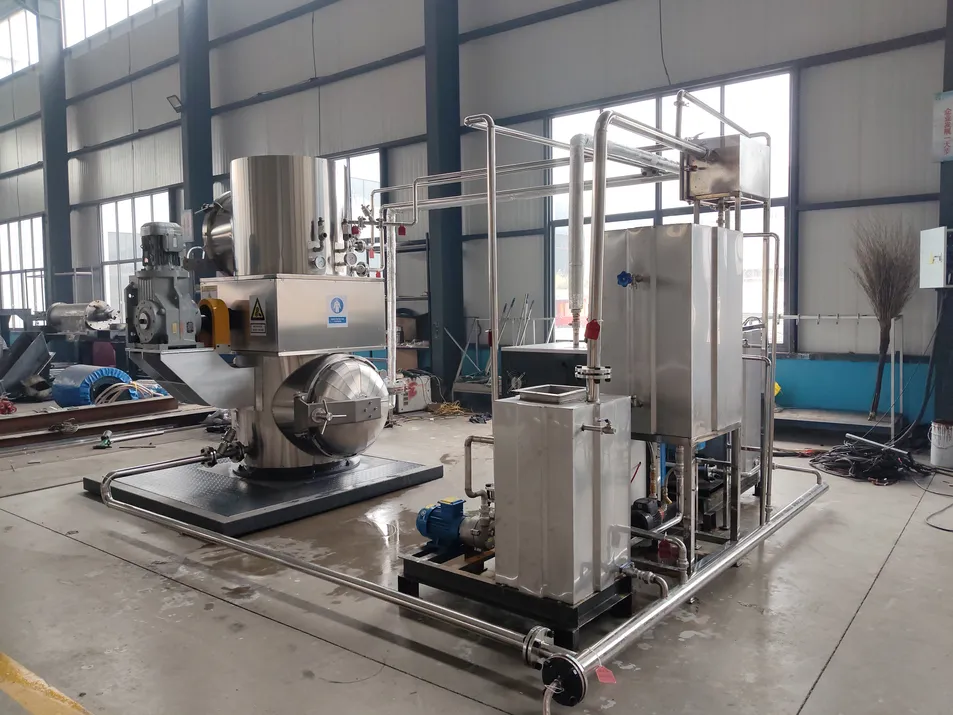

Vertical Steam Sterilizer View 2
The equipment features a vertical, integrated design, ensuring a stable structure and efficient use of space. It is equipped with an intelligent automatic control system for automatic temperature, pressure, and time monitoring, along with multiple safety interlocks to ensure safe operation. The entire process is completely sealed, preventing the leakage of waste gas and liquid.

Key Features

Vertical Structure

Small footprint utilizing vertical space. Ergonomic loading port design for easy cleaning and operation.

Intelligent Control

Fully automatic operation with one-button start. Features multiple program presets and data traceability for compliance audits.

Safety Mechanisms

Double-door safety interlock and real-time pressure monitoring with emergency manual release capability.

Environmental Friendly

High volume reduction rate (85%) and waste heat utilization to reduce overall energy consumption.

Technical Specifications

System Unit Project Technical Parameters Remarks
Processor Parameters Processing Volume 60 kg/h Density 0.1
Cycle Time 30 min -
Sterilization Method High-temperature Steam -
Final Effect Inactivation Level 8 Log10 Spore microbial
Container Info Volume 420L Stainless Steel
Work Pressure 0.3 MPa Design 0.4 MPa
Work Temp 134℃ Design 152℃
Crushing System Power 7.5kw*1 PLC Controlled

Customer Visits & Installation

Visit 1
Visit 2
Visit 3

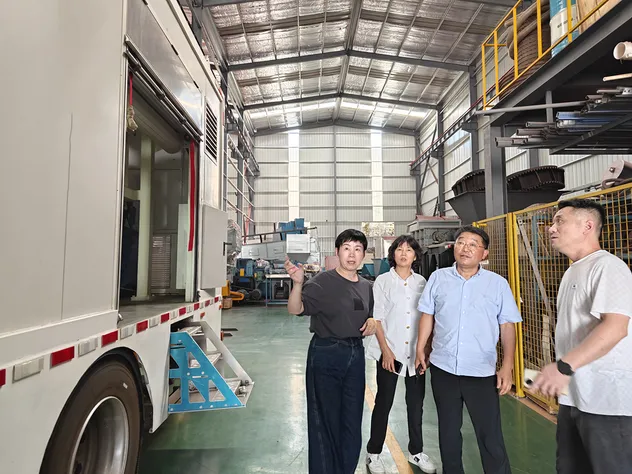

Visit 4
Visit 5
Visit 6

Frequently Asked Questions

Is this equipment customizable?
Yes. We support customization of core parameters such as processing capacity, overall size, and control system requirements to fit your facility's needs.
What is the sterilization efficiency?
The equipment achieves a spore microbial inactivation level of 8 Log10, ensuring high-standard disinfection of medical waste.
How is the equipment maintained?
We provide comprehensive after-sales service, including video training and detailed manuals. Core components have a 1-3 year warranty with lifetime spare parts supply.
Does the equipment meet international standards?
Yes, our sterilizers are manufactured in accordance with strict regulations and have passed CE and ISO certifications.
What is the typical delivery time?
Delivery time is negotiated based on specific customization requirements and existing production schedules, typically ensuring efficient fulfillment.
How do you ensure quality before shipping?
Every unit undergoes rigorous factory testing. We can provide test videos or invite customers for on-site inspections prior to dispatch.
