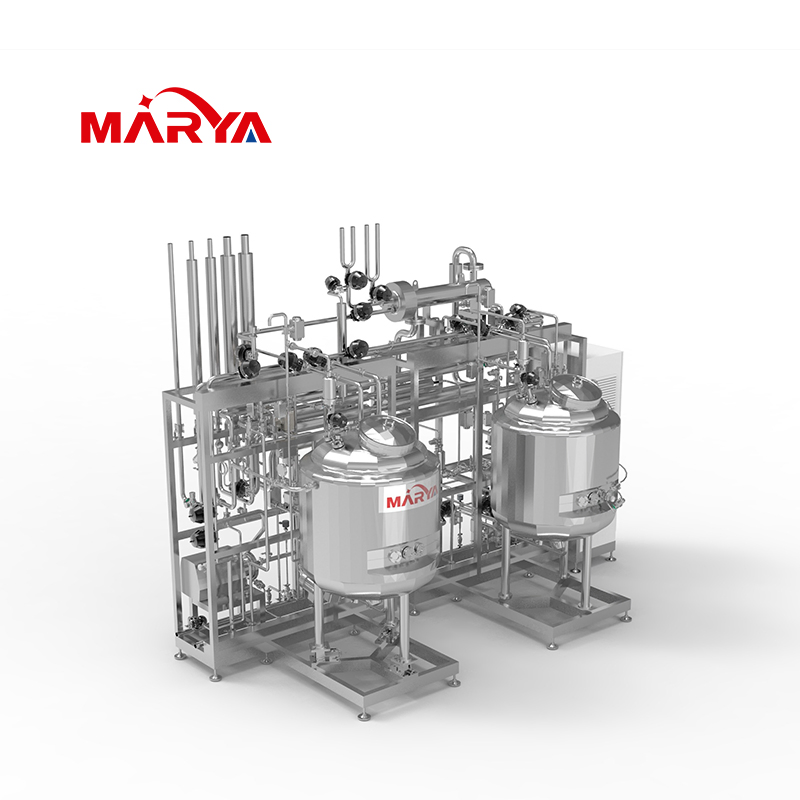

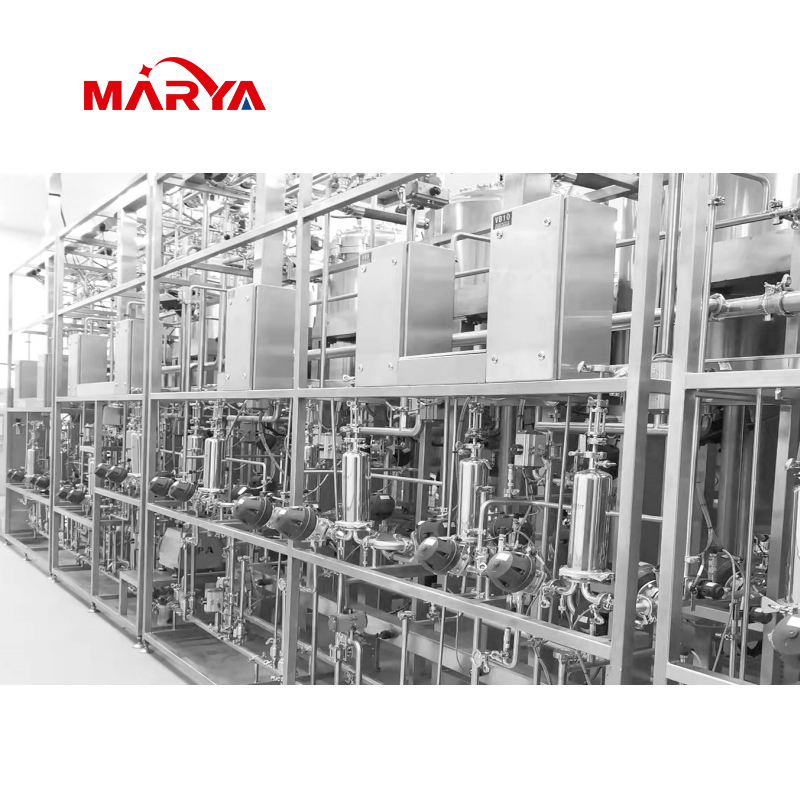

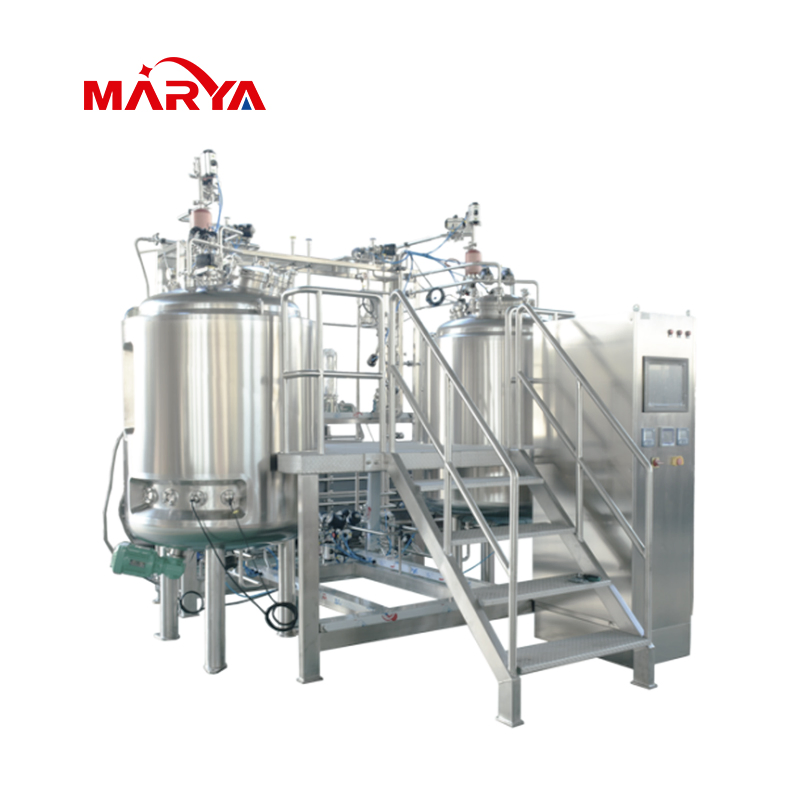

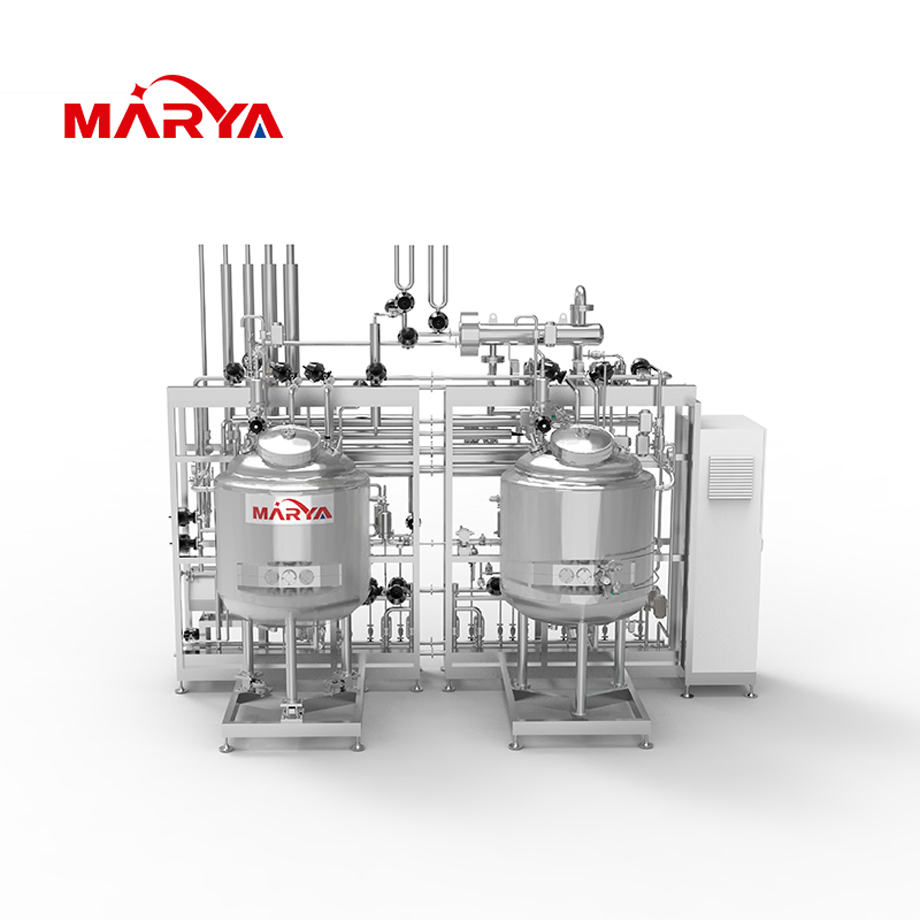

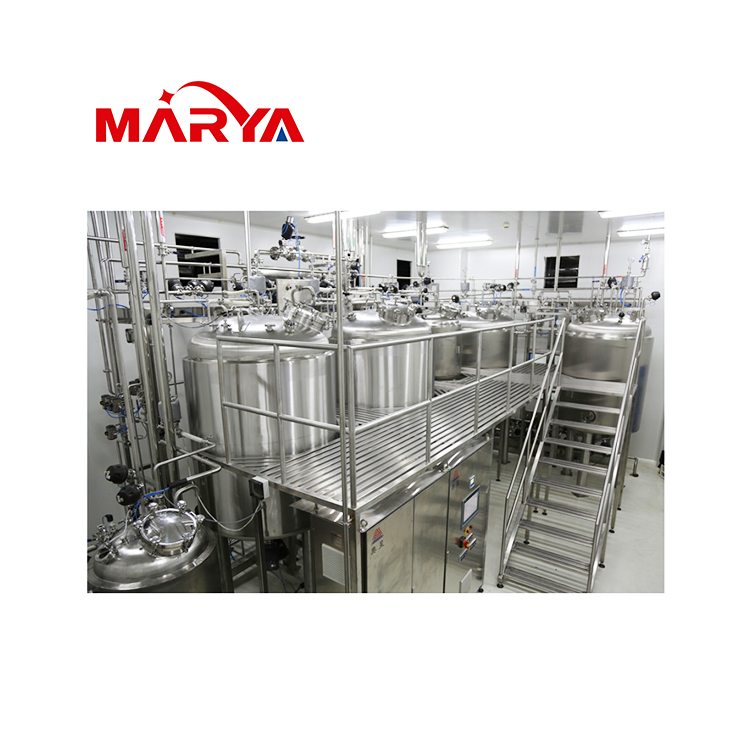

Biologics Vaccination Solution & Formulation Vessel Mixing Tank System
The preparation system is specialized pharmaceutical equipment designed to mix and dispense liquids. It functions by adding Active Pharmaceutical Ingredients (API) to solvents, such as water for injection, formulating them into pharmaceutical agents at precise concentrations through advanced stirring, heating, sterilization, and filtration processes.

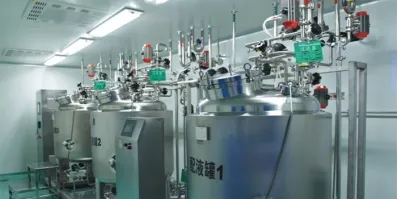

1. General Preparation System: Used for small molecule chemical preparations, such as aqueous injections and lyophilized powder injections.

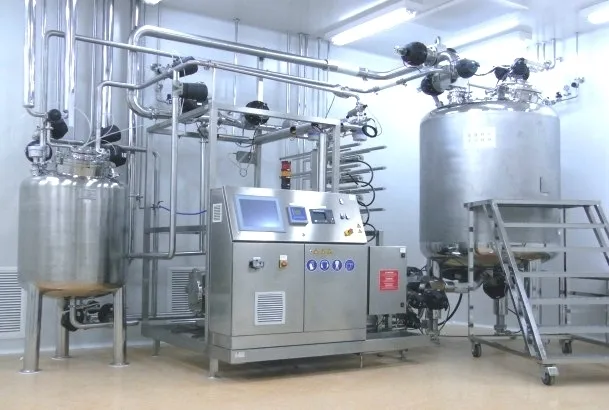

2. Complex Preparation System: Designed for suspensions, emulsions, liposomes, and microspheres requiring complex processing.

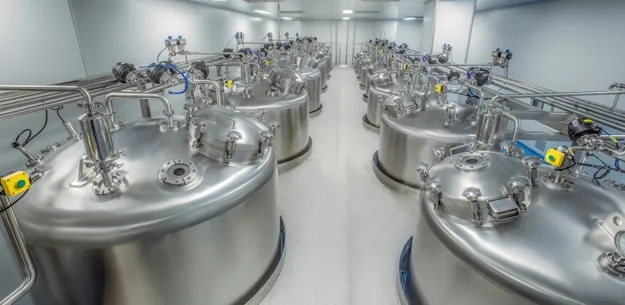

3. Biological Preparation System: Applied in bio-engineering for vaccines, antibodies, blood products, and recombinant proteins.

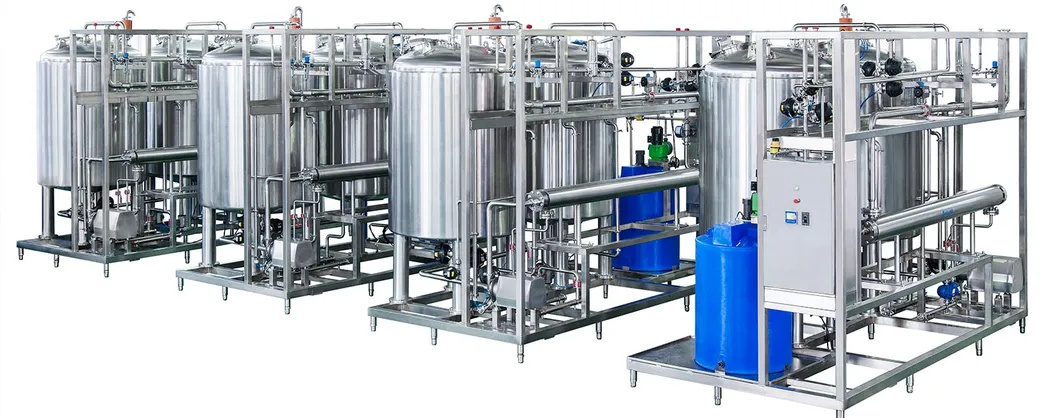

4. CIP Station System: Integrated or standalone system used for on-line cleaning (Clean-in-Place) of tanks and pipelines across various bioreactor systems.
| Performance Name | Technical Parameters |
|---|---|
| Working Volume | 2 ~ 15000L |
| Stirring Speed Control Accuracy | Range 0~450rpm, ±3.0% |
| Temperature Control Accuracy | Range -10~150ºC, ±0.2ºC |
| Pressure Control Accuracy | Range -0.01Mpa~0.06Mpa, ±0.01MPa |
| Weighing Control Accuracy | 3‰ |
| Power Supply | 380V 50Hz (Other voltages require transformer) |
| Sealing and Protection Levels | IP65 |
